NSN 6645-00-151-5280 M3971/2-1, M397121, MILM3971
Product Details | TIME TOTALIZING METER
6645-00-151-5280 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: M3971/2-1, M397121, MILM3971, MIL-M-3971, 10NG1, 10N-G1, 10NG1H, 10N-G1-H, 6645-00-151-5280, 00-151-5280, 6645001515280, 001515280
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 FEB 1971 | 00-151-5280 | 08066 ( METER, TIME TOTALIZING ) |

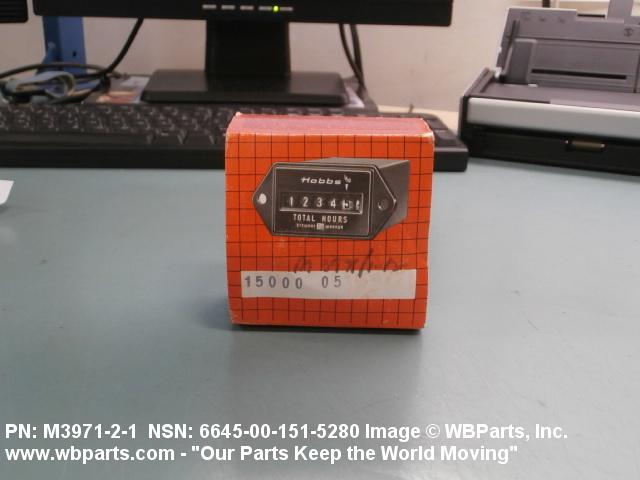

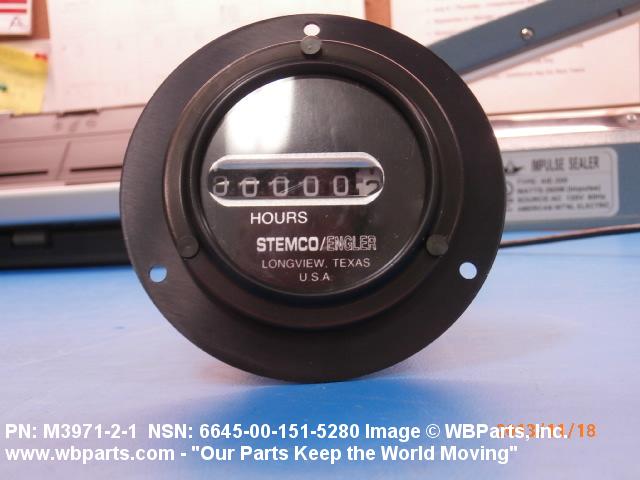

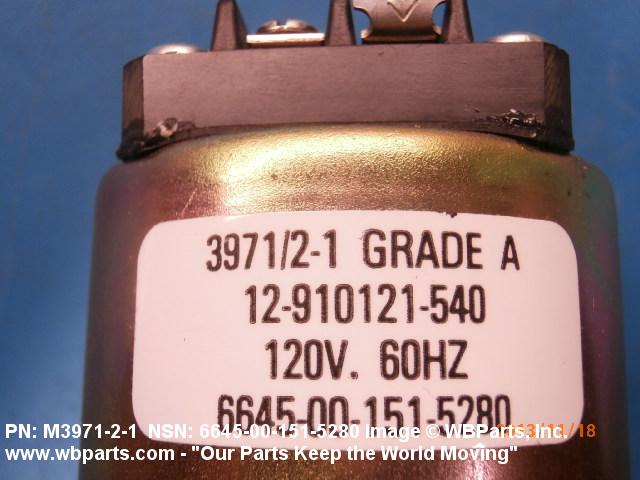

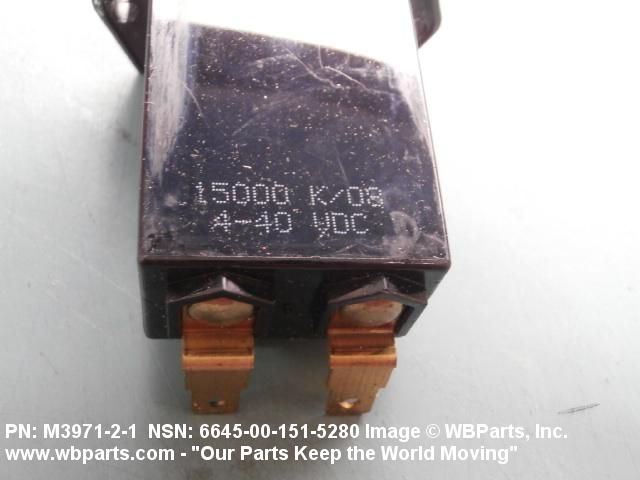

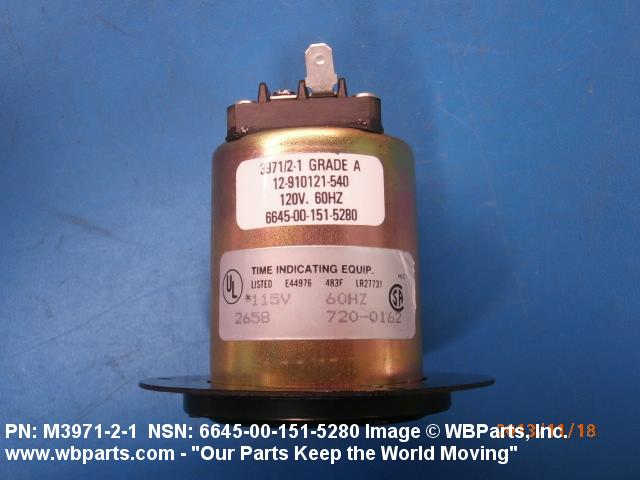

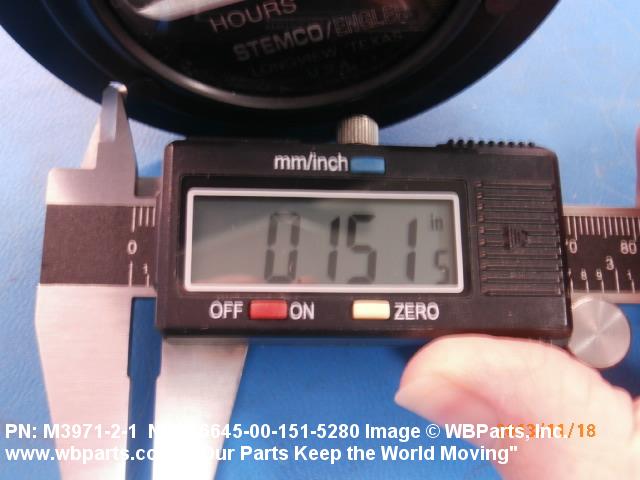

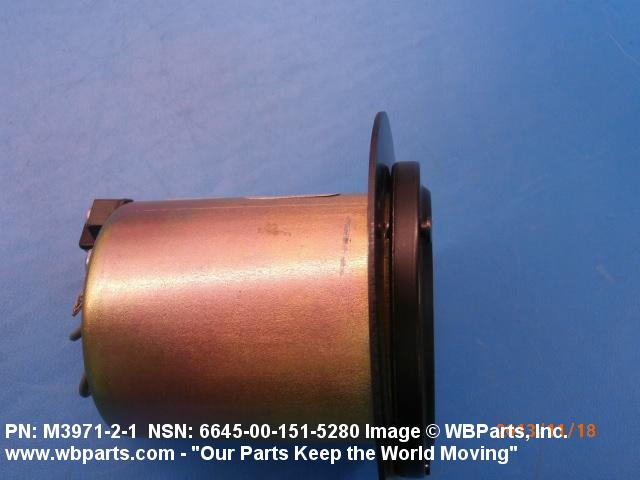

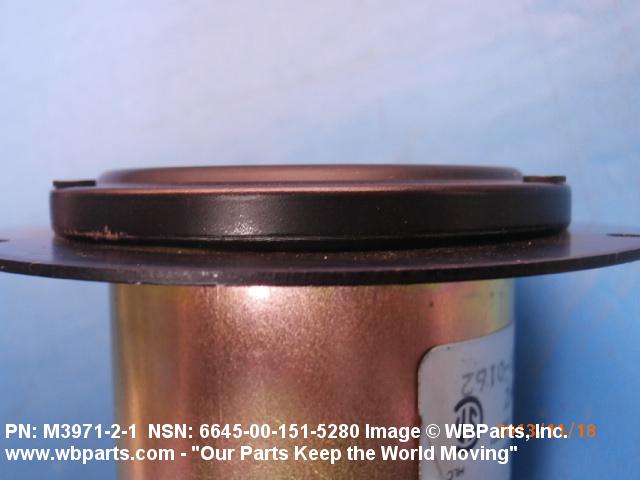

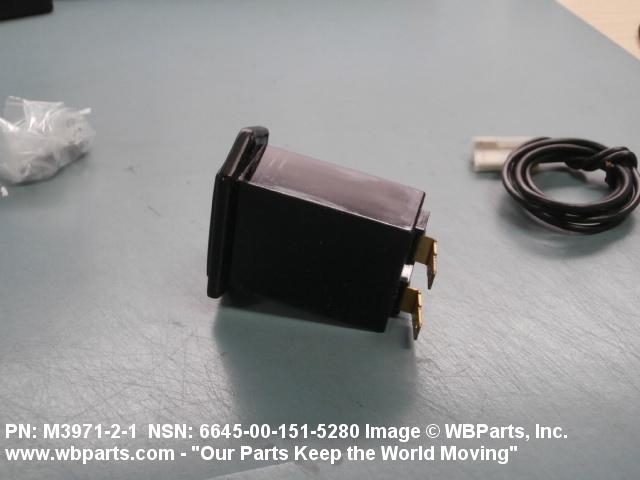

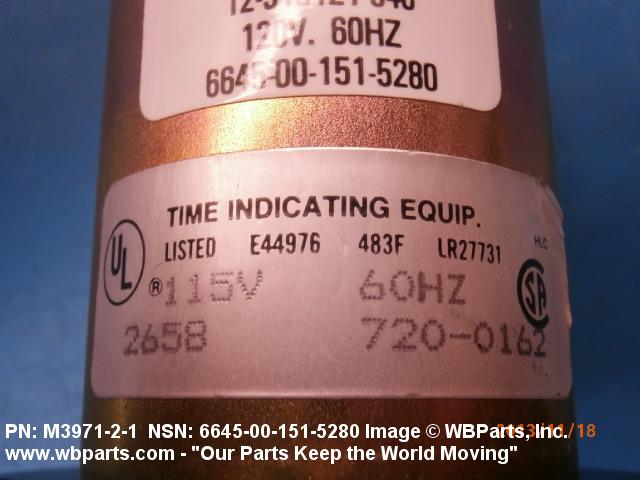

Drawings & Photos | NSN 6645-00-151-5280
Demand History | NSN 6645-00-151-5280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-00-151-5280 | 2019-06-162 | 1 | US |
| M397121 | 2019-04-105 | 3 | US |
| 6645-00-151-5280 | 2013-11-316 | 1 | United States |
| 6645-00-151-5280 | 2013-11-311 | 1 | United States |
Cross Reference | NSN 6645-00-151-5280
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-00-151-5280
Related Products | NSN 6645-00-151-5280
Technical Data | NSN 6645-00-151-5280
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 99999.90 |
| SMALLEST INCREMENT INDICATED | 0.10 |
| MARKING COLOR | BLACK NUMERALS FOR MINUTES,WHITE NUMERALS FOR HOURS |
| BACKGROUND COLOR | WHITE BACKGROUND ON TENTHS WHEEL,BLACK BACKGROUND ON HOURS WHEEL |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | SYNCHRONOUS MOTOR |
| CURRENT TYPE | AC |
| VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| OPERATING FREQUENCY | 60.0 HERTZ NOMINAL |

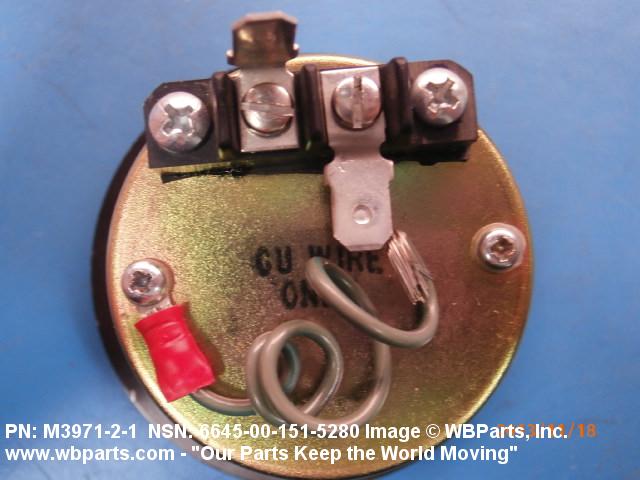

| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER |
| CASE MATERIAL | ANY ACCEPTABLE |
| HERMETIC PROTECTION | NOT PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | PANEL |
| MOUNTING METHOD | FLUSH |

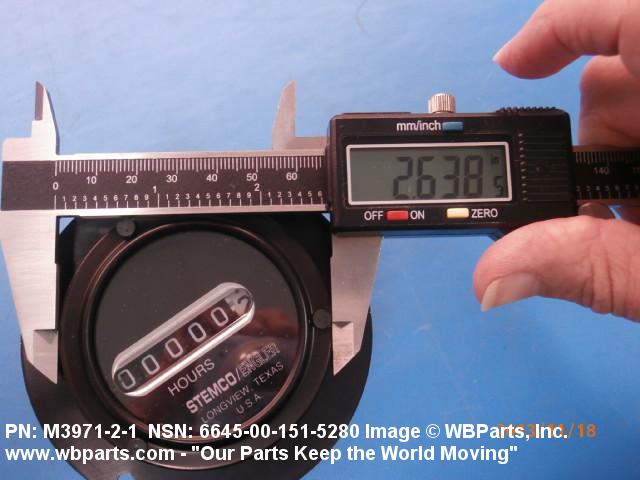

| MOUNTING FLANGE DIAMETER | 2.695 INCHES MAXIMUM |

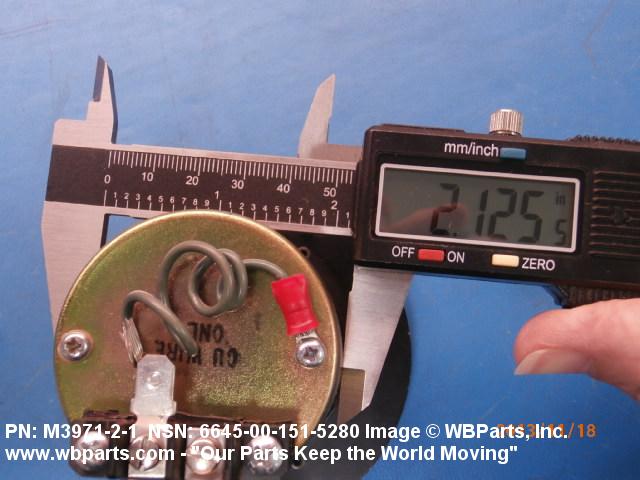

| BODY DIAMETER | 2.210 INCHES MAXIMUM |
| BODY DEPTH | 3.000 INCHES MAXIMUM |
| MOUNTING CONFIGURATION | THREE 0.125 IN. DIA MTG HOLES ON 1.220 IN. RADIUS SPACED 120 DEG APART |
| NONDEFINITIVE SPEC/STD DATA | II TYPE AND A GRADE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-3971 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3971/2-1 |
Restrictions/Controls & Freight Information | NSN 6645-00-151-5280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-00-151-5280
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
