NSN 6645-00-255-1372 MS173222, MS17322-2, MS173226

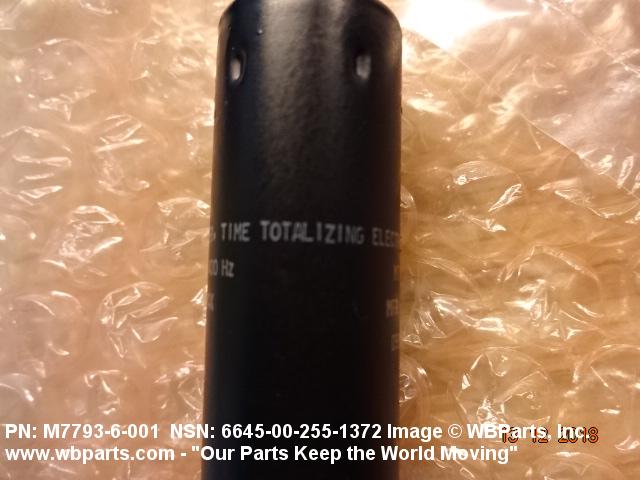

Product Details | TIME TOTALIZING METER

6645-00-255-1372 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.

Part Alternates: MS173222, MS17322-2, MS173226, MS17322-6, MS173229, MS17322-9, MS245343, MS24534-3, M7793/6-001, M77936001, ME1160/01/0, ME1160/01/1, ME1160010, ME1160011, MILM7793, MIL-M-7793, D95B8C2, J100ZZ2C000000, J100ZZ2C000-000, K192232000W, K19223-2000W, K19223W, K-19223-W, K19223WO, K19223-WO, L512002503, U232H3X2, U232-H3-X2, 082-000579, 2262653, 41535507, 4153550-7, 4560033001, 456-0033-001, 4580995000, 458-0995-000, 082-000578, 6791050111, 67910-501-11, 95B8C2, 6645-00-255-1372, 00-255-1372, 6645002551372, 082000578, 082000579, 002551372

Instruments and Laboratory Equipment | Time Measuring Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	30 JUL 1969	00-255-1372	08066 ( METER, TIME TOTALIZING )

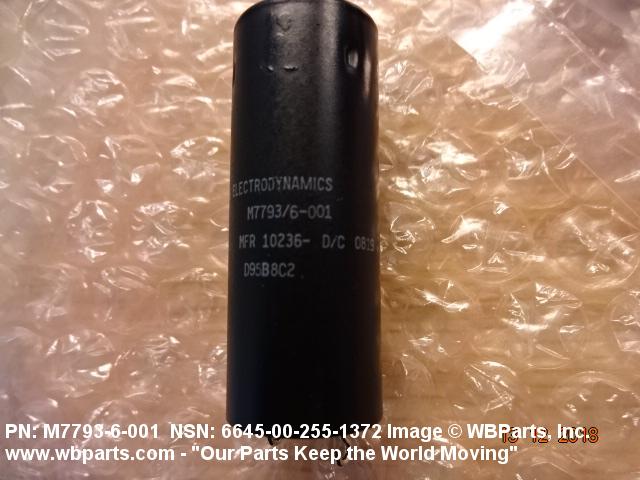

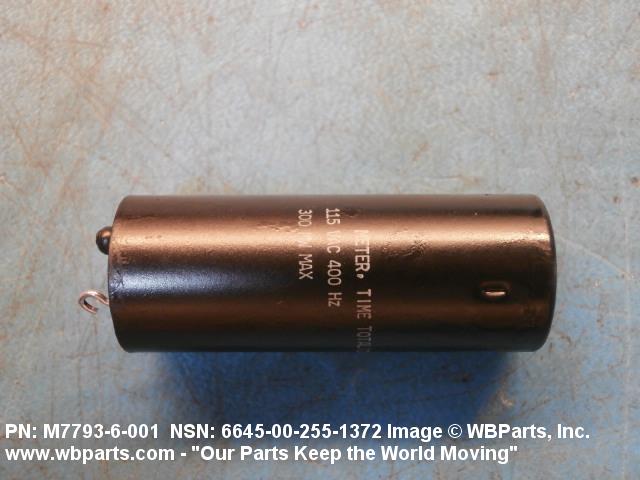

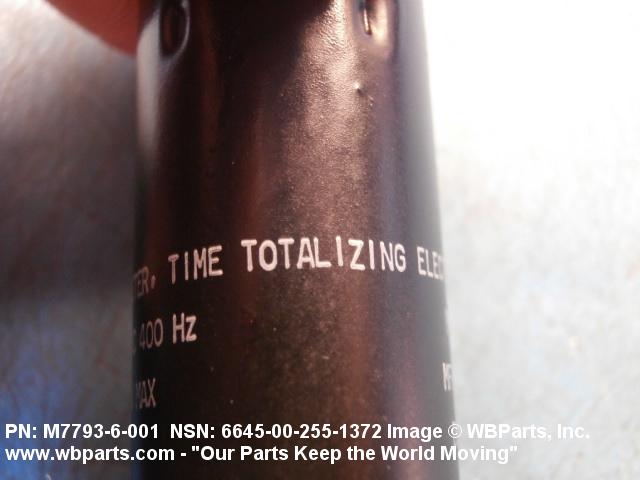

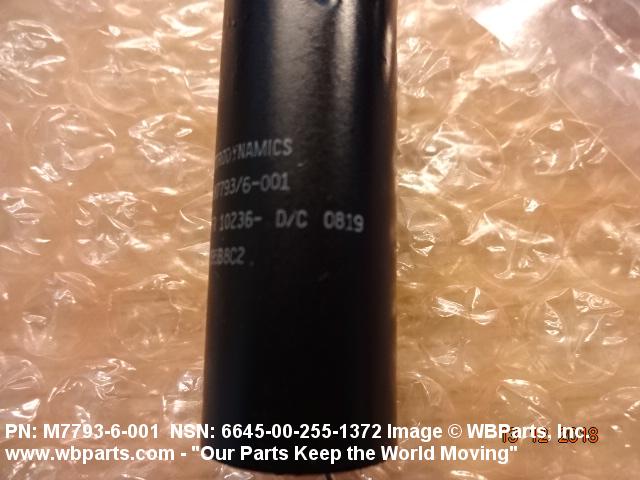

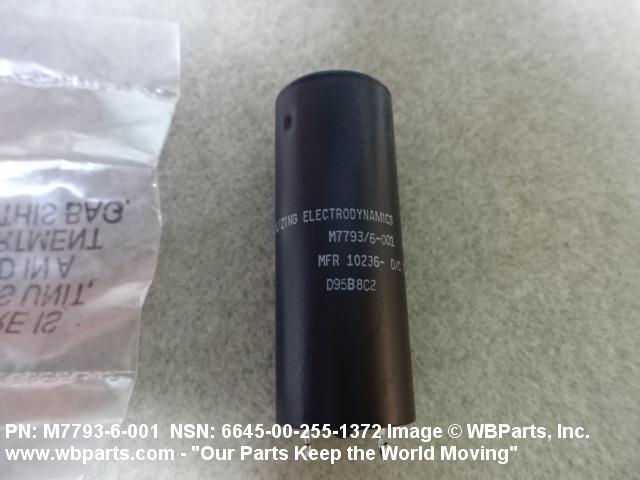

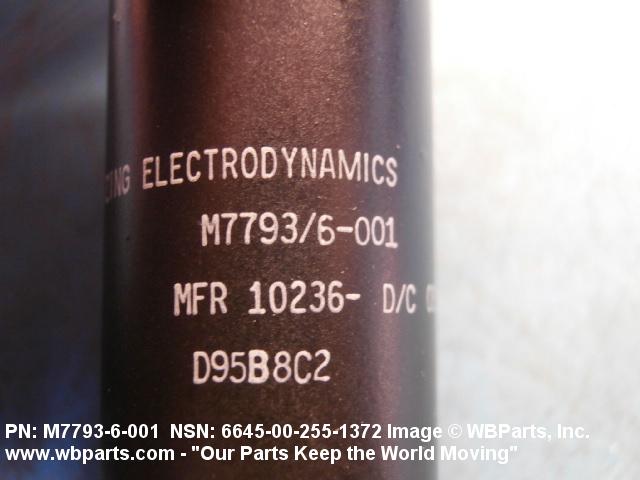

Drawings & Photos | NSN 6645-00-255-1372

Part Number	Request Date	QTY	Origin
MS173226	2024-07-192	1	United States
MS173226	2022-10-286	1	US
6645-00-255-1372	2022-10-279	23	United States
6645-00-255-1372	2022-09-272	1	US
6645-00-255-1372	2021-07-206	44	DIBBS
6645-00-255-1372	2021-06-179	1	US
6645-00-255-1372	2020-02-45	1	US
6645-00-255-1372	2019-08-235	6	PK
MS173226	2019-01-17	1	Pakistan
6645-00-255-1372	2019-01-16	1	PK
6645-00-255-1372	2019-01-14	1	US
6645-00-255-1372	2018-10-296	24	United States
6645-00-255-1372	2018-07-191	44	DIBBS
6645-00-255-1372	2018-05-142	44	DIBBS
6645-00-255-1372	2018-04-95	1	DIBBS-RFPs
6645-00-255-1372	2018-01-03	44	DIBBS
6645-00-255-1372	2017-08-220	44	DIBBS
6645-00-255-1372	2017-05-130	1	DIBBS-RFPs
6645-00-255-1372	2016-09-264	44	DIBBS
6645-00-255-1372	2016-04-97	100	DIBBS
6645-00-255-1372	2015-01-23	44	DIBBS
M77936001	2014-10-286	10	Taiwan
MS173229	2012-10-296	22	TR
K192232000W	2012-10-292	5	United States
M77936001	2012-10-292	12	United States
6645-00-255-1372	2011-08-228	44	DIBBS
M77936001	2010-12-350	7	United States
M77936001	2010-12-350	7	United States
6645-00-255-1372	2010-02-39	6	Taiwan
MILM7793	2010-01-26	132	Taiwan
6645-00-255-1372	2006-10-295	2	United Arab Emirates

Cross Reference | NSN 6645-00-255-1372

Part Number	Cage Code	Manufacturer
082-000578	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
082-000579	20209	ELGIN NATIONAL INDUSTRIES INC
2262653	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
4153550-7	05869	RAYTHEON COMPANY DBA RAYTHEON
456-0033-001	94756	BOEING COMPANY, THE DBA BOEING
458-0995-000	20209	ELGIN NATIONAL INDUSTRIES INC
67910-501-11	94756	BOEING COMPANY, THE DBA BOEING
95B8C2	10236	ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS

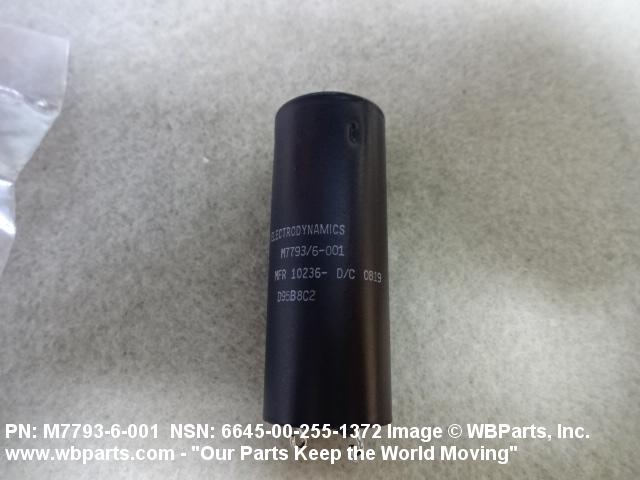

D95B8C2	10236	ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS
J100ZZ2C000-000	C1069	AKT ? AVIATION KEYTRONIC TECHNOLOGYGMBH
K-19223-W	82227	VDO CONTROL SYSTEMS INC
K19223-2000W	82227	VDO CONTROL SYSTEMS INC
K19223-WO	82227	VDO CONTROL SYSTEMS INC
L512002503	36090	LOCKHEED MARTIN LIBRASCOPE CORP
M7793/6-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
ME1160/01/0	S3514	SAAB AB PUBL - ELECTRONIC DEFENCE SYSTEMS
ME1160/01/1	S3514	SAAB AB PUBL - ELECTRONIC DEFENCE SYSTEMS
MIL-M-7793	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS17322-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17322-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17322-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24534-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
U232-H3-X2	S3120	SIEMENS SCHWEIZ AG DBA SIEMENS SWITZERLAND LTD.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6645-00-255-1372

Compare

Related Products | NSN 6645-00-255-1372

6645-00-255-5533, 6645-00-255-5539, 6645-00-255-5540, 6645-00-255-5541, 6645-00-255-5542

Technical Data | NSN 6645-00-255-1372

Characteristic	Specifications

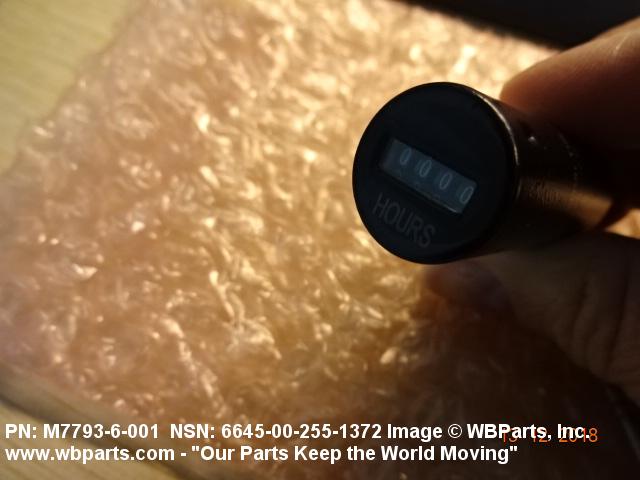

INDICATOR TYPE	DRUM REGISTER
MEASUREMENT UNIT	HOURS
MAXIMUM MEASUREMENT	9999.00
SMALLEST INCREMENT INDICATED	1.00
MARKING COLOR	WHITE
BACKGROUND COLOR	BLACK
RESET FEATURE	NOT PROVIDED
MOVEMENT TYPE	ELECTRICAL
ELECTRICAL MOVEMENT TYPE	SYNCHRONOUS MOTOR
CURRENT TYPE	AC

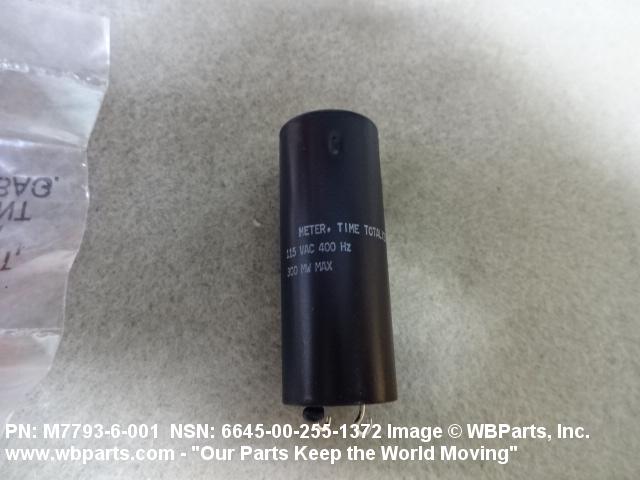

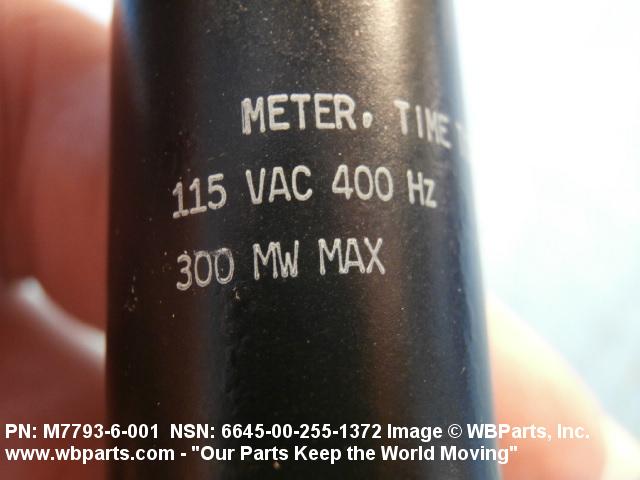

VOLTAGE RATING	115.0 VOLTS NOMINAL
OPERATING FREQUENCY	400.0 HERTZ NOMINAL
TERMINAL QUANTITY	2

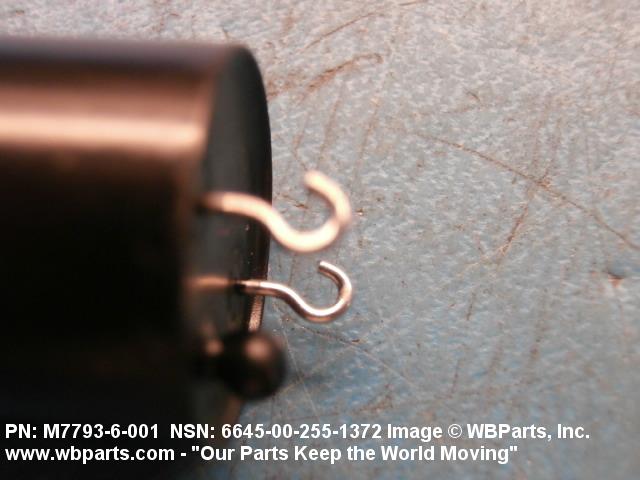

TERMINAL TYPE	SOLDER LUG
CASE MATERIAL	METAL
HERMETIC PROTECTION	PROVIDED
UNIT TYPE	MOUNTED
MOUNTING TYPE	CLAMP
OVERALL DIAMETER	0.650 INCHES MINIMUM AND 0.690 INCHES MAXIMUM

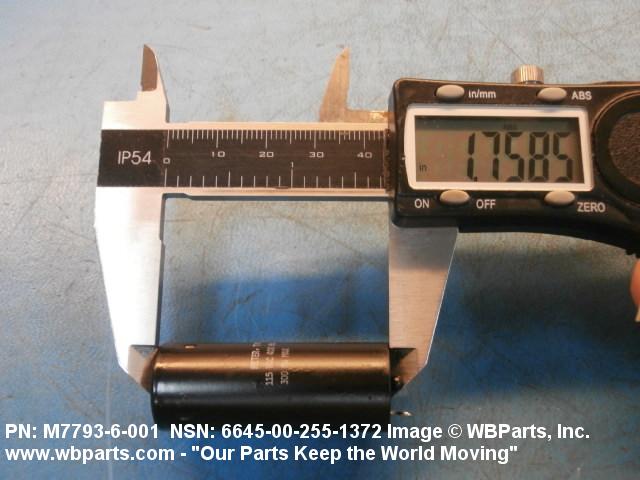

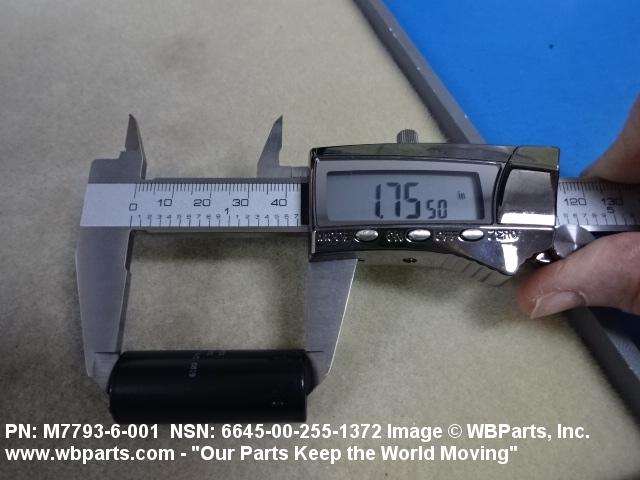

OVERALL DEPTH	1.750 INCHES NOMINAL

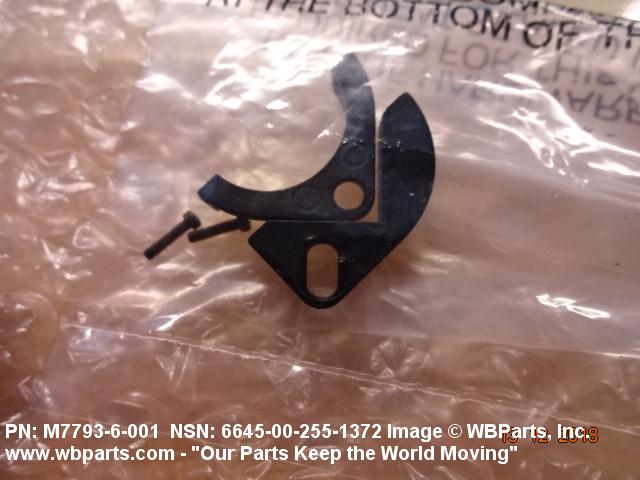

MOUNTING CONFIGURATION	FLANGE,SPLIT MTG,MS3345-1
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-M-7793
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M7793/6-001

Restrictions/Controls & Freight Information | NSN 6645-00-255-1372

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	136740	METERS ELEC/PARTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	653	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6645-00-255-1372

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EW	TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
