NSN 6645-01-231-2068 T12C62B, 7381660P2, 01-231-2068
Product Details | TIME TOTALIZING METER
6645-01-231-2068 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: T12C62B, 7381660P2, 6645-01-231-2068, 01-231-2068, 6645012312068, 012312068
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 24 APR 1986 | 01-231-2068 | 08066 ( METER, TIME TOTALIZING ) |

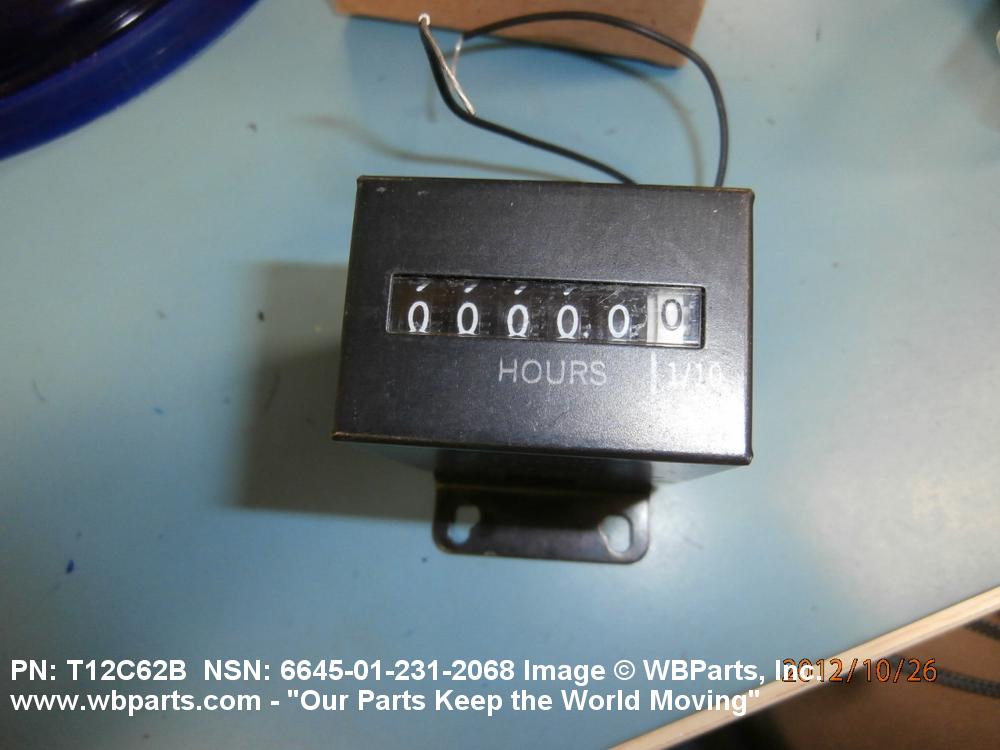

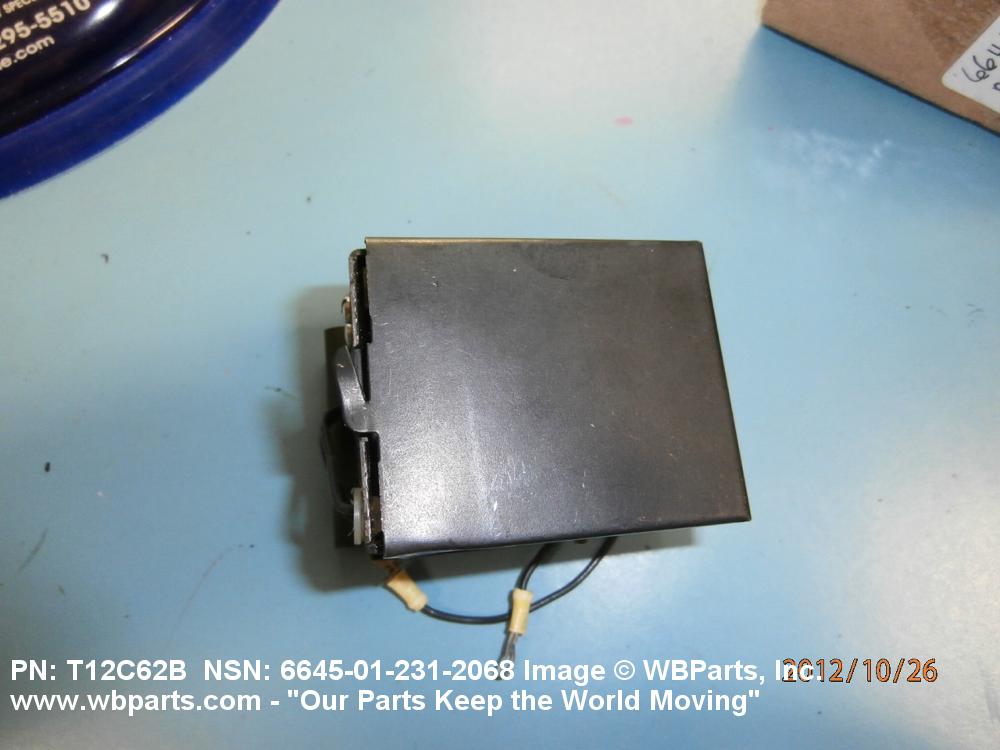

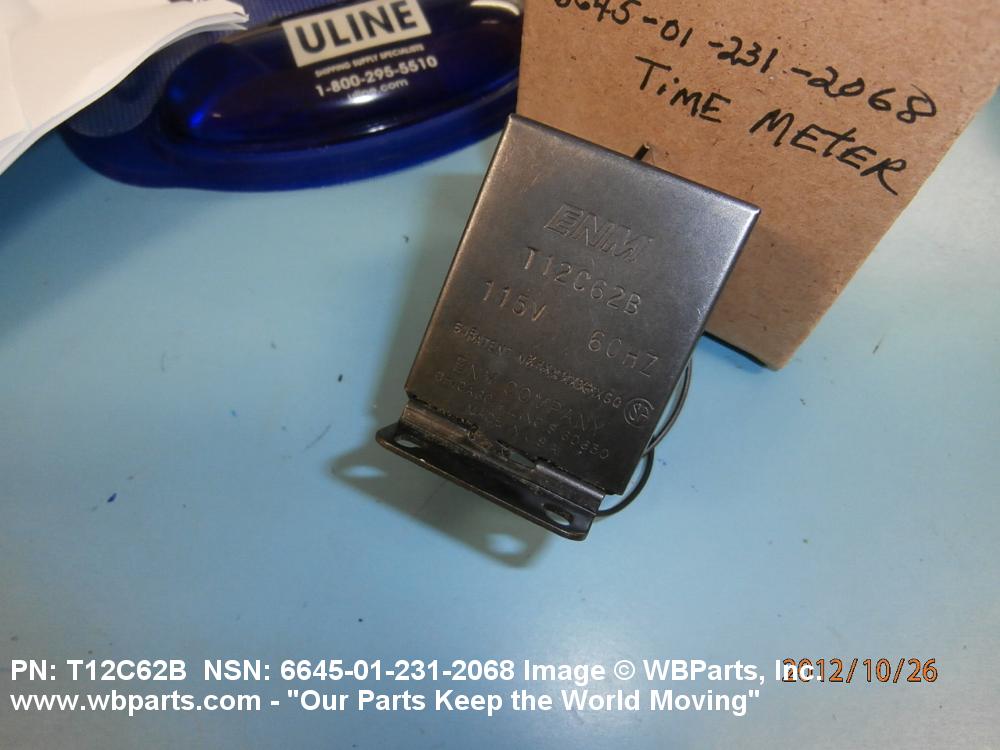

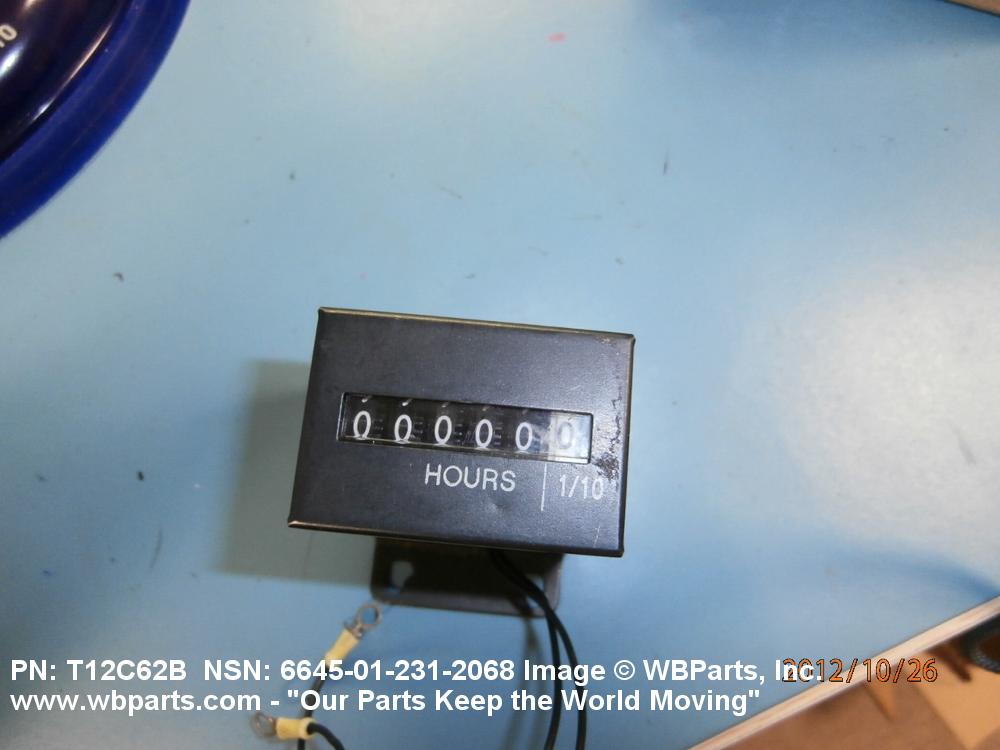

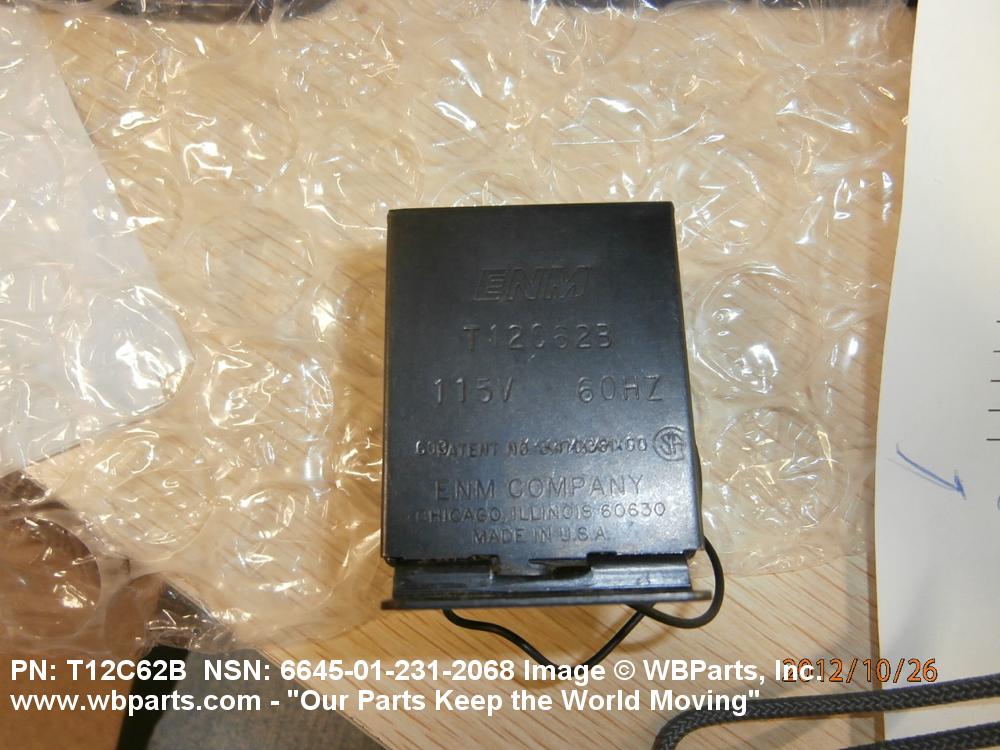

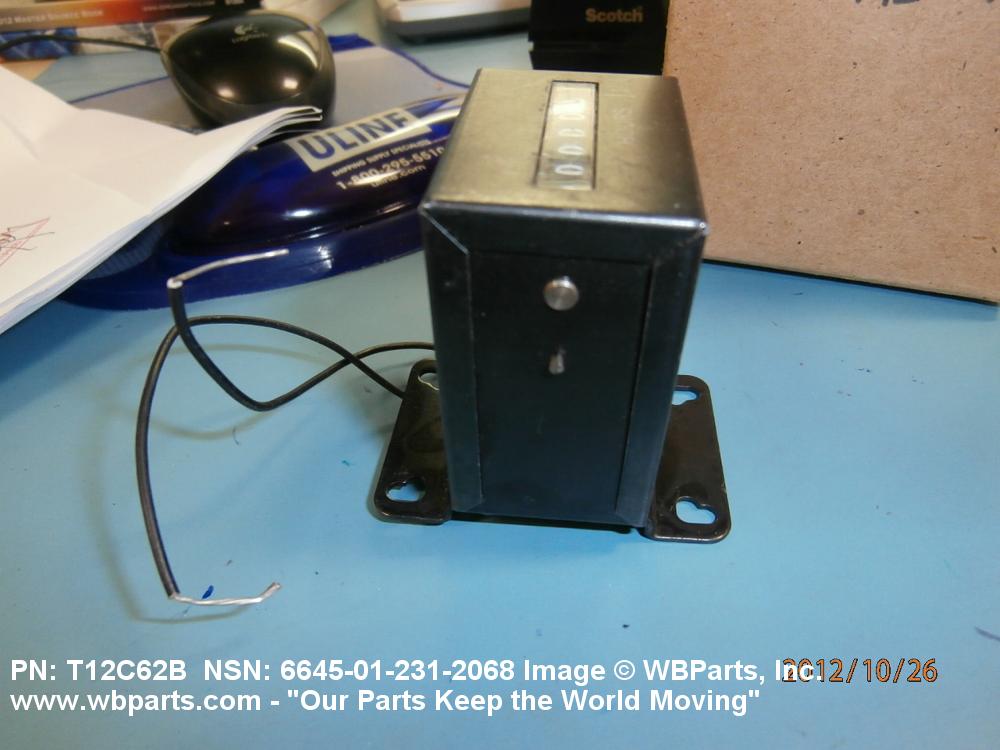

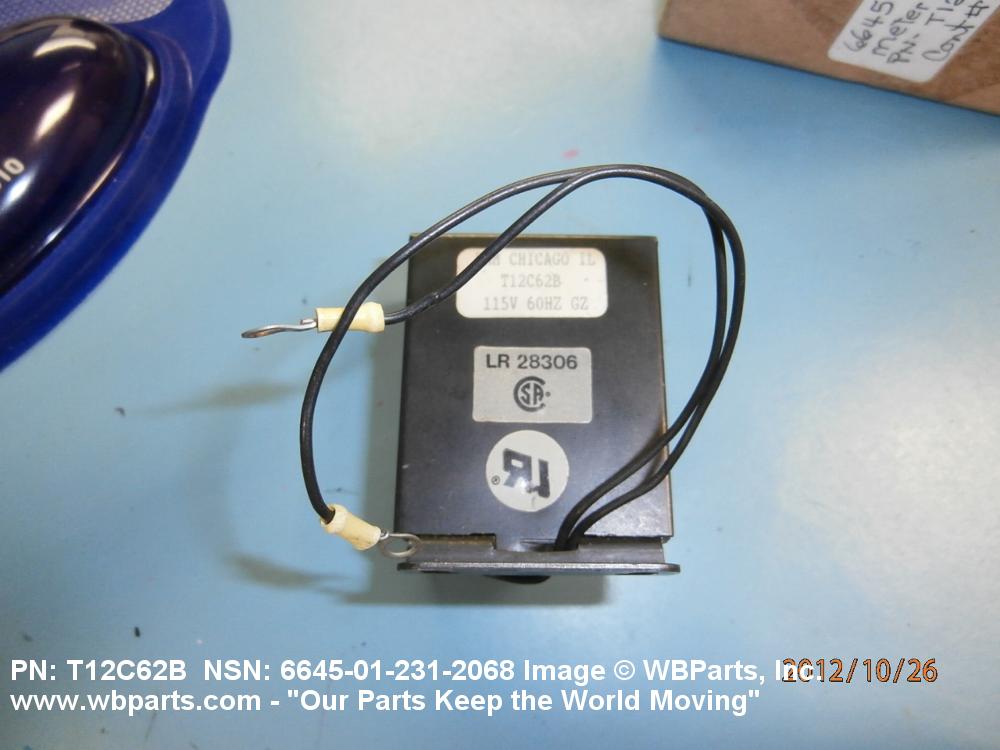

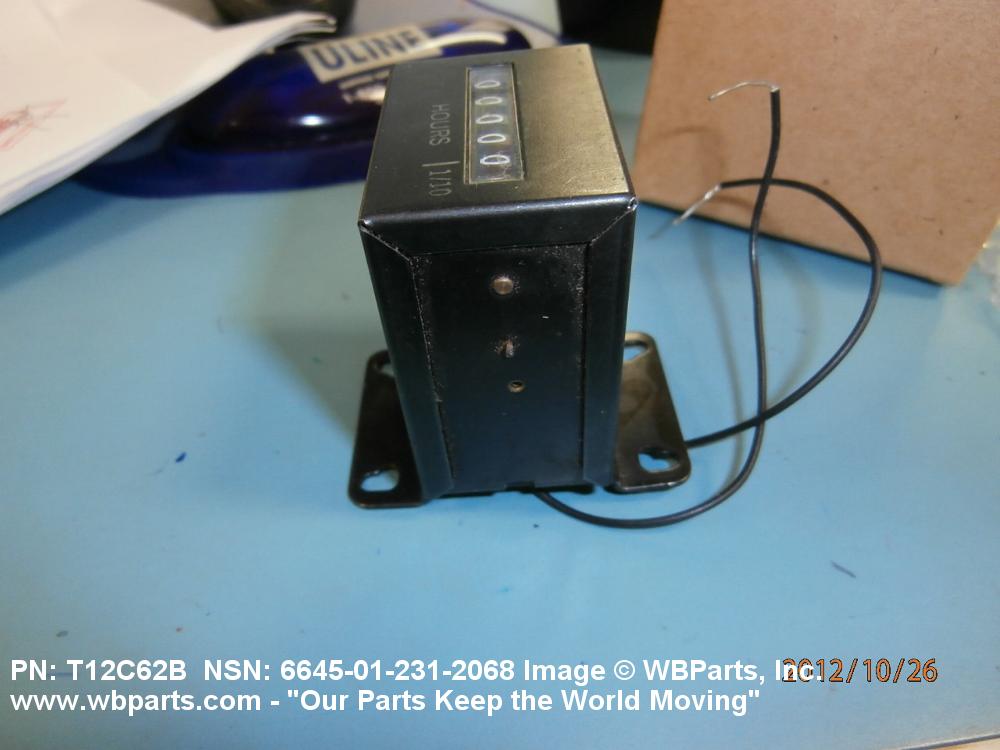

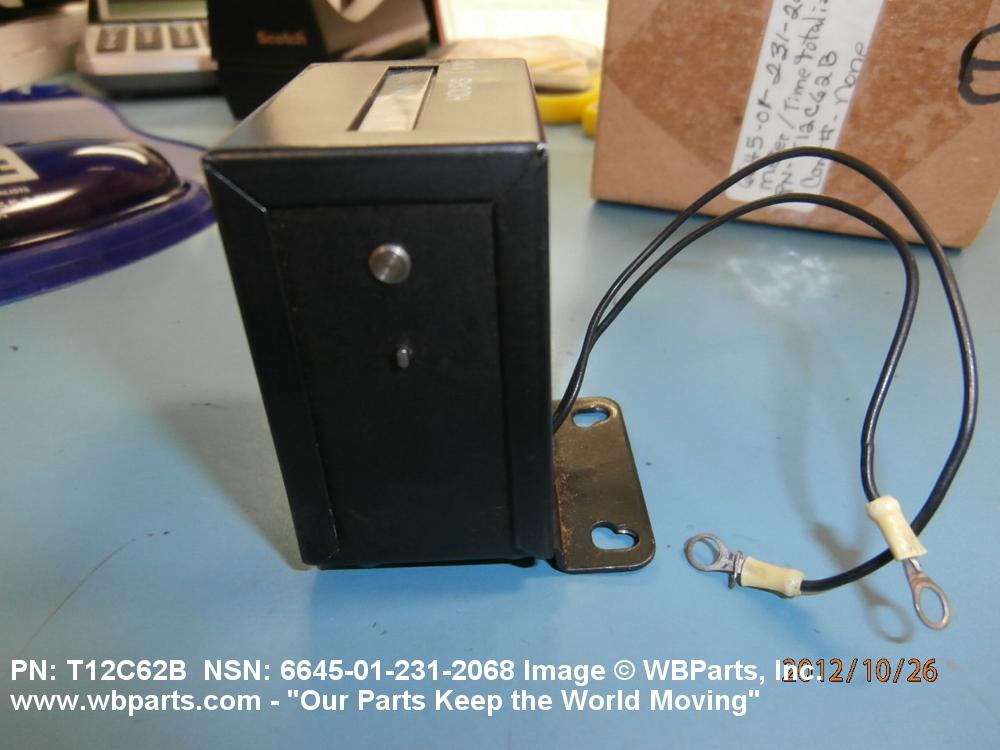

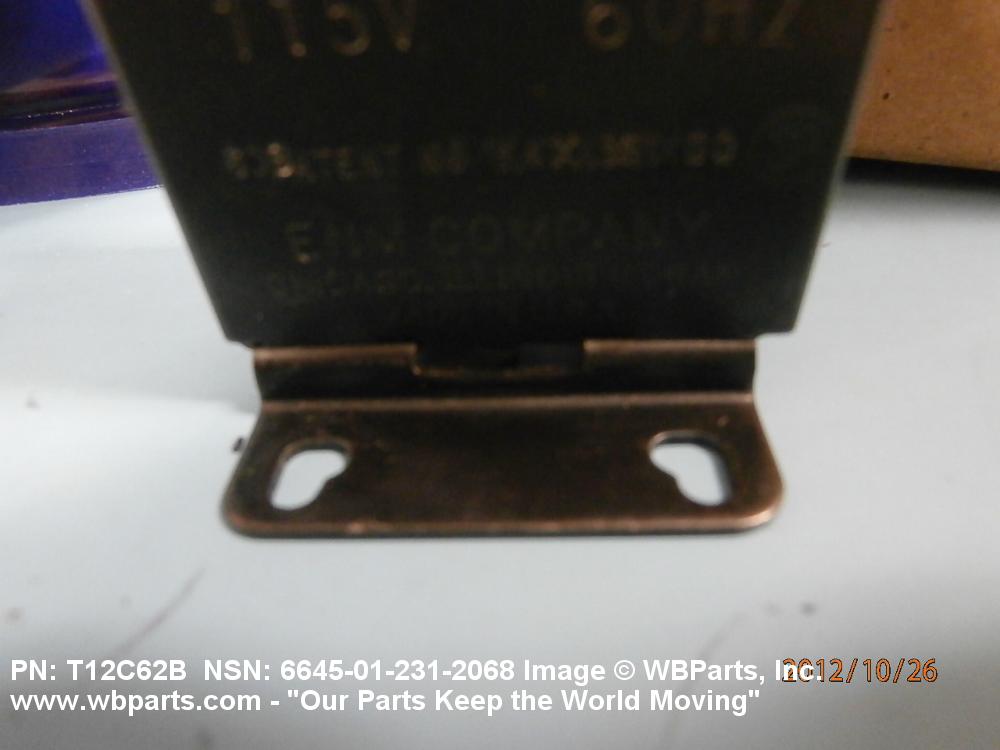

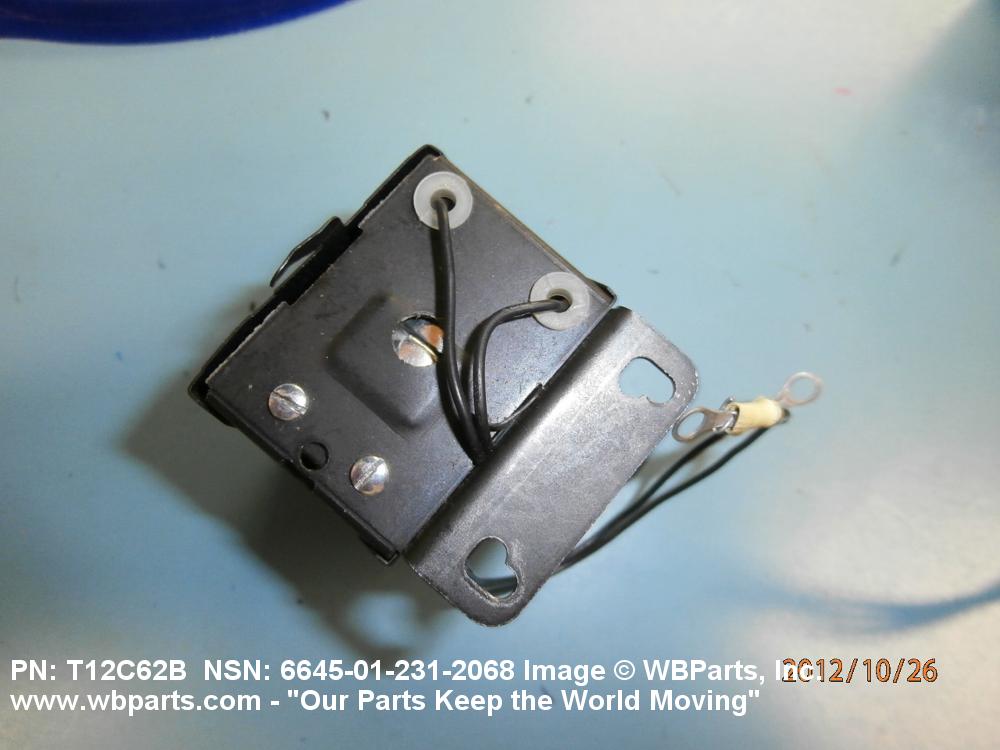

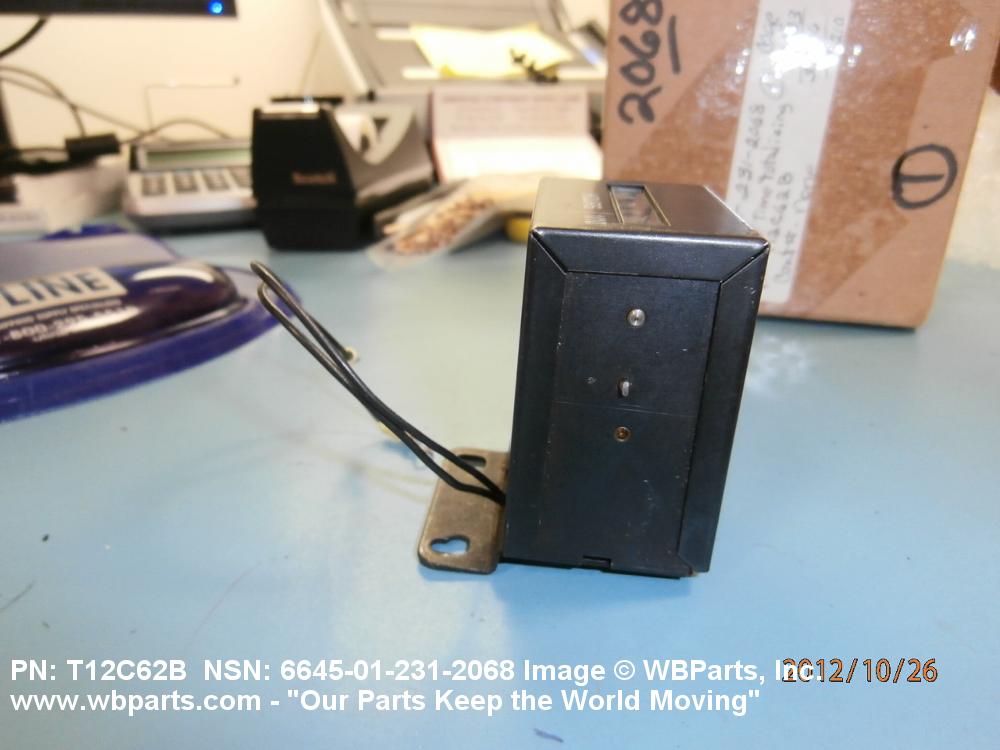

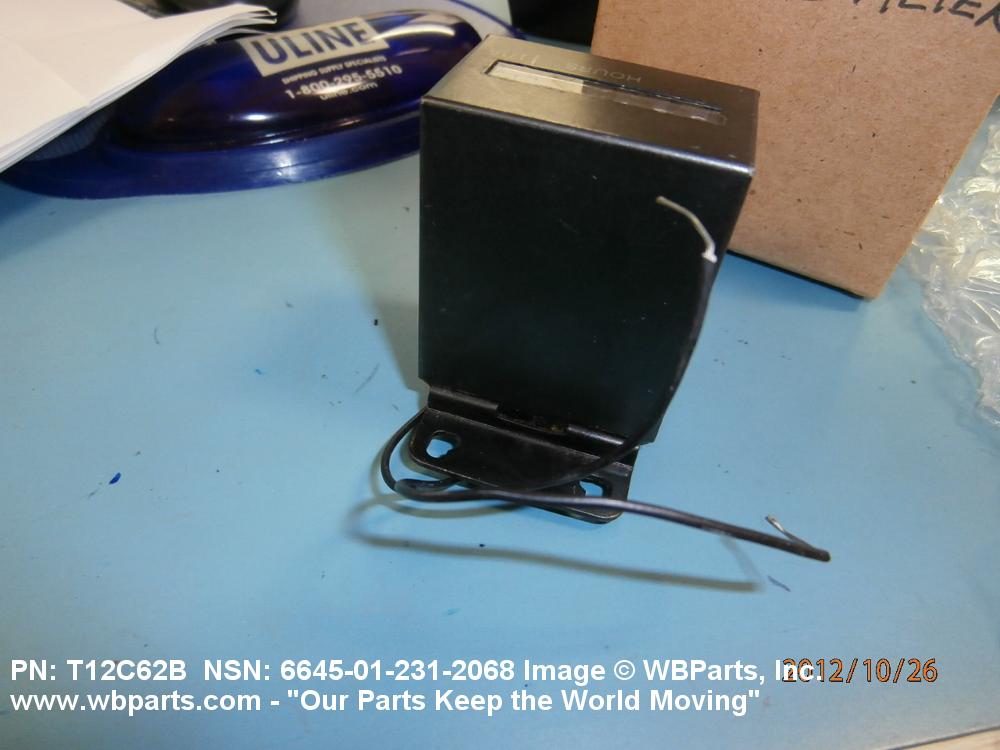

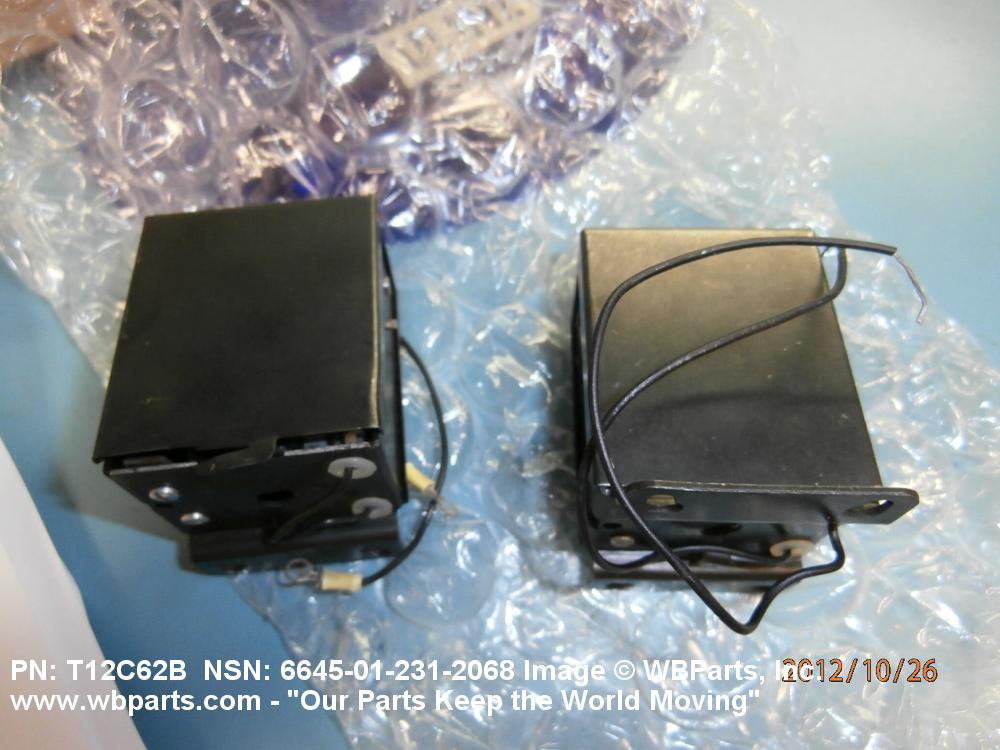

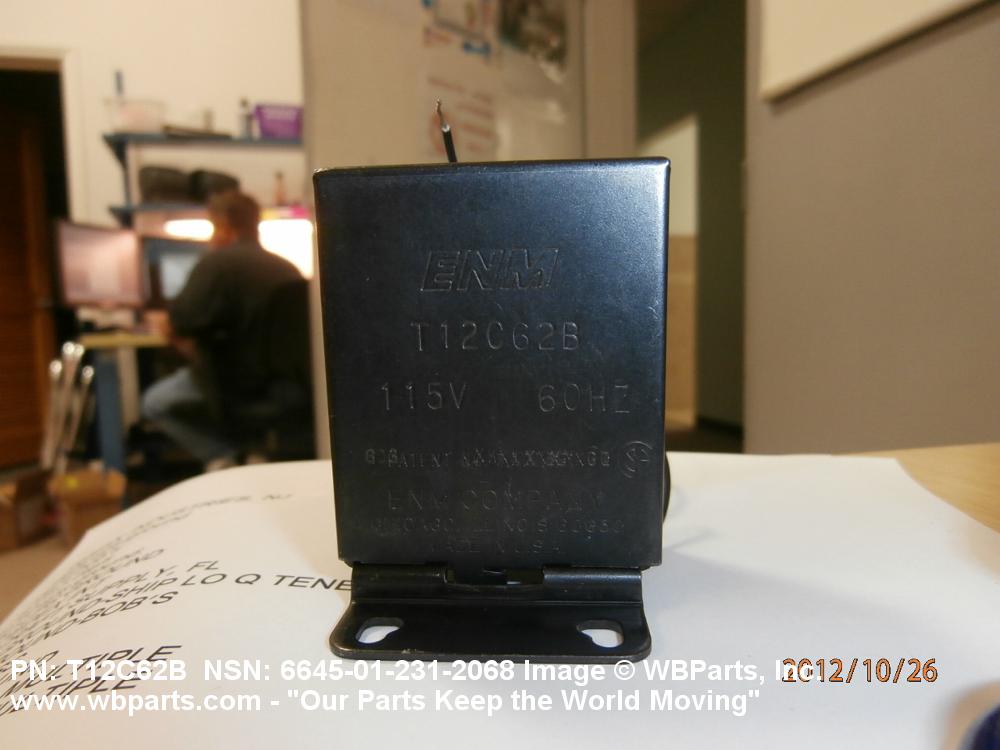

Drawings & Photos | NSN 6645-01-231-2068
Demand History | NSN 6645-01-231-2068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-231-2068 | 2012-10-286 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6645-01-231-2068
Technical Data | NSN 6645-01-231-2068
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 99999.90 |
| SMALLEST INCREMENT INDICATED | 0.10 |
| MARKING COLOR | WHITE NUMERALS FOR HR,BLACK NUMERALS FOR TENTHS |
| BACKGROUND COLOR | BLACK BACKGROUND ON HR WHEELS,WHITE BACKGROUND ON TENTHS WHEEL |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | MOTOR |
| CURRENT TYPE | AC |
| VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| OPERATING FREQUENCY | 60.0 HERTZ NOMINAL |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | WIRE LEAD |
| CASE MATERIAL | ANY ACCEPTABLE |
| HERMETIC PROTECTION | NOT PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | FLANGE |
| MOUNTING METHOD | SEMIFLUSH |
| MOUNTING FLANGE WIDTH | 1.700 INCHES NOMINAL |
| FLANGE HEIGHT | 2.250 INCHES NOMINAL |
| BODY LENGTH | 1.718 INCHES NOMINAL |
| BODY WIDTH | 1.187 INCHES NOMINAL |
| BODY DEPTH | 2.340 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 0.144 IN DIA MTG SLOTS |
Restrictions/Controls & Freight Information | NSN 6645-01-231-2068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
