NSN 6645-01-487-2052 D16G9CA1, D16G9CA-1, K19795FO
Product Details | TIME TOTALIZING METER
6645-01-487-2052 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: D16G9CA1, D16G9CA-1, K19795FO, K19795-FO, 6645-01-487-2052, 01-487-2052, 6645014872052, 014872052
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 27 JUL 2001 | 01-487-2052 | 08066 ( METER, TIME TOTALIZING ) |

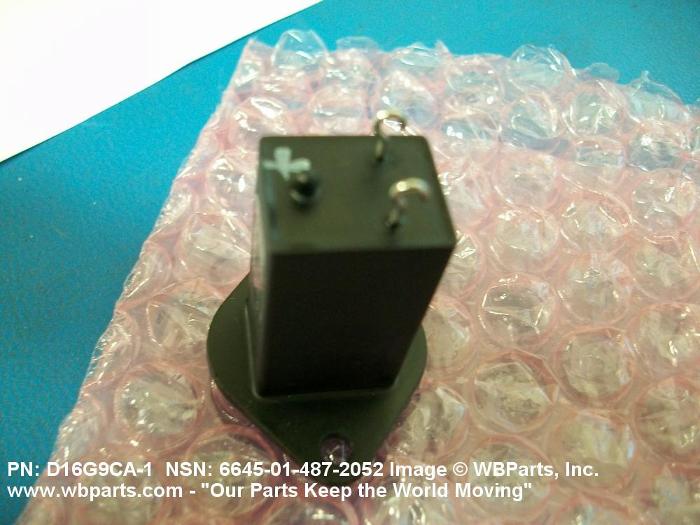

Drawings & Photos | NSN 6645-01-487-2052
Demand History | NSN 6645-01-487-2052
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-01-487-2052 | 2023-11-321 | 3 | Taiwan |
| D16G9CA1 | 2022-10-293 | 11 | US |
| 6645-01-487-2052 | 2019-06-168 | 2 | TW |
| 6645-01-487-2052 | 2019-05-142 | 2 | TW |
| 6645-01-487-2052 | 2013-10-290 | 2 | United States |
| 6645-01-487-2052 | 2012-11-321 | 33 | US |
| D16G9CA1 | 2011-04-111 | 30 | United States |
| D16G9CA1 | 2011-03-68 | 40 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6645-01-487-2052
Technical Data | NSN 6645-01-487-2052
| Characteristic | Specifications |
|---|---|
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | SYNCHRONOUS MOTOR |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 10.0 VOLTS MINIMUM AND 34.0 VOLTS MAXIMUM |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | HOOK |
| CASE MATERIAL | ANY ACCEPTABLE |
| HERMETIC PROTECTION | PROVIDED |
| UNIT TYPE | MOUNTED |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.600 INCHES NOMINAL |
| OVERALL DEPTH | 1.094 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | MK41 VERTICAL LAUNCH |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ELAPSED TIME INDICATOR |
Restrictions/Controls & Freight Information | NSN 6645-01-487-2052
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
