NSN 6685-00-301-9970 2231, 22-31, 2237

Product Details | DIAL INDICATING PRESSURE GAGE

6685-00-301-9970 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: 2231, 22-31, 2237, 22-37, 2250-017-00, 68J698014103, 68J698014-103 , 6685-00-301-9970, 00-301-9970, 6685003019970, 003019970, 225001700

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	12 OCT 1973	00-301-9970	07428 ( GAGE, PRESSURE, DIAL INDICATING )

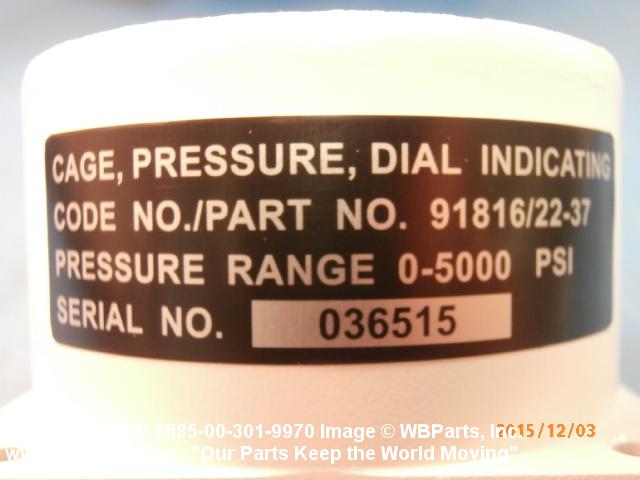

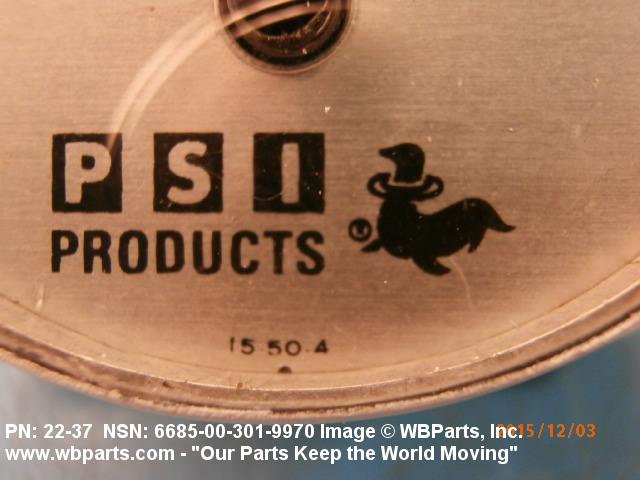

Drawings & Photos | NSN 6685-00-301-9970

Part Number	Request Date	QTY	Origin
22-37	2024-01-19	50	DIBBS
2250-017-00	2024-01-19	50	DIBBS
68J698014-103	2024-01-19	50	DIBBS
22-37	2024-01-11	50	DIBBS
2250-017-00	2024-01-11	50	DIBBS
68J698014-103	2024-01-11	50	DIBBS
22-37	2024-01-03	50	DIBBS
2250-017-00	2024-01-03	50	DIBBS
68J698014-103	2024-01-03	50	DIBBS
6685-00-301-9970	2018-10-301	43	DIBBS
6685-00-301-9970	2018-08-219	64	DIBBS
6685-00-301-9970	2018-08-215	187	DIBBS
6685-00-301-9970	2018-07-185	139	DIBBS
6685-00-301-9970	2018-06-155	187	DIBBS
6685-00-301-9970	2015-11-315	1	United States
6685-00-301-9970	2015-10-300	1	United States
6685-00-301-9970	2012-11-331	162	DIBBS
6685-00-301-9970	2012-11-312	162	DIBBS
6685-00-301-9970	2012-10-283	111	DIBBS
6685-00-301-9970	2012-09-267	111	DIBBS
6685-00-301-9970	2012-05-135	91	DIBBS
6685-00-301-9970	2012-01-09	72	DIBBS
6685-00-301-9970	2011-07-210	86	DIBBS
6685-00-301-9970	2010-12-337	98	DIBBS
6685-00-301-9970	2010-07-209	101	DIBBS
6685-00-301-9970	2009-12-343	39	DIBBS
6685-00-301-9970	2009-10-293	44	DIBBS
6685-00-301-9970	2009-08-215	93	DIBBS
6685-00-301-9970	2009-06-155	55	DIBBS
6685-00-301-9970	2009-03-76	51	DIBBS
6685-00-301-9970	2009-01-20	99	DIBBS
6685-00-301-9970	2008-11-316	109	DIBBS
6685-00-301-9970	2008-10-289	70	DIBBS

Cross Reference | NSN 6685-00-301-9970

Part Number	Cage Code	Manufacturer
22-31	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
22-37	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
2250-017-00	24708	Q.E.D. INC.
68J698014-103	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-301-9970

Compare

Related Products | NSN 6685-00-301-9970

6685-00-302-5723, 6685-00-302-5724, 6685-00-302-5725, 6685-00-302-5727, 6685-00-302-6186

Technical Data | NSN 6685-00-301-9970

Characteristic	Specifications
ACTUATION TYPE	BOURDON TUBE
ACTUATING ELEMENT MATERIAL	STEEL
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE
SCALE RANGE	0.000 TO 5000.000 POUNDS PRESSURE PER SQUARE INCH
GRADUATION UNIT	1000.000 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	100.000 POUNDS PER SQUARE INCH
SCALE INSCRIPTION/BACKGROUND COLOR	BLACK FIGURES ON WHITE BACKGROUND
DIAL SIZE	2-1/4 IN. DIA
POINTER TYPE	INDICATING
ADJUSTABILITY	NONADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	ALUMINUM ALLOY, QQ-A-200/8, ALLOY 6061, T6
CASE SURFACE TREATMENT	ANODIZED, MIL-A-8625
OVERALL LENGTH	2.250 INCHES NOMINAL
OVERALL WIDTH	2.250 INCHES NOMINAL
OVERALL DEPTH	1.500 INCHES NOMINAL
PROTECTIVE CRYSTAL MATERIAL	TEMPERED GLASS,DD-G-451C,TYPE II,CLASS 1,QUALITY AA
CONNECTION QUANTITY	1
CONNECTION TYPE	EXTERNAL

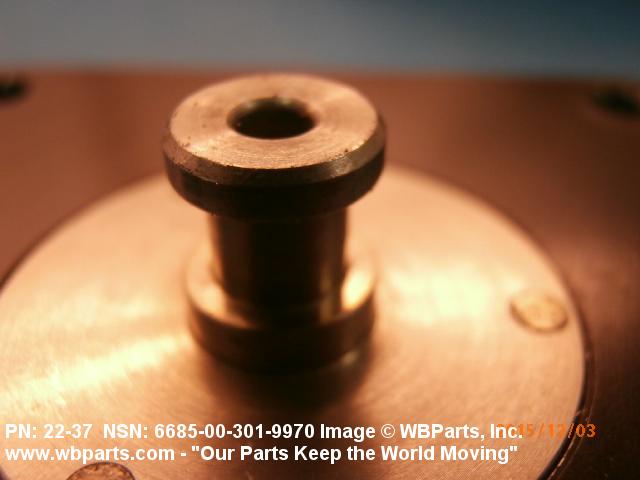

CONNECTION LOCATION	BACK, CENTER
CONNECTION SIZE	0.357 IN. DIA,0.400 IN.DEEP
MOUNTING METHOD	FLUSH PANEL
BOLT CIRCLE DIAMETER	3.182 INCHES NOMINAL
MOUNTING HOLE QUANTITY	4
MOUNTING HOLE DIAMETER	0.169 INCHES MINIMUM AND 0.175 INCHES MAXIMUM
ILLUMINATIVE METHOD	ANY ACCEPTABLE
MANUFACTURERS CODE	91816
DESIGN CONTROL REFERENCE	22-37

Restrictions/Controls & Freight Information | NSN 6685-00-301-9970

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	651	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	Q	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-00-301-9970

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
