NSN 6685-00-514-6273 6202384, 620238-4, 671CPX10051
Product Details | PRESSURIZED COMPARTMENT ALTIMETER
6685-00-514-6273 A self-contained aneroid instrument designed specifically for use in a pressurized compartment of an aircraft to provide an indication of pressure in feet altitude.
Part Alternates: 6202384, 620238-4, 671CPX10051, 671CPX-10-051, 6685-00-514-6273, 00-514-6273, 6685005146273, 005146273
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-514-6273 | 03387 ( ALTIMETER, PRESSURIZED COMPARTMENT ) |

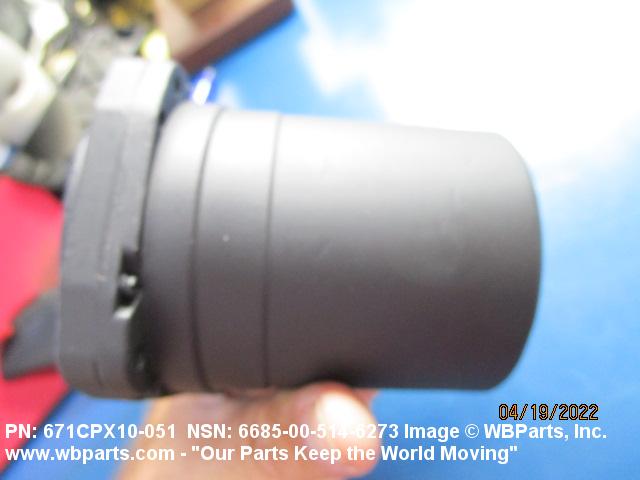

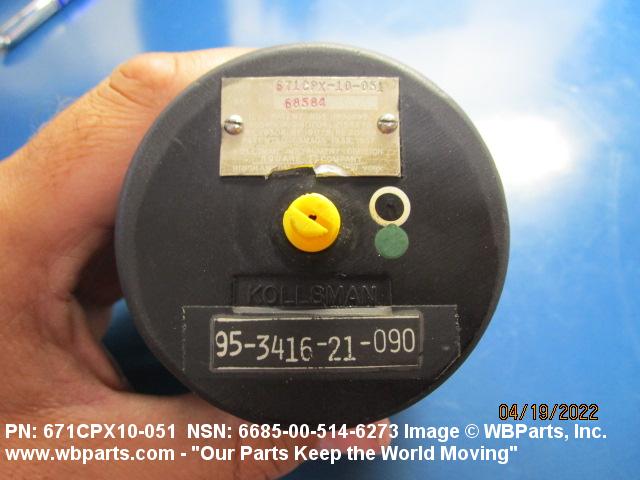

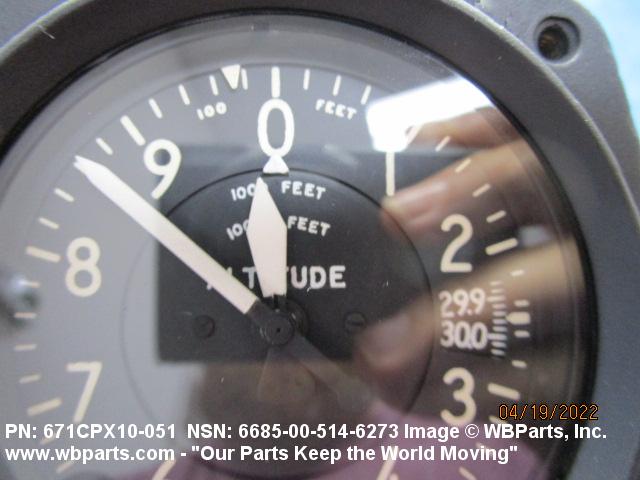

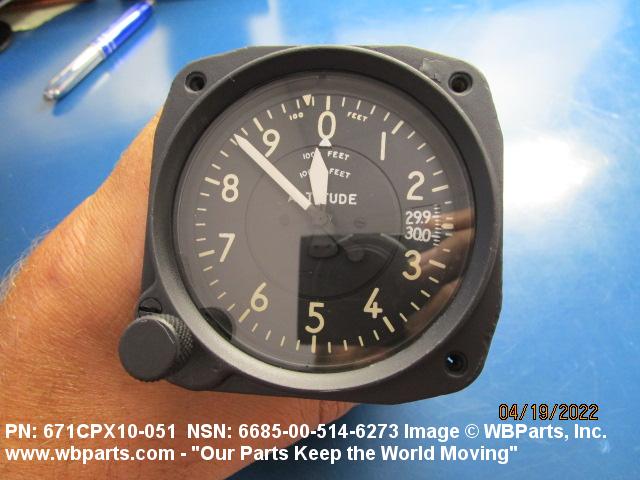

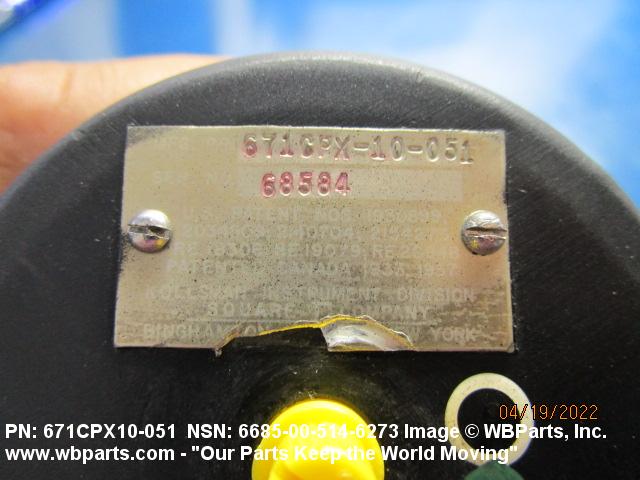

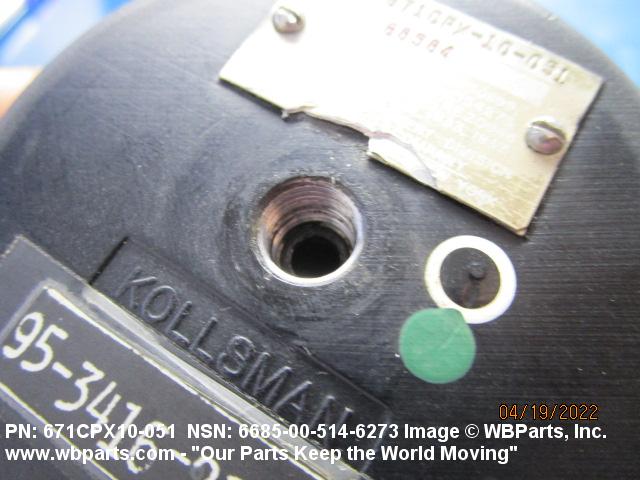

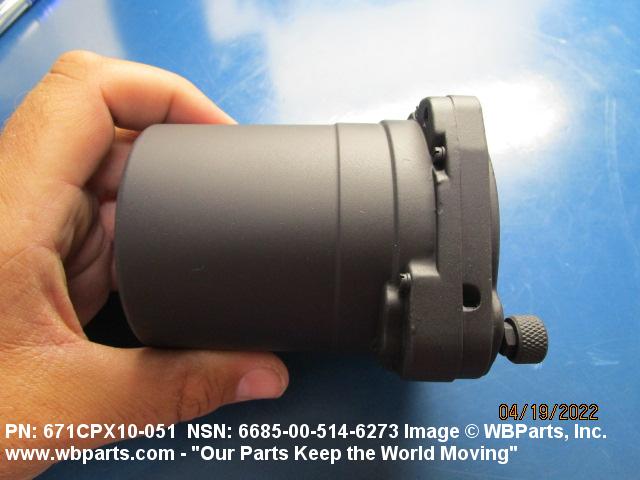

Drawings & Photos | NSN 6685-00-514-6273
Demand History | NSN 6685-00-514-6273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-514-6273 | 2025-12-335 | 74 | US |
| 6685-00-514-6273 | 2022-09-264 | 0 | NECO |
| 6685-00-514-6273 | 2022-06-158 | 0 | NECO |
| 671CPX10051 | 2022-03-84 | 3 | United States |
| 671CPX10051 | 2022-02-53 | 1 | United States |
| 6685-00-514-6273 | 2022-02-53 | 1 | United States |
| 671CPX-10-051 | 2021-02-51 | 0 | |
| 6685-00-514-6273 | 2021-02-50 | 0 | NECO |
| 6685-00-514-6273 | 2020-10-280 | 0 | NECO |
| 6685-00-514-6273 | 2020-06-155 | 5 | US |
| 671CPX-10-051 | 2019-11-311 | 12 | |
| 6685-00-514-6273 | 2019-11-309 | 12 | NECO |
| 671CPX-10-051 | 2019-09-268 | 34 | |
| 671CPX-10-051 | 2019-09-261 | 34 | |
| 6685-00-514-6273 | 2019-09-260 | 34 | NECO |
| 6685-00-514-6273 | 2019-08-218 | 7 | NECO |
| 671CPX-10-051 | 2019-05-121 | 9 | |
| 6685-00-514-6273 | 2019-04-120 | 9 | NECO |
| 6685-00-514-6273 | 2019-04-91 | 22 | NECO |
| 6685-00-514-6273 | 2019-03-81 | 22 | NECO |
| 6685-00-514-6273 | 2018-11-321 | 15 | NECO |
| 6685-00-514-6273 | 2018-04-102 | 16 | NECO |
| 6685-00-514-6273 | 2013-05-151 | 10 | US |
| 6685-00-514-6273 | 2011-06-167 | 13 | NECO |
| 671CPX10051 | 2009-07-188 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-514-6273
Related Products | NSN 6685-00-514-6273
Technical Data | NSN 6685-00-514-6273
| Characteristic | Specifications |
|---|---|
| SCALE QUANTITY | 2 |
| SCALE NAME | ALTITUDE AND BAROMETRIC PRESSURE |
| SCALE RANGE | PLUS 0.000 TO PLUS 50000.0 FT,0 TO 50 IN. OF MERCURY ABSOLUTE |
| SCALE SMALLEST INCREMENT GRADUATION | 50.000 FT,0.020 INCHES OF MERCURY |
| SCALE MARKING AND SURFACE FINISH | LINED INCREMENTS NONLUMINOUS NUMERALS NONLUMINOUS LINED INCREMENTS NONLUMINOUS NUMERALS NONLUMINOUS |
| POINTER QUANTITY | 4 |
| POINTER FINISH | NONLUMINOUS |
| KNOB QUANTITY | 1 |
| KNOB PURPOSE | FOR SETTING BAROMETRIC SCALE |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| OVERALL DEPTH | 4.500 INCHES NOMINAL |
| MOUNTING METHOD | BEZEL |
| MECHANICAL CONNECTION QUANTITY | 1 |
| MECHANICAL CONNECTION SIZE | 1/8 IN. |
| MECHANICAL CONNECTION TYPE | INTERNAL PIPE |
| MANUFACTURERS CODE | 89944 |
| DESIGN CONTROL REFERENCE | 671CPX10-051 |
Restrictions/Controls & Freight Information | NSN 6685-00-514-6273
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-514-6273
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
