NSN 6685-00-515-3478 ES508A, LA33016, LA330-16
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-515-3478 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: ES508A, LA33016, LA330-16, TIP0021722APR70, TIP00217-22APR70, 10500706, 13207E2943FN6, 13207E6490, 1508002, 508A, 570N1, 7954512, 6685-00-515-3478, 00-515-3478, 6685005153478 , 005153478
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-515-3478 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

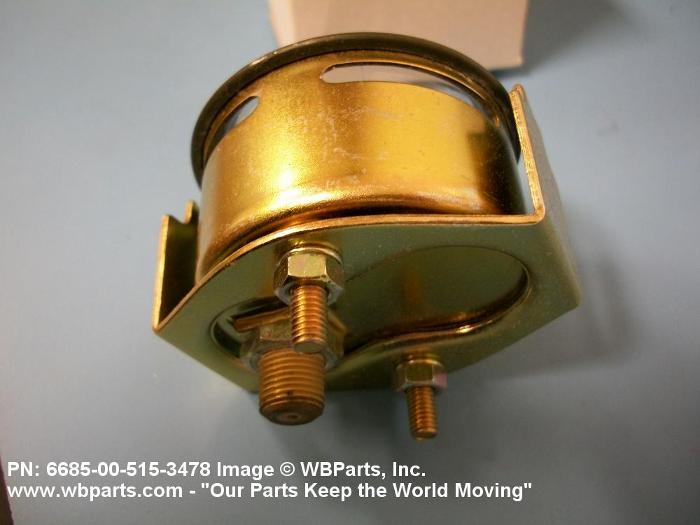

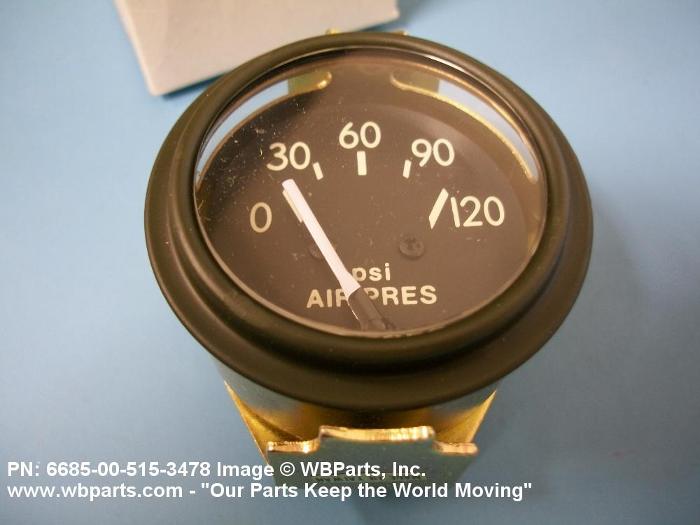

Drawings & Photos | NSN 6685-00-515-3478
Demand History | NSN 6685-00-515-3478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-515-3478 | 2018-02-33 | 200 | US |
| 6685-00-515-3478 | 2013-05-132 | 481 | DIBBS |
| 6685-00-515-3478 | 2013-02-39 | 313 | DIBBS |
| 6685-00-515-3478 | 2012-12-348 | 898 | DIBBS |
| 6685-00-515-3478 | 2011-09-255 | 25 | United States |
| 6685-00-515-3478 | 2011-01-18 | 1216 | DIBBS |
| 6685-00-515-3478 | 2010-08-239 | 1100 | DIBBS |
| 6685-00-515-3478 | 2010-06-160 | 1442 | DIBBS |
| 6685-00-515-3478 | 2010-04-117 | 193 | DIBBS |
| 6685-00-515-3478 | 2009-10-294 | 271 | DIBBS |
Cross Reference | NSN 6685-00-515-3478
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10500706 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 13207E2943FN6 | 97403 | CECOM LR CENTER |
| 13207E6490 | 97403 | CECOM LR CENTER |
| 1508002 | 24617 | GENERAL MOTORS CORP |
| 1508002 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 508A | 57733 | STEWART-WARNER CORPORATION |
| 570N1 | 56442 | DIAMOND REO TRUCK CO |
| 6685005153478 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7954512 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7954512 | 57733 | STEWART-WARNER CORPORATION |
| ES508A | 57733 | STEWART-WARNER CORPORATION |
| LA330-16 | 46717 | PETTIBONE LLC |
| TIP00217-22APR70 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-515-3478
Related Products | NSN 6685-00-515-3478
Technical Data | NSN 6685-00-515-3478
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BRONZE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 120.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 4 PCT ENTIRE RANGE |
| GRADUATION UNIT | 30.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 30.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | WHITE FIGURES ON BLACK BACKGROUND |
| DIAL SIZE | 1-15/16 IN. DIA |
| SCALE MARKING | PRESS |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | WHITE |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | CADMIUM PLATED |
| OVERALL DIAMETER | 2.328 INCHES MAXIMUM |
| OVERALL DEPTH | 2.070 INCHES NOMINAL |
| BEZEL TYPE | SLIPS-ON |
| MATERIAL | STEEL |
| SURFACE TREATMENT | OLIVE DRAB |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.125 IN. NPT |
| MOUNTING METHOD | BRACKET AND FLUSH PANEL AND STUD |
| STUD QUANTITY | 2 |
| STUD LOCATION | IN BACK |
| ILLUMINATIVE METHOD | INCANDESCENT LAMP |
| CONNECTOR TYPE VENT | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 6685-00-515-3478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-515-3478
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | R | Radioactive Material |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
