NSN 6685-00-684-5200 MS280617, MS28061-7, MS28061T7

Product Details | DIAL INDICATING PRESSURE GAGE

6685-00-684-5200 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: MS280617, MS28061-7, MS28061T7, MS28061-T7, AN57717, AN5771-7, AN57717A, AN5771-7A, AN5771T7, AN5771T7A, AN577AT7B, AW1 7-8 17CZ, AW17817CZ, AW1817AC02, CB5KHP, MILG7734, MIL-G-7734, PDG2853, 75065, 7D05521, 7D0552-1, 8094309, 13485A1, 13486A1, 2250-025-02, 254505, 6320012, 632-0012, 6685-00-684-5200, 00-684-5200, 6685006845200, 006845200, 225002502

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-684-5200	07428 ( GAGE, PRESSURE, DIAL INDICATING )

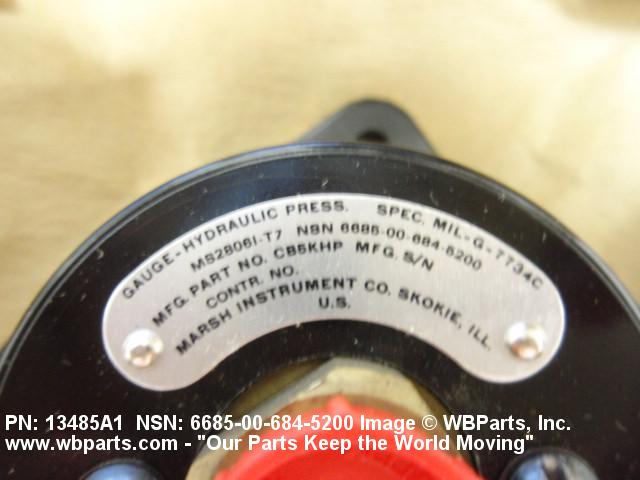

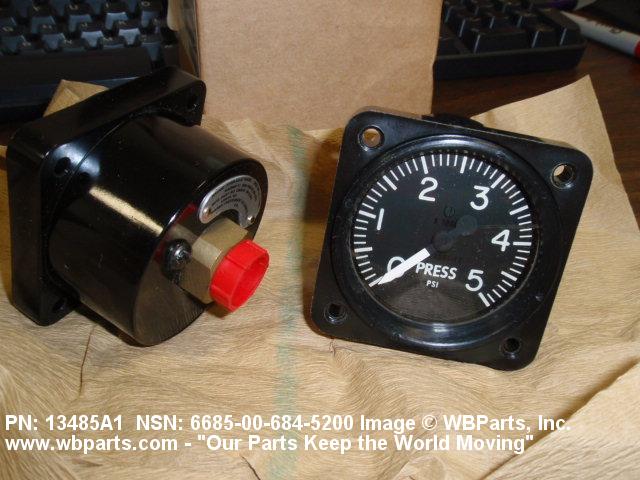

Drawings & Photos | NSN 6685-00-684-5200

Part Number	Request Date	QTY	Origin
6685-00-684-5200	2025-07-197	28	DIBBS
6685-00-684-5200	2025-07-189	28	DIBBS
6685-00-684-5200	2025-05-140	1	US
6685-00-684-5200	2025-04-113	39	DIBBS
MS28061T7	2024-08-236	1	MY
6685-00-684-5200	2024-07-186	38	DIBBS
6685-00-684-5200	2024-01-25	27	DIBBS
6685-00-684-5200	2023-12-347	26	DIBBS
6685-00-684-5200	2023-11-317	13	United States
MS28061T7	2022-02-33	1	IT
6685-00-684-5200	2021-03-81	1	United States
AW1817AC02	2021-03-75	1	Italy
MS28061T7	2021-03-69	1	Indonesia
6685-00-684-5200	2020-10-286	1	DIBBS-RFPs
MS28061T7	2019-10-292	3	AU
MS28061T7	2019-03-84	6	US
MS28061T7	2019-03-79	4	KR
6685-00-684-5200	2018-11-317	4	AU
MS28061T7	2018-03-86	1	United States
6685006845200	2018-03-67	100	US
6685-00-684-5200	2017-10-295	4	AU
MS28061T7	2017-03-66	2	United States
6685-00-684-5200	2016-10-302	3	US
MS28061T7	2016-10-302	3	US
6685-00-684-5200	2015-12-335	28	DIBBS
6685-00-684-5200	2015-11-330	48	DIBBS
6685-00-684-5200	2015-11-319	22	DIBBS
AN57717A	2015-06-166	9	United States
6685-00-684-5200	2015-04-99	18	DIBBS
MS28061T7	2014-04-105	1	US
6685-00-684-5200	2014-02-42	10	United States
6685-00-684-5200	2013-03-86	205	DIBBS
6685-00-684-5200	2013-03-83	204	DIBBS
6685-00-684-5200	2013-03-74	86	DIBBS
6685-00-684-5200	2013-01-07	48	DIBBS
MS28061-T7	2012-11-310	2
7D05521	2012-10-283	5	United States
6685-00-684-5200	2012-08-237	48	DIBBS
MS28061-T7	2012-04-110	10	United States
6685-00-684-5200	2012-04-93	124	DIBBS
6685-00-684-5200	2011-04-96	1	US
6685-00-684-5200	2010-11-314	79	DIBBS
6685-00-684-5200	2010-09-250	6	South Korea
6685-00-684-5200	2010-08-230	52	DIBBS
6685-00-684-5200	2010-02-49	118	DIBBS
6685-00-684-5200	2009-10-274	97	DIBBS
6685-00-684-5200	2009-04-99	30	DIBBS
6685-00-684-5200	2009-01-23	60	DIBBS
6685-00-684-5200	2008-02-38	1	United States
AN57717	2006-05-141	1	United States

Cross Reference | NSN 6685-00-684-5200

Part Number	Cage Code	Manufacturer
13485A1	72100	LIFTEC INC DIV LIFTEC, INC.
13486A1	72100	LIFTEC INC DIV LIFTEC, INC.
2250-025-02	24708	Q.E.D. INC.
254505	82577	RAYTHEON COMPANY DBA RAYTHEON
632-0012	78385	MEGGITT (TROY), INC. DIV MEGGITT PLC
75065	78943	TRIUMPH THERMAL SYSTEMS, INC.
7D0552-1	88277	BOEING COMPANY, THE DBA BOEING
8094309	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN5771-7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN5771-7A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN5771-7A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN5771T7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN5771T7A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN577AT7B	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AW1 7-8 17CZ	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
AW1817AC02	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
CB5KHP	38508	DESCO CORP MARSH BELLOFRAM DIV
MIL-G-7734	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28061-7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS28061-T7	31974	HOFFMAN/NEW YORKER, INC.
MS28061-T7	64528	3D INSTRUMENTS LLC. DBA SIERRA PRECISION
MS28061-T7	83005	WILSON J G CORP THE
MS28061-T7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PDG2853	18631	PRODUCT DEVELOPMENT GROUP INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-684-5200

Compare

Related Products | NSN 6685-00-684-5200

6685-00-684-5487, 6685-00-684-5497, 6685-00-684-7667, 6685-00-684-7670, 6685-00-684-7891

Technical Data | NSN 6685-00-684-5200

Characteristic	Specifications
ACTUATION TYPE	SINGLE BOURDON TUBE
ACTUATING ELEMENT MATERIAL	BERYLLIUM COPPER
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE
SCALE RANGE	0.0 TO 5000.0 POUNDS PRESSURE PER SQUARE INCH
SCALE ACCURACY	2 PCT ENTIRE RANGE
GRADUATION UNIT	1000.0 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	100.0 POUNDS PER SQUARE INCH
SCALE INSCRIPTION/BACKGROUND COLOR	FLUORESCENT GRADUATIONS ON BLACK BACKGROUND
DIAL SIZE	1-7/8 IN. DIA
SCALE MARKING	X1000 PRESSURE PSI
POINTER TYPE	INDICATING
ADJUSTABILITY	ADJUSTABLE
POINTER COLOR	FLUORESCENT POINTER
CASE MATERIAL	PLASTIC
CASE SURFACE TREATMENT	FINISH, BLACK, CRACKLE
OVERALL WIDTH	2.375 INCHES NOMINAL
OVERALL HEIGHT	2.375 INCHES NOMINAL
OVERALL DEPTH	1.750 INCHES NOMINAL
PROTECTIVE CRYSTAL MATERIAL	GLASS
CONNECTION QUANTITY	1
CONNECTION TYPE	INTERNAL
CONNECTION LOCATION	BACK
CONNECTION SIZE	0.438-20 UNF
MOUNTING METHOD	FLUSH
BOLT CIRCLE DIAMETER	2.625 INCHES NOMINAL
MOUNTING HOLE QUANTITY	4
MOUNTING HOLE DIAMETER	0.170 INCHES NOMINAL
ILLUMINATIVE METHOD	FLUORESCENT LAMP
CONNECTOR TYPE VENT	NOT PROVIDED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-G-7734
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS28061-T7

Restrictions/Controls & Freight Information | NSN 6685-00-684-5200

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	653	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-00-684-5200

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
