NSN 6685-00-880-4736 SCD10270, FA234160, 62A2A0300
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-880-4736 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SCD10270, FA234160, 62A2A0300, 62A-2A-0300, 6685-00-880-4736, 00-880-4736, 6685008804736, 008804736
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-880-4736 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

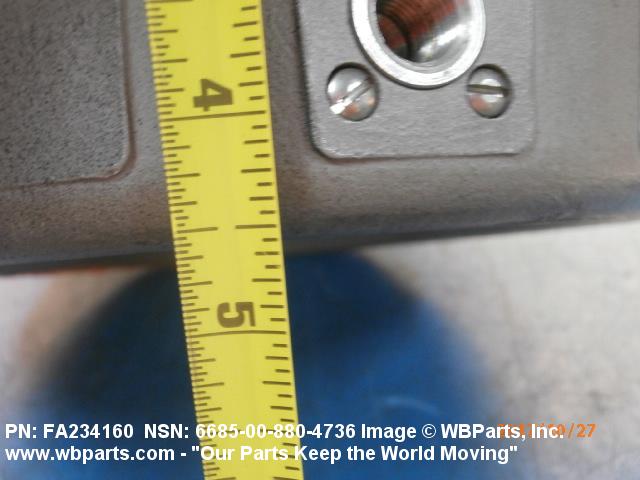

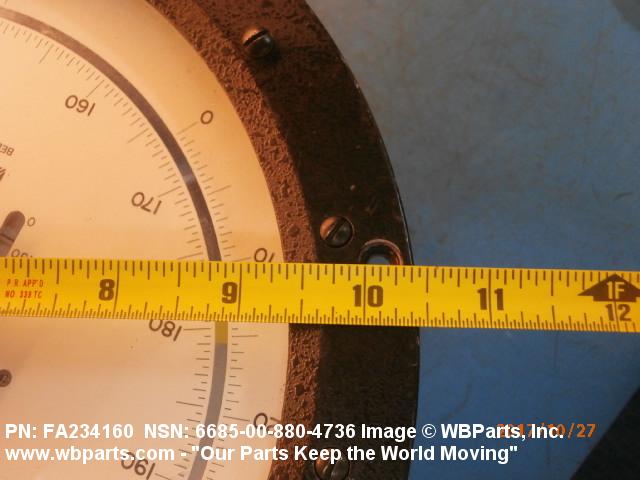

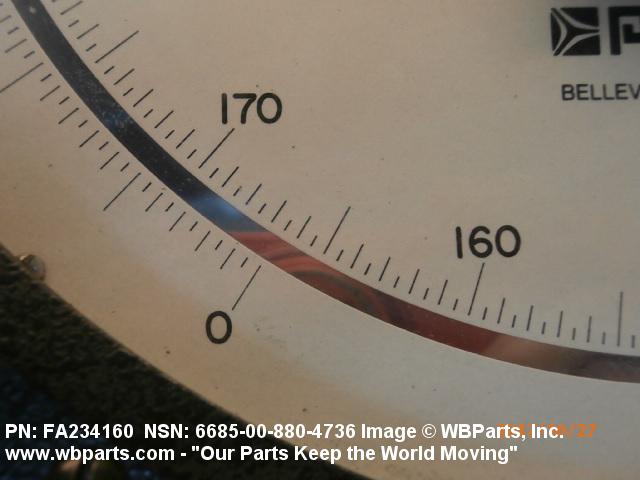

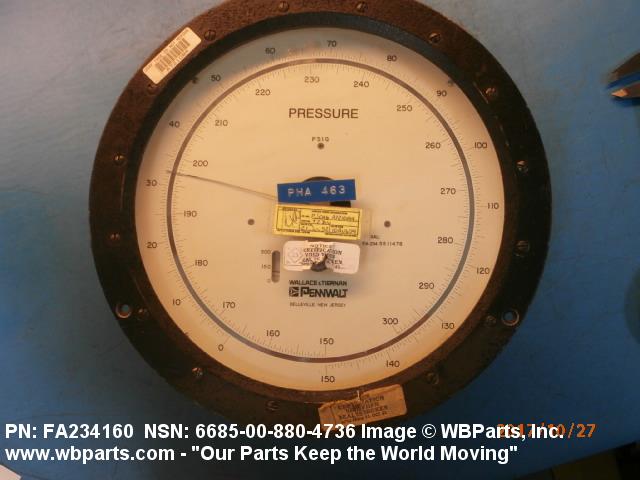

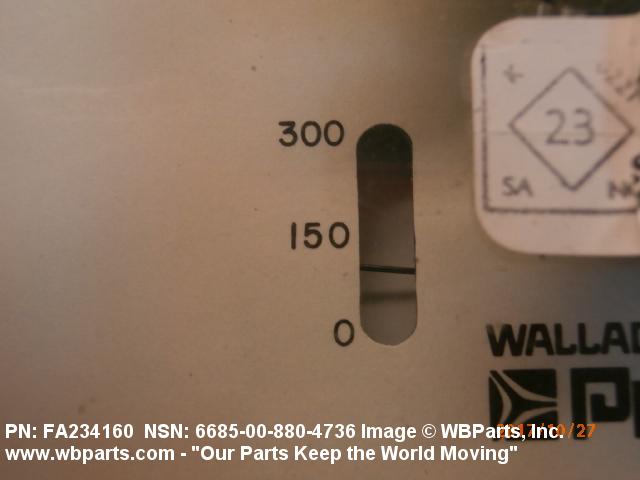

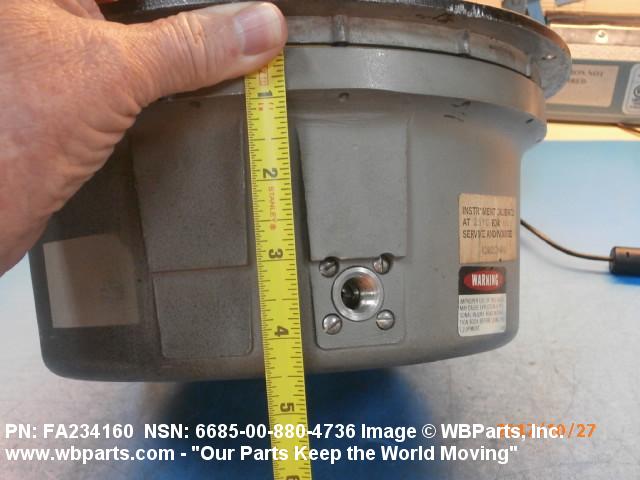

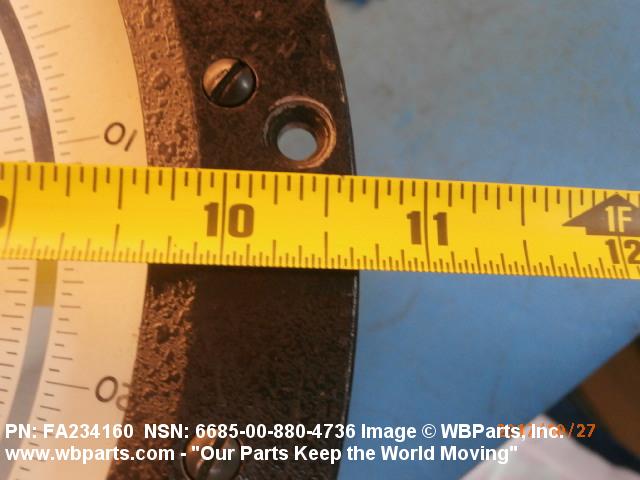

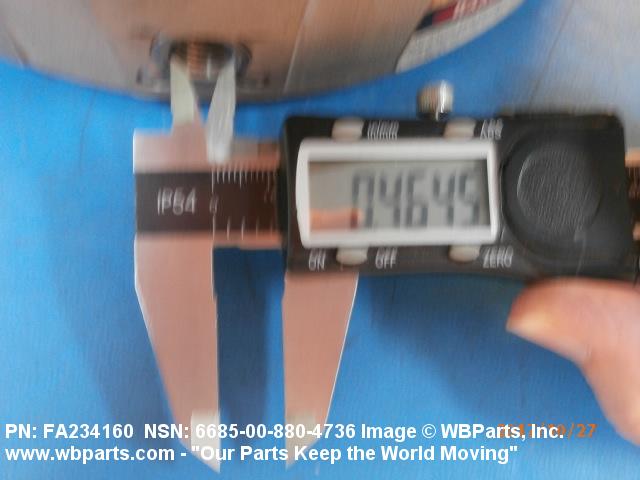

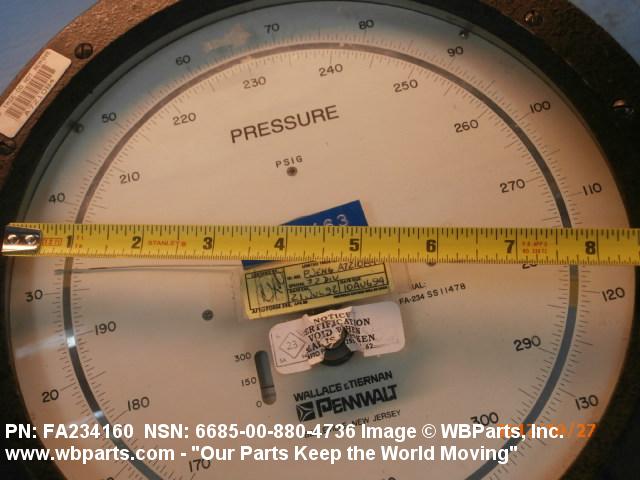

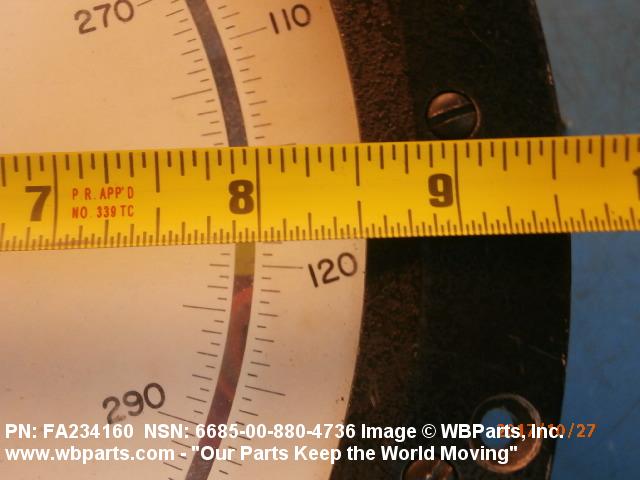

Drawings & Photos | NSN 6685-00-880-4736
Demand History | NSN 6685-00-880-4736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SCD10270 | 2017-10-283 | 1 | United States |
| SCD10270 | 2017-09-256 | 1 | United States |
Cross Reference | NSN 6685-00-880-4736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 62A-2A-0300 | 61049 | WIKA HOLDING LP DBA FOREIGN PARENT IS WIKA ALEXANDER |
| 62A-2A-0300 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| FA234160 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
| SCD10270 | 04984 | CELTECH CORPORATION DBA SPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-880-4736
Technical Data | NSN 6685-00-880-4736
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 300.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 0.1 PCT ACCURACY RATING ENTIRE RANGE |
| GRADUATION UNIT | 10.000 POUNDS |
| SCALE SMALLEST INCREMENT | 0.500 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 8-1/2 IN. DIA |
| SCALE MARKING | PRESSURE |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ANODIZED |
| OVERALL DIAMETER | 10.688 INCHES NOMINAL |
| OVERALL DEPTH | 4.750 INCHES NOMINAL |
| BEZEL TYPE | SLIPS-ON |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | NATURAL |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | INTERNAL |
| CONNECTION LOCATION | LOWER |
| CONNECTION SIZE | 1/4 IN. NPT |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 10.125 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.228 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| ACCESSORY COMPONENTS AND QUANTITY | 1 PIPE ADAPTER 1/4 NPT 1/8 NPT |
| III END ITEM IDENTIFICATION | A/M37T6 TEST STAND, NSN 4920-00-066-4471 |
| III REFERENCE DATA AND LITERATURE | T.O. 33D4-6-212 FIG 4 |
| MANUFACTURERS CODE | 04984 |
| MFR SOURCE CONTROLLING REFERENCE | SCD10270 |
Restrictions/Controls & Freight Information | NSN 6685-00-880-4736
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-880-4736
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | VF | FIGHTERAIRCRAFT(F5 E/F) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
