NSN 9540-01-298-6998 34000130-7, 01-298-6998, 340001307
Product Details | STRUCTURAL BEAM
9540-01-298-6998 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 34000130-7, 9540-01-298-6998, 01-298-6998, 9540012986998, 340001307, 012986998
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 20 APR 1989 | 01-298-6998 | 37018 ( BEAM, STRUCTURAL ) |
Drawings & Photos | NSN 9540-01-298-6998
Cross Reference | NSN 9540-01-298-6998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 34000130-7 | 24995 | BECKLIN HOLDINGS, INC. DBA ECS CASE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-01-298-6998
Technical Data | NSN 9540-01-298-6998
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/9 |
| FABRICATION METHOD | EXTRUDED |
| SURFACE TREATMENT | ANODIZED |
| HEAT TREATMENT | T-52 SOLUTION HEAT TREATED |
| LENGTH | 16.000 FEET NOMINAL |
| BASIC SHAPE STYLE | G1 H SHAPE |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.160 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.160 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.093 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.093 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.750 INCHES NOMINAL |
| LEFT SIDE BOTTOM FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.510 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.750 INCHES NOMINAL |
| RIGHT SIDE BOTTOM FLANGE DISTANCE TO CENTER OF BOTH FLANGES | 0.510 INCHES NOMINAL |
| WEB FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| LEFT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| LEFT BOTTOM INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT TOP INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT BOTTOM INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |
| SECOND TIP STYLE | 7 SQUARE WITH INNER AND OUTER CORNER RADII |
| SECOND TIP INNER RADIUS | 0.020 INCHES NOMINAL |
| SECOND TIP OUTER RADIUS | 0.020 INCHES NOMINAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | NOT IDENTICAL |
| THIRD TIP STYLE | 14 LEFT TAPER LENGTH |
| THIRD TIP TAPER LENGTH | 0.200 INCHES NOMINAL |
| THIRD TIP THICKNESS | 0.063 INCHES NOMINAL |
| FOURTH TIP RELATIONSHIP TO PRECEDING TIPS | NOT IDENTICAL |

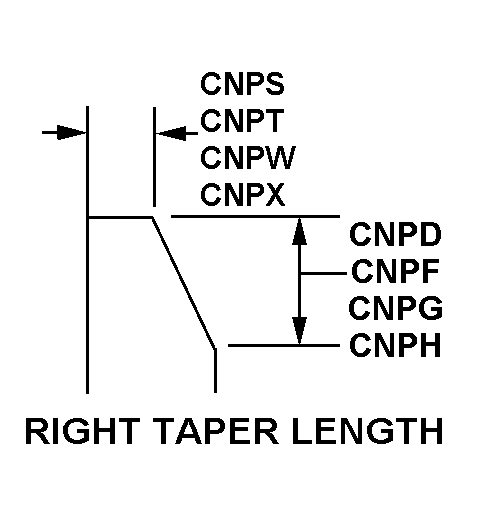

| FOURTH TIP STYLE | 15 RIGHT TAPER LENGTH |
| FOURTH TIP TAPER LENGTH | 0.200 INCHES NOMINAL |
| FOURTH TIP THICKNESS | 0.063 INCHES NOMINAL |
| SPECIAL FEATURES | 2ND TIP OFFSET 0.093 IN. OUTSIDE; BOTTOM FLANGES 0.080 IN. THK,13.0667 DEG TAPER TIPS; TENSILE STRENGTH 22000 PSI MIN,30000 PSI MAX; HARDNESS WEBSTER SCALE 8.0 MIN,11.0 MAX; DP MATTE FIN.; FILLET RADIUS WHERE BOTTOM LEFT FLANGE JOINS WEB FLANGE,0.046 IN.; FILLET RADIUS WHERE BOTTOM RIGHT FLANGE JOINS WEB FLANGE,0.046 IN. |
Restrictions/Controls & Freight Information | NSN 9540-01-298-6998
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104420 | BEAMS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-01-298-6998
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
