Product Details | FLEXIBLE SHAFT ASSEMBLY
1680-00-975-7890 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 12411102024, 124111-020-24, 1680-00-975-7890, 00-975-7890, 1680009757890, 009757890
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1960 | 00-975-7890 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

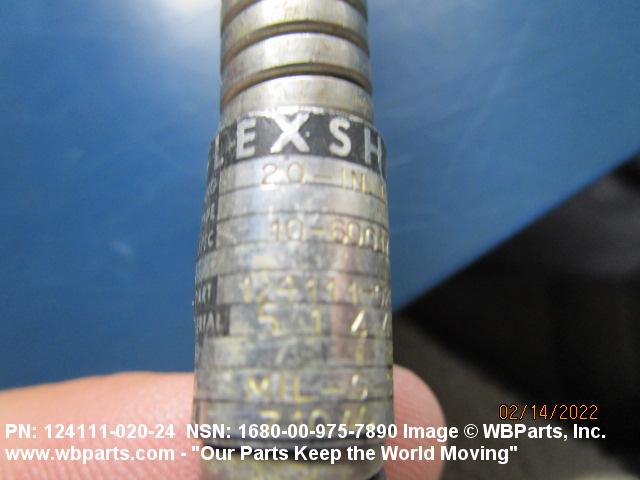

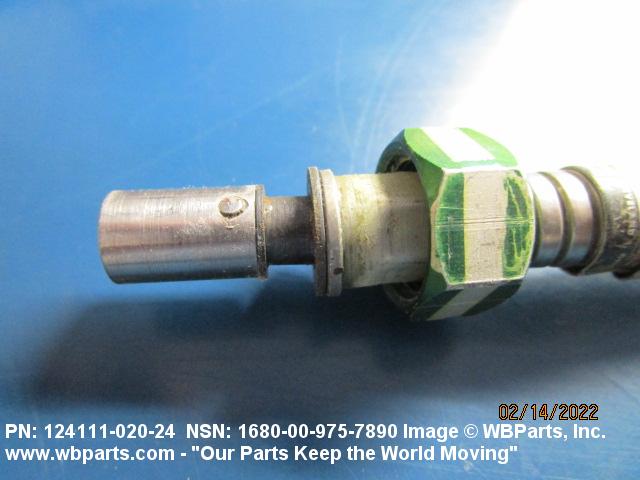

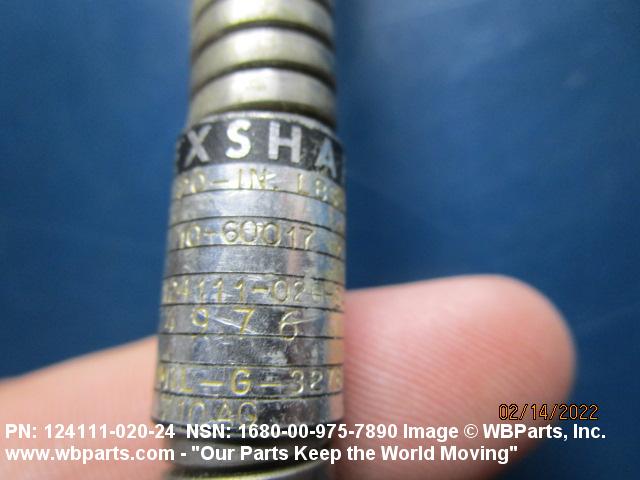

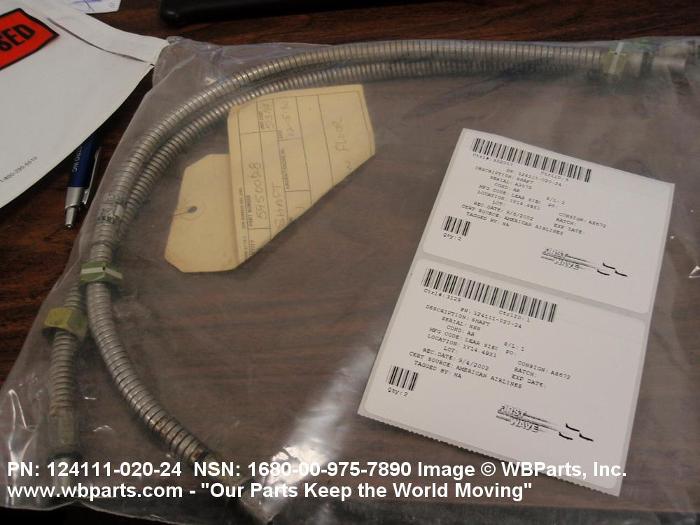

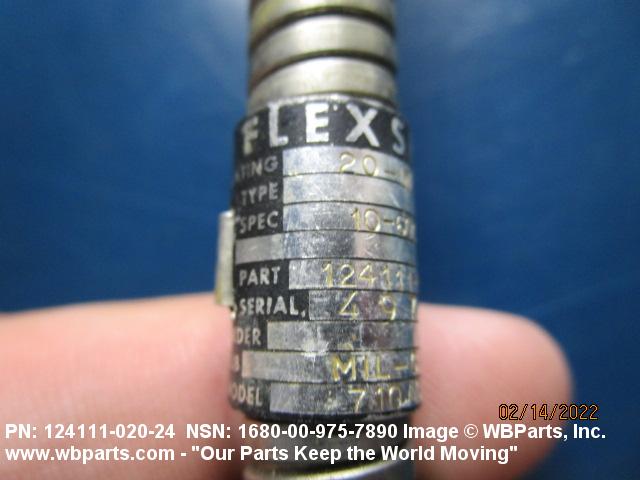

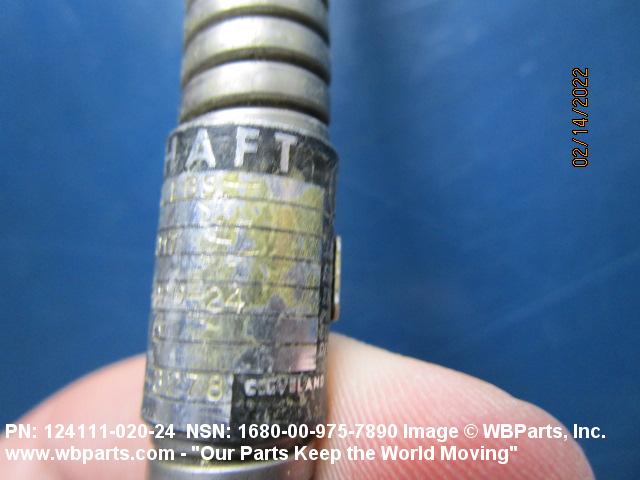

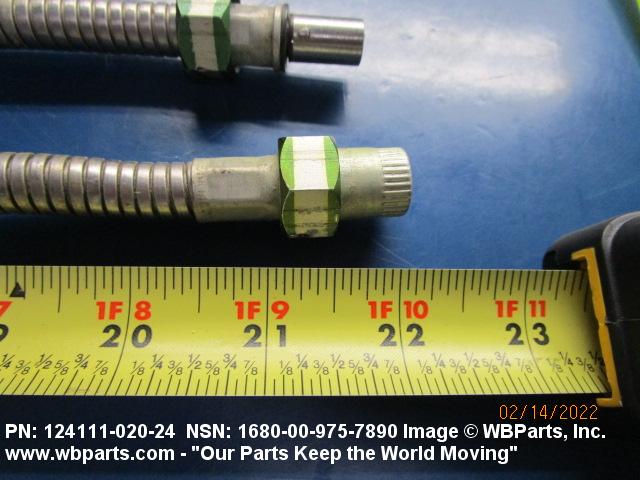

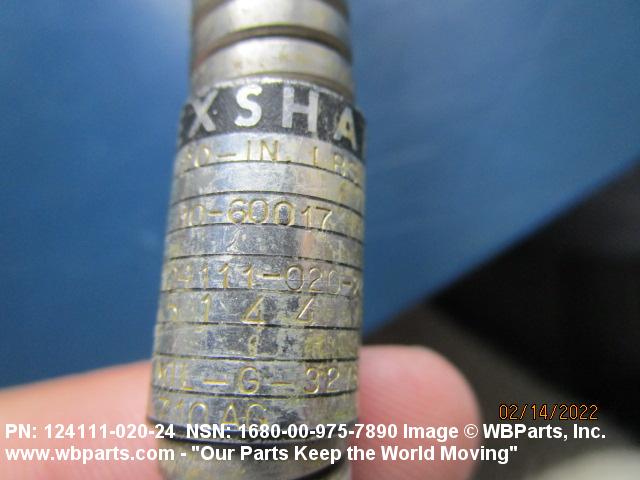

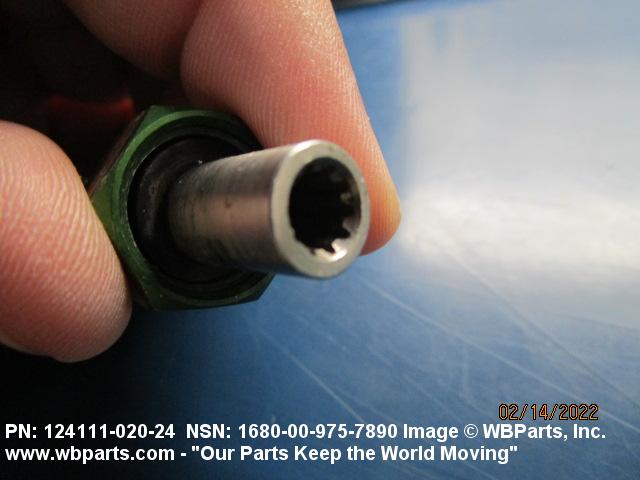

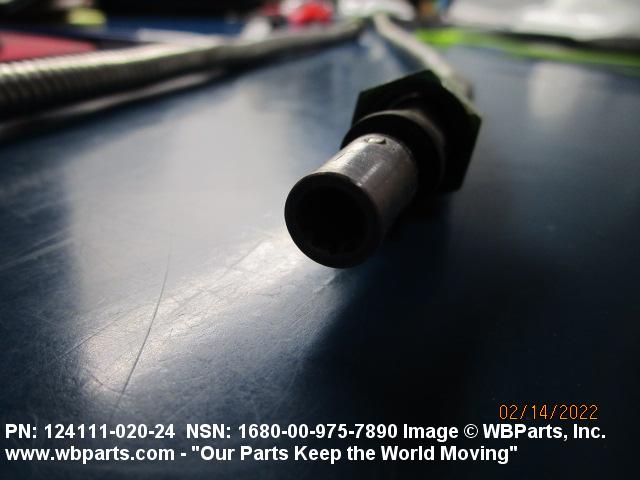

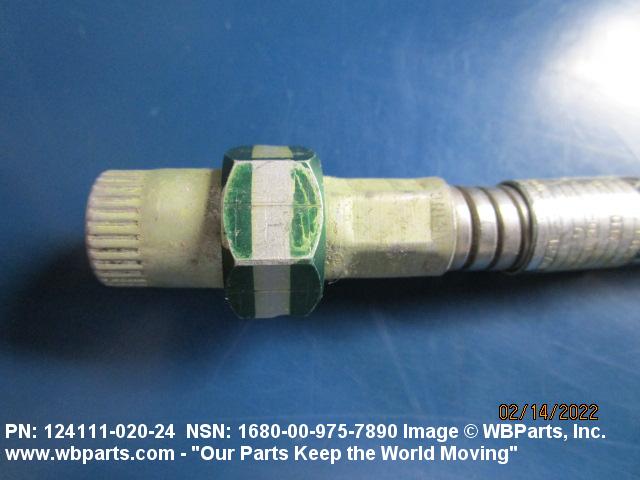

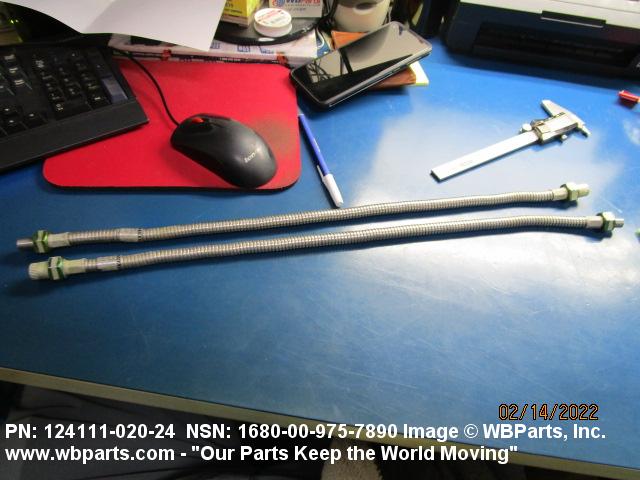

Drawings & Photos | NSN 1680-00-975-7890
Demand History | NSN 1680-00-975-7890
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12411102024 | 2022-02-04 | 2 | United States |
| 12411102024 | 2022-01-26 | 1 | United States |
| 124111-020-24 | 2020-02-04 | 22 | DIBBS |
| 1680-00-975-7890 | 2019-08-29 | 1 | United States |
| 124111-020-24 | 2019-01-22 | 3 | DIBBS |
| 1680-00-975-7890 | 2018-07-27 | 2 | US |
| 12411102024 | 2011-01-18 | 2 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1680-00-975-7890
1680-00-976-0099, 1680-00-976-0100, 1680-00-976-0101, 1680-00-976-0102, 1680-00-976-0103
Technical Data | NSN 1680-00-975-7890
| Characteristic | Specifications |
|---|---|
| CASING MATERIAL | STEEL, CORROSION RESISTING |
| CASING SURFACE TREATMENT | PASSIVATED |
| CASING LENGTH BETWEEN FERRULES | 20.668 INCHES NOMINAL |
| CASING OUTSIDE DIAMETER | 0.445 INCHES NOMINAL |
| END CONNECTION TYPE | UNION FERRULE BOTH ENDS |
| THREAD LOCATION | INTERNAL BOTH ENDS |
| SCREW THREAD SERIES DESIGNATOR | UNS BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| THREAD CLASS | 2B BOTH ENDS |
| THREAD DEPTH | 0.250 INCHES NOMINAL BOTH ENDS |
| END OVERALL DIAMETER | 0.875 INCHES NOMINAL BOTH ENDS |
| SWIVEL END | NOT PROVIDED BOTH ENDS |
| WRENCHING FACILITY TYPE | HEXAGON BOTH ENDS |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL BOTH ENDS |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | STEEL |
| CORE OVERALL LENGTH | 22.140 INCHES NOMINAL |
| CORE DIAMETER | 0.250 INCHES NOMINAL |
| CORE ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE |
| CORE REMOVABILITY | NONREMOVABLE |
| OVERALL LENGTH | 22.140 INCHES NOMINAL |
| TORSIONAL DEFLECTION RATING | NOT RATED |
| MINIMUM OPERATING RADIUS | 10.000 INCHES |
| III FSC APPLICATION DATA | MISCELLANEOUS ACFT ACCESSORIES AND COMPONENTS |
| MANUFACTURERS CODE | 31435 |
| DESIGN CONTROL REFERENCE | 124111-020-24 |
Restrictions/Controls & Freight Information | NSN 1680-00-975-7890
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-975-7890
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
