NSN 3040-01-011-4567 0153600040, 015-3600-040, 7Z1130633
Product Details | FLEXIBLE SHAFT ASSEMBLY
3040-01-011-4567 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 0153600040, 015-3600-040, 7Z1130633, 7Z11-30633, 3040-01-011-4567, 01-011-4567, 3040010114567, 010114567
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 22 OCT 1975 | 01-011-4567 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

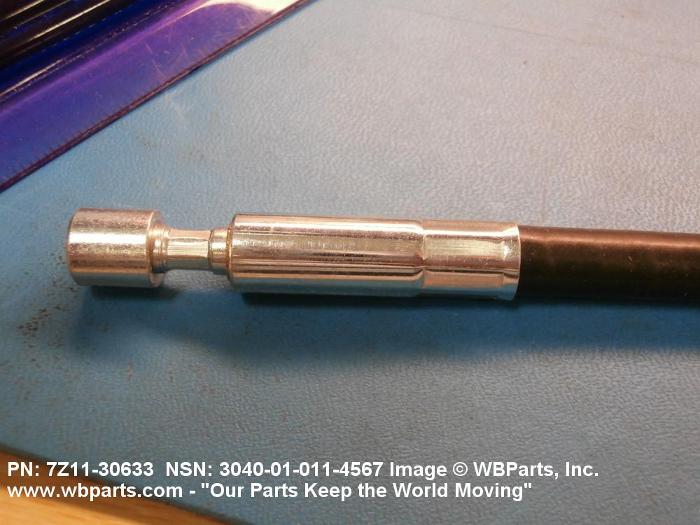

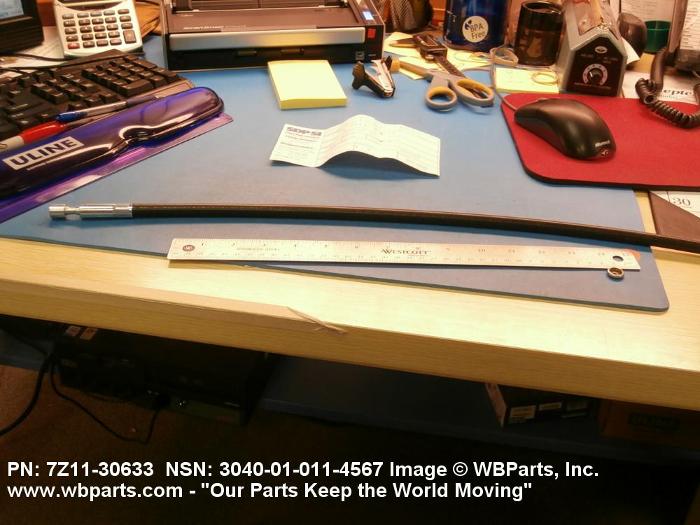

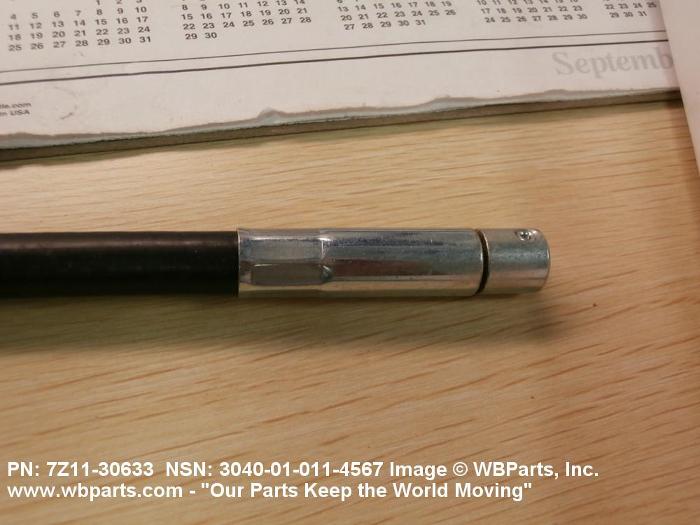

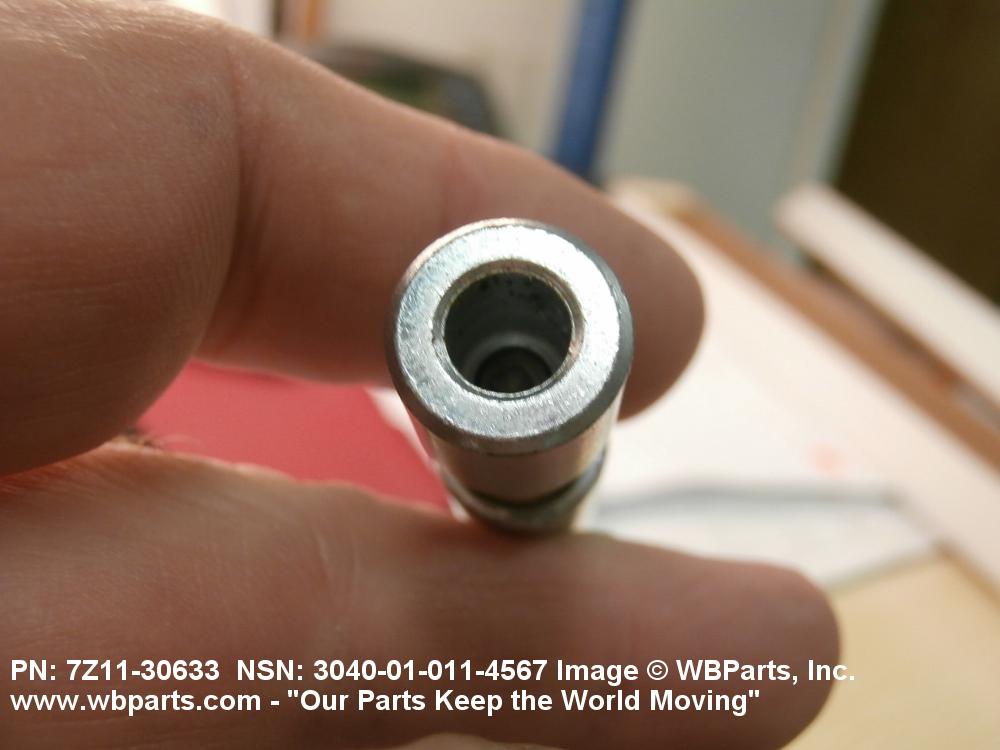

Drawings & Photos | NSN 3040-01-011-4567
Demand History | NSN 3040-01-011-4567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7Z1130633 | 2013-01-22 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-011-4567
Technical Data | NSN 3040-01-011-4567
| Characteristic | Specifications |
|---|---|
| III CASING MATERIAL | STEEL |
| CASING OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| CASING PROTECTIVE DEVICE TYPE | PLASTIC COVER |
| END CONNECTION TYPE | PLAIN FERRULE BOTH ENDS |
| SWIVEL END | NOT PROVIDED BOTH ENDS |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | STEEL, SPRING |
| CORE DIAMETER | 0.187 INCHES NOMINAL |
| CORE REMOVABILITY | NONREMOVABLE |
| OVERALL LENGTH | 30.000 INCHES NOMINAL |
| TORSIONAL DEFLECTION RATING | 3.0 DEG PER IN.-LB WINDING AND 3.3 DEG PER IN.-LB UNWINDING TORSIONAL DEFLECTION |
Restrictions/Controls & Freight Information | NSN 3040-01-011-4567
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-011-4567
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
