Product Details | FLEXIBLE SHAFT ASSEMBLY
3040-00-891-9836 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 5159715, 51597-15, 3040-00-891-9836, 00-891-9836, 3040008919836, 008919836
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-891-9836 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

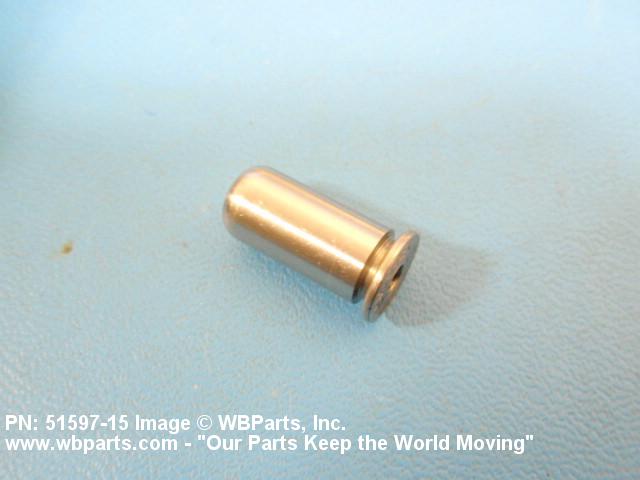

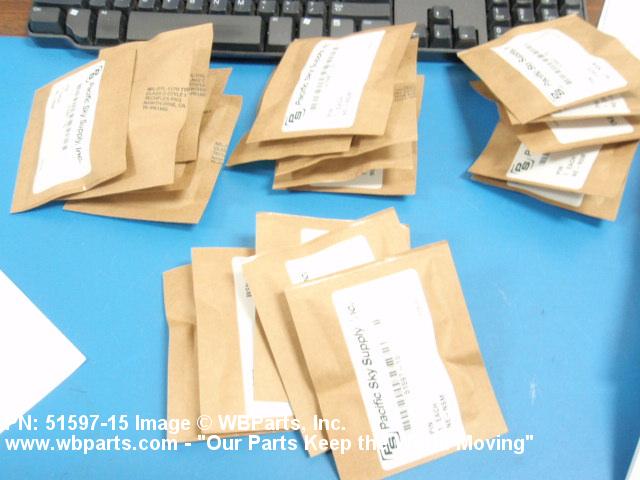

Drawings & Photos | NSN 3040-00-891-9836
Cross Reference | NSN 3040-00-891-9836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51597-15 | 86831 | ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-891-9836
3040-00-892-2425, 3040-00-892-2506, 3040-00-892-2518, 3040-00-892-2519, 3040-00-892-2520
Technical Data | NSN 3040-00-891-9836
| Characteristic | Specifications |
|---|---|
| CASING MATERIAL | STEEL |
| CASING SURFACE TREATMENT | ZINC COATED |
| CASING LENGTH BETWEEN FERRULES | 75.000 INCHES NOMINAL |
| CASING OUTSIDE DIAMETER | 0.235 INCHES NOMINAL |
| CASING PROTECTIVE DEVICE TYPE | PLASTIC COVER |
| END CONNECTION TYPE | THREADED INTERNAL BOTH ENDS |
| THREAD LOCATION | INTERNAL BOTH ENDS |
| SCREW THREAD SERIES DESIGNATOR | UNS BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| THREAD CLASS | 2 BOTH ENDS |
| SWIVEL END | NOT PROVIDED BOTH ENDS |
| WRENCHING FACILITY TYPE | HEXAGON BOTH ENDS |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL BOTH ENDS |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | STEEL |
| CORE OVERALL LENGTH | 76.000 INCHES NOMINAL |
| CORE DIAMETER | 0.130 INCHES NOMINAL |
| CORE ROTATION DIRECTION | CLOCKWISE |
| END TYPE | ROUND, INTERNAL SPLINED BOTH ENDS |
| TIP LENGTH | 0.500 INCHES NOMINAL BOTH ENDS |
| CROSS SECTION SIZE AND LOCATION | 0.406 INCHES NOMINAL DIAMETER BOTH ENDS |
| SETSCREW | NOT INCLUDED BOTH ENDS |
| SPLINE TYPE | INVOLUTE BOTH ENDS |
| SPLINE QUANTITY | 12 BOTH ENDS |
| SPLINE MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.299 INCHES MAXIMUM BOTH ENDS |
| SPLINE MINOR DIAMETER | 0.230 INCHES MINIMUM AND 0.240 INCHES MAXIMUM BOTH ENDS |
| SPLINE LENGTH | 0.250 INCHES NOMINAL BOTH ENDS |
| PITCH DIAMETER | 0.250 INCHES NOMINAL BOTH ENDS |
| SPLINE PRESSURE ANGLE IN DEG | 14.5 BOTH ENDS |
| CORE REMOVABILITY | NONREMOVABLE |
| OVERALL LENGTH | 76.000 INCHES NOMINAL |
| TORSIONAL DEFLECTION RATING | 15 DEG FT-LB IN. |
| MINIMUM OPERATING RADIUS | 3.000 INCHES |
| SPECIAL FEATURES | W/SPLIT COUPLING NUT ONE END OF CASING;COUNTERCLOCKWISE |
| MANUFACTURERS CODE | 86831 |
| DESIGN CONTROL REFERENCE | 51597-15 |
Restrictions/Controls & Freight Information | NSN 3040-00-891-9836
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
