NSN 3020-00-468-3171 DD692S650521PC50, DD692S6505-21PC50, 1012
Product Details | HELICAL GEAR
3020-00-468-3171 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: DD692S650521PC50, DD692S6505-21PC50, 1012, 2162L3PC50, 3020-00-468-3171, 00-468-3171, 3020004683171, 004683171
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-468-3171 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-468-3171
Cross Reference | NSN 3020-00-468-3171
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-468-3171
Technical Data | NSN 3020-00-468-3171
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| TEETH QUANTITY | 30 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STANDARD |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 6.3333 DEGREES |
| STYLE DESIGNATOR | 8 PROTRUDING HUB, RECESSED BODY |
| PITCH DIAMETER | 1.8750 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 2.0000 INCHES |
| FACE NOMINAL WIDTH | 0.500 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.750 INCHES FIRST END |
| BODY RECESS NOMINAL DEPTH | 0.062 INCHES SECOND END |
| BORE STYLE | 10A W/KEYWAY BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.500 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.094 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.328 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 0.812 INCHES FIRST END |

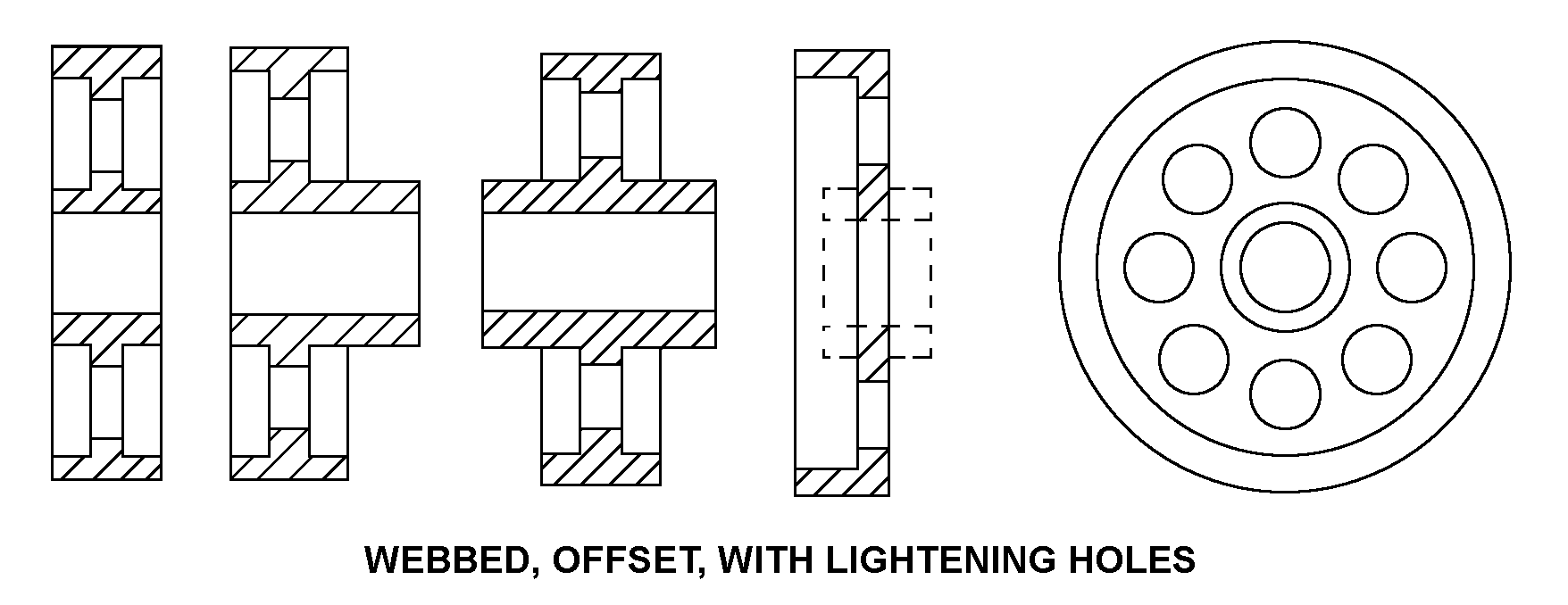

| BODY STYLE | 4B WEBBED, OFFSET, WITH LIGHTENING HOLES |
Restrictions/Controls & Freight Information | NSN 3020-00-468-3171
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
