3020-00-517-3657 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 229PC55, 2-29PC55, 845209, 845209ECC, 845209X845208, 845409, 3020-00-517-3657, 00-517-3657, 3020005173657, 005173657
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-517-3657 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-517-3657
Cross Reference | NSN 3020-00-517-3657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-29PC55 | 09706 | HONEYWELL LTD |
| 845209 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 845209ECC | 09706 | HONEYWELL LTD |
| 845209X845208 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 845409 | 62983 | EATON AEROSPACE LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3020-00-517-3657
Related Products | NSN 3020-00-517-3657
3020-00-517-3660, 3020-00-517-3661, 3020-00-517-3667, 3020-00-517-3670, 3020-00-517-3671
Technical Data | NSN 3020-00-517-3657
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 72 |
| TEETH TYPE | SPIRAL |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 22.2271 DEGREES |

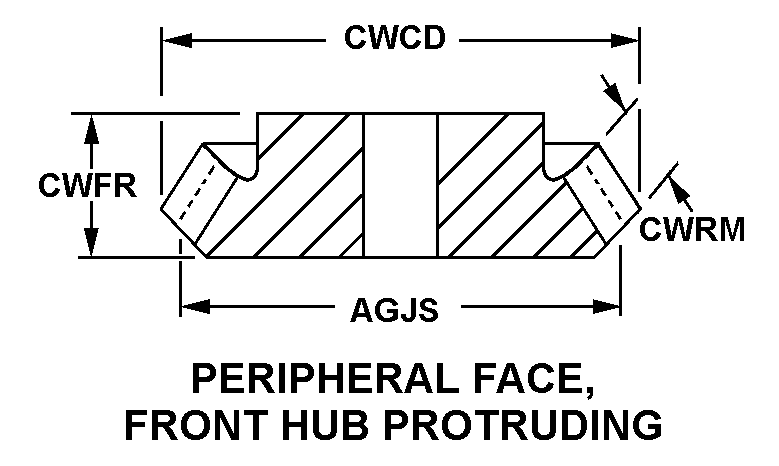

| STYLE DESIGNATOR | 37 PERIPHERAL FACE, FRONT HUB PROTRUDING |
| PITCH DIAMETER | 1.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.406 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.5115 INCHES |
| FACE NOMINAL WIDTH | 0.151 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.282 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 5 PINNED FIRST END |
| HUB NOMINAL DIAMETER | 0.500 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
