Product Details | BEVEL GEAR
3020-00-690-2891 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 8738922, 3020-00-690-2891, 00-690-2891, 3020006902891, 006902891
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-690-2891 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-690-2891
Cross Reference | NSN 3020-00-690-2891
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8738922 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-690-2891
Technical Data | NSN 3020-00-690-2891
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 150-125 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681,CLASS 150-125 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 36.0 ROCKWELL C MAXIMUM TEETH |
| TEETH QUANTITY | 64 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 71.8333 DEGREES |

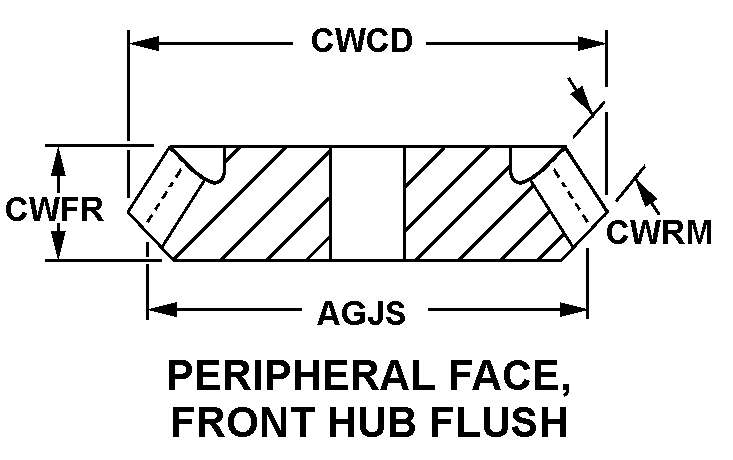

| STYLE DESIGNATOR | 36 PERIPHERAL FACE, FRONT HUB FLUSH |
| PITCH DIAMETER | 8.0000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.807 INCHES |
| NOMINAL OUTSIDE DIAMETER | 8.041 INCHES |
| FACE NOMINAL WIDTH | 1.380 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 2.167 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 3.000 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 6 PLAIN AXIALLY THROUGH BODY, FIRST END |
| MOUNTING HOLE NOMINAL DIAMETER | 0.410 INCHES AXIALLY THROUGH BODY, FIRST END |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 4.000 INCHES AXIALLY THROUGH BODY, FIRST END |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8738922 |
