Product Details | RIGID CONNECTING LINK
3040-00-862-9278 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 114C10152, 114C1015-2, 3040-00-862-9278, 00-862-9278, 3040008629278, 008629278
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-862-9278 | 21988 ( CONNECTING LINK, RIGID ) |

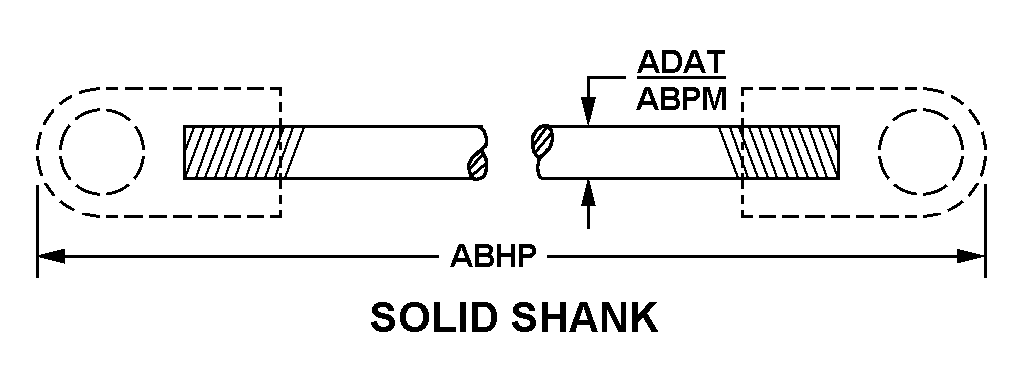

Drawings & Photos | NSN 3040-00-862-9278
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-862-9278
3040-00-863-0692, 3040-00-863-1075, 3040-00-863-1077, 3040-00-863-1099, 3040-00-863-1138
Technical Data | NSN 3040-00-862-9278
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| BODY CONSTRUCTION | TUBULAR |
| LINK STYLE | A42 SOLID SHANK |
| OVERALL LENGTH | 4.890 INCHES NOMINAL |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| END ATTACHMENT HOLE DIAMETER | 0.2495 INCHES MINIMUM BOTH ENDS 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM FIRST END |
| END ATTACHMENT LENGTH | 2.280 INCHES NOMINAL FIRST END |
| END ATTACHMENT WIDTH | 0.350 INCHES NOMINAL FIRST END |
| (NON-CORE DATA) THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) THREAD LENGTH | 0.840 INCHES NOMINAL |
| (NON-CORE DATA) EFFECTIVE LENGTH | 4.090 INCHES NOMINAL |
| (NON-CORE DATA) THREAD SIZE | 3/8-24 |
| (NON-CORE DATA) SCREW THREAD SERIES DESIGNATOR | UNF |
| (NON-CORE DATA) END ATTACHMENT DIAMETER | 0.797 INCHES MINIMUM 0.800 INCHES MAXIMUM |
| (NON-CORE DATA) END ATTACHMENT MATERIAL | STEEL |
| (NON-CORE DATA) END ATTACHMENT SURFACE TREATMENT | CADMIUM PLATED |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114C1015-2 |
Restrictions/Controls & Freight Information | NSN 3040-00-862-9278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-862-9278
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
