NSN 3040-00-894-6542 14546-6542, 204010925009, 204-010-925-009

Product Details | RIGID CONNECTING LINK

3040-00-894-6542 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).

Part Alternates: 14546-6542, 204010925009, 204-010-925-009, 2040109259, 204-010-925-9, 3040-00-894-6542, 00-894-6542, 3040008946542, 145466542, 008946542

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	01 JAN 1963	00-894-6542	21988 ( CONNECTING LINK, RIGID )

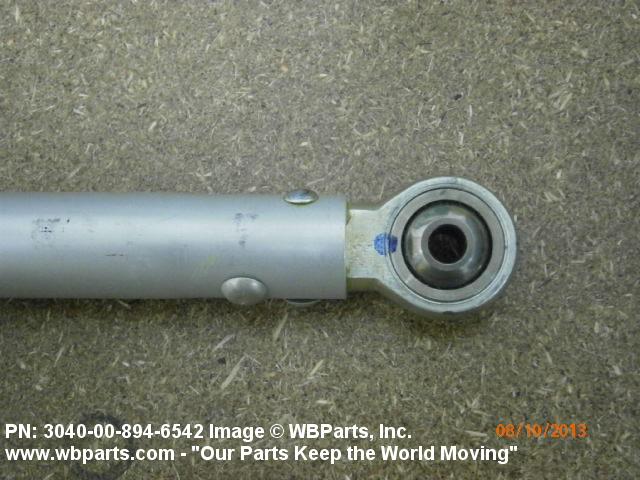

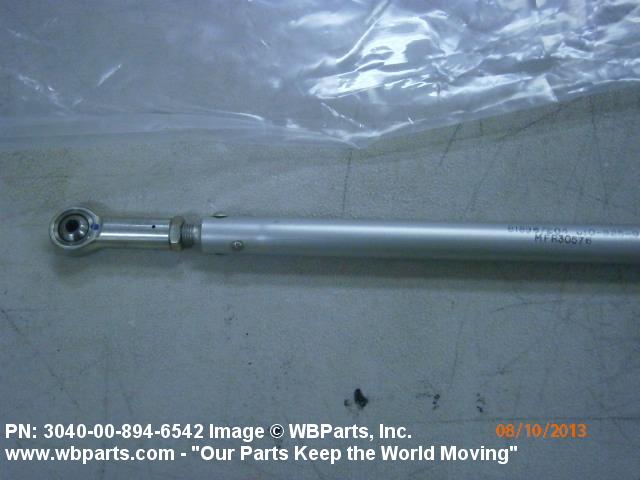

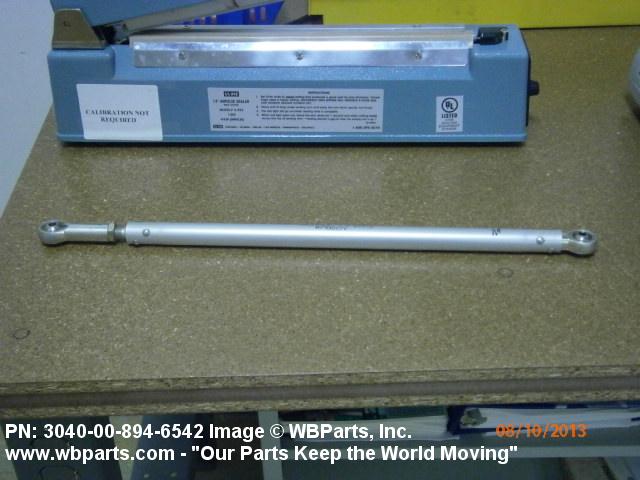

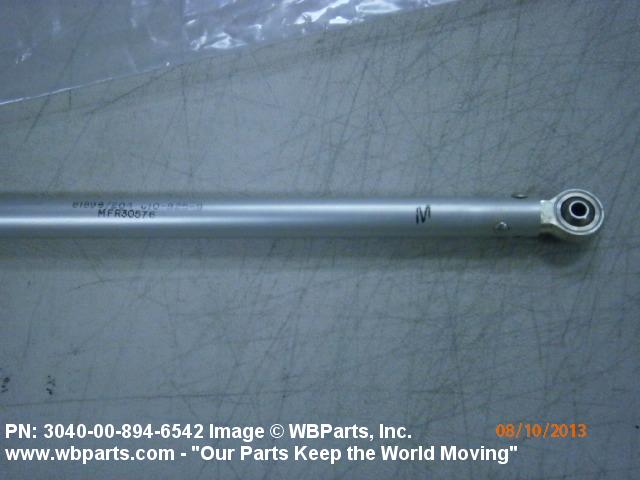

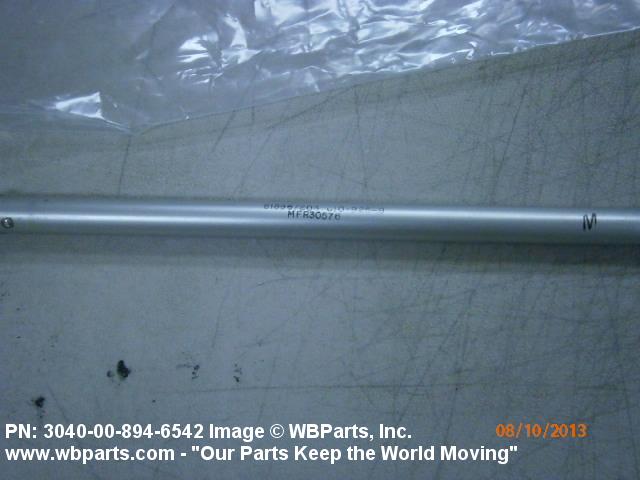

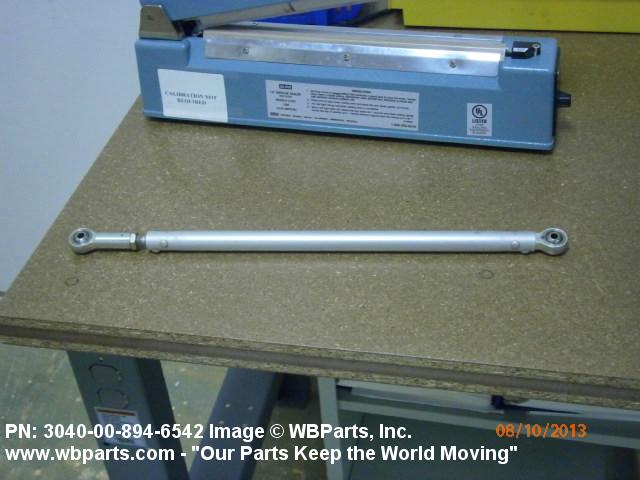

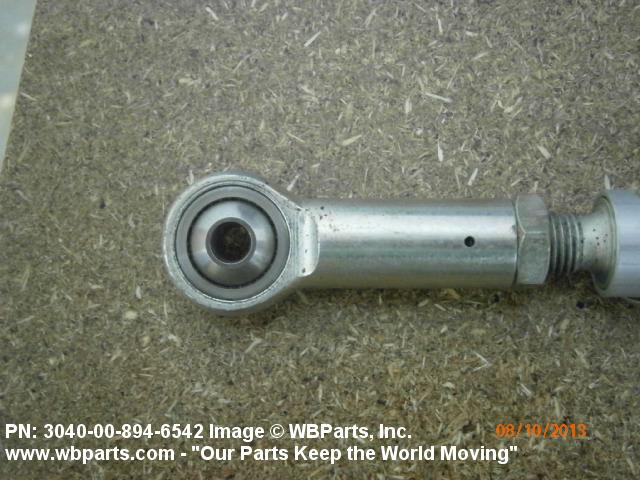

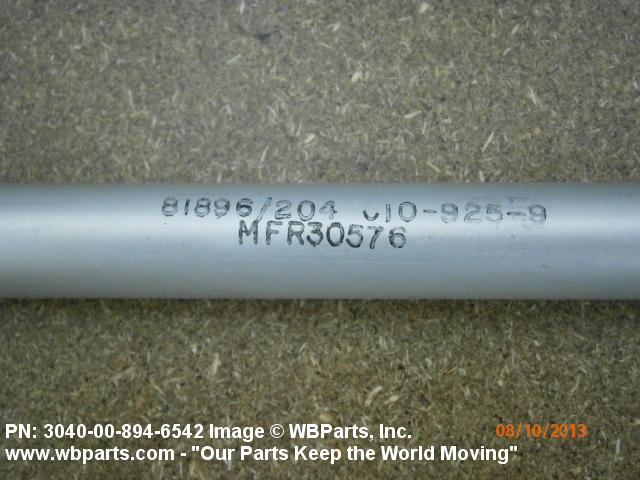

Drawings & Photos | NSN 3040-00-894-6542

Part Number	Request Date	QTY	Origin
3040-00-894-6542	2022-01-04	2	United States
204010925009	2018-04-117	20	US
3040-00-894-6542	2017-09-270	2	us
204010925009	2015-01-06	2	United States
3040-00-894-6542	2013-09-256	6	Taiwan
3040-00-894-6542	2013-08-221	6	TW
3040-00-894-6542	2013-02-58	6	Seychelles
3040-00-894-6542	2010-06-165	17	DIBBS
3040-00-894-6542	2009-12-337	211	DIBBS
3040-00-894-6542	2009-10-287	102	DIBBS
3040-00-894-6542	2009-09-251	189	DIBBS
3040-00-894-6542	2008-06-155	1	AR
3040-00-894-6542	2008-04-100	65	DIBBS
3040-00-894-6542	2008-03-64	42	DIBBS
3040-00-894-6542	2008-02-50	11	DIBBS
3040-00-894-6542	2007-11-323	33	DIBBS
3040-00-894-6542	2007-10-278	32	DIBBS
3040-00-894-6542	2007-06-178	192	DIBBS
3040-00-894-6542	2007-02-41	47	DIBBS
3040-00-894-6542	2006-06-166	99	DIBBS
204010925009	2006-05-134	15	United Arab Emirates
204010925009	2006-05-128	1	Australia
3040-00-894-6542	2006-05-121	326	DIBBS
204010925009	2006-04-107	6	United States
204010925009	2006-04-103	4	US
3040-00-894-6542	2006-02-45	256	DIBBS

Cross Reference | NSN 3040-00-894-6542

Part Number	Cage Code	Manufacturer
14546-6542	14546	VAN SICKLE L J
204-010-925-009	97499	BELL HELICOPTER TEXTRON INC.
204-010-925-9	97499	BELL HELICOPTER TEXTRON INC.
204-010-925-9	D0216	RUAG AEROSPACE SERVICES GMBH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3040-00-894-6542

Compare

Related Products | NSN 3040-00-894-6542

3040-00-894-6655, 3040-00-894-6671, 3040-00-894-7075, 3040-00-894-7076, 3040-00-894-8749

Technical Data | NSN 3040-00-894-6542

Characteristic	Specifications
III END ITEM IDENTIFICATION	UH-1 SERIES HELICOPTER
MANUFACTURERS CODE	97499
DESIGN CONTROL REFERENCE	204-010-925-9

Restrictions/Controls & Freight Information | NSN 3040-00-894-6542

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095630	LAP/CONNECTING LINKS/RINGS STEEL
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3040-00-894-6542

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	1	REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	O	If condemned or economically unserviceable, dispose at organizational level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GA	TG:H-1 IROQUOIS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
