3040-01-059-5272 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 2090010811, 209-001-081-1, 3040-01-059-5272, 01-059-5272, 3040010595272, 010595272
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 APR 1978 | 01-059-5272 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-01-059-5272
Demand History | NSN 3040-01-059-5272
Cross Reference | NSN 3040-01-059-5272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-001-081-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-01-059-5272
3040-01-059-5273, 3040-01-059-5479, 3040-01-059-5518, 3040-01-059-5520, 3040-01-059-5557
Technical Data | NSN 3040-01-059-5272
| Characteristic | Specifications |
|---|---|
| BODY CONSTRUCTION | TUBULAR |
| LINK STYLE | A45 TUBULAR SHANK |

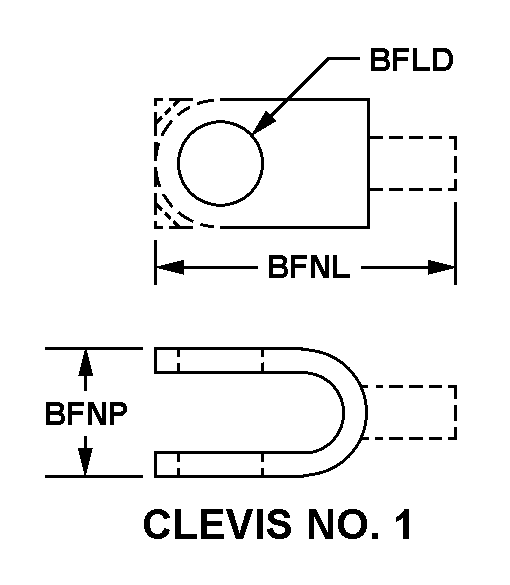

| END ATTACHMENT STYLE | B4 CLEVIS NO. 1 FIRST END |
| (NON-CORE DATA) MATERIAL | ALUMINUM ALLOY, WW-T-700/3, T0, TYPE 1 OR ALUMINUM ALLOY, WW-T-700/3, T3, TYPE 1 |
