NSN 3040-01-312-2028 4905, 4905173, 4905-173
Product Details | RIGID CONNECTING LINK
3040-01-312-2028 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 4905, 4905173, 4905-173, 75J618002173, 75J618002-173, 3040-01-312-2028, 01-312-2028, 3040013122028, 013122028
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 DEC 1989 | 01-312-2028 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-01-312-2028
Demand History | NSN 3040-01-312-2028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4905 | 2023-05-138 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-312-2028
Technical Data | NSN 3040-01-312-2028
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| BODY CONSTRUCTION | TUBULAR |

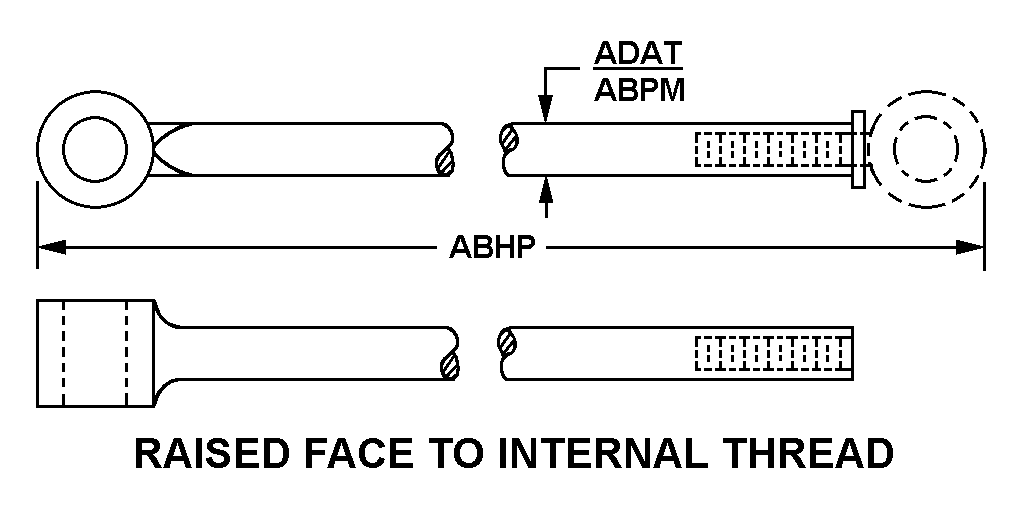

| LINK STYLE | A28 RAISED FACE TO INTERNAL THREAD |
| OVERALL LENGTH | 8.588 INCHES NOMINAL |
| END ATTACHMENT STYLE | B2 RAISED FACE, ROUND FIRST END |
| END ATTACHMENT HOLE DIAMETER | 0.340 INCHES NOMINAL FIRST END |
| END ATTACHMENT LENGTH | 2.344 INCHES NOMINAL FIRST END |
| END ATTACHMENT WIDTH | 0.438 INCHES NOMINAL FIRST END |
| (NON-CORE DATA) THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) THREAD LENGTH | 0.700 INCHES NOMINAL |
| (NON-CORE DATA) HOLE DIAMETER | 0.250 INCHES NOMINAL |
| (NON-CORE DATA) EFFECTIVE LENGTH | 15.540 INCHES NOMINAL |
| (NON-CORE DATA) THREAD SIZE | 3/8-24 |
| (NON-CORE DATA) SCREW THREAD SERIES DESIGNATOR | UNF |
| (NON-CORE DATA) END WIDTH | 0.438 INCHES NOMINAL |
| (NON-CORE DATA) END ATTACHMENT DIAMETER | 0.938 INCHES NOMINAL |
| (NON-CORE DATA) END ATTACHMENT MATERIAL | ALUMINUM ALLOY, WW-T-700/3 |
| (NON-CORE DATA) END ATTACHMENT SURFACE TREATMENT | ANODIZED |
Restrictions/Controls & Freight Information | NSN 3040-01-312-2028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
