NSN 3040-01-515-7757 8756724, 01-515-7757, 015157757
Product Details | RIGID CONNECTING LINK
3040-01-515-7757 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 8756724, 3040-01-515-7757, 01-515-7757, 3040015157757, 015157757
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 DEC 2003 | 01-515-7757 | 21988 ( CONNECTING LINK, RIGID ) |
Drawings & Photos | NSN 3040-01-515-7757
Cross Reference | NSN 3040-01-515-7757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8756724 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-515-7757
Technical Data | NSN 3040-01-515-7757
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| BODY CONSTRUCTION | SOLID |

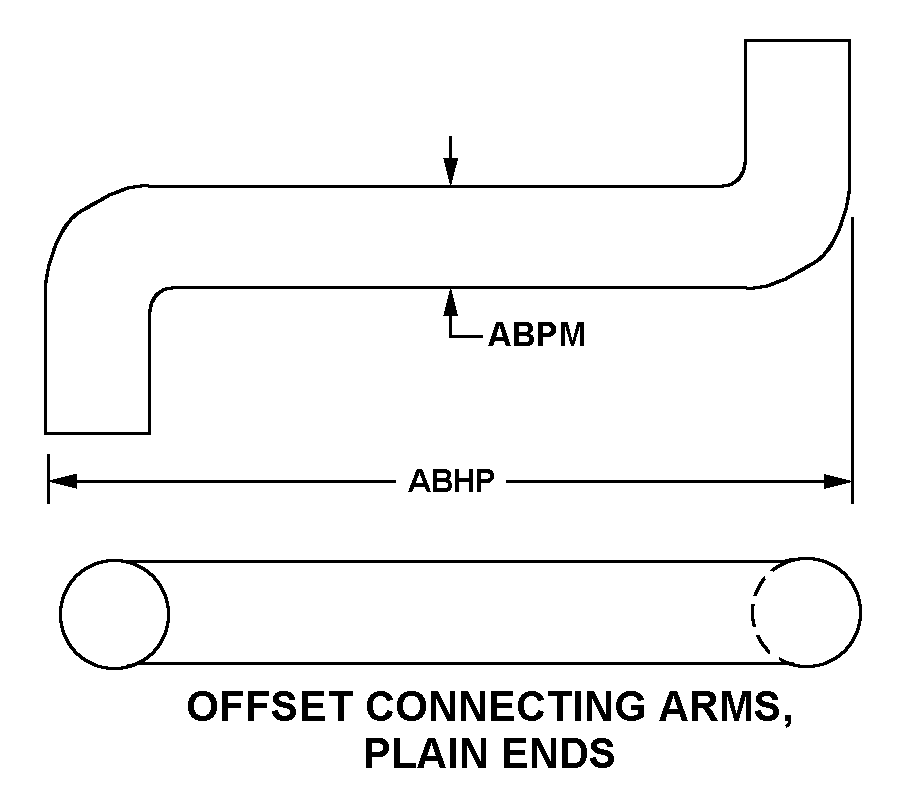

| LINK STYLE | A17 OFFSET CONNECTING ARMS, PLAIN ENDS |
| END ATTACHMENT STYLE | B6 CLEVIS NO. 2 FIRST END B6 CLEVIS NO. 2 SECOND END |
| END ATTACHMENT HOLE DIAMETER | 1.001 INCHES MINIMUM AND 1.006 INCHES MAXIMUM FIRST END 0.559 INCHES MINIMUM AND 0.560 INCHES MAXIMUM SECOND END |
Restrictions/Controls & Freight Information | NSN 3040-01-515-7757
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
