NSN 3110-00-108-9225 ND99502919069, ND99502-919069, SKF6202-2RS HT12

Product Details | ANNULAR BALL BEARING

3110-00-108-9225 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: ND99502919069, ND99502-919069, SKF6202-2RS HT12, SKF62022RSHT12, Z99502AC, P8C77073, P8C7707-3, MILSTD102B, MIL-STD-102B, 8703309-01, 99502X1292MILL3545, 99502X1MILL3545, 0100836-00, 04A091010100, 111X01502X4003, 1202LL1V1, 1202LL-1V1, 1202LLT1V1, 1202LLT-1V1, 1202RRANG15, 1202RRHT, 1202RRMILL3545, 1202RRMILL7711, 17723B, 177-23B, 202KPPMILL3545, 202NNTFMILL3545, 202NNTFMILL7711, 202PPANG15, 202PPE3480MILL3545, 202PPFS264, 202PPFS50167, 202PPMILL7711, 202SZZE105A306A16C4000, 202SZZE1-05A306A16C4000, 202SZZL105A006A78C30000, 202SZZQ5A7ANG15, 202SZZQ5A7MILL3545, 202SZZQ5A7XMILL7711, 202SZZQ5AP7XMILL, 5518458, 62022ARSANG15, 6202-2ARSANG15, 6202-2RS1/LHT55, 62022RS1LHT55, 6202-2RSH/LHT55 , 62022RSHLHT55, 62022RSJANG15, 6202-2RSJANG15, 62022RSJHBD0, 62022RSJHE, 6202-2RSJHE, 6202A2RSJANG15, 6202A2RSJMILL3545, 6202A2RSMT11, 3110-00-108-9225, 00-108-9225, 3110001089225, 870330901, 010083600, 001089225

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-108-9225	00014 ( BEARING, BALL, ANNULAR )

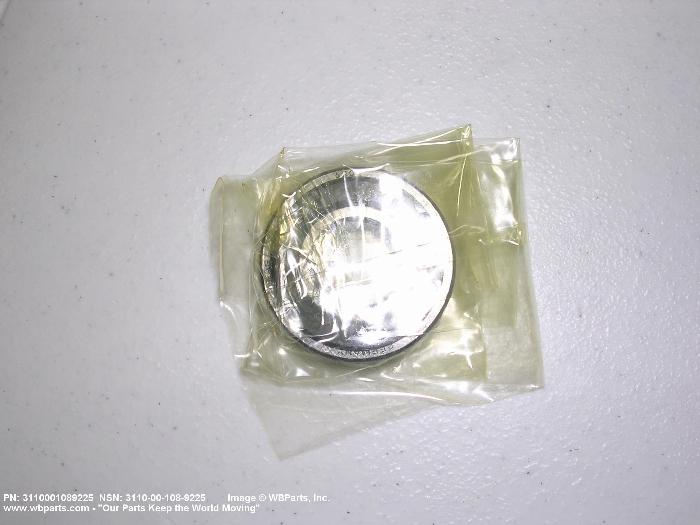

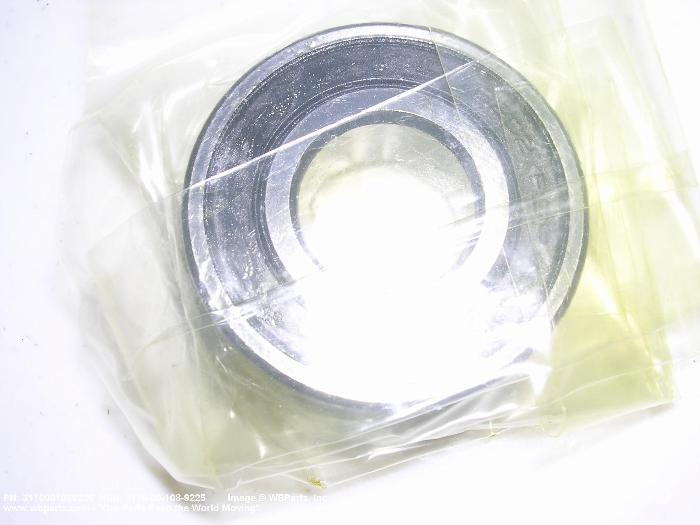

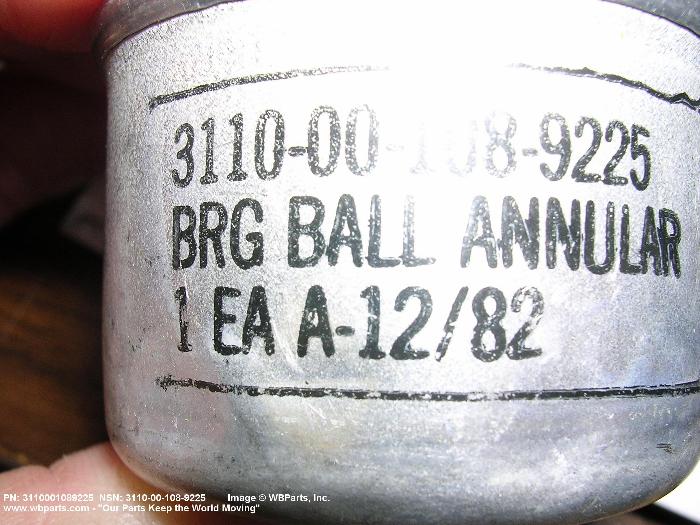

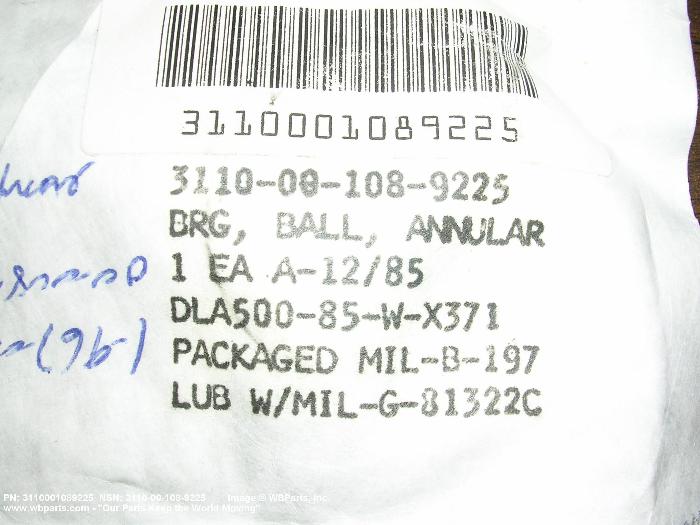

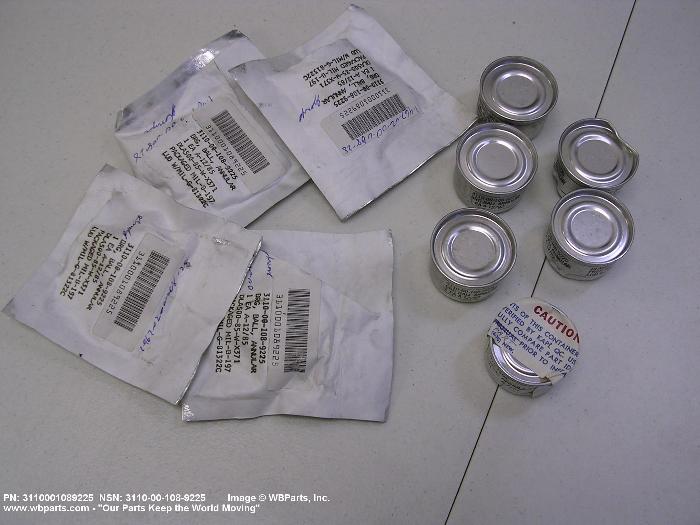

Drawings & Photos | NSN 3110-00-108-9225

Part Number	Request Date	QTY	Origin
3110-00-108-9225	2021-03-60	200	Saudi Arabia
62022RSJHE	2021-02-54	200	Saudi Arabia
3110-00-108-9225	2017-11-306	1	DIBBS-RFPs
3110-00-108-9225	2010-05-139	19	DIBBS
3110-00-108-9225	2010-04-116	61	DIBBS
3110-00-108-9225	2010-04-95	63	DIBBS
3110-00-108-9225	2008-11-323	1	US
3110-00-108-9225	2008-06-178	10	Denmark
3110-00-108-9225	2007-09-254	1000	DIBBS
3110-00-108-9225	2007-09-249	10	Denmark
3110-00-108-9225	2007-08-239	1000	DIBBS
3110-00-108-9225	2007-01-29	19	DIBBS

Cross Reference | NSN 3110-00-108-9225

Part Number	Cage Code	Manufacturer
0100836-00	08722	DUFF-NORTON CO INC
04A091010100	92940	EMERSON ELECTRIC CO EMERSON SPECIALTY MOTOR DIV
111X01502X4003	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
1202LL-1V1	21760	SCHATZ BEARING CORPORATION
1202LLT-1V1	21760	SCHATZ BEARING CORPORATION
1202RRANG15	21760	SCHATZ BEARING CORPORATION
1202RRHT	21760	SCHATZ BEARING CORPORATION
1202RRMILL3545	21760	SCHATZ BEARING CORPORATION
1202RRMILL7711	21760	SCHATZ BEARING CORPORATION
177-23B	45934	ONTIC ENGINEERING AND MANUFACTURING, INC.
177-23B	56705	DONALLCO INC
202KPPMILL3545	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202NNTFMILL3545	43991	FAG BEARINGS CORPORATION
202NNTFMILL7711	43991	FAG BEARINGS CORPORATION
202PPANG15	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202PPE3480MILL3545	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202PPFS264	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202PPFS50167	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202PPMILL7711	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202SZZE1-05A306A16C4000	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
202SZZL105A006A78C30000	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
202SZZQ5A7ANG15	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
202SZZQ5A7MILL3545	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
202SZZQ5A7XMILL7711	81965	TRW INC BEARINGS DIV PLAINVILLE PLANT
202SZZQ5AP7XMILL	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
5518458	53711	NAVAL SEA SYSTEMS COMMAND
6202-2ARSANG15	52676	SKF USA INC.
6202-2RS1/LHT55	52676	SKF USA INC.
6202-2RSH/LHT55	52676	SKF USA INC.
6202-2RSJANG15	52676	SKF USA INC.
6202-2RSJHE	52676	SKF USA INC.
62022RSJHBD0	52676	SKF USA INC.
6202A2RSJANG15	52676	SKF USA INC.
6202A2RSJMILL3545	52676	SKF USA INC.
6202A2RSMT11	52676	SKF USA INC.
8703309-01	71871	ALFA LAVAL INC.
99502X1292MILL3545	24617	GENERAL MOTORS CORP
99502X1MILL3545	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
MIL-STD-102B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
ND99502-919069	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
P8C7707-3	79500	WESTINGHOUSE ELECTRIC CORP
SKF6202-2RS HT12	52676	SKF USA INC.
Z99502AC	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-108-9225

Compare

Related Products | NSN 3110-00-108-9225

3110-00-108-9226, 3110-00-108-9233, 3110-00-108-9237, 3110-00-108-9245, 3110-00-108-9246

Technical Data | NSN 3110-00-108-9225

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	11.0 MILLIMETERS NOMINAL
BORE DIAMETER	15.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	35.00 MILLIMETERS NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
MANUFACTURERS CODE	96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-STD-102B

Restrictions/Controls & Freight Information | NSN 3110-00-108-9225

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-108-9225

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
