3110-00-235-4555 - ANNULAR BALL BEARING, S3504HH111253, W204PP111253, 03-6010-018

Product Details | ANNULAR BALL BEARING

3110-00-235-4555 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: S3504HH111253, W204PP111253, 03-6010-018, 03601018, 03-6010-18, 07111253, 07-111253, 204SRRC111253, 3110-00-235-4555, 00-235-4555, 3110002354555, 036010018, 002354555

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	25 JUN 1969	00-235-4555	00014 ( BEARING, BALL, ANNULAR )

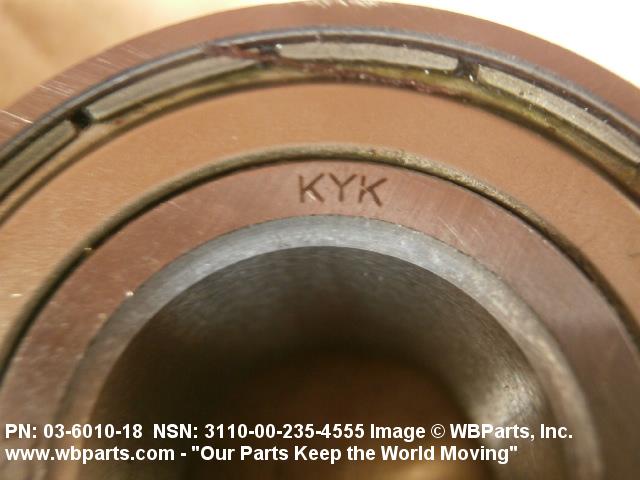

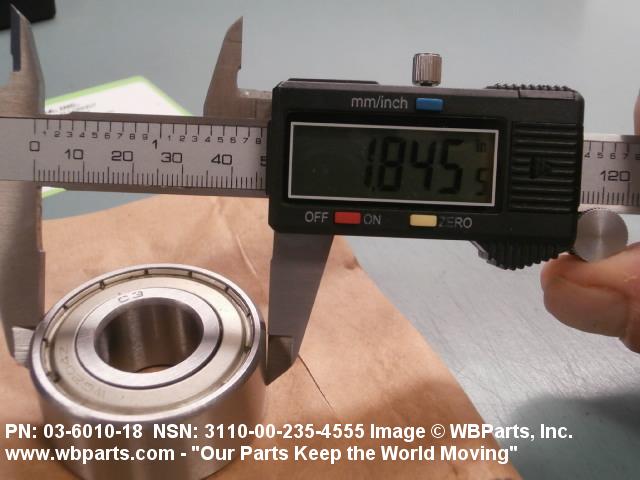

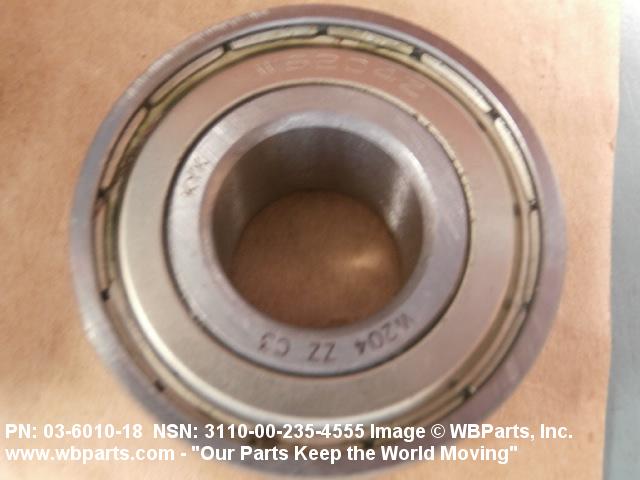

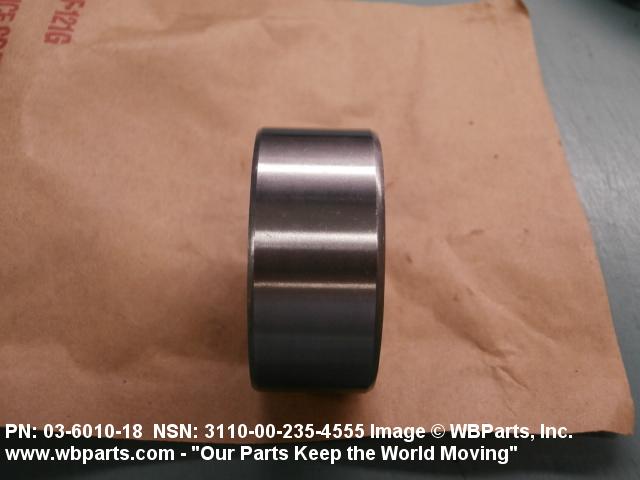

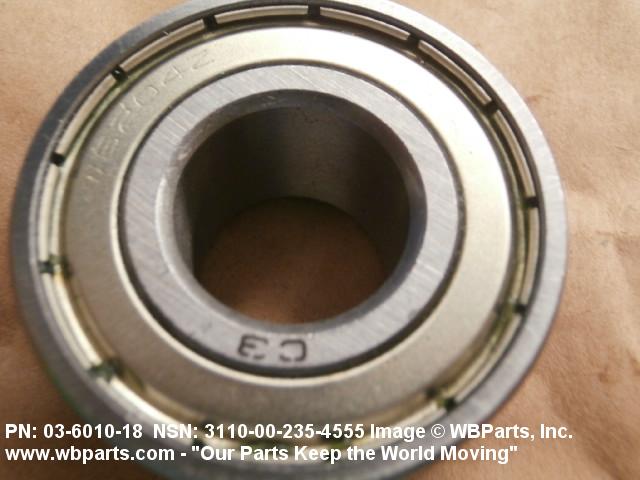

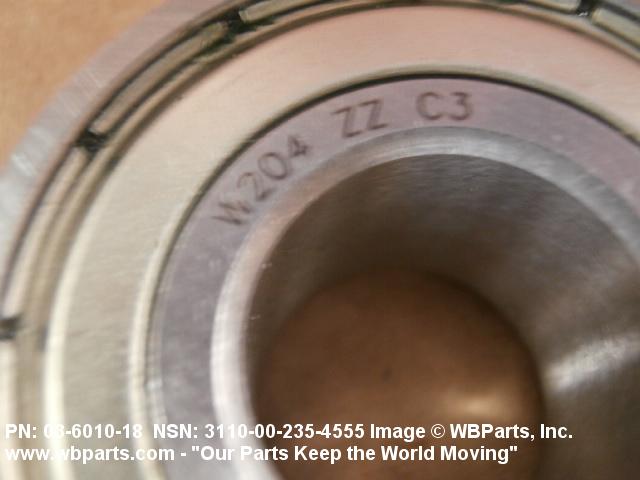

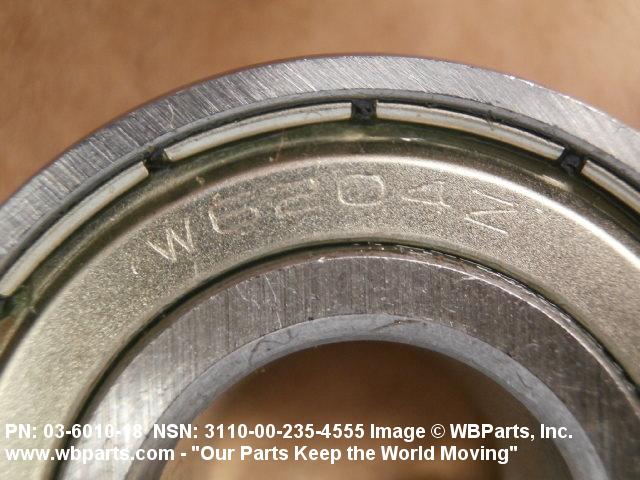

Drawings & Photos | NSN 3110-00-235-4555

Part Number	Request Date	QTY	Origin
3110-00-235-4555	2023-05-24	12	ID
07111253	2022-06-24	16	US
03601018	2021-06-11	1	Indonesia
3110-00-235-4555	2021-03-05	10	IN
3110-00-235-4555	2021-01-11	20	us
03601018	2020-06-10	20	Sri Lanka
03601018	2019-09-11	2	ID
03601018	2019-09-11	2	ID
03601018	2019-05-21	10	US
03601018	2019-03-07	10	US
03601018	2015-03-24	1	US
03601018	2015-02-17	9	US
03601018	2014-03-13	10	United States
07111253	2013-10-28	20	LK
03601018	2013-05-16	6	Indonesia
07111253	2012-07-05	20	UK
07111253	2012-07-02	20	LK
03601018	2012-01-27	8	CO
S3504HH111253	2011-07-07	6	Spain
07-111253	2011-06-29	1	MX
07-111253	2011-06-29	1	MX
03601018	2011-05-31	200	GR
03601018	2011-02-22	8	ES
03601018	2010-05-28	4	US
03601018	2010-04-09	140	Brazil
03601018	2009-07-26	6	Brazil
036010018	2008-04-23	4	US
3110-00-235-4555	2008-01-18	10	South Korea
07111253	2007-04-10	14	us
07111253	2007-01-31	2	UM

Cross Reference | NSN 3110-00-235-4555

Part Number	Cage Code	Manufacturer
03-6010-018	31435	LUCAS AEROSPACE POWER EQUIPMENT CORPORATION
03-6010-18	31435	LUCAS AEROSPACE POWER EQUIPMENT CORPORATION
03-6010-18	3CPE0	SAFRAN POWER USA, LLC
07-111253	31435	LUCAS AEROSPACE POWER EQUIPMENT CORPORATION
204SRRC111253	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
S3504HH111253	43991	FAG BEARINGS CORPORATION
W204PP111253	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-235-4555

Compare

Related Products | NSN 3110-00-235-4555

3110-00-235-5663, 3110-00-235-5750, 3110-00-235-7280, 3110-00-235-7492, 3110-00-235-7515

Technical Data | NSN 3110-00-235-4555

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	0.8075 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM
BORE DIAMETER	0.7870 INCHES MINIMUM AND 0.7874 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	1.8502 INCHES MINIMUM AND 1.8504 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	05-648296,31435 MFR REF SINGLE MATERIAL RESPONSE
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	2
BEARING SEAL TYPE	LABYRINTH
LOAD DIRECTION	RADIAL
INTERNAL CLEARANCE	0.0006 INCHES MINIMUM RADIAL AND 0.0012 INCHES MAXIMUM RADIAL
SPECIAL FEATURES	LUBRICATED 50 PCT PORM 10 PCT FULL
MANUFACTURERS CODE	31435
MFR SOURCE CONTROLLING REFERENCE	03-6010-018

Restrictions/Controls & Freight Information | NSN 3110-00-235-4555

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
