Product Details | ANNULAR BALL BEARING
3110-00-937-1182 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: MM211VM6MBRE9266, 460920, 1300329, 1-300-329, 1-300-329-01, 1-300-329-02, 3110-00-937-1182, 00-937-1182, 3110009371182, 130032902, 009371182, 130032901
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 NOV 1966 | 00-937-1182 | 00014 ( BEARING, BALL, ANNULAR ) |

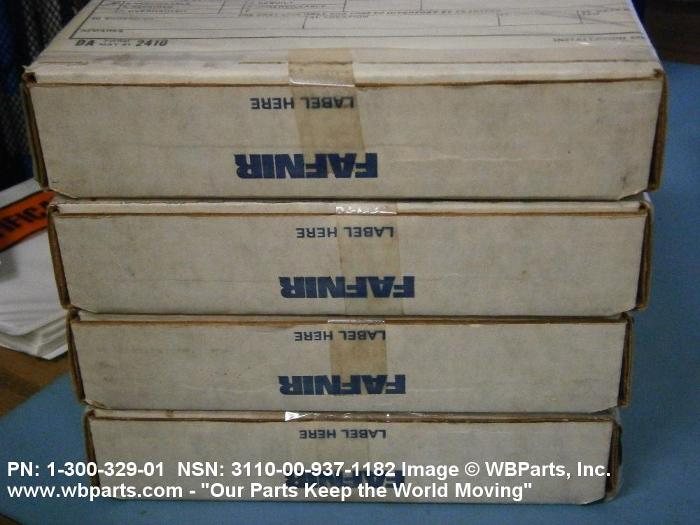

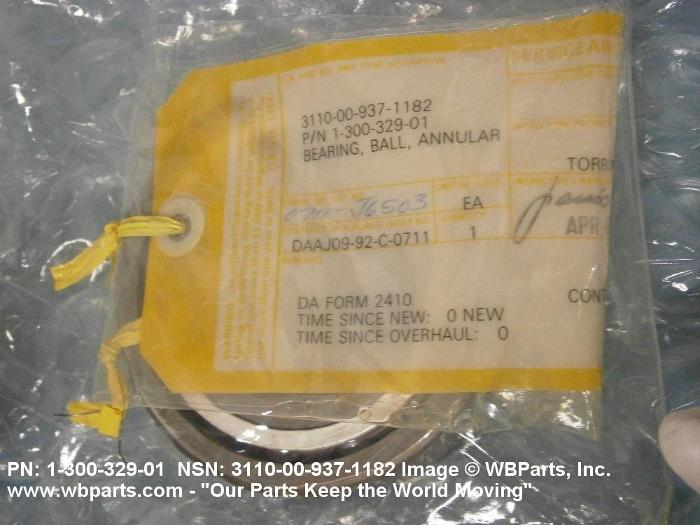

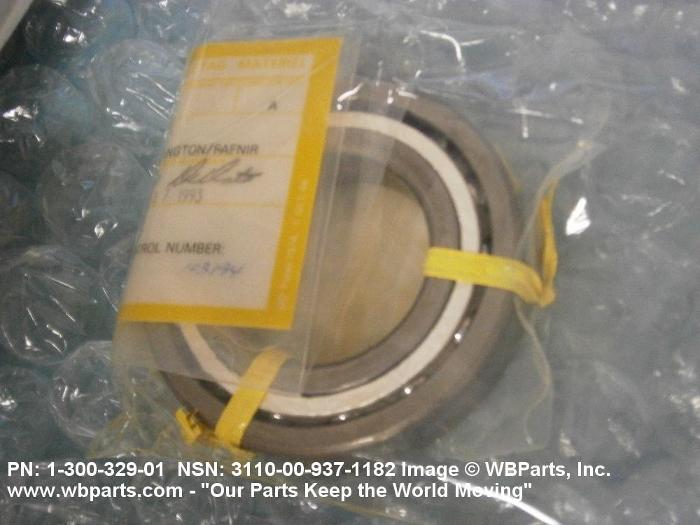

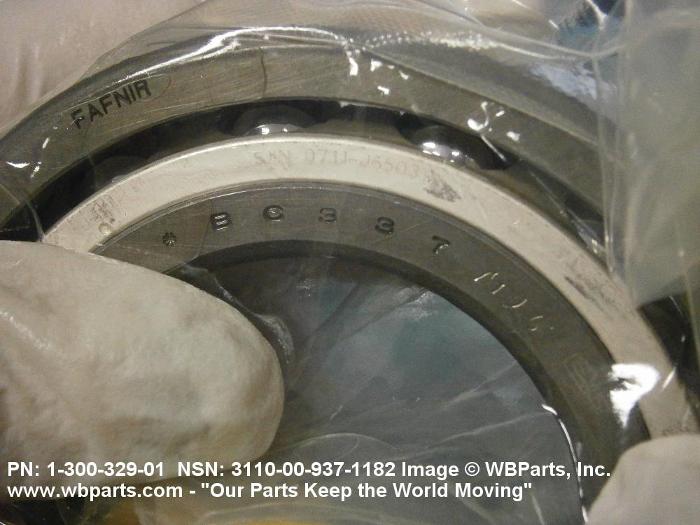

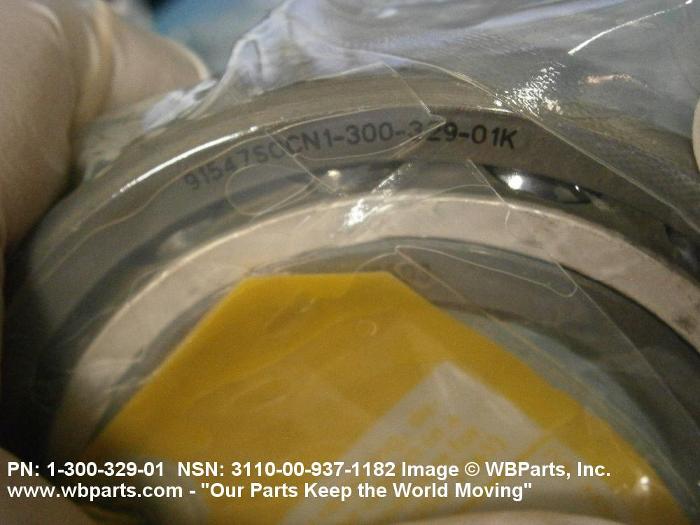

Drawings & Photos | NSN 3110-00-937-1182
Demand History | NSN 3110-00-937-1182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-937-1182 | 2023-02-17 | 2 | US |
| 3110-00-937-1182 | 2018-11-27 | 2 | United States |
| 3110-00-937-1182 | 2014-07-30 | 4 | Seychelles |
| 3110-00-937-1182 | 2014-06-01 | 4 | DIBBS |
| 3110-00-937-1182 | 2012-04-25 | 10 | United States |
| 3110-00-937-1182 | 2012-02-29 | 2 | United States |
| 3110-00-937-1182 | 2012-02-29 | 6 | United States |
| 3110-00-937-1182 | 2012-02-22 | 2 | United States |
Cross Reference | NSN 3110-00-937-1182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-300-329 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1-300-329-01 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1-300-329-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 460920 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 460920 | 52676 | SKF USA INC. |
| MM211VM6MBRE9266 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-937-1182
Related Products | NSN 3110-00-937-1182
3110-00-937-1838, 3110-00-937-1873, 3110-00-937-1874, 3110-00-937-1875, 3110-00-937-1878
Technical Data | NSN 3110-00-937-1182
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | M4001,91547 MFR REF SINGLE MATERIAL RESPONSE BALL M4001,91547 MFR REF SINGLE MATERIAL RESPONSE INNER RING M4001,91547 MFR REF SINGLE MATERIAL RESPONSE OUTER RING M3900,91547 MFR REF SINGLE MATERIAL RESPONSE RETAINER |

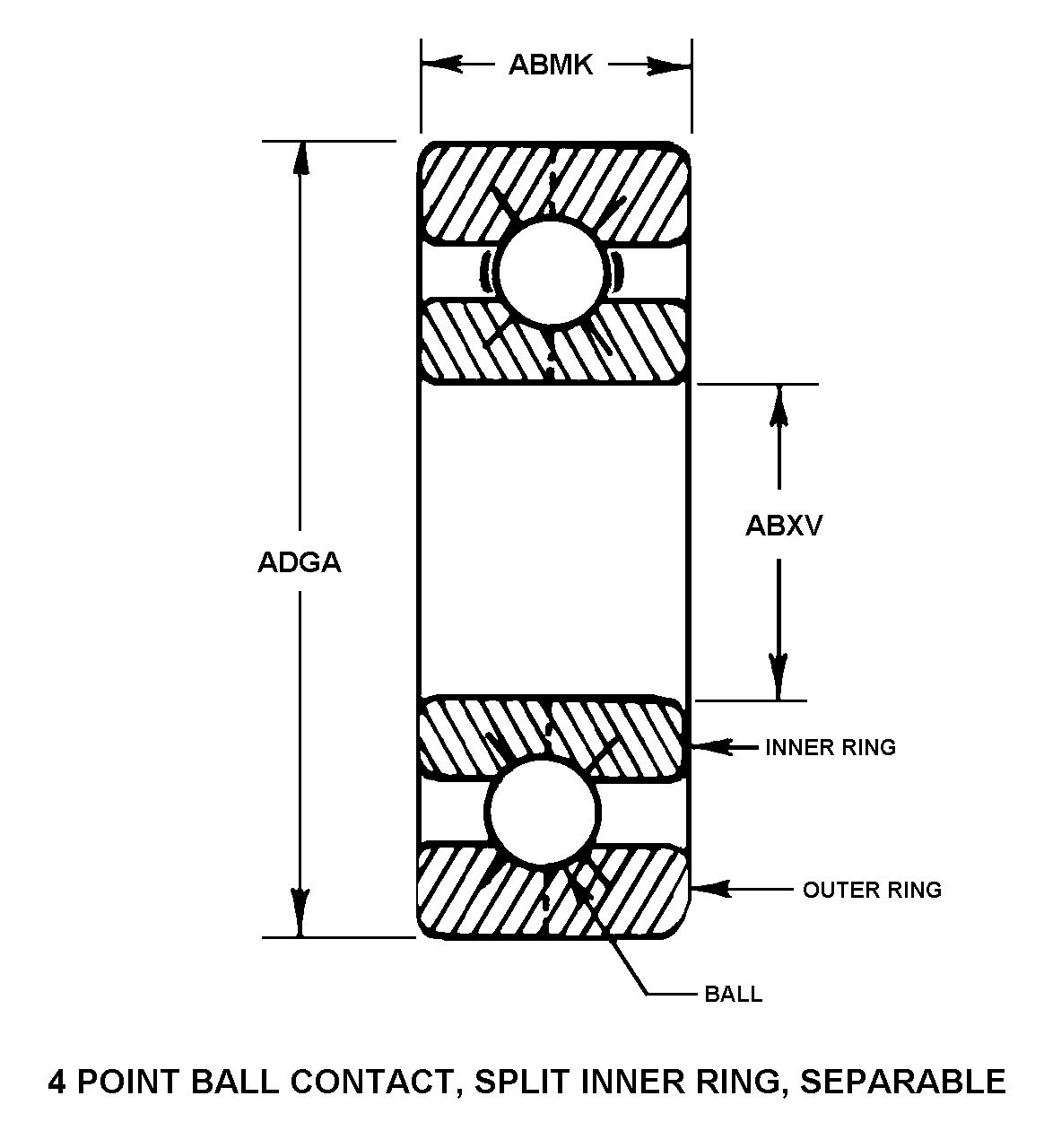

| STYLE DESIGNATOR | 40B 4 POINT BALL CONTACT, SPLIT INNER RING, SEPARABLE |
| OVERALL WIDTH | 21.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 55.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 100.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | 0.0130 INCHES NOMINAL AXIAL AND 0.0024 INCHES NOMINAL RADIAL |
| CONTACT ANGLE | 22.0 DEGREES MAXIMUM |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | HEAT STABILIZED FOR OPERATION AT M65 TO P350 DEG F BALL,INNER AND OUTERRINGS ROCKWELL HARDENED 58.0 TO 62.0 CSCALE INNER AND OUTER RING RACE WAYS 8 UIN AA,BORE AND OD SURFACE INNER RING LIPS 16 UIN AA,RETAINER 32 UIN AAO/A |
| TEST DATA DOCUMENT | 91547-E1004 SPECIFICATION OR 91547-P6903 SPECIFICATION |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | RETAINER SILVER |
| MANUFACTURERS CODE | 99193 |
| MFR SOURCE CONTROLLING REFERENCE | 1-300-329 |
Restrictions/Controls & Freight Information | NSN 3110-00-937-1182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-937-1182
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BB | AH-1, UH-1, OV-1 Turbine Engine |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
