Product Details | ANNULAR BALL BEARING
3110-00-937-1874 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 3110-00-937-1874, 00-937-1874, 3110009371874, 009371874
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 00-937-1874 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-937-1874
Cross Reference | NSN 3110-00-937-1874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1410-0058 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1410-0058 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 4295-190149-1 | 97384 | AAI CORPORATION DBA TEXTRON SYSTEMS |
| 503950 | 20284 | TARGET CORPORATION DBA TARGET |
| A25A709-034-101 | 12464 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
| A25A709-034-101 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| A25A709-034-101 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| AMUF4DDFS160L | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| AMVF4DDFS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| AMVF4DDFS160L | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| B2-3 | 29440 | W. M. BERG INC |
| MF4DDFS68115 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MVF4DDFS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MVF4DDFS68115 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-00-937-1874
3110-00-937-1875, 3110-00-937-1878, 3110-00-937-2736, 3110-00-937-2882, 3110-00-937-3684
Technical Data | NSN 3110-00-937-1874
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

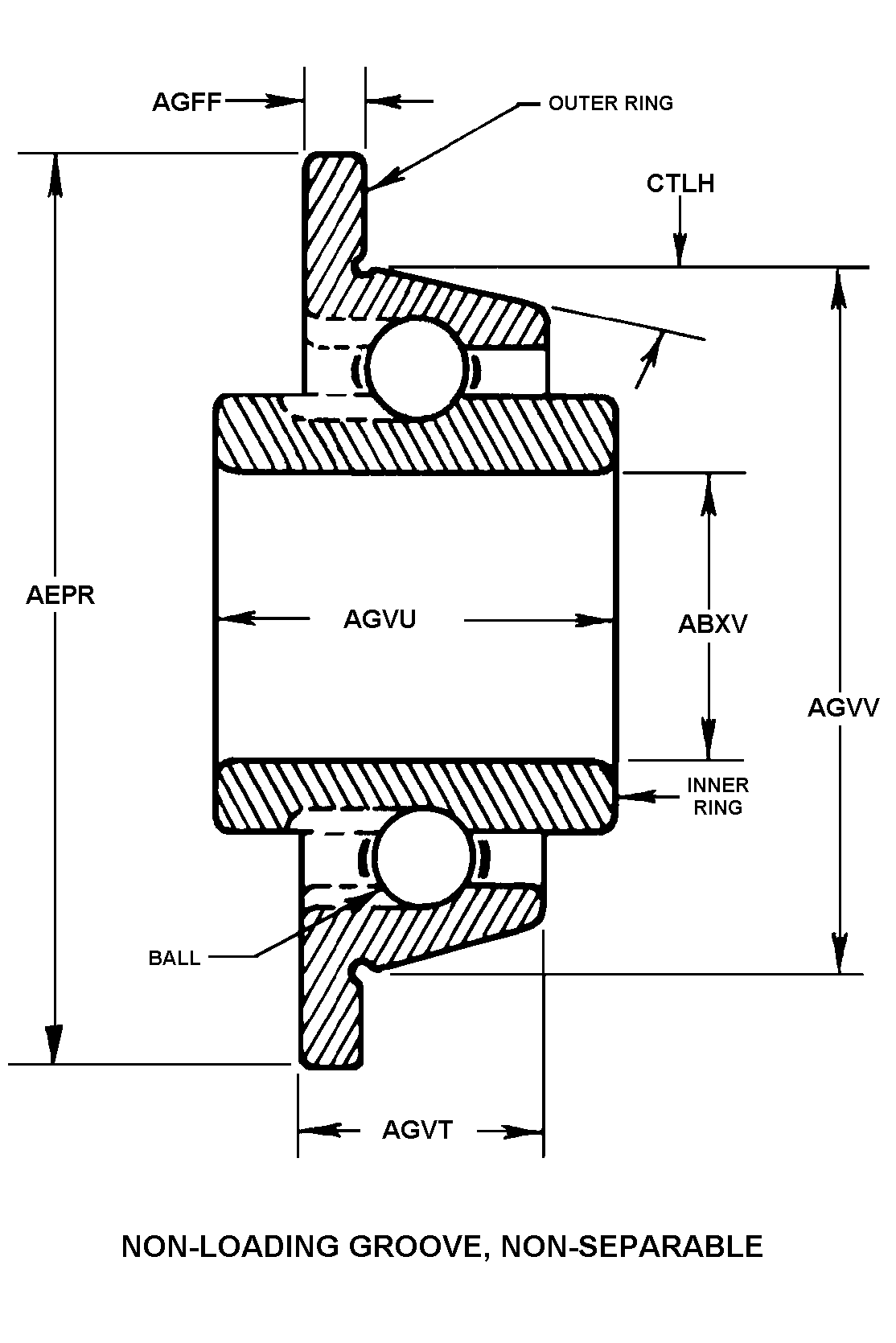

| STYLE DESIGNATOR | 18A NON-LOADING GROOVE, NON-SEPARABLE |
| OUTER RING TAPER | 0.0680 PER FOOT IN INCHES NOMINAL |
| BORE DIAMETER | 0.2502 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.6875 INCHES NOMINAL |
| FLANGE WIDTH | 0.0420 INCHES NOMINAL |
| OUTER RING WIDTH | 0.2260 INCHES NOMINAL |
| INNER RING WIDTH | 0.2510 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | ANY ACCEPTABLE |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO. 7P |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-937-1874
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
