3110-00-555-5329 - ANNULAR BALL BEARING, 10002, 2, 909002

Product Details | ANNULAR BALL BEARING

3110-00-555-5329 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: 10002, 2, 909002, 3110-00-555-5329, 00-555-5329, 3110005555329, 005555329

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-555-5329	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-555-5329

Part Number	Request Date	QTY	Origin
909002	2022-05-26	10	DIBBS
2	2016-07-27	23	us
2	2012-09-19	5
909002	2011-08-06	2	US
2	2010-04-12	1	US
2	2010-04-12	1	US
2	2010-04-12	2	us
2	2010-04-09	2	US
2	2010-04-09	2	us
2	2010-04-09	3	US
2	2010-04-09	2	United States
2	2010-04-09	2	United States
2	2010-04-09	2	US
2	2010-04-09	3	us
2	2010-04-08	3	US
2	2010-04-08	2	DE
2	2010-04-08	3	us
2	2010-04-07	4	us
2	2010-04-07	86	US
2	2010-04-07	1	US
2	2010-04-07	2	Singapore
2	2010-04-07	60	United Kingdom
2	2010-04-06	1	us
2	2010-04-06	1	US
2	2010-04-06	2	US
2	2010-04-06	1	Singapore
2	2010-04-06	2	Singapore
2	2010-04-06	2	Singapore
2	2010-04-06	2	Singapore
2	2010-04-05	2	US
2	2010-04-05	2	US
2	2010-04-05	2	US
2	2010-04-05	2	US
2	2010-04-05	2	US
2	2010-04-05	10	US
2	2010-04-05	2	US
2	2010-04-05	2	United Arab Emirates
2	2010-04-02	2	United States
2	2010-04-02	1	US
2	2010-04-01	2	US
2	2010-04-01	3	US
2	2010-04-01	1	United Kingdom
2	2010-03-31	2	United States
2	2010-03-31	2	US
2	2010-03-30	2	US
2	2010-03-30	2	United States
2	2010-03-30	2	US
2	2010-03-30	3	US
2	2010-03-30	2	us
2	2010-03-30	2	Australia
2	2010-03-29	2	US
2	2010-03-29	2	us
2	2010-03-29	2	us
2	2010-03-29	35	us
2	2010-03-29	2	United States
2	2010-03-26	1	US
2	2010-03-25	2	us
2	2010-03-25	3	US
2	2010-03-25	2	United States
2	2010-03-23	5	us
2	2010-03-12	2	US
2	2010-03-12	2	United States
2	2010-03-09	1	Australia
2	2010-03-09	2	us
2	2010-03-08	2	US
2	2010-03-08	1	US
2	2010-03-08	3	United States
2	2010-03-02	1	US
2	2010-03-02	2	IL
2	2010-03-01	2	United States
3110-00-555-5329	2008-06-10	2	US
2	2006-04-06	23033721	us
2	2006-04-06	23060411	us
2	2006-04-06	23060415	us
2	2006-04-06	23060416	us
2	2006-04-06	23060432	us

Cross Reference | NSN 3110-00-555-5329

Part Number	Cage Code	Manufacturer
10002	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
2	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
909002	24617	GENERAL MOTORS CORP
909002	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
909002	53035	NSK CORP BEARING DIV

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-555-5329

Compare

Related Products | NSN 3110-00-555-5329

3110-00-555-5330, 3110-00-555-5331, 3110-00-555-5332, 3110-00-555-5333, 3110-00-555-5336

Technical Data | NSN 3110-00-555-5329

Characteristic	Specifications
MATERIAL	STEEL OVERALL

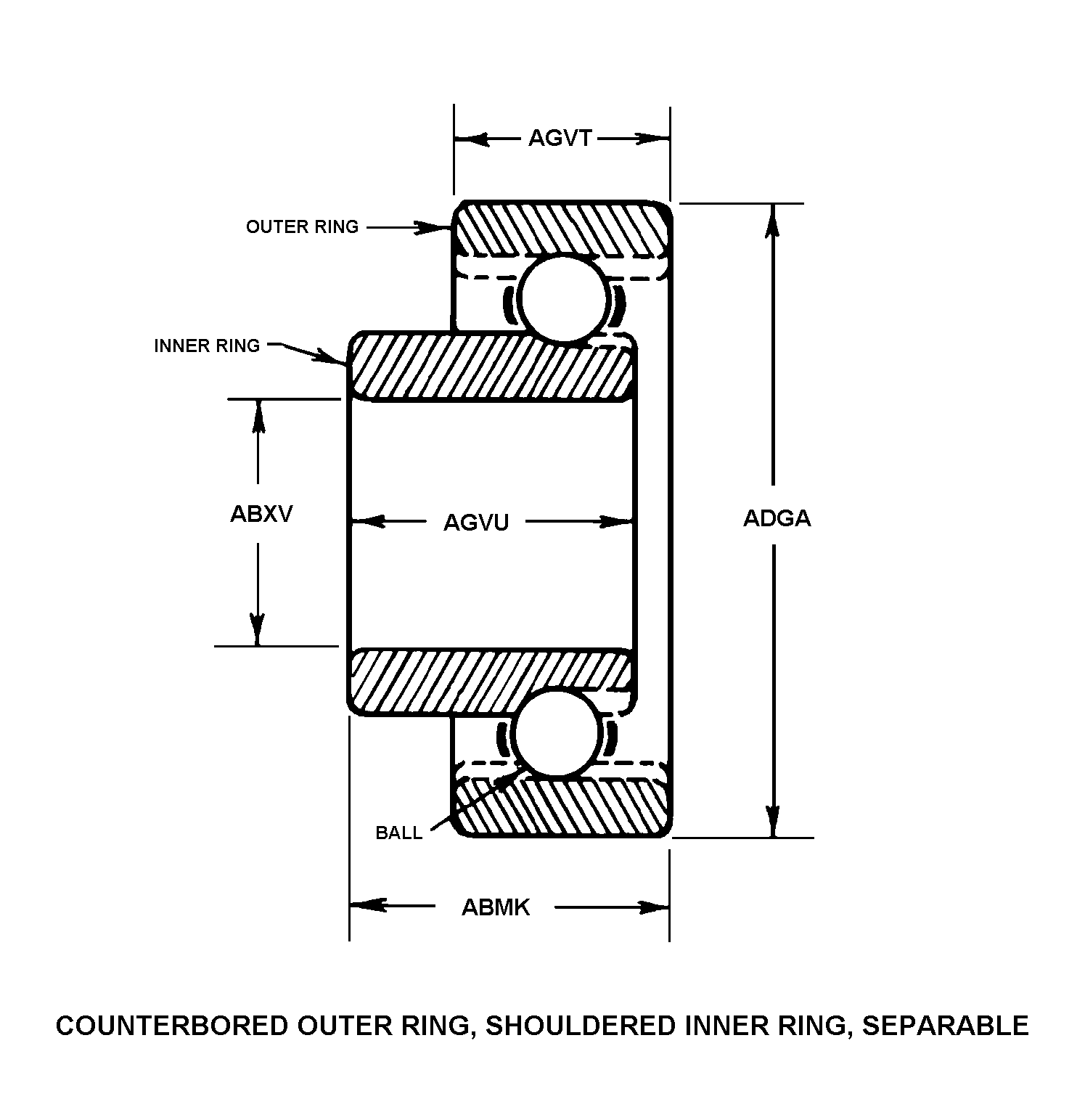

STYLE DESIGNATOR	22F COUNTERBORED OUTER RING, SHOULDERED INNER RING, SEPARABLE
OVERALL WIDTH	1.1350 INCHES MINIMUM AND 1.1550 INCHES MAXIMUM
BORE DIAMETER	1.1899 INCHES MINIMUM AND 1.1905 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	2.9625 INCHES MINIMUM AND 2.9635 INCHES MAXIMUM
OUTER RING WIDTH	0.7700 INCHES NOMINAL
INNER RING WIDTH	0.8700 INCHES NOMINAL
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
LOAD DIRECTION	ANGULAR
CONTACT ANGLE	25.0 DEGREES MAXIMUM
SPECIAL FEATURES	OUTER AND INNER RINGS COUNTERBORED

Restrictions/Controls & Freight Information | NSN 3110-00-555-5329

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-555-5329

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
84.82	- Ball or roller bearings, and parts thereof:
8482.10	- - Ball bearings:
8482.10.1000	- - - Ball bearings with integral shafts	No.
	- - - Other:
8482.10.5004	- - - - Unground bearings	No.
	- - - - Other:
8482.10.5008	- - - - - Thrust bearings	No.
8482.10.5012	- - - - - Linear bearings	No.
	- - - - - Angular contact bearings:
	- - - - - - Wheel hub bearing units:
8482.10.5016	- - - - - - - Flanged	No.
8482.10.5024	- - - - - - - Other	No.
8482.10.5028	- - - - - - Other	No.
	- - - - - Radial bearings:
	- - - - - - Single row bearings:
8482.10.5032	- - - - - - - Maximum or full capacity type	No.
	- - - - - - - Other bearings, having an outside diameter of:
8482.10.5036	- - - - - - - - Under 9 mm	No.
8482.10.5044	- - - - - - - - 9 mm and over but not over 30 mm	No.
8482.10.5048	- - - - - - - - Over 30 mm but not over 52 mm	No.
8482.10.5052	- - - - - - - - Over 52 mm but not over 100 mm	No.
8482.10.5056	- - - - - - - - Over 100 mm	No.
8482.10.5060	- - - - - - Double row bearings	No.
8482.10.5064	- - - - - - Other	No.
8482.10.5068	- - - - - Other	No.
8482.20	- - Tapered roller bearings, including cone and tapered roller assemblies:
	- - - Cup and cone assemblies entered as a set:
	- - - - Wheel hub units:
8482.20.0020	- - - - - Flanged	No.
8482.20.0030	- - - - - Other	No.
	- - - - Other:
8482.20.0040	- - - - - With cups having an outside diameter not exceeding 102 mm	No.
8482.20.0060	- - - - - Other	No.
	- - - Cone assemblies entered separately:
8482.20.0070	- - - - For cups having an outside diameter not exceeding 102 mm	No.
8482.20.0080	- - - - Other	No.
8482.30	- - Spherical roller bearings:
8482.30.0040	- - - Single row	No.
8482.30.0080	- - - Other	No.
8482.40.0000	- - Needle roller bearings	No.
8482.50.0000	- - Other cylindrical roller bearing	No.
8482.80	- - Other, including combined ball/roller bearings:
8482.80.0020	- - - Combined ball and spherical roller bearings	No.
8482.80.0040	- - - Combined ball and needle roller bearings	No.
8482.80.0060	- - - Combined ball and other cylindrical roller bearings	No.
8482.80.0080	- - - Other	No.
	- - Parts:
8482.91	- - - Balls, needles and rollers:
	- - - - Balls:
8482.91.0010	- - - - - Of alloy steel	kg
8482.91.0020	- - - - - Other	kg
8482.91.0040	- - - - Needles	kg
8482.91.0050	- - - - Tapered rollers	kg
8482.91.0070	- - - - Spherical rollers	kg
8482.91.0080	- - - - Other cylindrical rollers	kg
8482.91.0090	- - - - Other	kg
8482.99	- - - Other:
	- - - - Parts of ball bearings (including parts of ball bearing with integral shafts):
8482.99.1010	- - - - - Inner and outer races	No.
8482.99.1050	- - - - - Other	kg
	- - - - Parts of tapered roller bearings:
8482.99.3010	- - - - - Cups exported separately	No.
8482.99.3050	- - - - - Other	kg
8482.99.5000	- - - - Parts of spherical roller bearings	kg
	- - - - Parts of other roller bearings or combined ball/roller bearings:
8482.99.7030	- - - - - Of needle bearings	kg
8482.99.7060	- - - - - Of other cylindrical roller bearings	kg
8482.99.7090	- - - - - Other	kg

NSN 3110-00-555-5329 10002, 2, 909002
