NSN 3110-00-113-4760 336C654P2, 9130UK18, 00-113-4760
Product Details | ANNULAR BALL BEARING
3110-00-113-4760 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 336C654P2, 9130UK18, 3110-00-113-4760, 00-113-4760, 3110001134760, 001134760
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 SEP 1968 | 00-113-4760 | 00014 ( BEARING, BALL, ANNULAR ) |

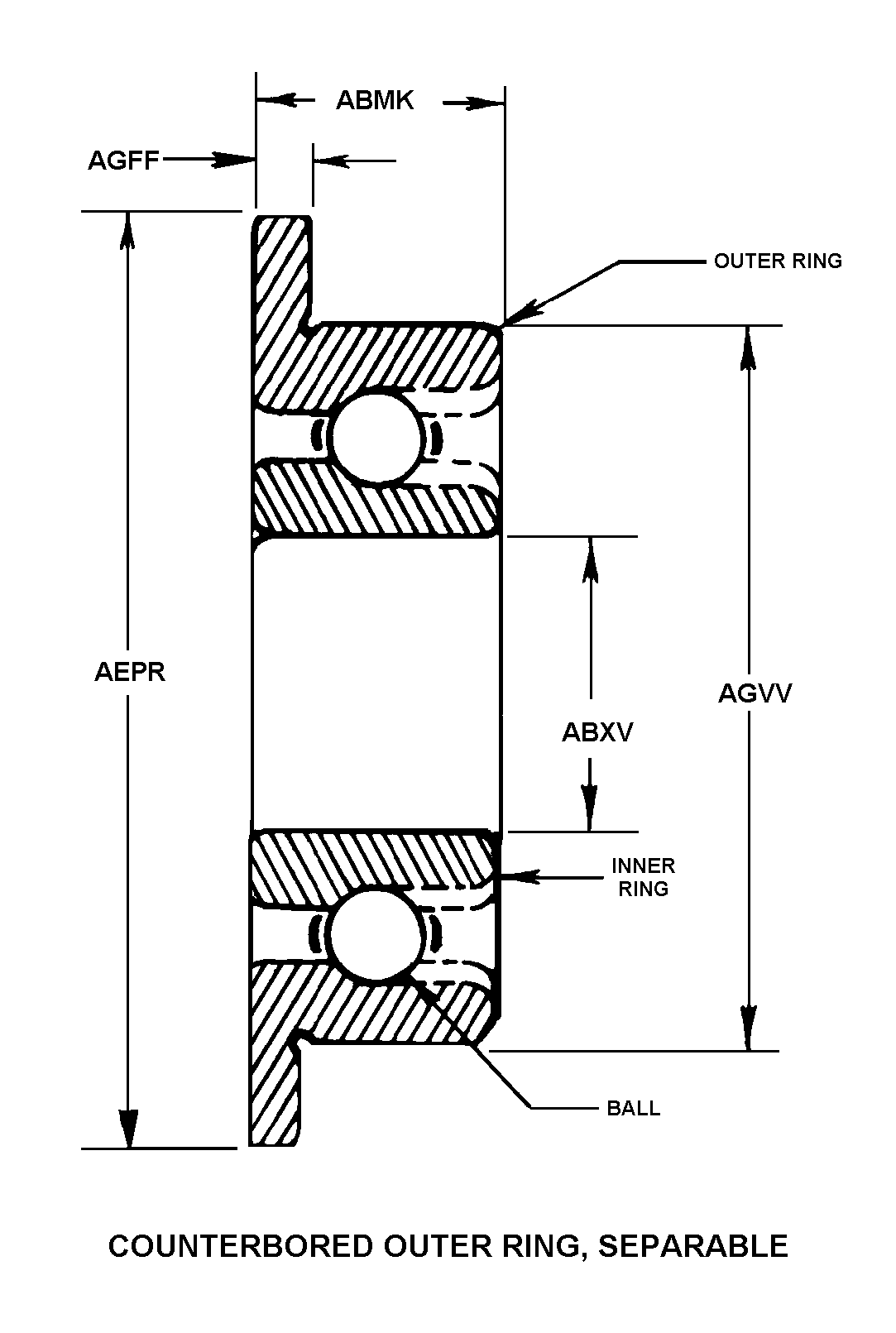

Drawings & Photos | NSN 3110-00-113-4760
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-113-4760
Technical Data | NSN 3110-00-113-4760
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 14D COUNTERBORED OUTER RING, SEPARABLE |
| OVERALL WIDTH | 1.3780 INCHES NOMINAL |
| BORE DIAMETER | 5.9053 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 9.1400 INCHES NOMINAL |
| FLANGE WIDTH | 0.2510 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 8.8583 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0036 INCHES MINIMUM RADIAL AND 0.0058 INCHES MAXIMUM RADIAL |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 336C654P2 |
Restrictions/Controls & Freight Information | NSN 3110-00-113-4760
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
