NSN 3110-00-155-8950 RLS20, LS17, 13653911
Product Details | ANNULAR BALL BEARING
3110-00-155-8950 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: RLS20, LS17, 13653911, 136539-11, 3110-00-155-8950, 00-155-8950, 3110001558950, 001558950
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-155-8950 | 00014 ( BEARING, BALL, ANNULAR ) |

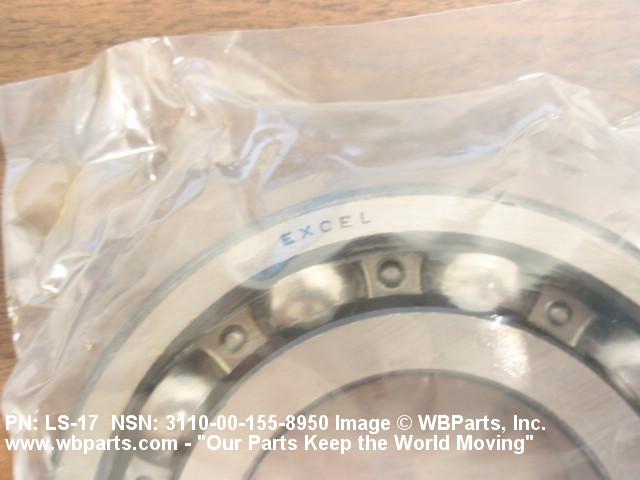

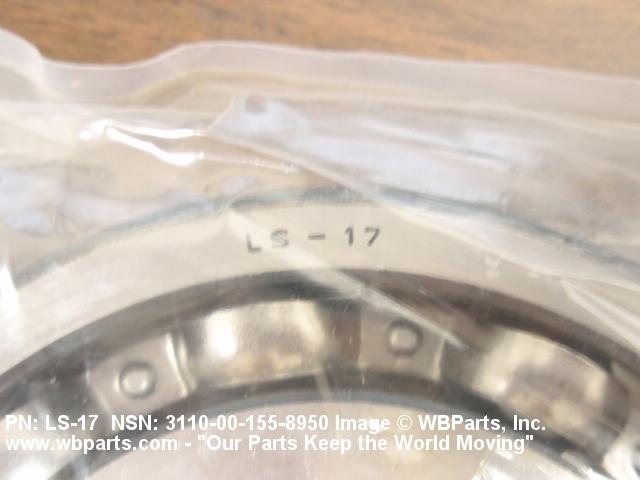

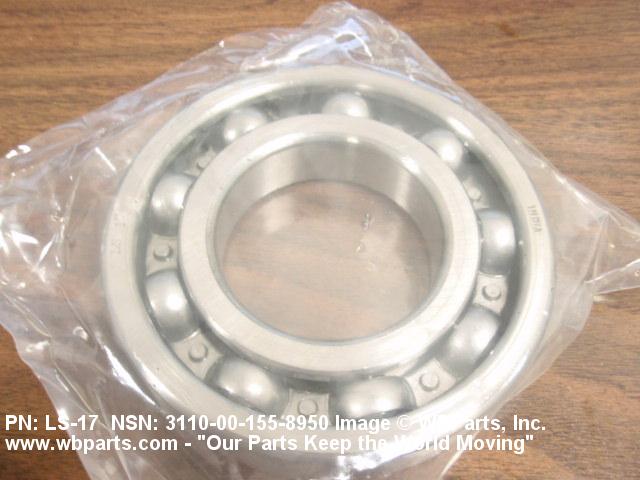

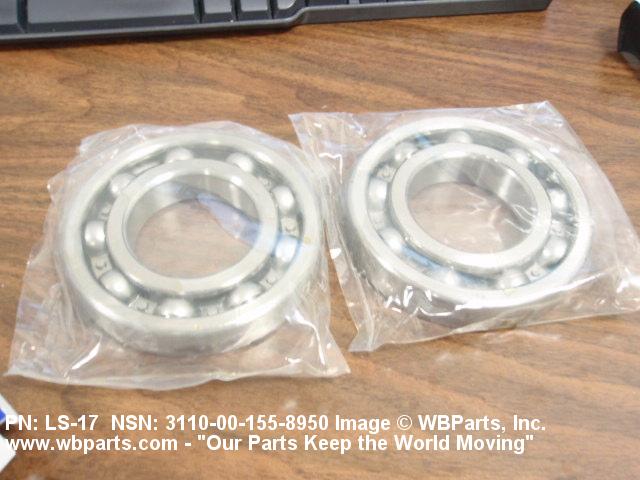

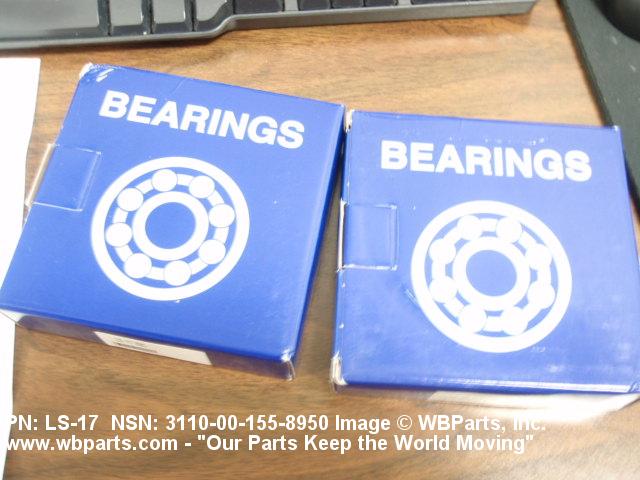

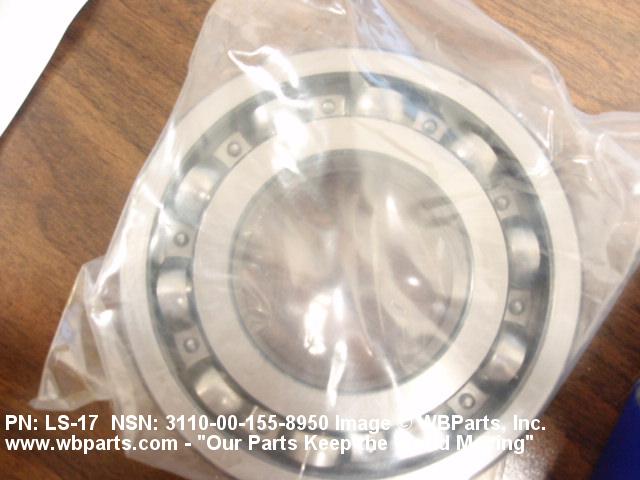

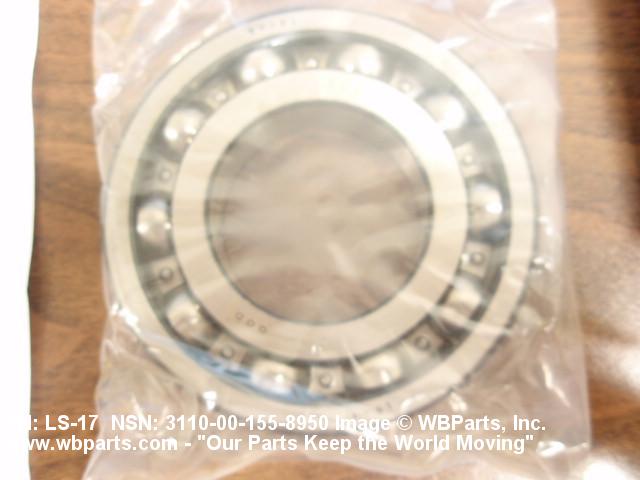

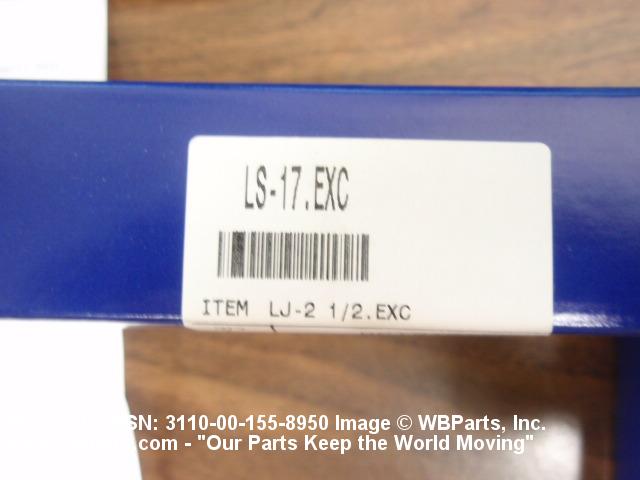

Drawings & Photos | NSN 3110-00-155-8950
Demand History | NSN 3110-00-155-8950
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-155-8950 | 2010-09-265 | 2 | United States |
| 3110-00-155-8950 | 2010-08-215 | 2 | United States |
| LS17 | 2010-08-215 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-155-8950
Technical Data | NSN 3110-00-155-8950
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.9375 INCHES NOMINAL |
| BORE DIAMETER | 2.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.0000 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-155-8950
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
