NSN 3110-00-156-8198 AA59634, A-A-59634 , AA59634216YABT
Product Details | ANNULAR BALL BEARING
3110-00-156-8198 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: AA59634, A-A-59634 , AA59634216YABT, FFB171, FF-B-171/30, FF-B-171/30Y16A2C, FFB17130, FFB17130Y16A2C, 30316, 380AC, 7316, 7316B, 7316BY, 7316PW, 7316WN, 3110-00-156-8198, 00-156-8198, 3110001568198, 001568198
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-156-8198 | 00014 ( BEARING, BALL, ANNULAR ) |

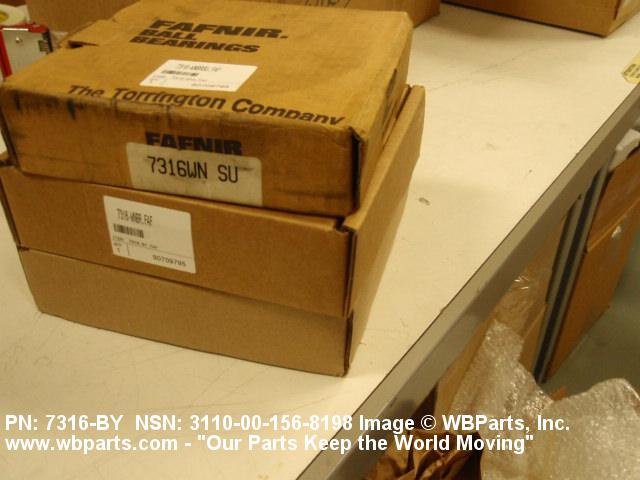

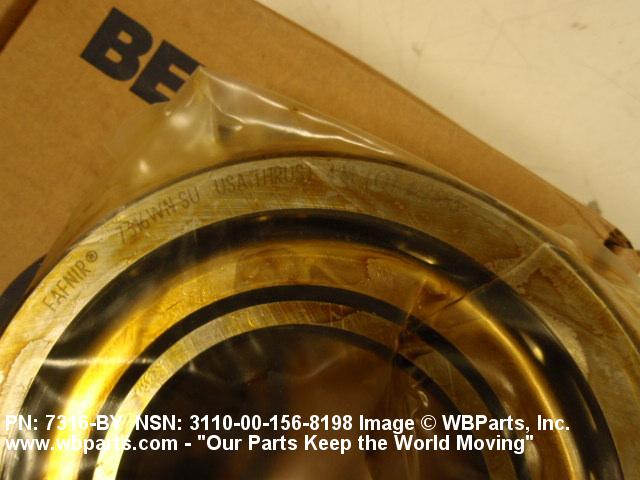

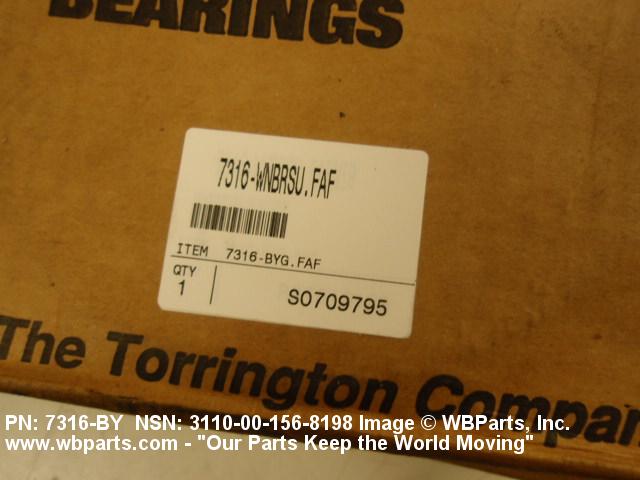

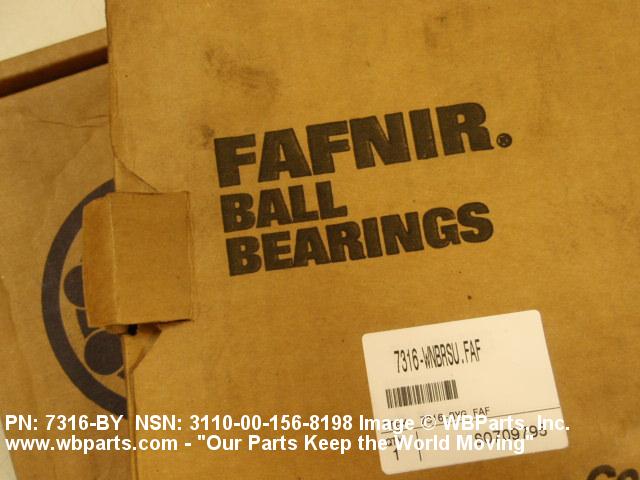

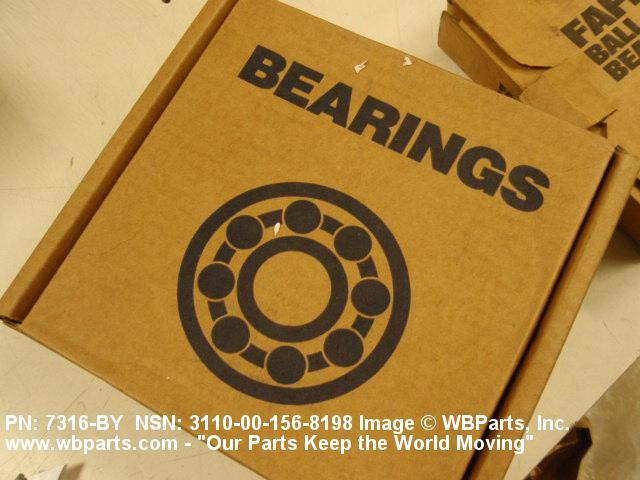

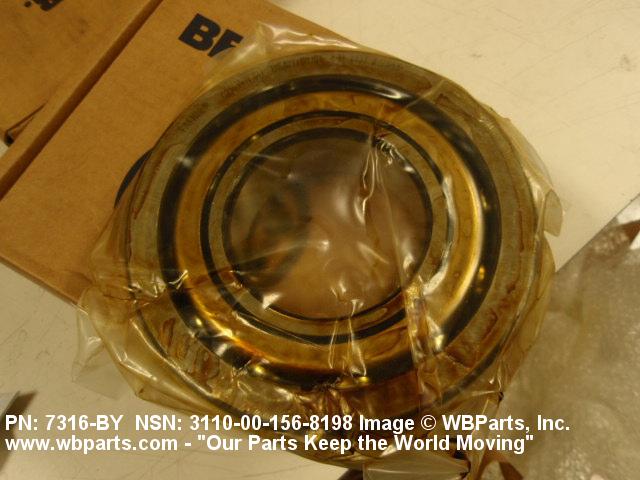

Drawings & Photos | NSN 3110-00-156-8198
Demand History | NSN 3110-00-156-8198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFB171 | 2017-01-10 | 7 | US |
| 3110-00-156-8198 | 2013-11-315 | 14 | DIBBS |
| FFB171 | 2013-01-11 | 22 | US |
| 3110-00-156-8198 | 2010-06-152 | 5 | DIBBS |
| 7316BY | 2009-07-211 | 2 | United States |
| 3110-00-156-8198 | 2009-06-173 | 3 | DIBBS |
| FFB171 | 2008-11-317 | 8 | United States |
| 3110-00-156-8198 | 2008-08-233 | 6 | US |
Cross Reference | NSN 3110-00-156-8198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30316 | 24617 | GENERAL MOTORS CORP |
| 30316 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 380AC | 43991 | FAG BEARINGS CORPORATION |
| 7316 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 7316 | 21760 | SCHATZ BEARING CORPORATION |
| 7316 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 7316 | 39317 | MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING. |
| 7316 | 52676 | SKF USA INC. |
| 7316 | 80038 | EQUITABLE BEARING CO INC |
| 7316 | 81965 | TRW INC BEARINGS DIV PLAINVILLE PLANT |
| 7316 | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 7316 | 99993 | DEPARTMENT OF THE NAVY |
| 7316B | 52676 | SKF USA INC. |
| 7316BY | 52676 | SKF USA INC. |
| 7316PW | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 7316WN | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| A-A-59634 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59634216YABT | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FF-B-171/30 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FF-B-171/30Y16A2C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FFB171 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-156-8198
Related Products | NSN 3110-00-156-8198
Technical Data | NSN 3110-00-156-8198
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10D COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 39.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 80.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 170.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 25.0 DEGREES MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | 134 TYPE AND 00 GRADE |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59634216YABT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-B-171/30 |
Restrictions/Controls & Freight Information | NSN 3110-00-156-8198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-156-8198
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
