NSN 3110-00-157-2082 P96185521, P9618552-1, 0L26DBX

Product Details | DUPLEX BALL BEARING


3110-00-157-2082 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.

Part Alternates: P96185521, P9618552-1, 0L26DBX, 3110-00-157-2082, 00-157-2082, 3110001572082, 001572082

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-157-2082

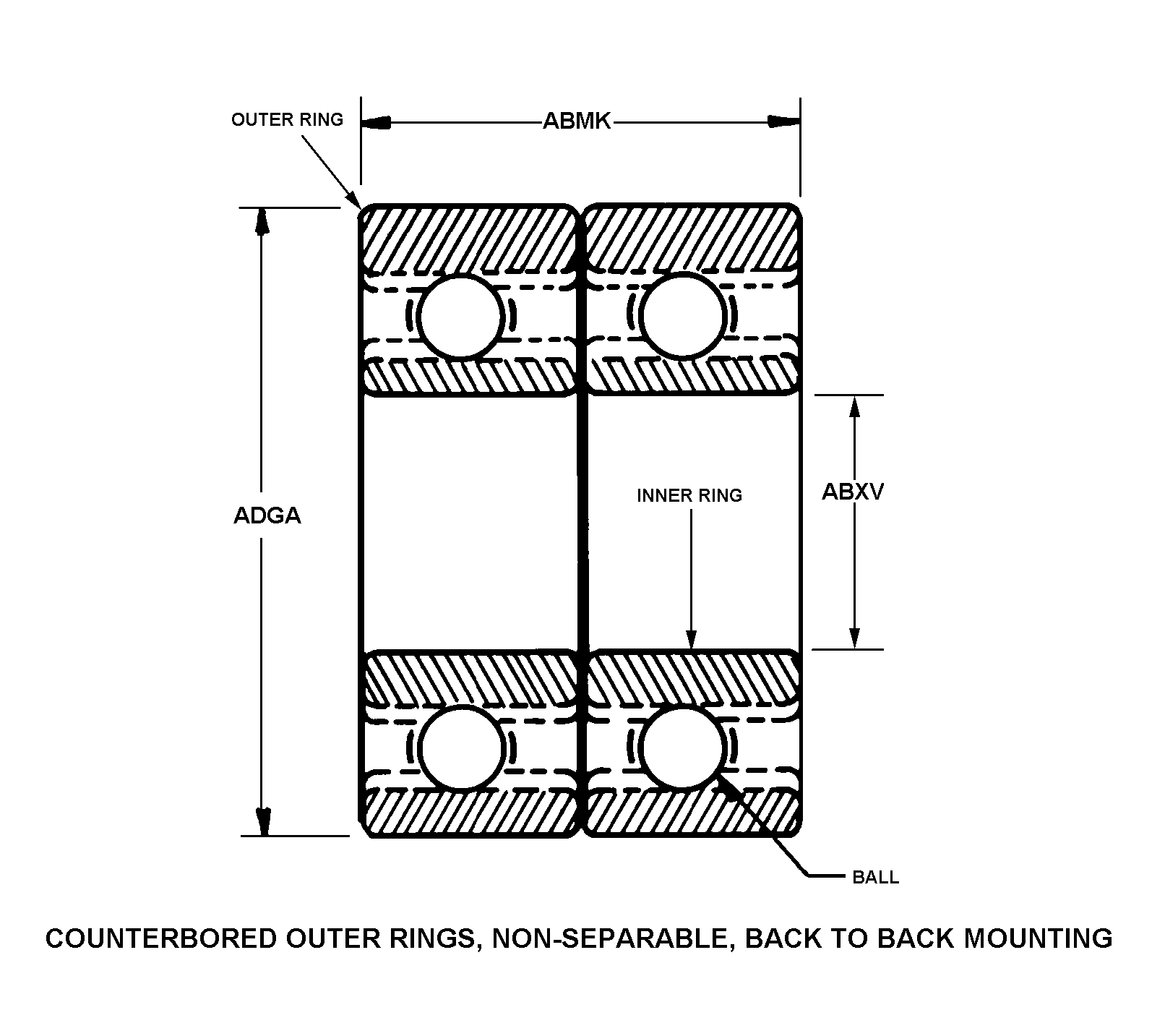

Drawings & Photos | NSN 3110-00-157-2082




Cross Reference | NSN 3110-00-157-2082


Part Number Cage Code Manufacturer
0L26DBX 24617 GENERAL MOTORS CORP
0L26DBX 43334 GENERAL MOTORS CORP DELCO MORAINE NDH DIV
0L26DBX 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
P9618552-1 24446 GENERAL ELECTRIC CO

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 3110-00-157-2082


Technical Data | NSN 3110-00-157-2082


Characteristic Specifications
MATERIAL STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC PHENOLIC RETAINER
STYLE DESIGNATOR 92B COUNTERBORED OUTER RINGS, NON-SEPARABLE, BACK TO BACK MOUNTING
OVERALL WIDTH 66.0 MILLIMETERS NOMINAL
BORE DIAMETER 130.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER 200.00 MILLIMETERS NOMINAL
STANDARD TOLERANCE DESIGNATION ABEC NO.1
SURFACE FINISH GROUND
RETAINER FABRICATION METHOD MACHINED
LOAD DIRECTION ANGULAR
BEARING PRELOAD DESIGNATION MEDIUM

Restrictions/Controls & Freight Information | NSN 3110-00-157-2082


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3110-00-157-2082


Category Code Description
Cognizance Codes9ZNavy-owned stocks of defense industrial material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9IDefense Industrial Supply Center
Philadelphia, PA 19111
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
PR : Pair
