Product Details | ANNULAR BALL BEARING
3110-00-157-2091 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: A2961PC44, A3064PC40, A3220PC44, NS1053PC44, H0206, H0206ND, H20206, END171PC44, END17-1PC44, ENE171PC44, ENE17-1PC44, ENF171PC44, ENF17-1PC44, ENJ171PC44, ENJ17-1PC44, 7258500839, 72-58500-839, 2617, 3110-00-157-2091, 00-157-2091, 3110001572091, 001572091
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-157-2091 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-157-2091
Demand History | NSN 3110-00-157-2091
Cross Reference | NSN 3110-00-157-2091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2617 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| 2617 | 89198 | EMHART INDUSTRIES INC |
| 72-58500-839 | 50024 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO |
| 72-58500-839 | 89198 | EMHART INDUSTRIES INC |
| A2961PC44 | 89198 | EMHART INDUSTRIES INC |
| A3064PC40 | 89198 | EMHART INDUSTRIES INC |
| A3220PC44 | 89198 | EMHART INDUSTRIES INC |
| END17-1PC44 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| END17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| ENE17-1PC44 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| ENE17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| ENF17-1PC44 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| ENF17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| ENJ17-1PC44 | 14541 | CAMERON INTERNATIONAL CORPORATION DBA CAMERON ENERGY SERVICES DIV |
| ENJ17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| H0206 | 24617 | GENERAL MOTORS CORP |
| H0206 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| H0206 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| H0206 | 89198 | EMHART INDUSTRIES INC |
| H0206ND | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| H20206 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| NS1053PC44 | 76688 | ARMCO INC NATION SUPPLY CO |
| NS1053PC44 | 89198 | EMHART INDUSTRIES INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-157-2091
Related Products | NSN 3110-00-157-2091
3110-00-157-2094, 3110-00-157-2095, 3110-00-157-2100, 3110-00-157-3301, 3110-00-157-3302
Technical Data | NSN 3110-00-157-2091
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |

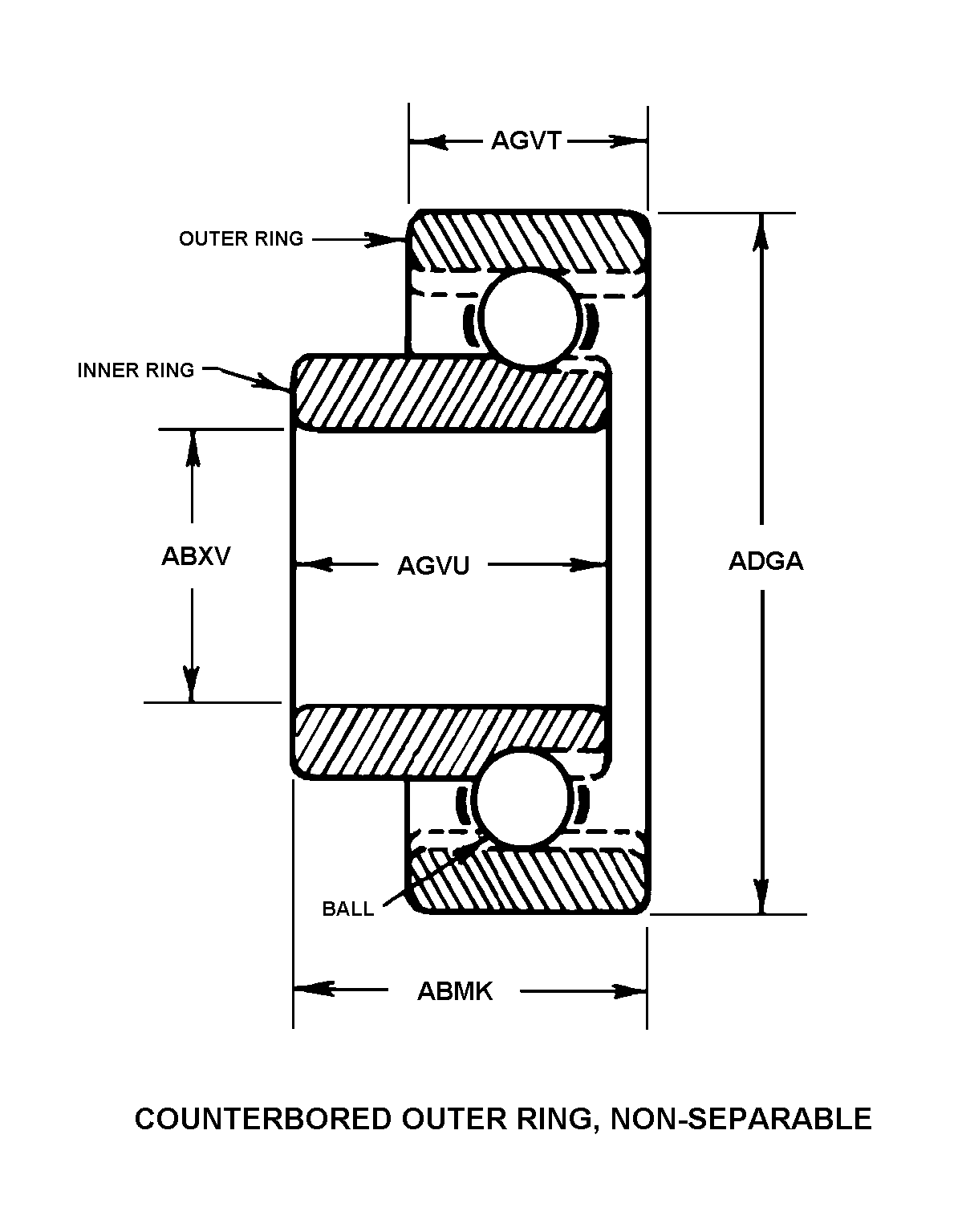

| STYLE DESIGNATOR | 22C COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 16.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 30.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.4430 INCHES NOMINAL |
| INNER RING WIDTH | 0.5250 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 60.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-00-157-2091
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-157-2091
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
