Product Details | THRUST BALL BEARING
3110-00-157-2083 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: 18117, 181-17, 6748, 3110-00-157-2083, 00-157-2083, 3110001572083, 001572083
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-157-2083 | 00019 ( BEARING, BALL, THRUST ) |
Drawings & Photos | NSN 3110-00-157-2083
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-00-157-2083
3110-00-157-2086, 3110-00-157-2091, 3110-00-157-2094, 3110-00-157-2095, 3110-00-157-2100
Technical Data | NSN 3110-00-157-2083
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

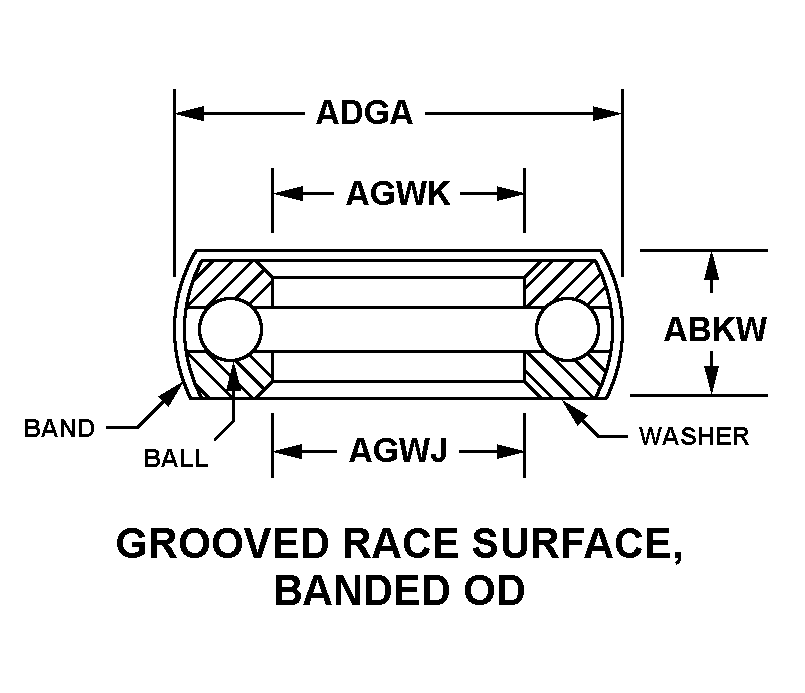

| STYLE DESIGNATOR | 160 GROOVED RACE SURFACE, BANDED OD |
| OVERALL HEIGHT | 0.5902 INCHES MINIMUM AND 0.5907 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.3750 INCHES MINIMUM AND 1.3800 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 0.4300 INCHES MINIMUM AND 0.4360 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | DOUBLE |
| SPECIAL FEATURES | 0.1000 IN. RADIUS BY 0.0400 IN. DEEP ON OUTSIDE OF ONE RING BORE,0.8750 IN. BORE ON OTHER RING AND OD OF BOTH RINGS CHAMFERED TO ACCOMODATE BAND |
| MANUFACTURERS CODE | 35301 |
| MFR SOURCE CONTROLLING REFERENCE | 181-17 |
Restrictions/Controls & Freight Information | NSN 3110-00-157-2083
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
