NSN 3110-00-180-6653 A280000, A280-000, S3332CHA280
Product Details | ANNULAR BALL BEARING
3110-00-180-6653 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: A280000, A280-000, S3332CHA280, SR133S, SSR13332ZSD501RA5P24LY2D6U, SSR1-3332ZSD501RA5P24LY2D6U, SSRI3332ZD501RA5P24LY206, SSRI-3332ZD501RA5P24LY206, 571-9416-02, 3110-00-180-6653, 00-180-6653, 3110001806653, 571941602, 001806653
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 JAN 1970 | 00-180-6653 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-180-6653
Demand History | NSN 3110-00-180-6653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-180-6653 | 2023-06-171 | 12 | United States |
| 3110-00-180-6653 | 2018-06-176 | 23 | DIBBS |
| 3110-00-180-6653 | 2018-06-168 | 23 | DIBBS |
| 571941602 | 2015-09-268 | 3 | Brazil |
| 571941602 | 2015-09-254 | 3 | Brazil |
| 3110-00-180-6653 | 2012-04-116 | 7 | DIBBS |
| 3110-00-180-6653 | 2012-01-17 | 7 | DIBBS |
| 3110-00-180-6653 | 2011-06-173 | 7 | DIBBS |
| 3110-00-180-6653 | 2008-11-333 | 13 | DIBBS |
| 3110-00-180-6653 | 2008-08-228 | 13 | DIBBS |
| 3110-00-180-6653 | 2008-01-22 | 13 | DIBBS |
Cross Reference | NSN 3110-00-180-6653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 571-9416-02 | 25583 | L-3 COMMUNICATIONS AVIONICS SYSTEMS, INC |
| 571-9416-02 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| 571-9416-02 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| 571-9416-02 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| A280-000 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| S3332CHA280 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| SR133S | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| SSR1-3332ZSD501RA5P24LY2D6U | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| SSRI-3332ZD501RA5P24LY206 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-180-6653
Related Products | NSN 3110-00-180-6653
Technical Data | NSN 3110-00-180-6653
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

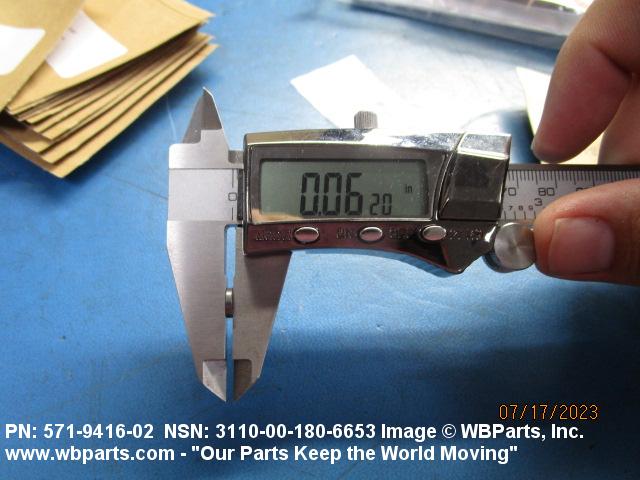

| OVERALL WIDTH | 0.0625 INCHES NOMINAL |

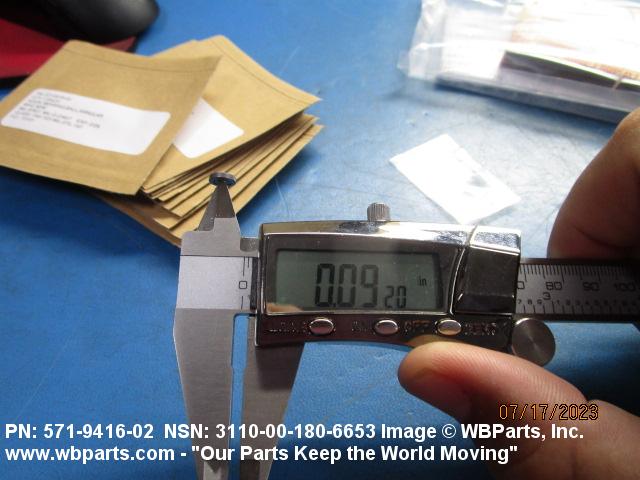

| BORE DIAMETER | 0.0937 INCHES NOMINAL |

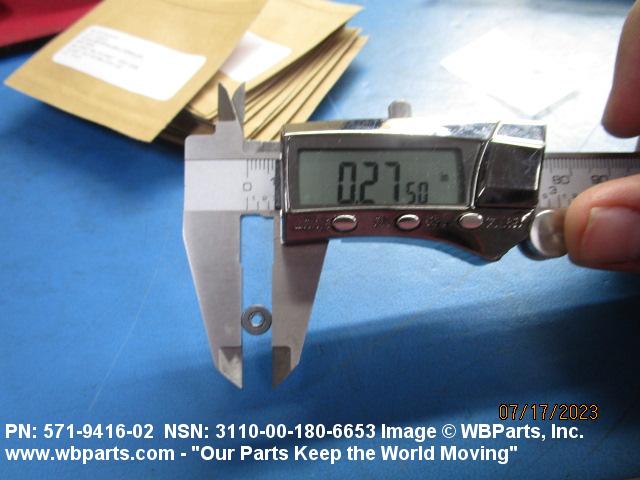

| OVERALL OUTSIDE DIAMETER | 0.2750 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0002 INCHES MINIMUM RADIAL AND 0.0005 INCHES MAXIMUM RADIAL |
| MANUFACTURERS CODE | 25583 |
| MFR SOURCE CONTROLLING REFERENCE | 571-9416-02 |
Restrictions/Controls & Freight Information | NSN 3110-00-180-6653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-180-6653
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
