NSN 3110-00-232-3075 MS211518, MS21151-8, AS21151

Product Details | ROD END BALL BEARING

3110-00-232-3075 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.

Part Alternates: MS211518, MS21151-8, AS21151, RE4M52, RE4M5-2, REP4M68F, REP4M6-8F, REP4M6FS428, REP4M6FS464, REP4M6FS4648, REP4M6FS464-8, REPHM6ES381, RFP4M6, 10319539 , 3110-00-232-3075, 00-232-3075, 3110002323075, 002323075

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	10 SEP 1972	00-232-3075	00049 ( BEARING, BALL, ROD END )

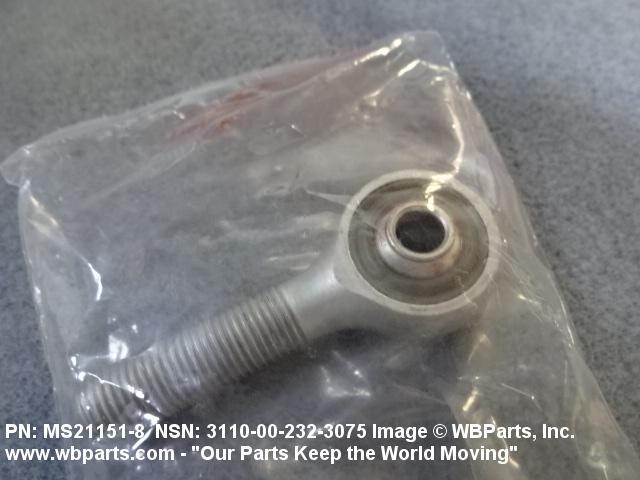

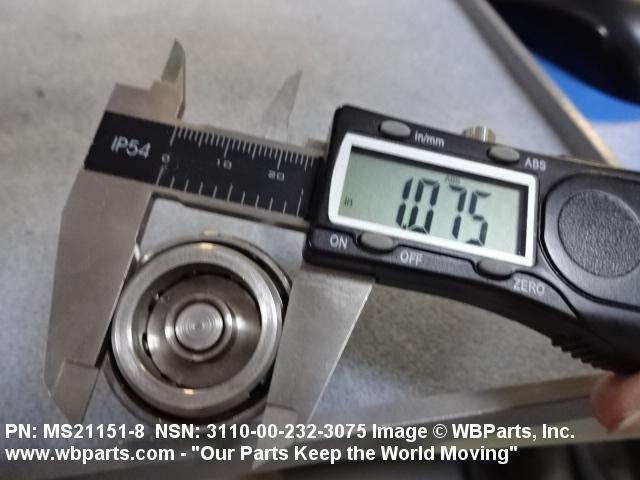

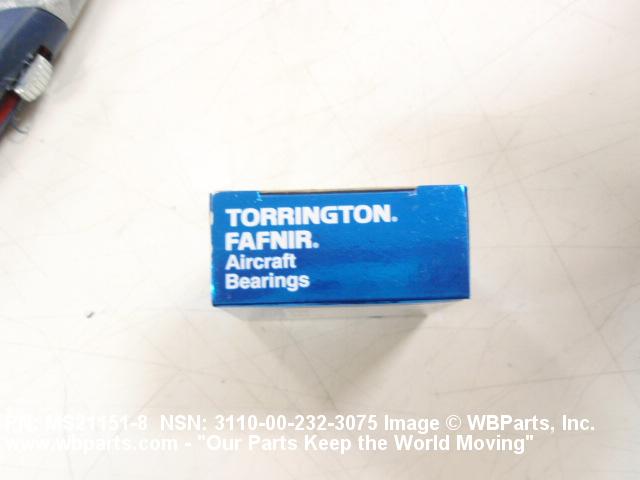

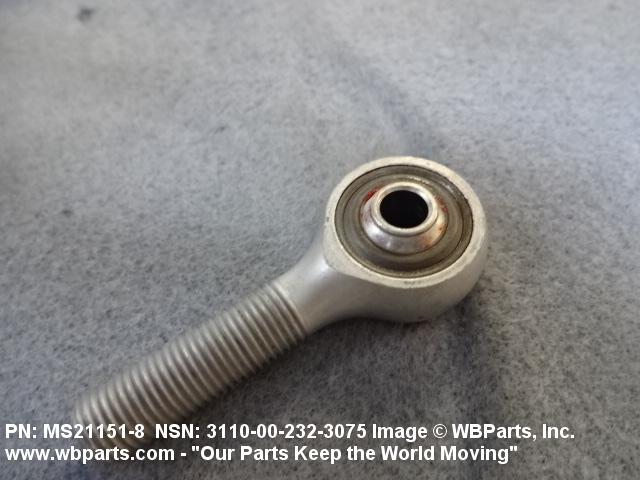

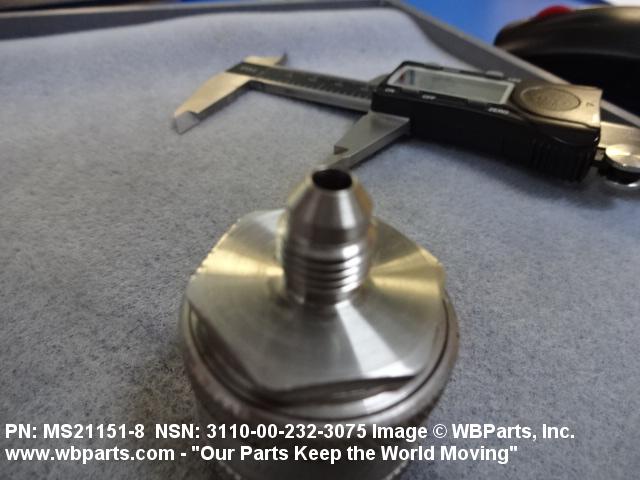

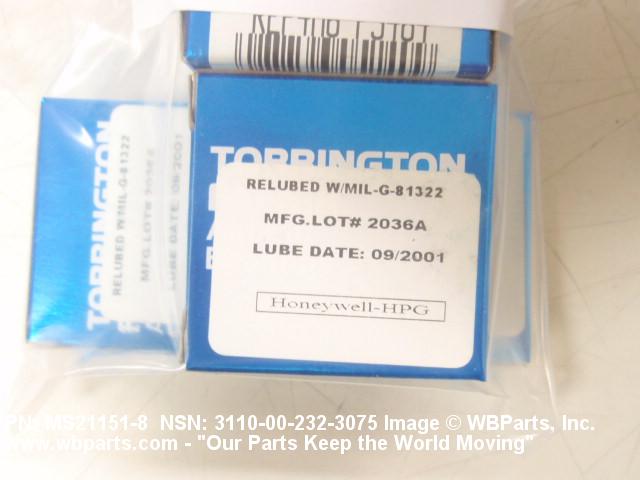

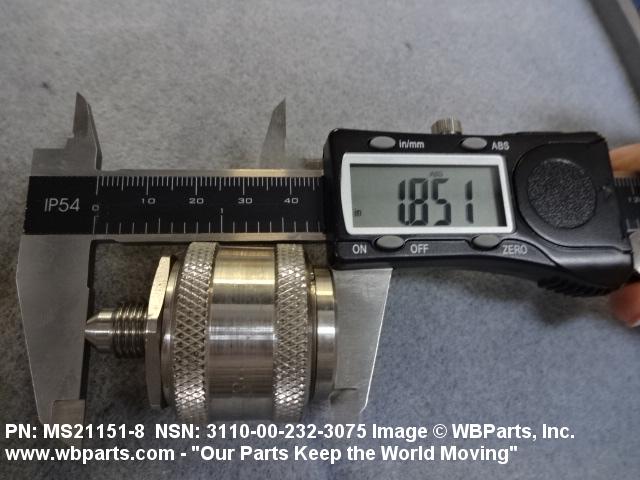

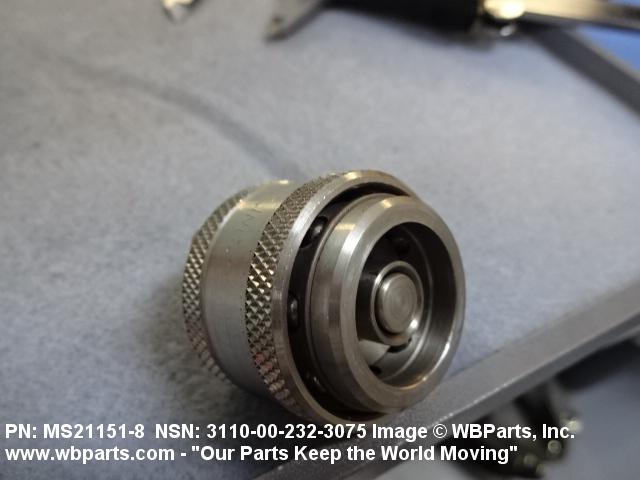

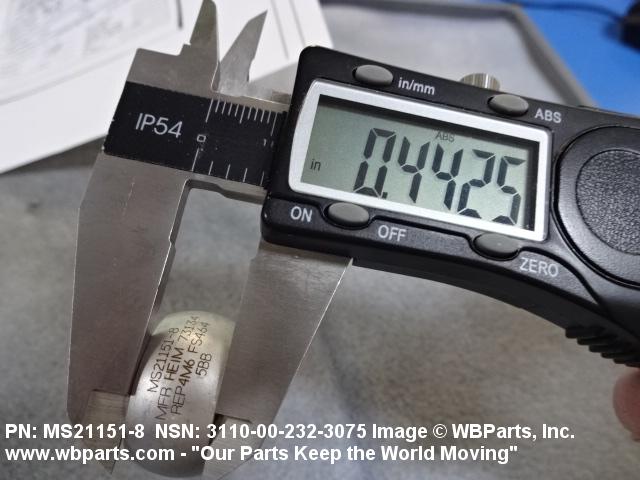

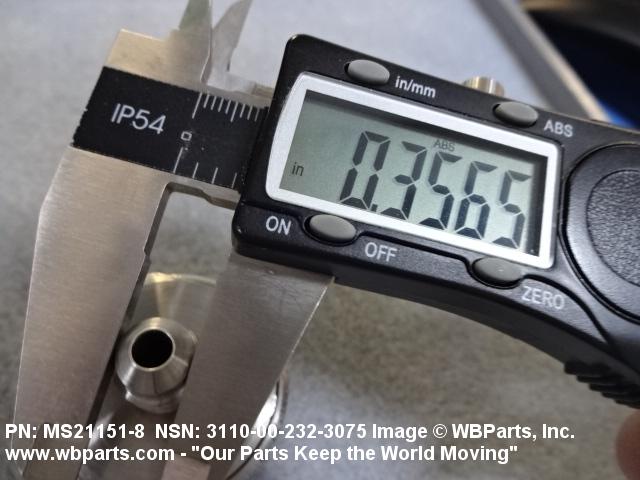

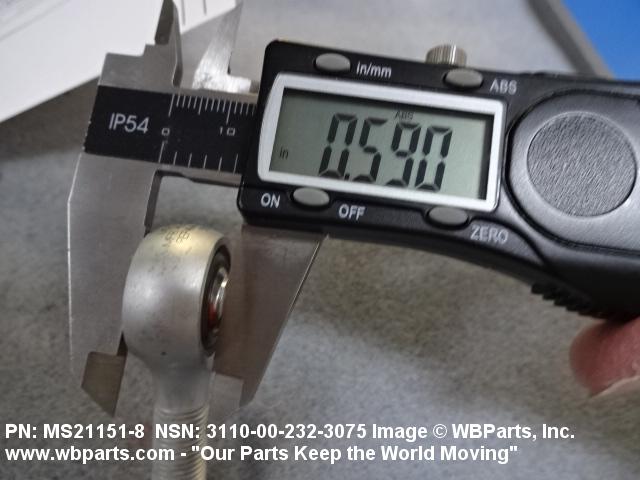

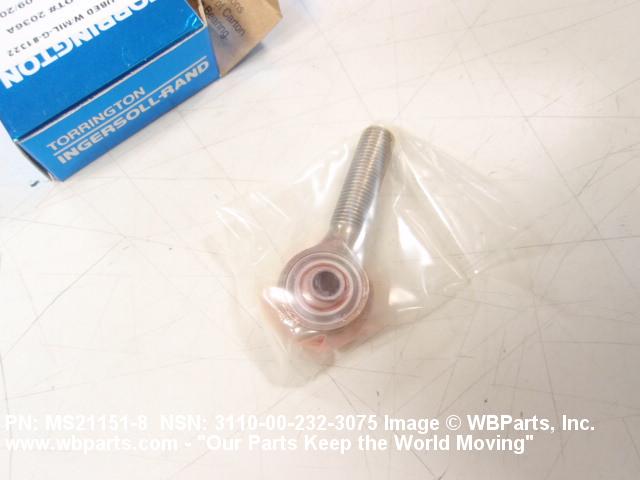

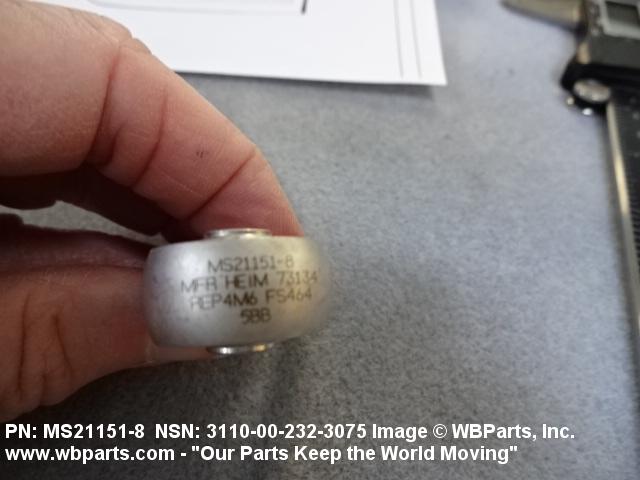

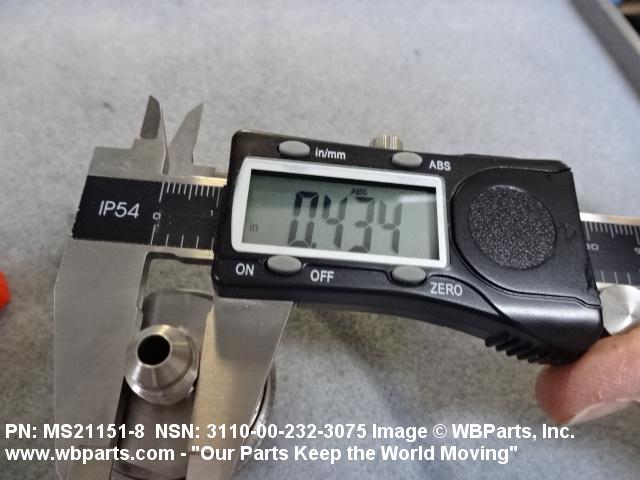

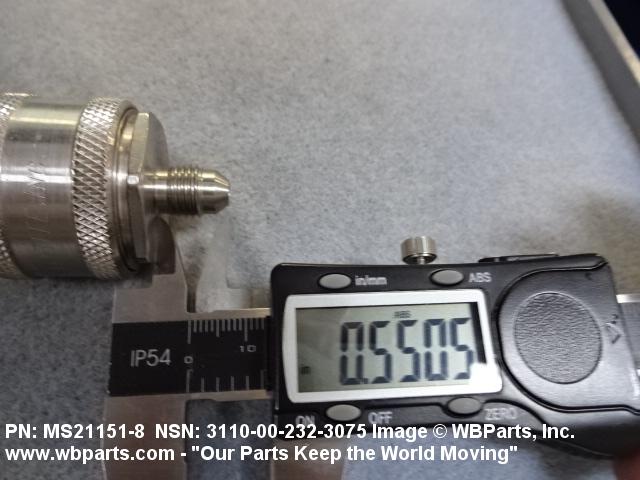

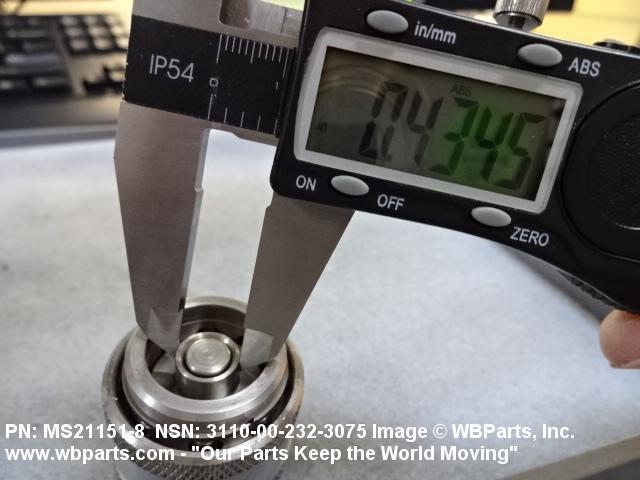

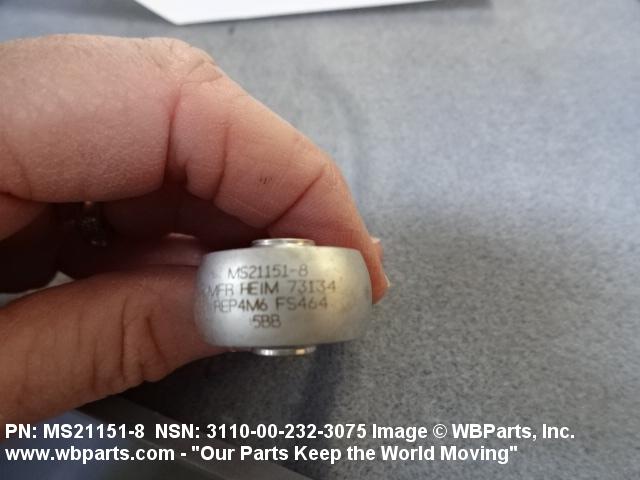

Drawings & Photos | NSN 3110-00-232-3075

Part Number	Request Date	QTY	Origin
3110-00-232-3075	2023-07-200	610	DIBBS
3110-00-232-3075	2023-04-106	1636	DIBBS
MS211518	2022-08-224	150	US
MS211518	2022-08-224	22	United States
MS211518	2022-03-69	25	United States
3110-00-232-3075	2020-06-177	18	SA
MS211518	2019-06-171	20	US
MS211518	2018-06-163	31	us
3110-00-232-3075	2018-02-51	1	DIBBS-RFPs
3110-00-232-3075	2018-01-30	1	DIBBS-RFPs
MS211518	2017-03-89	4	Korea
3110-00-232-3075	2015-12-341	14	United States
MS211518	2014-05-150	1	us
MS211518	2014-04-99	24	United States
MS211518	2014-01-10	10	us
3110-00-232-3075	2013-11-325	1	DIBBS-RFPs
3110-00-232-3075	2013-10-291	1	DIBBS-RFPs
REP4M6FS464	2013-09-260	264	US
3110-00-232-3075	2013-09-246	1	DIBBS-RFPs
3110-00-232-3075	2012-07-208	2	United States
3110-00-232-3075	2012-07-184	50	United States
3110-00-232-3075	2011-10-289	4	US
MS211518	2011-08-213	2	US
MS211518	2011-07-189	800	US
MS211518	2011-03-84	50	United States
REP4M6FS464	2011-03-68	1	United States
REP4M6FS464	2011-03-68	6	United States
REP4M6FS464	2011-03-68	25	United States
REP4M6FS464	2011-03-68	50	United States
REP4M6FS464	2011-02-52	2	US
MS211518	2010-10-293	4	United States
REP4M6FS464	2010-10-293	4	United States
3110-00-232-3075	2010-10-279	10	US
3110-00-232-3075	2010-05-145	752	DIBBS
3110-00-232-3075	2010-02-40	1512	DIBBS
3110-00-232-3075	2010-01-04	1	Canada
3110-00-232-3075	2009-11-323	2	Australia
MS211518	2009-10-279	20	US
3110-00-232-3075	2009-04-97	75	US
REP4M6FS464	2009-03-86	25	Italy
3110-00-232-3075	2009-02-42	100	US
3110-00-232-3075	2008-11-322	24	United States
MS211518	2008-09-261	2	Canada
3110-00-232-3075	2008-08-242	2	Canada
3110-00-232-3075	2008-06-175	1512	DIBBS
MS211518	2008-04-112	105	US
3110-00-232-3075	2008-02-50	30	DIBBS
MS211518	2008-02-46	880	US
3110-00-232-3075	2008-02-36	1396	DIBBS
3110-00-232-3075	2008-01-31	1205	DIBBS
3110-00-232-3075	2007-08-226	4331	DIBBS
MS211518	2007-03-78	3	US
MS211518	2006-08-242	8	US

Cross Reference | NSN 3110-00-232-3075

Part Number	Cage Code	Manufacturer
AS21151	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21151-8	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
MS21151-8	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21151-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RE4M5-2	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP4M6-8F	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
REP4M6FS428	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP4M6FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP4M6FS464	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
REP4M6FS464-8	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
REP4M6FS464-8	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
REPHM6ES381	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RFP4M6	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-232-3075

Compare

Related Products | NSN 3110-00-232-3075

3110-00-232-3177, 3110-00-232-3179, 3110-00-232-3216, 3110-00-232-3245, 3110-00-232-3246

Technical Data | NSN 3110-00-232-3075

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL STEEL COMP 4130 SHAFT
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHAFT
SURFACE TREATMENT	CADMIUM OUTER RING CADMIUM ROD END BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY
STYLE DESIGNATOR	466 DOUBLE ROW, STAGGERED, BALL
SELF-ALIGNMENT ANGLE	10.00 DEGREES NOMINAL

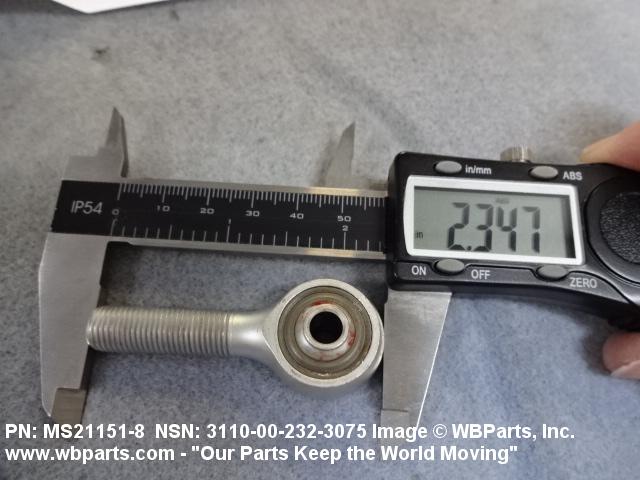

OVERALL LENGTH	2.3290 INCHES MINIMUM AND 2.3590 INCHES MAXIMUM

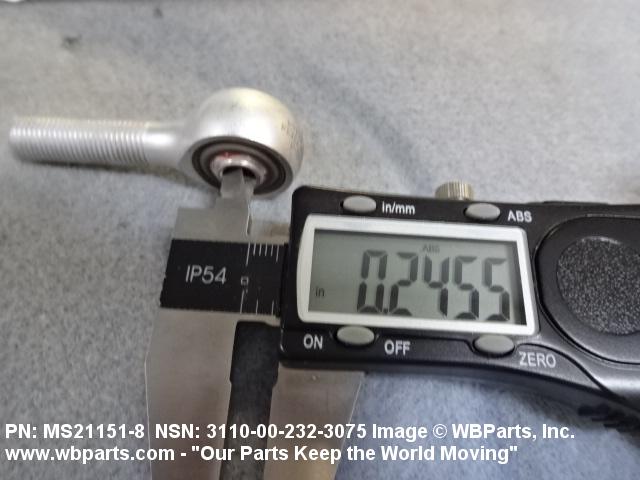

BORE DIAMETER	0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

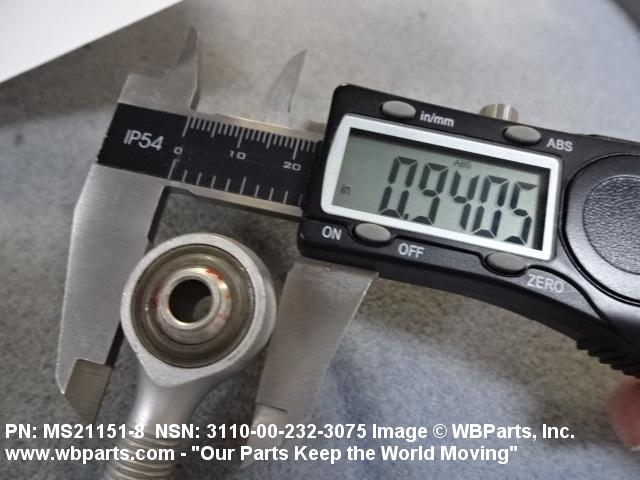

OVERALL OUTSIDE DIAMETER	0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM
OUTER RING WIDTH	0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM
INNER RING WIDTH	0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM
LENGTH FROM BORE CENTER TO SHANK END	1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM
SHANK STYLE	651 EXTERNALLY THREADED
SHANK DIAMETER	0.3750 INCHES NOMINAL
SHANK THREAD LENGTH	1.0940 INCHES MINIMUM AND 1.1560 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL

Restrictions/Controls & Freight Information | NSN 3110-00-232-3075

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-232-3075

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
