NSN 3110-00-232-3320 MS211536, MS21153-6, AN951RE4F5
Product Details | ROD END BALL BEARING
3110-00-232-3320 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211536, MS21153-6, AN951RE4F5, AS21153, RE4F5, REP4F5, REP4F5 10FS, REP4F510FS, REP4F510FS464, REP4F5-10FS464, REP4F56F, REP4F5-6F, REP4F5FS464, 3110-00-232-3320, 00-232-3320, 3110002323320, 002323320, 201452290
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 SEP 1972 | 00-232-3320 | 00049 ( BEARING, BALL, ROD END ) |

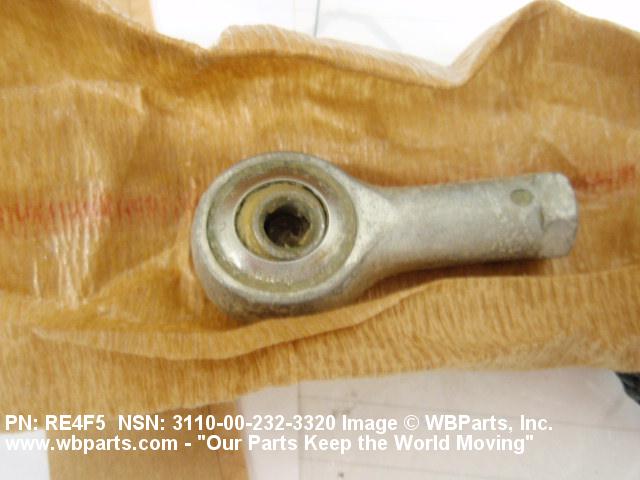

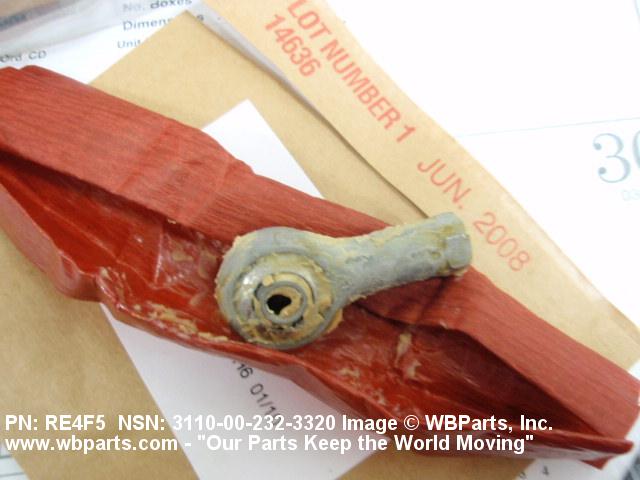

Drawings & Photos | NSN 3110-00-232-3320
Demand History | NSN 3110-00-232-3320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-232-3320 | 2025-10-301 | 10 | United States |
| 3110-00-232-3320 | 2025-09-252 | 182 | DIBBS |
| 3110-00-232-3320 | 2025-06-154 | 13 | DIBBS |
| 3110-00-232-3320 | 2025-03-82 | 182 | DIBBS |
| 3110-00-232-3320 | 2024-11-317 | 13 | DIBBS |
| 3110-00-232-3320 | 2022-12-355 | 2 | United States |
| 3110-00-232-3320 | 2022-08-242 | 22 | US |
| 3110-00-232-3320 | 2022-04-118 | 282 | DIBBS |
| 3110-00-232-3320 | 2020-11-324 | 24 | United States |
| 3110-00-232-3320 | 2020-01-28 | 115 | DIBBS |
| 3110-00-232-3320 | 2018-03-73 | 67 | DIBBS |
| MS211536 | 2017-11-325 | 2 | Brazil |
| RE4F5 | 2014-08-226 | 160 | PK |
| 3110-00-232-3320 | 2012-11-319 | 58 | US |
| 3110-00-232-3320 | 2012-08-219 | 684 | DIBBS |
| REP4F5FS464 | 2011-06-168 | 12 | India |
| 3110-00-232-3320 | 2011-05-131 | 421 | DIBBS |
| 3110-00-232-3320 | 2010-06-167 | 175 | DIBBS |
| REP4F5 | 2010-04-97 | 1 | India |
| 3110-00-232-3320 | 2010-02-41 | 839 | DIBBS |
| RE4F5 | 2010-01-25 | 25 | United States |
| REP4F5FS464 | 2010-01-13 | 25 | United States |
| RE4F5 | 2009-01-07 | 2 | US |
| RE4F5 | 2008-11-322 | 4 | US |
| MS211536 | 2008-06-155 | 10 | US |
| MS211536 | 2008-02-46 | 1760 | US |
| 3110-00-232-3320 | 2007-12-345 | 2 | US |
| RE4F5 | 2006-07-199 | 12 | PE |
| 3110-00-232-3320 | 2006-07-198 | 12 | PE |
| 3110-00-232-3320 | 2006-07-198 | 12 | PE |
Cross Reference | NSN 3110-00-232-3320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3110001735077 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| ABR4F-6 | S0352 | MINEBEA CO., LTD. |
| ABR4F-6(L) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AN951RE4F5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS21153 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| DBF4-5A1-505 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| MS21153-6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21153-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RE4F5 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4F5 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP4F5 10FS | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4F5-10FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4F5-6F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP4F5FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4F5FS464 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-232-3320
Related Products | NSN 3110-00-232-3320
Technical Data | NSN 3110-00-232-3320
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL STEEL COMP 4130 SHAFT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHAFT |
| SURFACE TREATMENT | CADMIUM OUTER RING CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL,2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 1.9180 INCHES MINIMUM AND 1.9580 INCHES MAXIMUM |
| BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.4590 INCHES MINIMUM AND 1.4790 INCHES MAXIMUM |
| SHANK STYLE | 657 INTERNALLY THREADED W/HEXAGON END |
| SHANK DIAMETER | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| SHANK THREAD LENGTH | 0.7190 INCHES MINIMUM AND 0.7810 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
Restrictions/Controls & Freight Information | NSN 3110-00-232-3320
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-232-3320
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
