NSN 3110-00-345-6077 4001290, 4004200, 4045021
Product Details | ANNULAR BALL BEARING
3110-00-345-6077 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 4001290, 4004200, 4045021 , 4081473, 3110-00-345-6077, 00-345-6077, 3110003456077, 003456077
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 JAN 1974 | 00-345-6077 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-345-6077
Demand History | NSN 3110-00-345-6077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4001290 | 2025-03-79 | 33 | DIBBS |
| 4045021 | 2025-03-79 | 33 | DIBBS |
| 4081473 | 2025-03-79 | 33 | DIBBS |
| 4001290 | 2024-01-25 | 34 | DIBBS |
| 4045021 | 2024-01-25 | 34 | DIBBS |
| 4081473 | 2024-01-25 | 34 | DIBBS |
| 4001290 | 2023-11-324 | 33 | DIBBS |
| 4045021 | 2023-11-324 | 33 | DIBBS |
| 4081473 | 2023-11-324 | 33 | DIBBS |
| 4001290 | 2023-06-159 | 12 | DIBBS |
| 4045021 | 2023-06-159 | 12 | DIBBS |
| 4081473 | 2023-06-159 | 12 | DIBBS |
| 4001290 | 2023-01-30 | 14 | DIBBS |
| 4045021 | 2023-01-30 | 14 | DIBBS |
| 4081473 | 2023-01-30 | 14 | DIBBS |
| 3110-00-345-6077 | 2022-11-332 | 30 | TR |
| 4001290 | 2022-10-293 | 58 | DIBBS |
| 4045021 | 2022-10-293 | 58 | DIBBS |
| 4081473 | 2022-10-293 | 58 | DIBBS |
| 3110-00-345-6077 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-00-345-6077 | 2017-07-207 | 150 | DIBBS |
| 3110-00-345-6077 | 2016-12-355 | 45 | DIBBS |
| 3110-00-345-6077 | 2016-09-272 | 43 | DIBBS |
| 3110-00-345-6077 | 2016-08-237 | 1 | DIBBS-RFPs |
| 3110-00-345-6077 | 2016-04-110 | 39 | DIBBS |
| 3110-00-345-6077 | 2016-02-46 | 34 | DIBBS |
| 3110-00-345-6077 | 2015-12-350 | 54 | DIBBS |
| 3110-00-345-6077 | 2015-11-315 | 47 | DIBBS |
| 3110-00-345-6077 | 2015-07-188 | 74 | DIBBS |
| 3110-00-345-6077 | 2015-04-104 | 53 | DIBBS |
| 3110-00-345-6077 | 2014-12-344 | 26 | DIBBS |
| 3110-00-345-6077 | 2012-10-286 | 173 | DIBBS |
| 3110-00-345-6077 | 2012-10-284 | 173 | DIBBS |
| 3110-00-345-6077 | 2011-12-354 | 39 | DIBBS |
| 3110-00-345-6077 | 2011-10-293 | 79 | DIBBS |
| 3110-00-345-6077 | 2011-08-228 | 79 | DIBBS |
Cross Reference | NSN 3110-00-345-6077
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4001290 | 36069 | FAG AEROSPACE INC |
| 4001290 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| 4001290 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4004200 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4045021 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 4045021 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4081473 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 4081473 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-345-6077
Related Products | NSN 3110-00-345-6077
Technical Data | NSN 3110-00-345-6077
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL COMP 4340 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | PWA 725,97497 MFR REF 1ST MATERIAL RESPONSE BALL PWA 725,97497 MFR REF 2ND MATERIAL RESPONSE INNER RING PWA 725,97497 MFR REF 3RD MATERIAL RESPONSE OUTER RING |

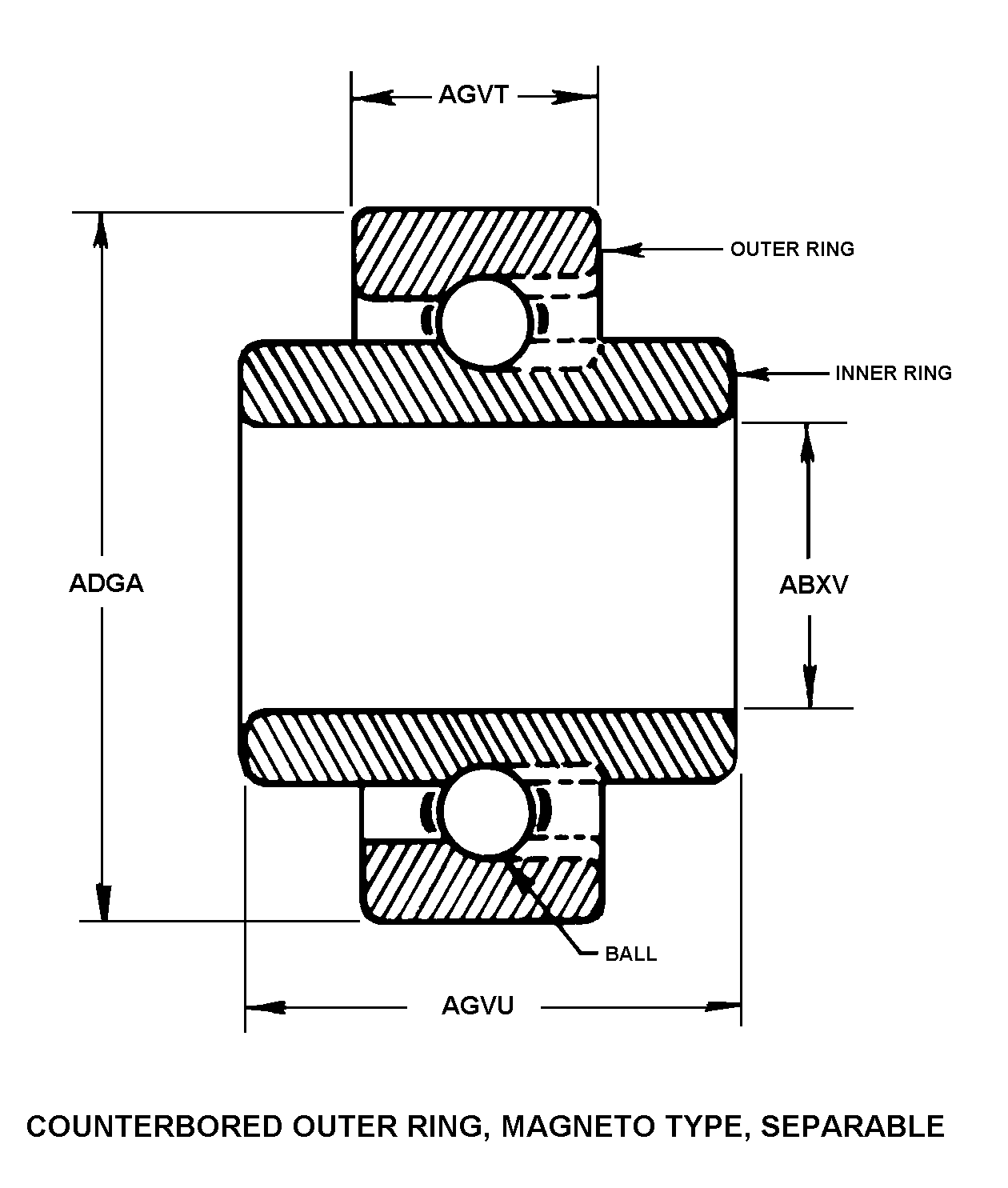

| STYLE DESIGNATOR | 12D COUNTERBORED OUTER RING, MAGNETO TYPE, SEPARABLE |
| BORE DIAMETER | 2.5589 INCHES MINIMUM AND 2.5591 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.9367 INCHES MINIMUM AND 3.9370 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.7850 INCHES NOMINAL |
| INNER RING WIDTH | 0.8021 INCHES MINIMUM AND 0.8071 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | 0.0035 INCHES MINIMUM RADIAL AND 0.0041 INCHES MAXIMUM RADIAL |
| CONTACT ANGLE | 27.0 DEGREES NOMINAL |
| SPECIAL FEATURES | SILVER PLATE CAGE PER AMS 2412 0.001-0.002 THK. CONTACT POINTS PERMISSABLE EXCEPT ON LAND RIDING SURF AND BALL POCKETS. BAKE AT 475-500F TO CHECK FOR BOND |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 3110-00-345-6077
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-345-6077
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
