NSN 3110-00-554-3988 XLS3 3-4, XLS3 3-4TF, XLS334
Product Details | ANNULAR BALL BEARING
3110-00-554-3988 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: XLS3 3-4, XLS3 3-4TF, XLS334, XLS3-3-4, XLS334TF, 125X4, 17703920, 177039-20, 60BIC00, 9120601, 912060-1, L30, VJ39, 3110-00-554-3988, 00-554-3988, 3110005543988, 005543988
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-554-3988 | 00014 ( BEARING, BALL, ANNULAR ) |

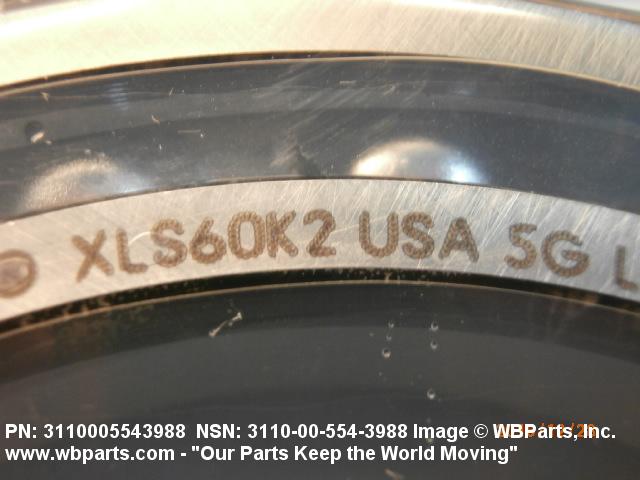

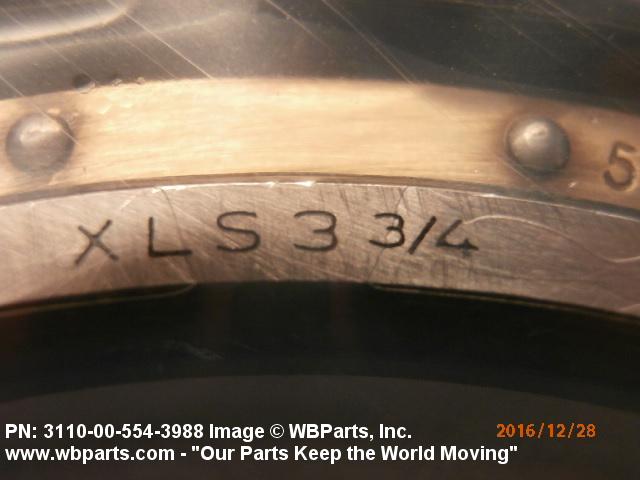

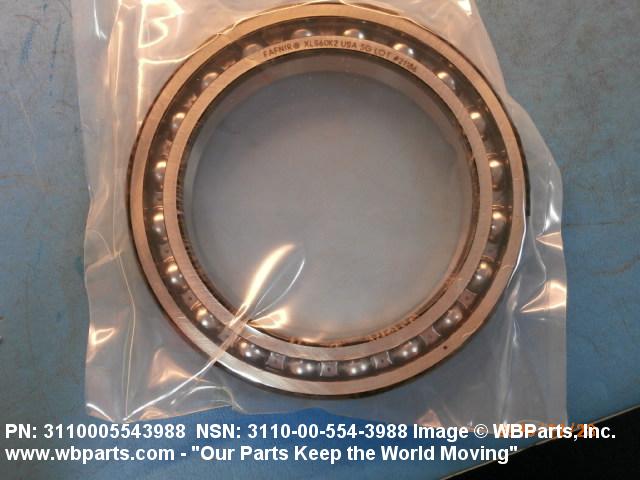

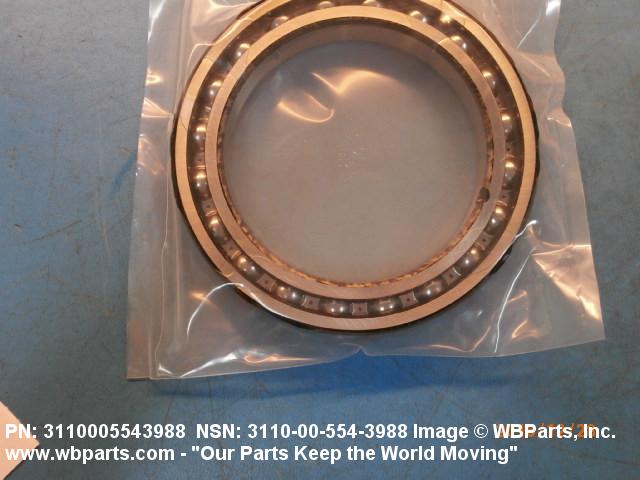

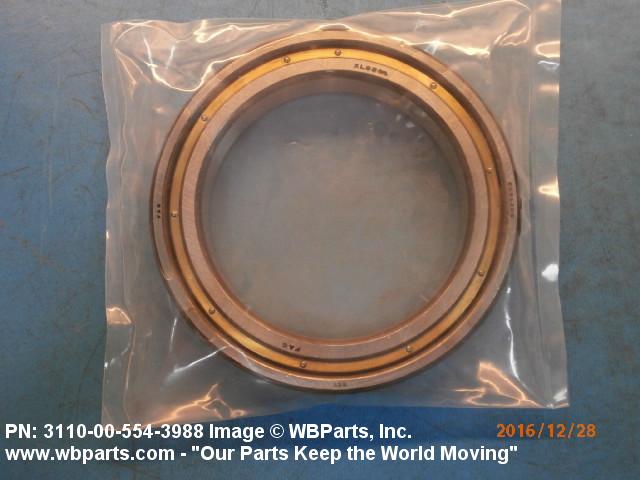

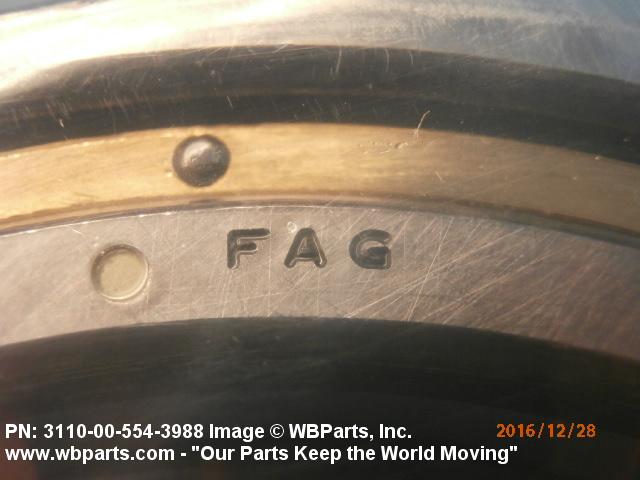

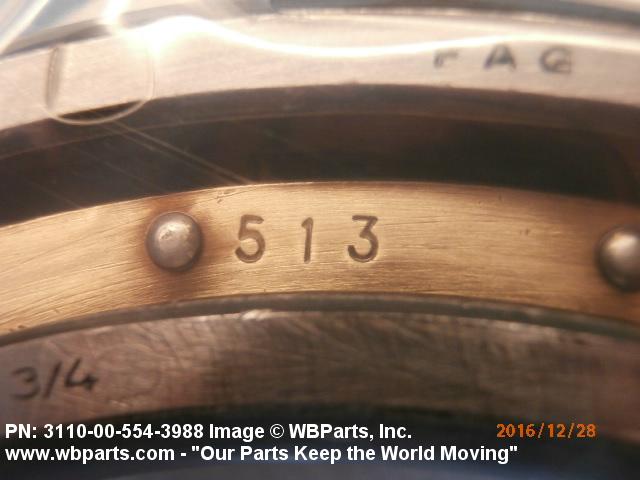

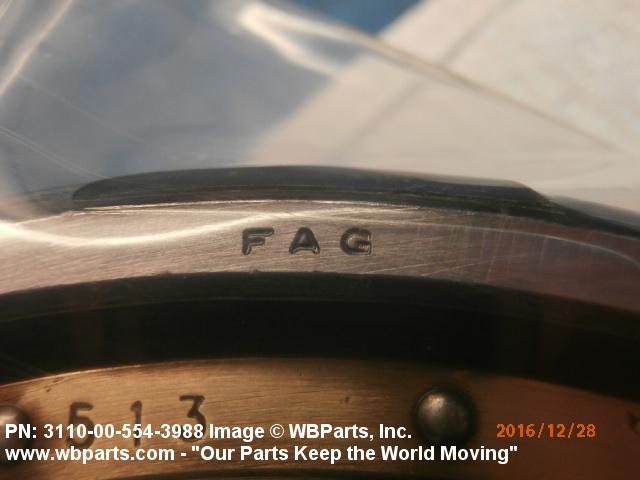

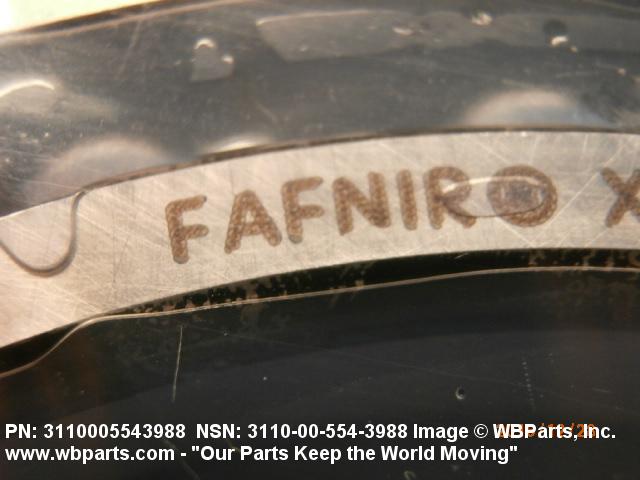

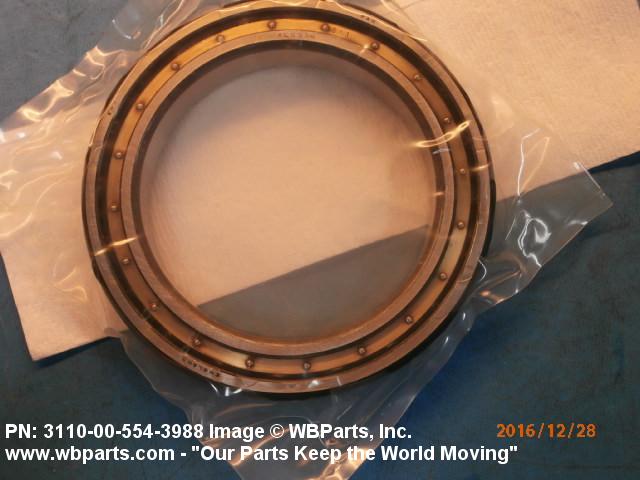

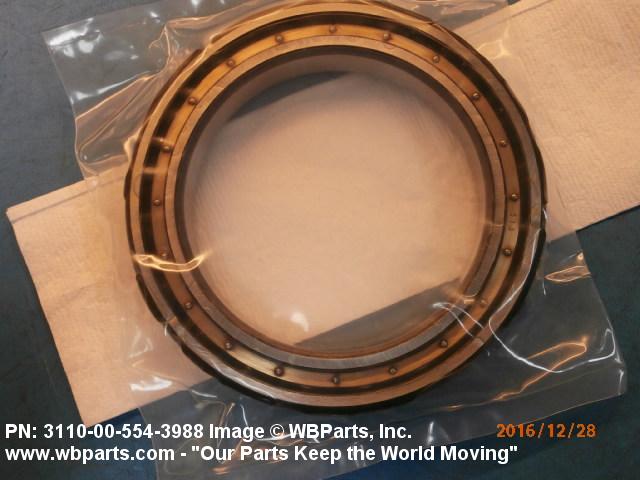

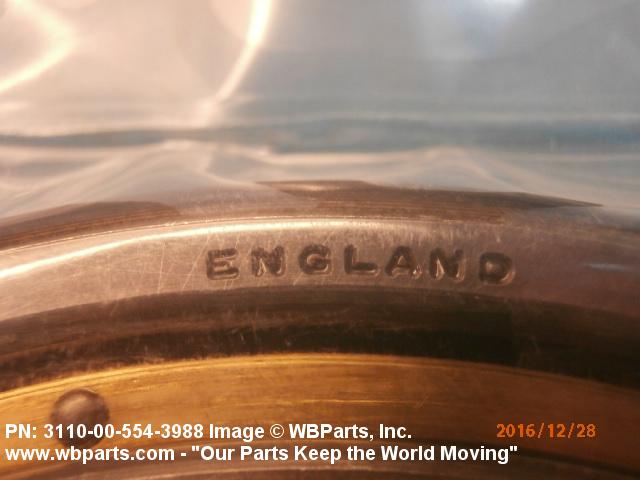

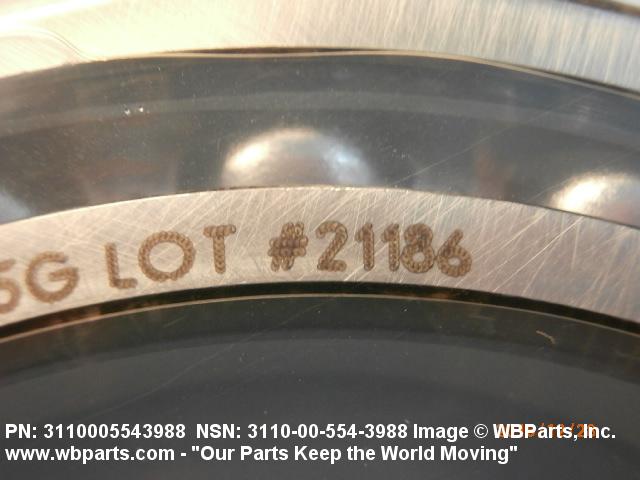

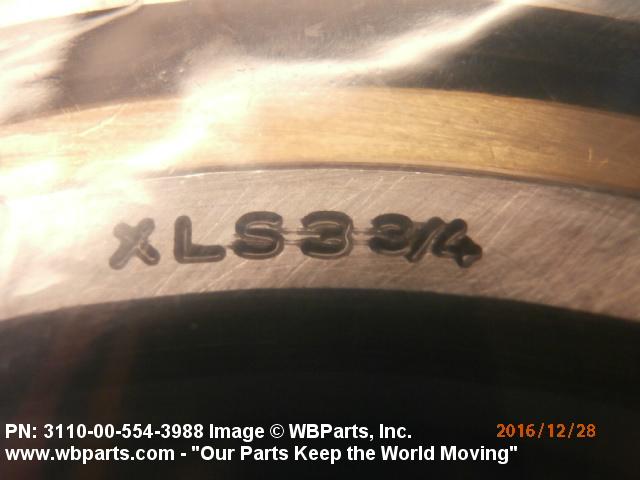

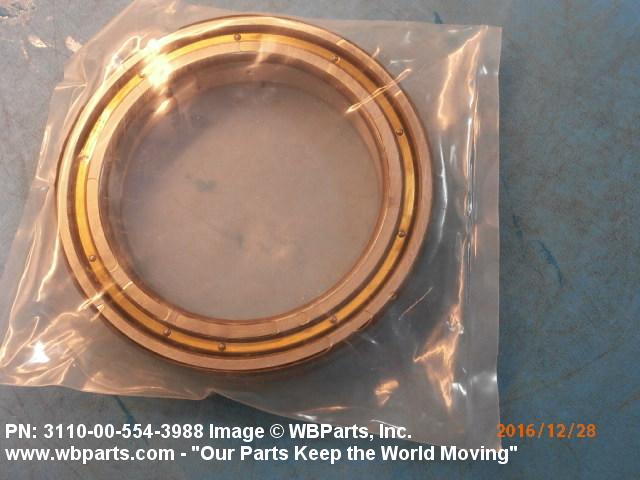

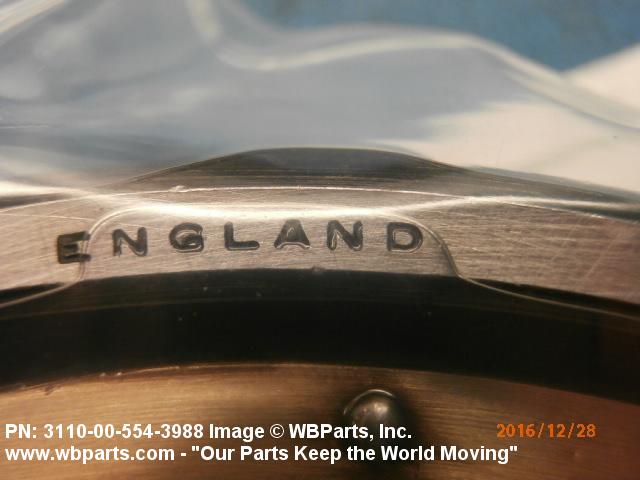

Drawings & Photos | NSN 3110-00-554-3988
Demand History | NSN 3110-00-554-3988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-554-3988 | 2018-02-56 | 38 | DIBBS |
| 3110-00-554-3988 | 2017-12-348 | 38 | DIBBS |
| 9120601 | 2017-12-346 | 6 | us |
| 3110-00-554-3988 | 2017-12-339 | 38 | DIBBS |
| 3110-00-554-3988 | 2016-12-343 | 5 | United States |
| 9120601 | 2016-11-327 | 2 | us |
| 9120601 | 2016-11-327 | 10 | us |
| 3110-00-554-3988 | 2016-11-322 | 1 | US |
| 3110-00-554-3988 | 2016-10-286 | 24 | DIBBS |
| 3110-00-554-3988 | 2015-11-310 | 2 | DIBBS |
| 3110-00-554-3988 | 2015-10-301 | 2 | DIBBS |
| 3110-00-554-3988 | 2012-09-249 | 1 | DIBBS |
| 3110-00-554-3988 | 2010-07-193 | 3 | DIBBS |
Cross Reference | NSN 3110-00-554-3988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 125X4 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| 177039-20 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 177039-20 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 60BIC00 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 912060-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 912060-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| L30 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| VJ39 | 08484 | BREEZE-EASTERN CORPORATION |
| XLS3 3-4 | 21760 | SCHATZ BEARING CORPORATION |
| XLS3 3-4 | 43991 | FAG BEARINGS CORPORATION |
| XLS3 3-4 | 80038 | EQUITABLE BEARING CO INC |
| XLS3 3-4TF | 43991 | FAG BEARINGS CORPORATION |
| XLS3-3-4 | 21760 | SCHATZ BEARING CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-554-3988
Related Products | NSN 3110-00-554-3988
Technical Data | NSN 3110-00-554-3988
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

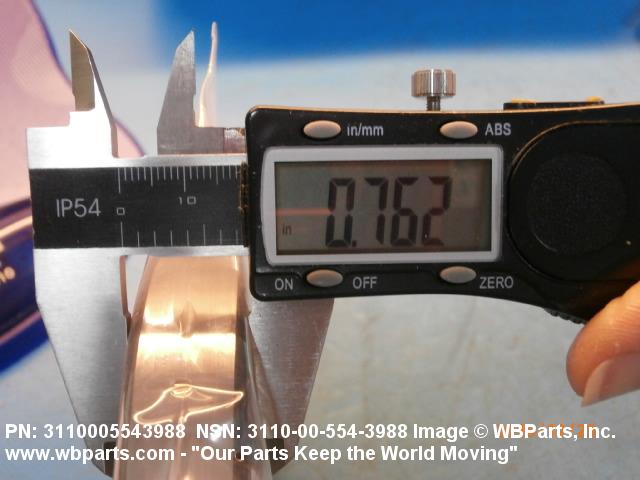

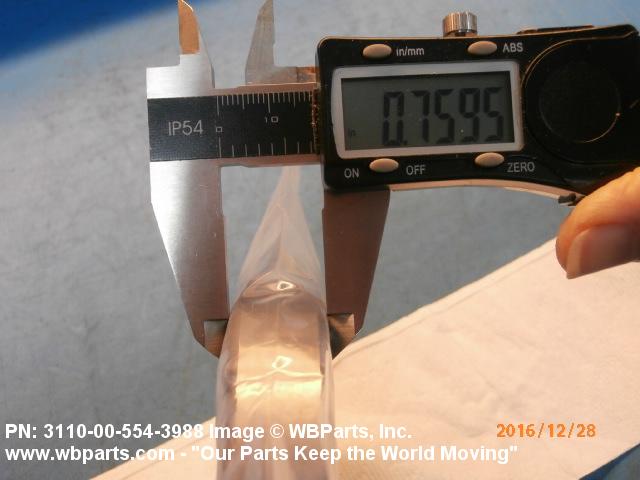

| OVERALL WIDTH | 0.7500 INCHES NOMINAL |

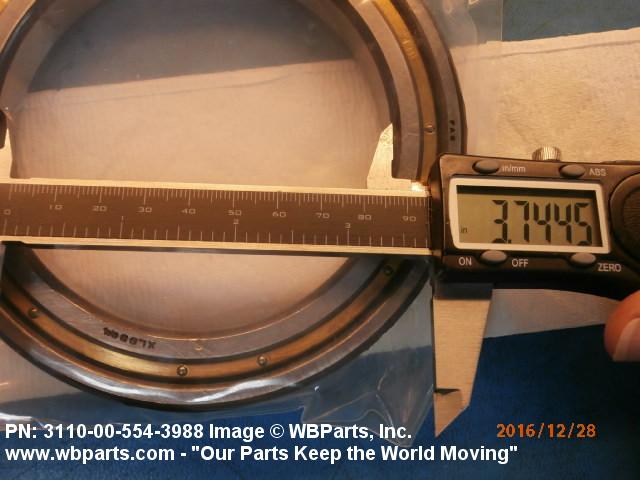

| BORE DIAMETER | 3.7500 INCHES NOMINAL |

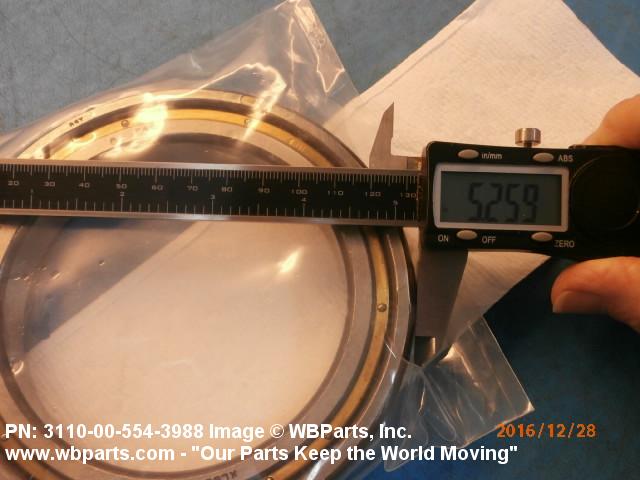

| OVERALL OUTSIDE DIAMETER | 5.2500 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-554-3988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-554-3988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
