NSN 3110-00-554-5622 M405CE1TX9, N2104P70, A01314
Product Details | ANNULAR BALL BEARING
3110-00-554-5622 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M405CE1TX9, N2104P70, A01314, A780870, A7808-70, AA59585, A-A-59585, AA59585214JACT, AA59585-214JACT, FFB171/05J14A2E, FFB17105J14A2E, PL999D0719 PC 2, PL999D0719PC2, PL-999F0722 PC5, PL999F0722PC5, 4-100007-31, 550714, 6314, 6314CE1TX9, 70BC03, 70BC03J3, 70BC03X, 894A605AB014, 894A605AB14, 999F0722 PC 58, 999F0722PC58, 10560323, 1080GX, 140247, 1405M, 1405X1 , 235A2516AA05, 25718, 314, 314K, 3300A54A0000002, 3300A54A0000-002, 3314X1, 3314X1A, 392670R91, 405MQ5A7, 405W , 3110-00-554-5622, 00-554-5622, 3110005545622, 410000731, 005545622
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-554-5622 | 00014 ( BEARING, BALL, ANNULAR ) |

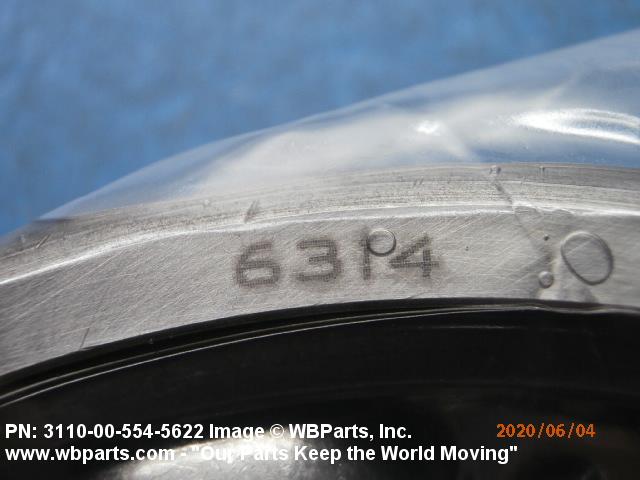

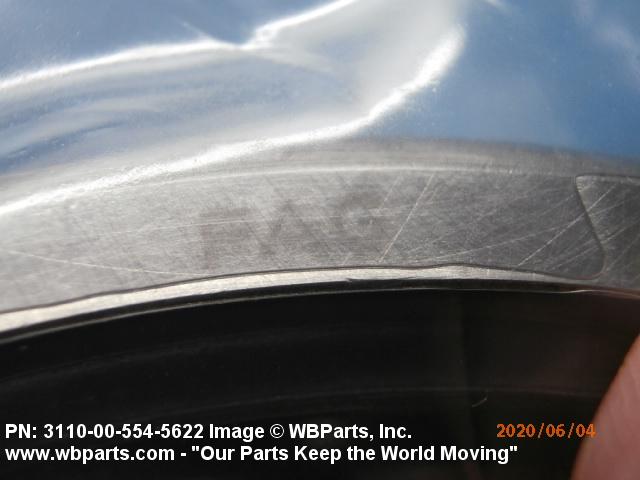

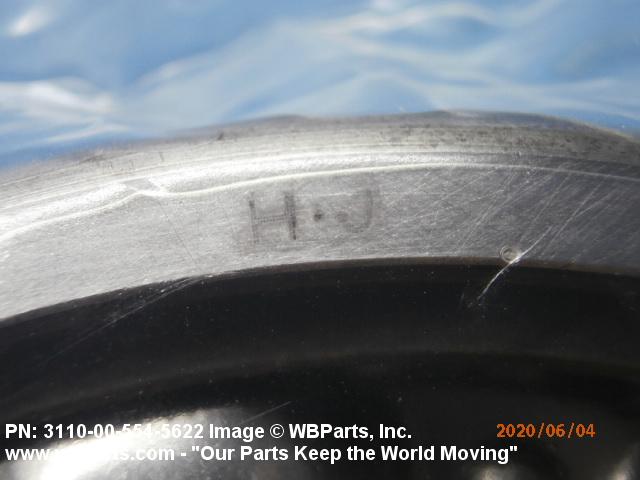

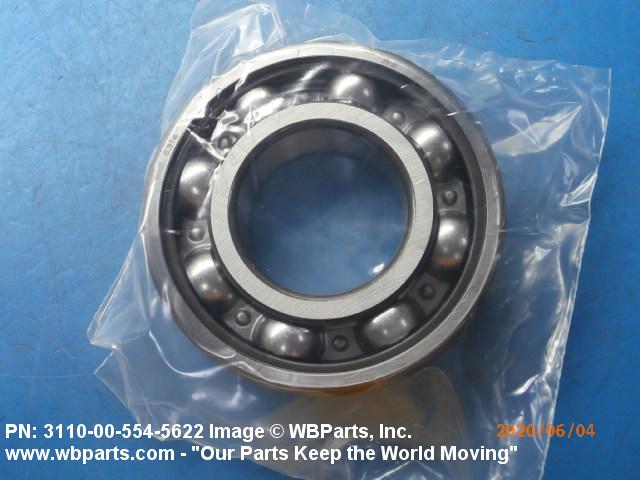

Drawings & Photos | NSN 3110-00-554-5622
Demand History | NSN 3110-00-554-5622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-554-5622 | 2020-04-119 | 1 | United States |
| 3110-00-554-5622 | 2020-04-119 | 1 | United States |
| 3110-00-554-5622 | 2020-01-07 | 1 | DIBBS-RFPs |
| 3110-00-554-5622 | 2019-10-287 | 22 | DIBBS |
| AA59585 | 2011-10-299 | 1 | Nigeria |
| 3110-00-554-5622 | 2011-05-138 | 1 | US |
| AA59585 | 2011-03-87 | 1 | US |
| 3110-00-554-5622 | 2011-03-80 | 249 | DIBBS |
| 3110-00-554-5622 | 2011-02-38 | 101 | DIBBS |
| 6314 | 2011-02-32 | 2 | KW |
| 3110-00-554-5622 | 2010-12-335 | 100 | DIBBS |
| 3110-00-554-5622 | 2010-10-298 | 94 | DIBBS |
| 3110-00-554-5622 | 2009-09-271 | 75 | DIBBS |
| 70BC03J3 | 2009-06-161 | 4 | United Arab Emirates |
| 3110-00-554-5622 | 2009-06-153 | 28 | DIBBS |
| 6314 | 2009-05-134 | 2 | Malaysia |
| 3110-00-554-5622 | 2009-01-22 | 1 | US |
| 3110-00-554-5622 | 2008-12-336 | 106 | DIBBS |
| 3110-00-554-5622 | 2008-11-316 | 46 | DIBBS |
| 3110-00-554-5622 | 2008-11-315 | 106 | DIBBS |
| 3110-00-554-5622 | 2008-10-302 | 46 | DIBBS |
| 3110-00-554-5622 | 2008-02-38 | 106 | DIBBS |
| 3110-00-554-5622 | 2007-12-345 | 30 | DIBBS |
| 3110-00-554-5622 | 2007-04-103 | 30 | DIBBS |
Cross Reference | NSN 3110-00-554-5622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10560323 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 1080GX | 45152 | OSHKOSH CORPORATION |
| 1080GX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 140247 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 235A2516AA05 | 12532 | GENERAL ELECTRIC CO MOTOR BUSINESS GROUP |
| 235A2516AA05 | 50706 | GENERAL ELECTRIC CO MOTOR BUSINESS GROUP |
| 25718 | 45320 | PACCAR GOVERNMENT GROUP CO YARROW BAY OFFICE PK |
| 314 | 30114 | HYUNDAI IDEAL ELECTRIC CO. |
| 314 | 52676 | SKF USA INC. |
| 314K | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 3300A54A0000-002 | 03494 | AMETEK ADVANCED INDUSTRIES, INC. |
| 3314X1 | 24617 | GENERAL MOTORS CORP |
| 3314X1 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 3314X1A | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 392670R91 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 4-100007-31 | 11349 | CENTURY ELECTRIC INC |
| 550714 | 11757 | PARKER-HANNIFIN CORPORATION DBA CHELSEA PRODUCTS DIVISION |
| 550714 | 33323 | KENWORTH TRUCK CO A DIV OF PACCAR INC |
| 6314 | 52676 | SKF USA INC. |
| 6314 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 6314 | 94487 | TOROMONT DIV TOROMONT OF INDUSTRIES LTD |
| 6314CE1TX9 | 53035 | NSK CORP BEARING DIV |
| 70BC03 | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 70BC03J3 | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 70BC03X | 70413 | ANTI-FRICTION BEARING MFG ASSN INC THE |
| 894A605AB014 | 01288 | GENERAL ELECTRIC CO DIRECT CURRENT MOTOR AND GENERATOR |
| 894A605AB14 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| 999F0722 PC 58 | 63857 | WARREN PUMPS LLC |
| A-A-59585 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A01314 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| A7808-70 | 92862 | MARATHON FOUNDARY AND MACHINE CO |
| AA59585-214JACT | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FFB171/05J14A2E | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| N2104P70 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| PL-999F0722 PC5 | 63857 | WARREN PUMPS LLC |
| PL999D0719 PC 2 | 63857 | WARREN PUMPS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-554-5622
Related Products | NSN 3110-00-554-5622
Technical Data | NSN 3110-00-554-5622
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

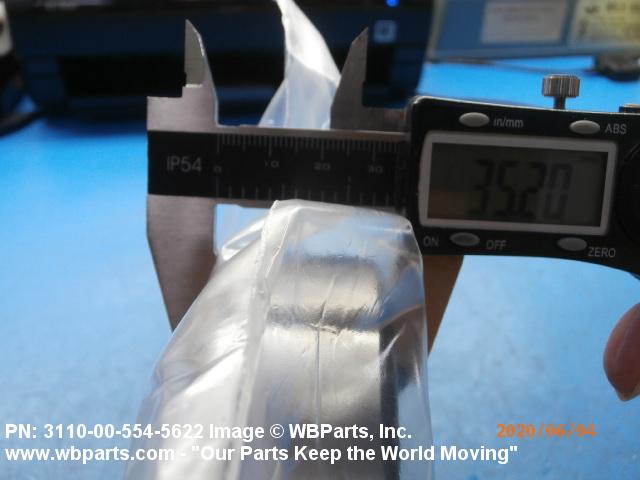

| OVERALL WIDTH | 35.0 MILLIMETERS NOMINAL |

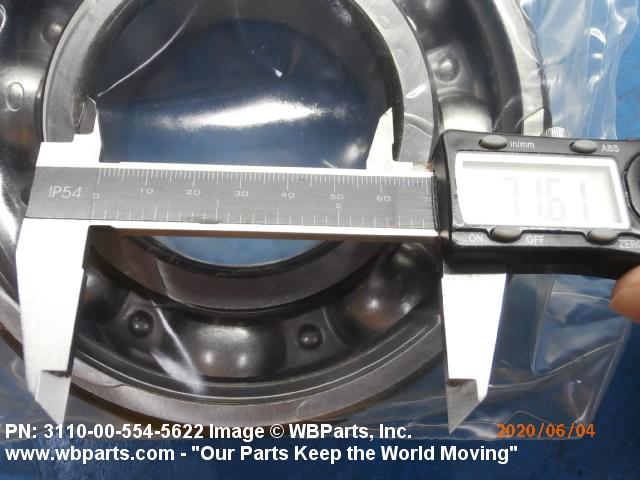

| BORE DIAMETER | 70.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 150.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59585 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59585-214JACT |
Restrictions/Controls & Freight Information | NSN 3110-00-554-5622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-554-5622
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
