NSN 3110-00-565-6233 SM46D8, SM4-6D8, RM4BW
Product Details | ROD END ROLLER BEARING
3110-00-565-6233 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: SM46D8, SM4-6D8, RM4BW, 1372679001, 137-267-9001, 3110-00-565-6233, 00-565-6233, 3110005656233, 005656233
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 NOV 1974 | 00-565-6233 | 00050 ( BEARING, ROLLER, ROD END ) |

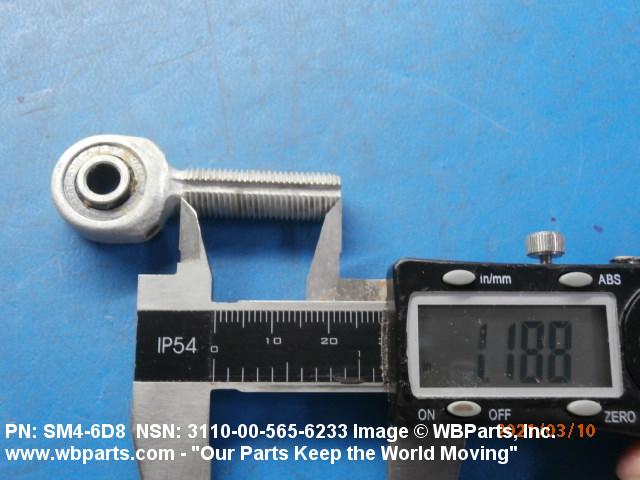

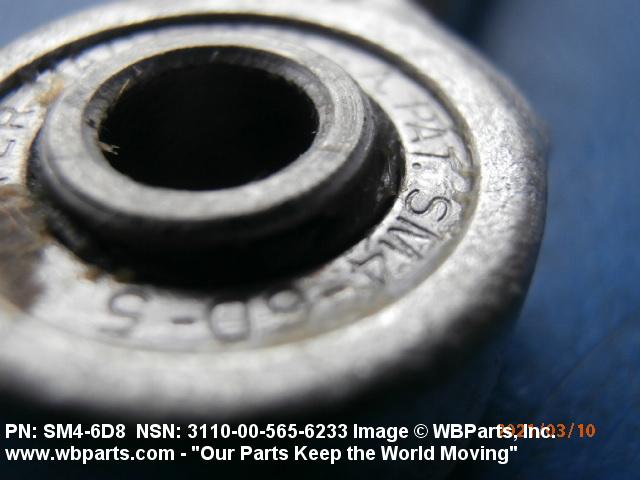

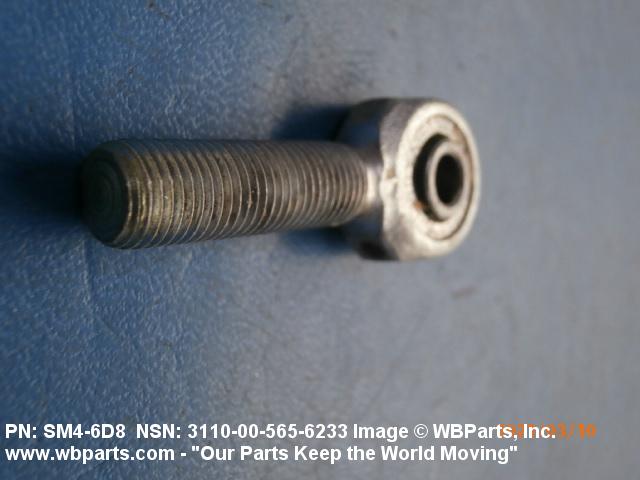

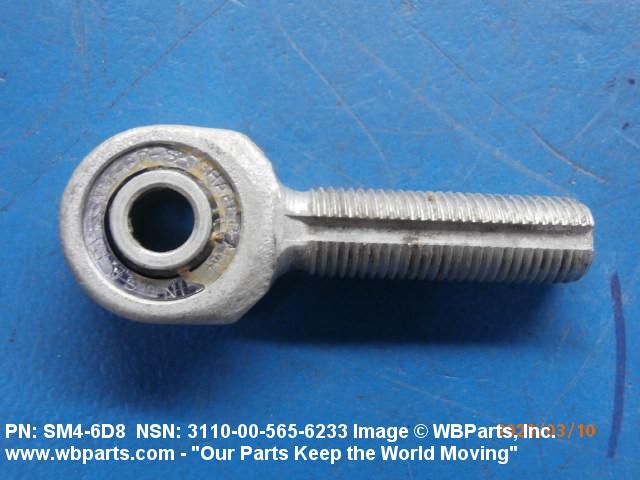

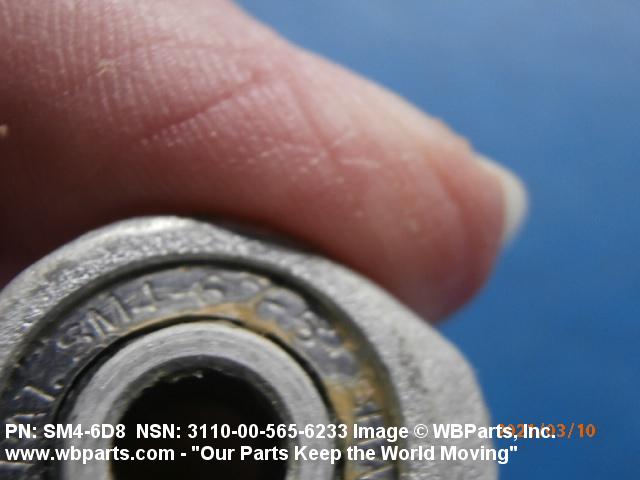

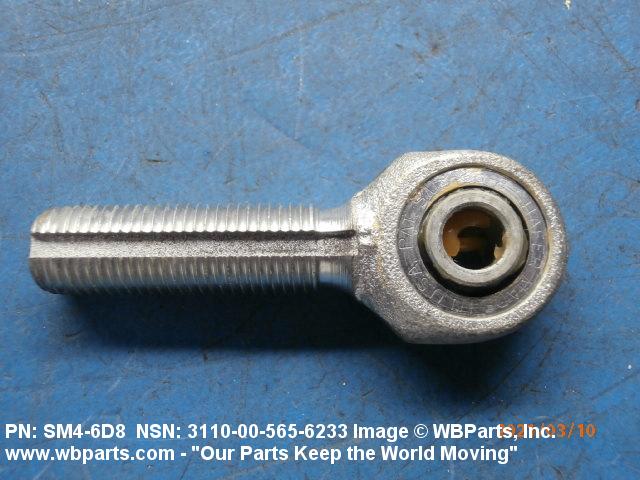

Drawings & Photos | NSN 3110-00-565-6233
Demand History | NSN 3110-00-565-6233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SM46D8 | 2025-10-302 | 1 | United States |
| SM46D8 | 2025-07-196 | 1 | United States |
| SM46D8 | 2025-07-196 | 1 | United States |
| 137-267-9001 | 2025-04-100 | 52 | DIBBS |
| 137-267-9001 | 2025-04-92 | 52 | DIBBS |
| 137-267-9001 | 2025-01-28 | 52 | DIBBS |
| 137-267-9001 | 2025-01-20 | 52 | DIBBS |
| SM46D8 | 2024-03-88 | 20 | United States |
| RM4BW | 2022-08-216 | 1 | US |
| SM46D8 | 2021-08-216 | 1 | United States |
| SM46D8 | 2021-06-165 | 28 | United States |
| 3110-00-565-6233 | 2021-04-113 | 6 | US |
| SM46D8 | 2021-04-95 | 1 | United States |
| SM46D8 | 2021-03-61 | 20 | United States |
| RM4BW | 2021-02-48 | 13 | United States |
| RM4BW | 2021-02-48 | 13 | United States |
| 3110-00-565-6233 | 2012-07-192 | 3 | US |
| 3110-00-565-6233 | 2012-02-54 | 42 | DIBBS |
| 3110-00-565-6233 | 2011-03-82 | 293 | DIBBS |
| 3110-00-565-6233 | 2011-02-41 | 63 | DIBBS |
| 3110-00-565-6233 | 2010-01-28 | 88 | DIBBS |
| 3110-00-565-6233 | 2009-05-124 | 24 | DIBBS |
| 3110-00-565-6233 | 2008-08-232 | 55 | DIBBS |
| 3110-00-565-6233 | 2008-06-163 | 59 | DIBBS |
| 3110-00-565-6233 | 2008-04-95 | 110 | DIBBS |
| 3110-00-565-6233 | 2007-08-239 | 67 | DIBBS |
| 3110-00-565-6233 | 2007-08-239 | 107 | DIBBS |
| 3110-00-565-6233 | 2007-06-157 | 107 | DIBBS |
| 3110-00-565-6233 | 2007-03-73 | 67 | DIBBS |
Cross Reference | NSN 3110-00-565-6233
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-565-6233
Related Products | NSN 3110-00-565-6233
Technical Data | NSN 3110-00-565-6233
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP 4620 ROD END BODY STEEL COMP E52100 ROLLER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL STEEL COMP 430 SHIELD STEEL SNAP RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-7493 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE ROLLER ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 468 SINGLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

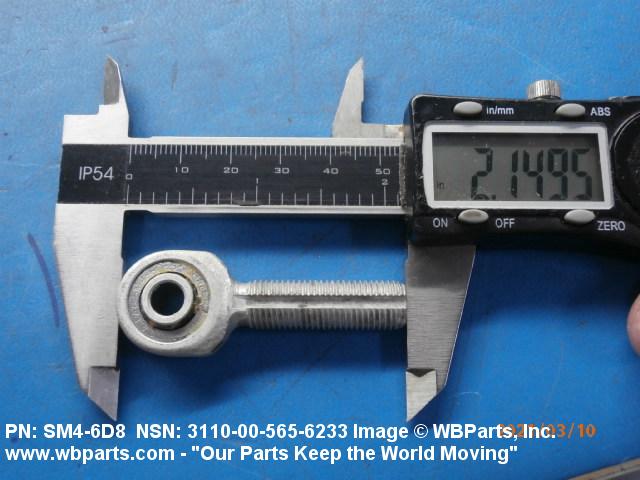

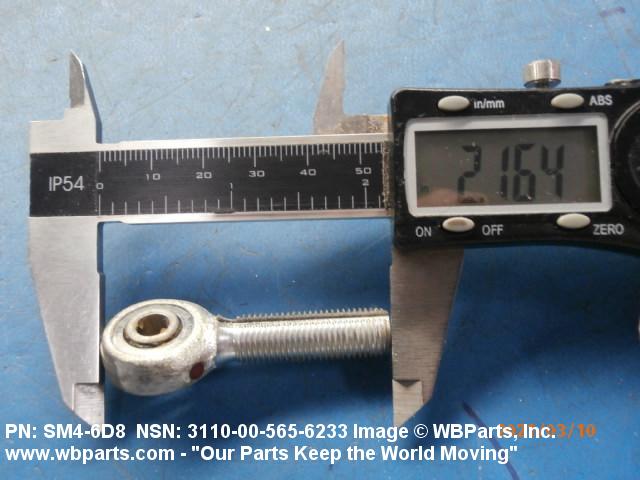

| OVERALL LENGTH | 2.1350 INCHES MINIMUM AND 2.1650 INCHES MAXIMUM |

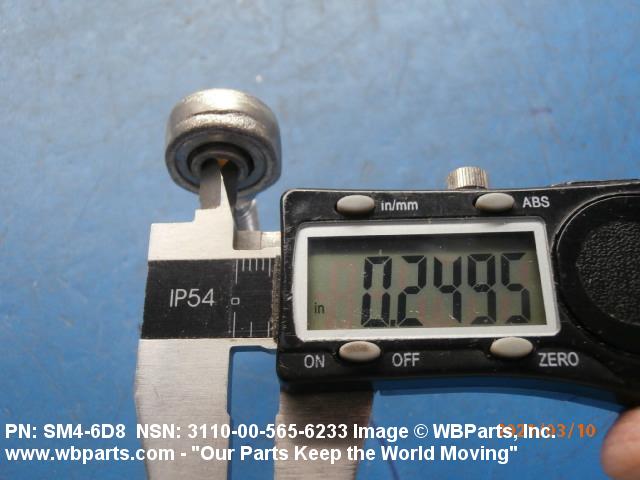

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

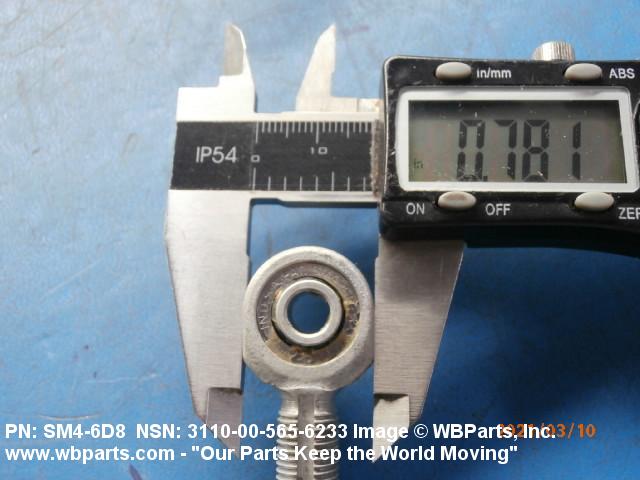

| OVERALL OUTSIDE DIAMETER | 0.7500 INCHES MINIMUM AND 0.8000 INCHES MAXIMUM |

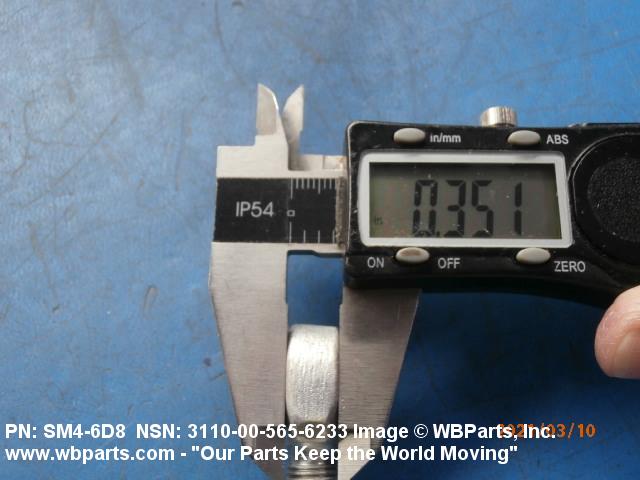

| OUTER RING WIDTH | 0.3350 INCHES MINIMUM AND 0.3500 INCHES MAXIMUM |

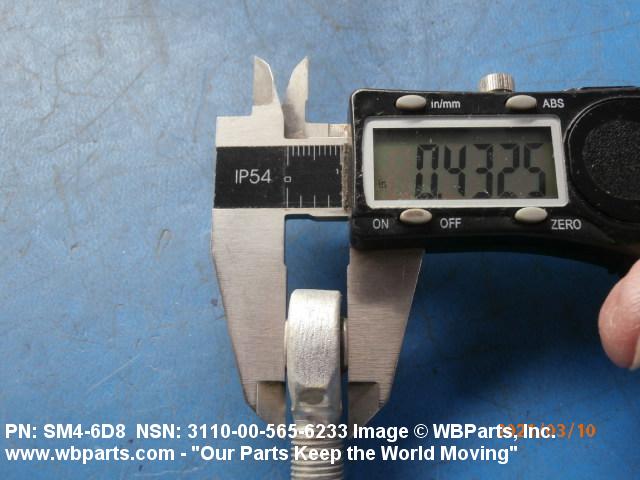

| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |

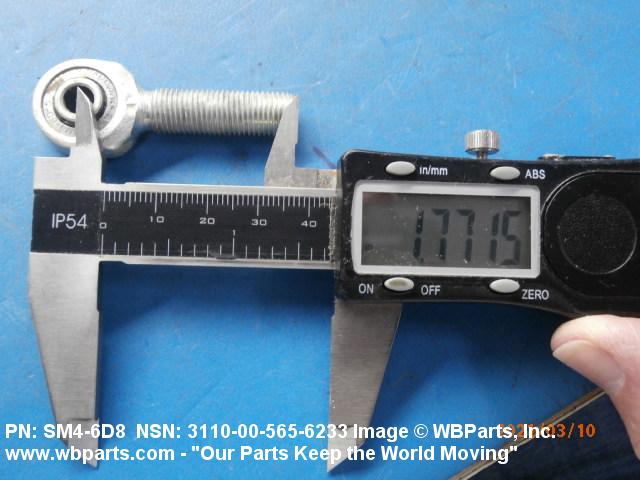

| LENGTH FROM BORE CENTER TO SHANK END | 1.7350 INCHES MINIMUM AND 1.7650 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |

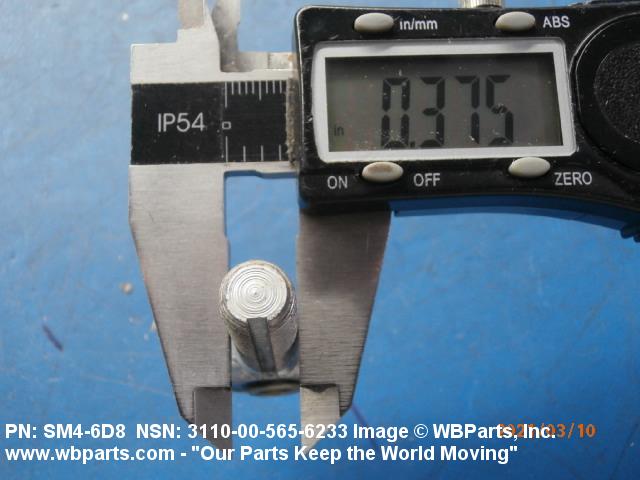

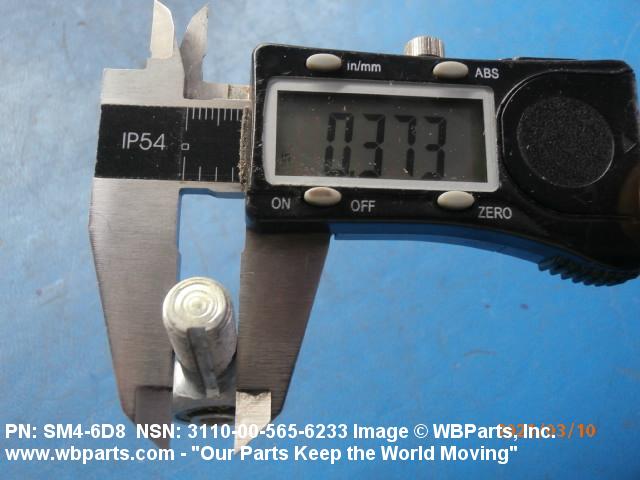

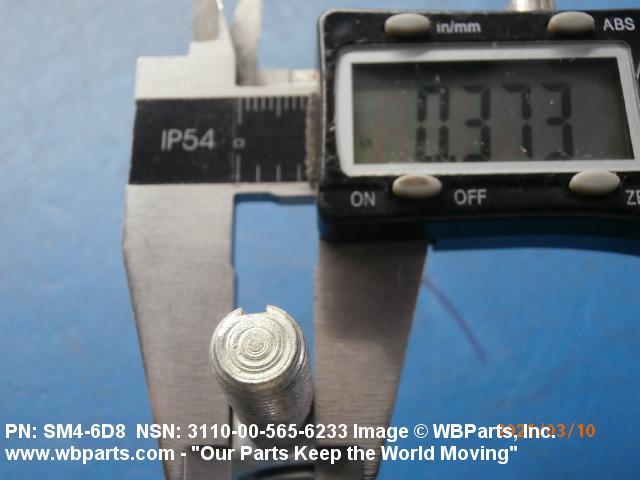

| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.0650 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |

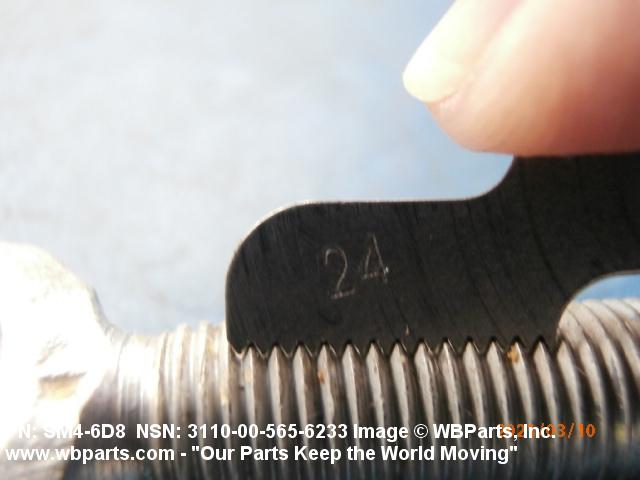

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | PLASTIC FLUSH TYPE GREASE FITTING,REDUCED INTERNAL FIT |
Restrictions/Controls & Freight Information | NSN 3110-00-565-6233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
