NSN 3110-00-646-9422 CR2R5P13LY7Q44, R25DWK13, R2T505S029H89SA822M

Product Details | ANNULAR BALL BEARING

3110-00-646-9422 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: CR2R5P13LY7Q44, R25DWK13, R2T505S029H89SA822M, R2WX46K2V013, R2WX46K2V0-13, 11935501, 119355-01, 3110-00-646-9422, 00-646-9422, 3110006469422, 006469422

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-646-9422	00014 ( BEARING, BALL, ANNULAR )

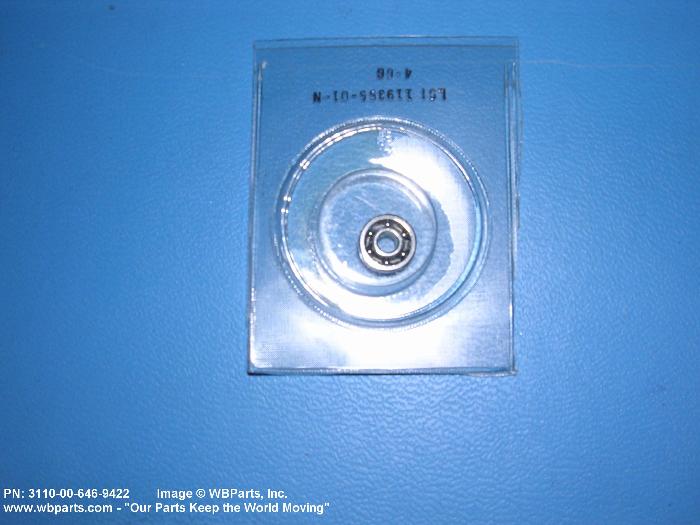

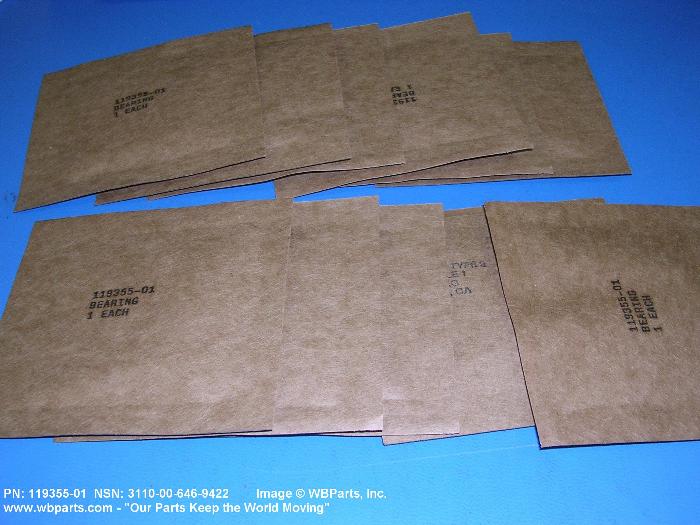

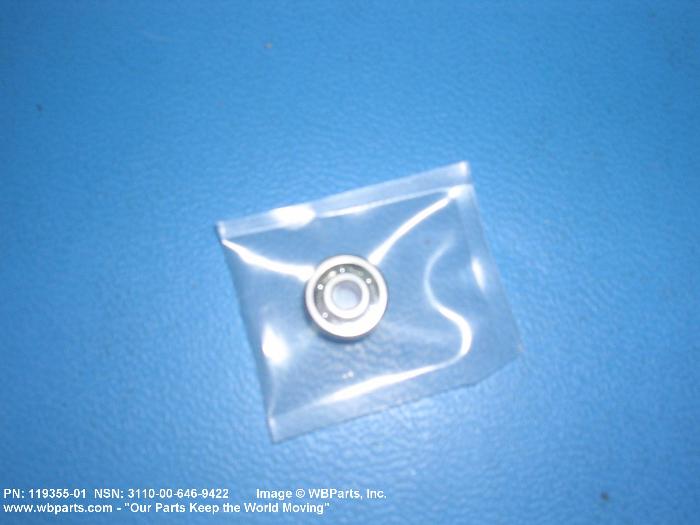

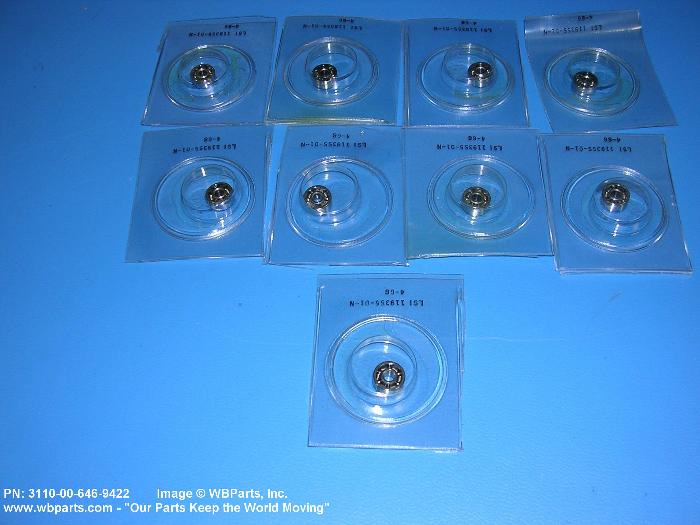

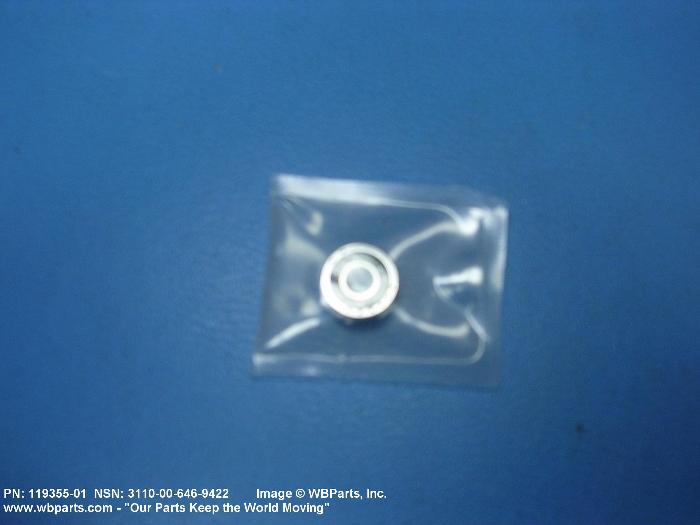

Drawings & Photos | NSN 3110-00-646-9422

Part Number	Request Date	QTY	Origin
3110-00-646-9422	2013-06-156	125	DIBBS
3110-00-646-9422	2013-05-132	125	DIBBS
3110-00-646-9422	2013-04-107	126	DIBBS
3110-00-646-9422	2012-09-270	88	DIBBS
3110-00-646-9422	2012-08-220	38	DIBBS
3110-00-646-9422	2012-05-138	59	DIBBS
11935501	2008-04-119	20	Turkey

Cross Reference | NSN 3110-00-646-9422

Part Number	Cage Code	Manufacturer
119355-01	35351	GE AVIATION SYSTEMS LLC
CR2R5P13LY7Q44	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION
R25DWK13	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
R2T505S029H89SA822M	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R2WX46K2V0-13	70854	BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-646-9422

Compare

Related Products | NSN 3110-00-646-9422

3110-00-646-9423, 3110-00-646-9426, 3110-00-646-9429, 3110-00-646-9430, 3110-00-646-9865

Technical Data | NSN 3110-00-646-9422

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL CORROSION RESISTING RETAINER
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	0.1562 INCHES NOMINAL
BORE DIAMETER	0.1250 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	0.3750 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	ABEC NO.5
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	COILED
LOAD DIRECTION	RADIAL
INTERNAL CLEARANCE	0.0001 INCHES MINIMUM RADIAL AND 0.0003 INCHES MAXIMUM RADIAL
SPECIAL FEATURES	SELECTED,CLASSIFIED AND TESTED BY THE ASSY MFR AT HIS PLANT
MANUFACTURERS CODE	35351
DESIGN CONTROL REFERENCE	119355-01

Restrictions/Controls & Freight Information | NSN 3110-00-646-9422

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-646-9422

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
