NSN 3110-00-710-4936 MRCR6ZZ, AA59644, A-A-59644

Product Details | ANNULAR BALL BEARING

3110-00-710-4936 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: MRCR6ZZ, AA59644, A-A-59644, AA59644211AEHF, AA59644-211AEHF, ASPPE9730, BB15381, BB1538-1, S3PPFS160, S3PPFS160B, S3PPFS160N, S3PP-FS160N, S3RKKF3MILG3278, S3SZZQ5A7MILG3278, SSZ99R6XR1CJ, SSZ99R6XR3CJ, S3KPPFS160, S3KPP-FS160, WA134100, WA-134-100, FFB2844, FF-B-2844, FFB2844/05ALXFX, FFB284405ALXFX, G306620, R62RSG90, R6-2RSG90, R62RSL15, R6-2RSL15, R6LLSS1L1, R-6-ZZ ABEC-I MIL-G-23827, R6ZZ20, R6ZZ90, R6ZZABECIMILG23827, R6ZZB106A023A75B00001, R6ZZB106A023A75B0000-1, R6ZZMILG3278, R6ZZMIL-G-3278, R6ZZQ5A7MILG3278, R6ZZST, R6ZZST03ST023H20, R6ZZST20GRS, 10138422 , 115006194004, 115-00619-4004, 11602028, 125C3781, 125C37814, 125C3781-4, 2380C50, 2540042, S3PP, 504630, 92054151, 3110-00-710-4936, 00-710-4936, 3110007104936, 007104936

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-710-4936	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-710-4936

Part Number	Request Date	QTY	Origin
3110-00-710-4936	2022-12-355	10	Denmark
3110-00-710-4936	2020-10-302	1	DIBBS-RFPs
3110-00-710-4936	2020-06-180	3	SA
3110-00-710-4936	2015-12-363	1	DIBBS-RFPs
3110-00-710-4936	2015-08-240	1	DIBBS-RFPs
ASPPE9730	2015-07-182	50	UK
AA59644	2012-09-257	16	AE
3110-00-710-4936	2011-02-46	1550	DIBBS
R6ZZST	2011-01-17	30	US
3110-00-710-4936	2009-01-06	2	US
S3PP	2008-10-297	2	US
S3PP	2008-09-247	4	US
3110-00-710-4936	2008-08-218	1598	DIBBS

Cross Reference | NSN 3110-00-710-4936

Part Number	Cage Code	Manufacturer
115-00619-4004	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
115-00619-4004	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
11602028	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
125C3781	21760	SCHATZ BEARING CORPORATION
125C3781	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
125C3781-4	05606	GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
2380C50	88272	MANIABARCO INC.
2540042	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
504630	12909	CARDION INC
92054151	19333	MAGNETIC PERIPHERALS INC NORMANDALE OPNS
A-A-59644	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59644-211AEHF	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
ASPPE9730	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BB1538-1	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
FF-B-2844	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB2844/05ALXFX	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G306620	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
MRCR6ZZ	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R-6-ZZ ABEC-I MIL-G-23827	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6-2RSG90	43991	FAG BEARINGS CORPORATION
R6-2RSL15	43991	FAG BEARINGS CORPORATION
R6LLSS1L1	21760	SCHATZ BEARING CORPORATION
R6ZZ20	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZ90	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZB106A023A75B0000-1	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZMIL-G-3278	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZQ5A7MILG3278	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZST	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZST03ST023H20	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R6ZZST20GRS	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
S3KPP-FS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
S3PP	85941	MAGELLAN AEROSPACE, NEW YORK, INC. DIV ELLANEF MANUFACTURING
S3PP-FS160N	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
S3PPFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
S3PPFS160B	48294	PSI-PERIPHERAL SUPPORT
S3RKKF3MILG3278	43991	FAG BEARINGS CORPORATION
S3SZZQ5A7MILG3278	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
SSZ99R6XR1CJ	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
SSZ99R6XR3CJ	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
WA-134-100	08484	BREEZE-EASTERN CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-710-4936

Compare

Related Products | NSN 3110-00-710-4936

3110-00-710-4944, 3110-00-710-5549, 3110-00-710-8097, 3110-00-710-8345, 3110-00-710-9532

Technical Data | NSN 3110-00-710-4936

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING BALL STEEL CORROSION RESISTING INNER RING STEEL CORROSION RESISTING OUTER RING STEEL CORROSION RESISTING RETAINER RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE

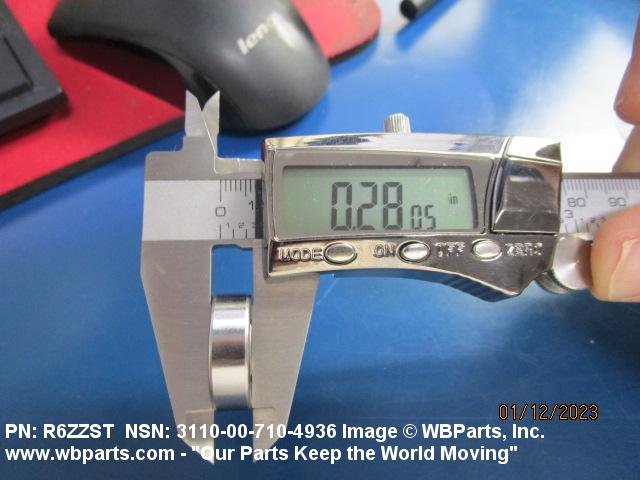

OVERALL WIDTH	0.2762 INCHES MINIMUM AND 0.2812 INCHES MAXIMUM

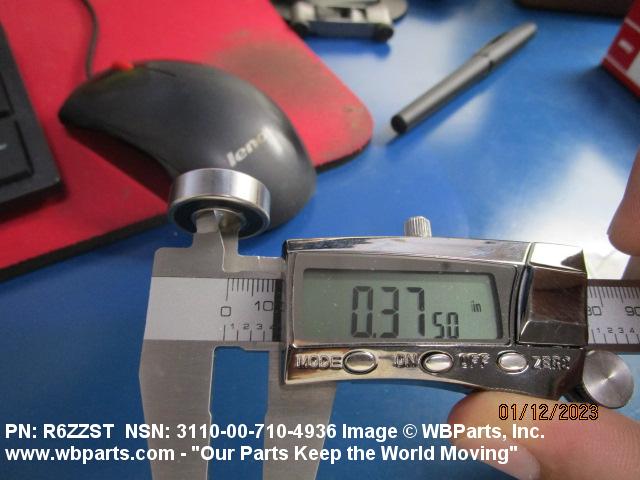

BORE DIAMETER	0.3747 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM

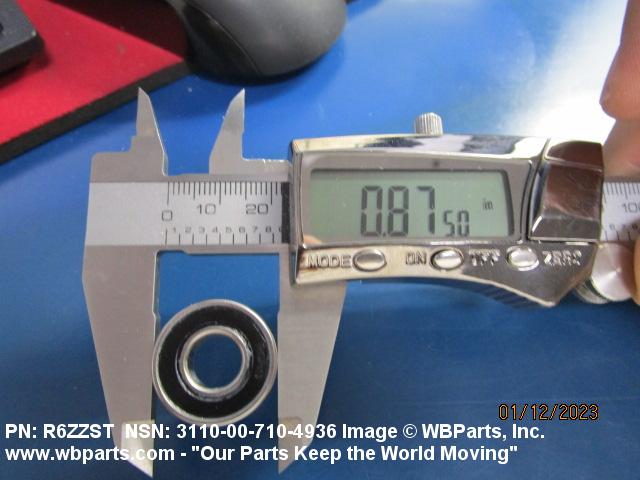

OVERALL OUTSIDE DIAMETER	0.8746 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.3
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD

Restrictions/Controls & Freight Information | NSN 3110-00-710-4936

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-710-4936

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
