NSN 3110-00-761-3654 WD3L08AALR5C09, 6824728, 6843389
Product Details | ANNULAR BALL BEARING
3110-00-761-3654 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: WD3L08AALR5C09, 6824728, 6843389, 6859436, 108KS802, 108KS87, 3110-00-761-3654, 00-761-3654, 3110007613654, 007613654
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 DEC 1966 | 00-761-3654 | 00014 ( BEARING, BALL, ANNULAR ) |

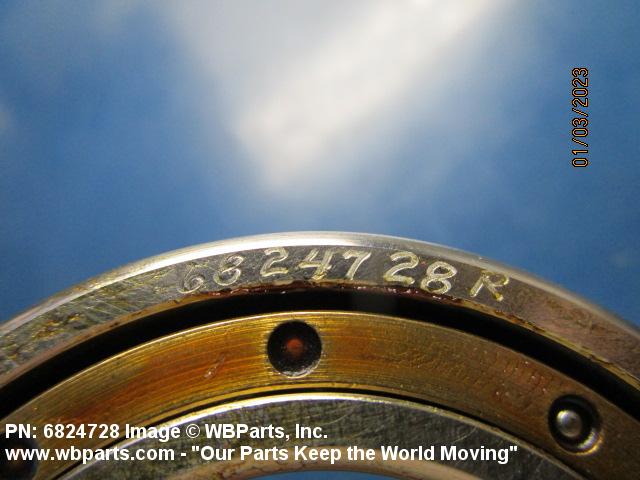

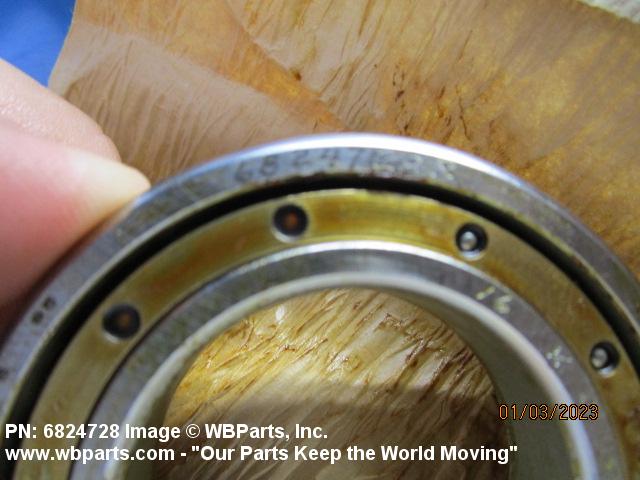

Drawings & Photos | NSN 3110-00-761-3654
Demand History | NSN 3110-00-761-3654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-761-3654 | 2019-09-253 | 5 | TR |
| 3110-00-761-3654 | 2014-09-269 | 1 | DE |
| 6824728 | 2010-12-356 | 1 | Indonesia |
| 108KS802 | 2010-11-308 | 30 | HK |
| 108KS802 | 2010-10-303 | 30 | HK |
| 108KS802 | 2010-10-296 | 10 | RU |
| 108KS802 | 2010-10-293 | 1 | RU |
| 6843389 | 2009-04-112 | 1 | US |
Cross Reference | NSN 3110-00-761-3654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108KS802 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 108KS87 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 6824728 | 63005 | ROLLS-ROYCE CORPORATION |
| 6824728 | 73342 | ALLISON TRANSMISSION, INC. |
| 6843389 | 63005 | ROLLS-ROYCE CORPORATION |
| 6843389 | 73342 | ALLISON TRANSMISSION, INC. |
| 6859436 | 63005 | ROLLS-ROYCE CORPORATION |
| 6859436 | 73342 | ALLISON TRANSMISSION, INC. |
| WD3L08AALR5C09 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-761-3654
Related Products | NSN 3110-00-761-3654
Technical Data | NSN 3110-00-761-3654
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6444 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 6444 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6444 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 6444 ASSN STD SINGLE MATERIAL RESPONSE OR EMS50960,73342 MFR REF SINGLE MATERIAL RESPONSE RETAINER |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

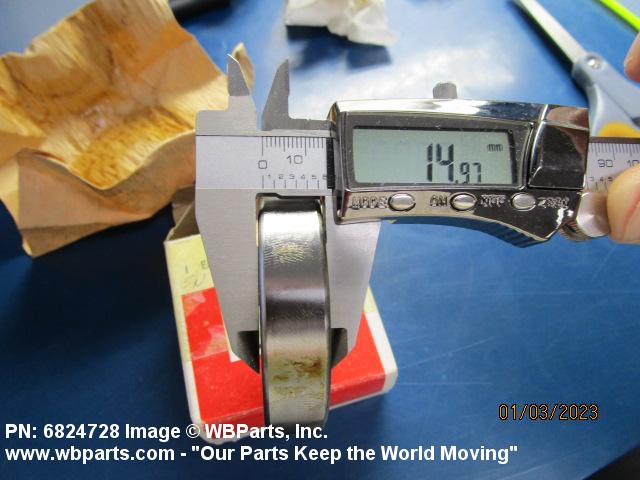

| OVERALL WIDTH | 15.00 MILLIMETERS NOMINAL |

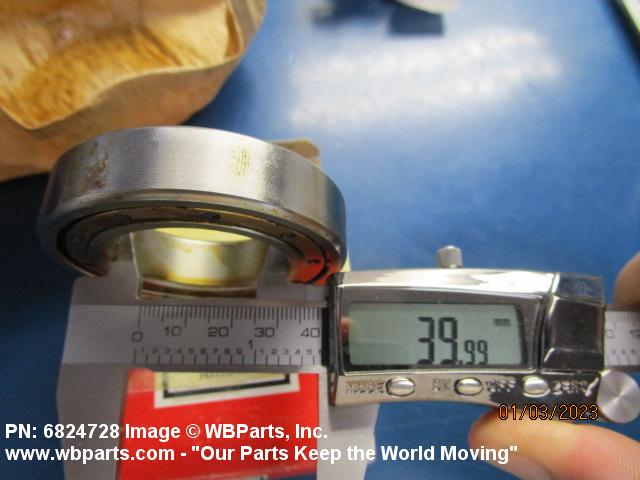

| BORE DIAMETER | 40.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 68.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0058 INCHES MINIMUM AXIAL AND 0.0100 INCHES MAXIMUM AXIAL AND 0.0004 INCHES MINIMUM RADIAL AND 0.0013 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | STABILIZED FOR OPERATION AT 350 DEG F |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 6859436 |
Restrictions/Controls & Freight Information | NSN 3110-00-761-3654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | 99 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-761-3654
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
