NSN 3110-00-830-4282 AA59644117EEEB, A-A-59644-117EEEB , AA59644A

Product Details | ANNULAR BALL BEARING

3110-00-830-4282 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: AA59644117EEEB, A-A-59644-117EEEB , AA59644A, A-A-59644A , NB69FC5350A18A, NB6-9FC5350A18A, NB69FC5350A18B, NB6-9FC5350A18B, NB9A9FCD7949A18A, NB9A9FCD7949A18B, NB9S9FC5349A18A, NB9S9FC5349A1B, S8PPFS104, CC158PP, CC1-58PP, CC1R12ZZ, CC1-R-12-ZZ, FFB171, FFB2844, FF-B-2844, FFB2844/02AU1BM, FFB284402AU1BM, Z99R12, R12ZZ, R-12-ZZ, R12ZZ11, R12ZZ-11, R12ZZ1BEC1, 01-435-0190-5 PIECE 21, 0143501905PIECE21, 018500, 018-500, 18000013, 1800013, 3091136010, 309-1136-010, 31036-40018 FIN, 3103640018FIN, 3110-00-830-4282, 00-830-4282, 3110009011741, 3110008304282, 008304282

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1962	00-830-4282	00014 ( BEARING, BALL, ANNULAR )

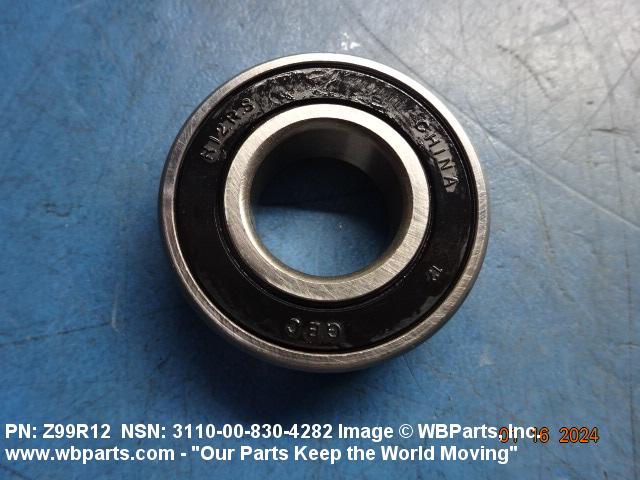

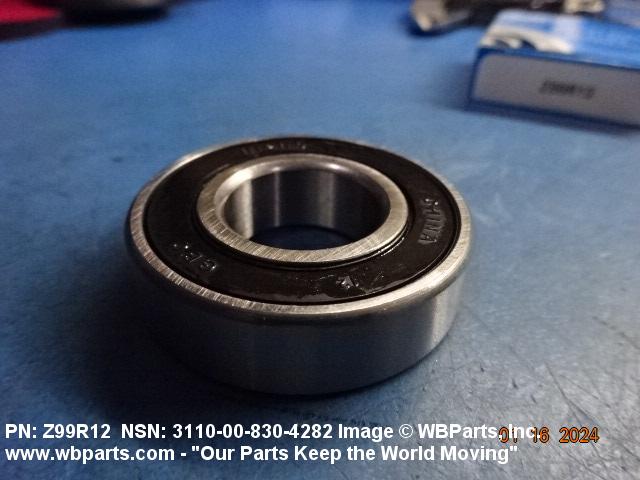

Drawings & Photos | NSN 3110-00-830-4282

Part Number	Request Date	QTY	Origin
3110-00-830-4282	2025-06-175	34	DIBBS
3110-00-830-4282	2025-06-171	8	ZA
3110-00-830-4282	2025-02-42	38	DIBBS
3110-00-830-4282	2025-02-34	38	DIBBS
3110-00-830-4282	2025-01-16	26	DIBBS
3110-00-830-4282	2024-10-305	12	DIBBS
3110-00-830-4282	2024-10-296	12	DIBBS
3110-00-830-4282	2024-08-236	2	US
3110-00-830-4282	2024-07-200	52	DIBBS
3110-00-830-4282	2024-04-113	34	DIBBS
3110-00-830-4282	2024-04-105	34	DIBBS
3110-00-830-4282	2024-01-09	2	United States
3110-00-830-4282	2023-11-333	102	DIBBS
3110-00-830-4282	2023-09-249	44	DIBBS
3110-00-830-4282	2023-08-241	44	DIBBS
3110-00-830-4282	2023-02-59	17	DIBBS
3110-00-830-4282	2023-02-51	17	DIBBS
3110-00-830-4282	2022-11-332	58	DIBBS
3110-00-830-4282	2022-11-324	58	DIBBS
3110-00-830-4282	2022-07-198	24	DIBBS
3110-00-830-4282	2021-11-330	28	DIBBS
3110-00-830-4282	2021-11-322	28	DIBBS
3110-00-830-4282	2021-07-204	17	DIBBS
3110-00-830-4282	2021-07-196	17	DIBBS
3110-00-830-4282	2021-04-103	137	DIBBS
AA59644117EEEB	2018-05-141	1	Singapore
3110-00-901-1741	2017-10-286	2	United States
FFB171	2017-01-10	7	US
3110-00-830-4282	2016-01-13	1	DIBBS-RFPs
3110-00-830-4282	2015-08-240	1	DIBBS-RFPs
3110-00-830-4282	2014-03-84	30	US
FFB171	2013-01-11	22	US
3110-00-830-4282	2012-03-74	291	DIBBS
3110-00-830-4282	2012-03-73	50	US
Z99R12	2011-02-47	100	IN
3110-00-830-4282	2010-07-202	115	DIBBS
FFB171	2008-11-317	8	United States
3110-00-830-4282	2008-10-298	18	DIBBS
R12ZZ	2007-11-334	24	US

Cross Reference | NSN 3110-00-830-4282

Part Number	Cage Code	Manufacturer
01-435-0190-5 PIECE 21	52374	FLOWSERVE CORPORATION DBA FLOWSERVE
018-500	27077	BLUE GIANT EQUIPMENT CORP
18000013	45396	GRUNDFOS CBS INC DBA PACO PUMPS
1800013	45396	GRUNDFOS CBS INC DBA PACO PUMPS
309-1136-010	F5491	ROCKWELL COLLINS FRANCE DBA RCF
31036-40018 FIN	97384	AAI CORPORATION DBA TEXTRON SYSTEMS
3110009011741	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
A-A-59644-117EEEB	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-59644A	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
CC1-58PP	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
CC1-R-12-ZZ	52374	FLOWSERVE CORPORATION DBA FLOWSERVE
FF-B-2844	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB171	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB2844/02AU1BM	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
NB6-9FC5350A18A	45396	GRUNDFOS CBS INC DBA PACO PUMPS
NB6-9FC5350A18B	45396	GRUNDFOS CBS INC DBA PACO PUMPS
NB9A9FCD7949A18A	45396	GRUNDFOS CBS INC DBA PACO PUMPS
NB9A9FCD7949A18B	45396	GRUNDFOS CBS INC DBA PACO PUMPS
NB9S9FC5349A18A	45396	GRUNDFOS CBS INC DBA PACO PUMPS
NB9S9FC5349A1B	45396	GRUNDFOS CBS INC DBA PACO PUMPS
R-12-ZZ	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R-12-ZZ	52374	FLOWSERVE CORPORATION DBA FLOWSERVE
R12ZZ-11	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
R12ZZ1BEC1	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
S8PPFS104	76050	EATON AEROSPACE LLC M C AEROSPACE DIV
Z99R12	24617	GENERAL MOTORS CORP
Z99R12	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-830-4282

Compare

Related Products | NSN 3110-00-830-4282

3110-00-830-4317, 3110-00-830-5924, 3110-00-830-5927, 3110-00-830-6000, 3110-00-830-7946

Technical Data | NSN 3110-00-830-4282

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE

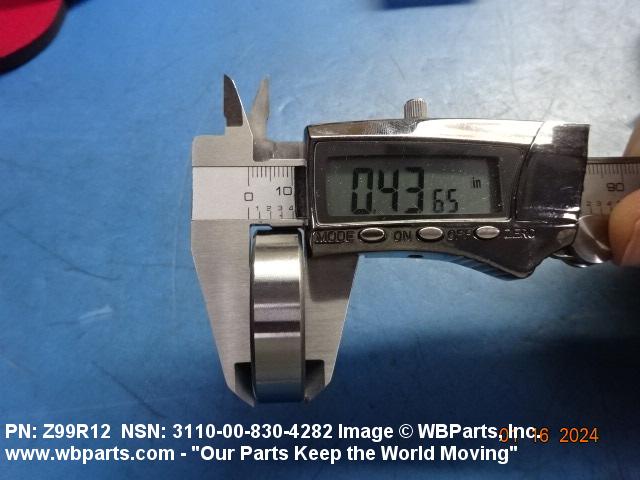

OVERALL WIDTH	0.4375 INCHES NOMINAL

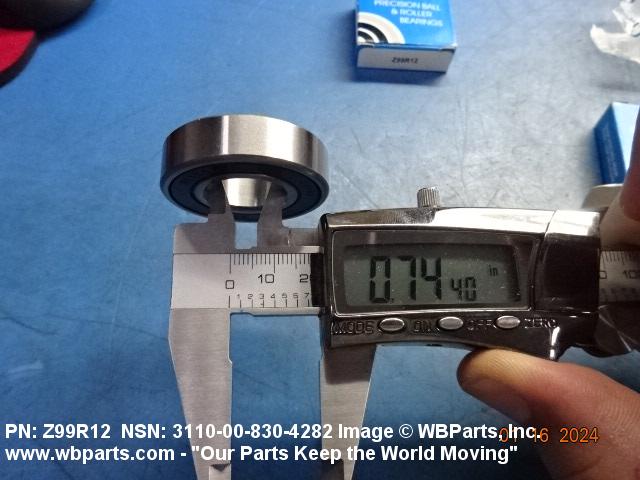

BORE DIAMETER	0.7500 INCHES NOMINAL

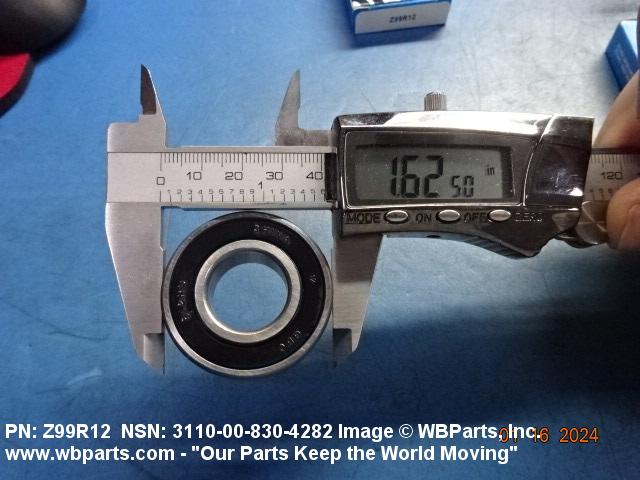

OVERALL OUTSIDE DIAMETER	1.6250 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
NONDEFINITIVE SPEC/STD DATA	115 TYPE AND 00 GRADE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-B-2844
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB2844/02AU1BM

Restrictions/Controls & Freight Information | NSN 3110-00-830-4282

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-830-4282

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
