NSN 3110-00-959-3583 SA2684, D202791, D20279-1
Product Details | ANNULAR BALL BEARING
3110-00-959-3583 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: SA2684, D202791, D20279-1, 202791, 20279-1, 203TX27, 203TX7K6, 3110-00-959-3583, 00-959-3583, 3110009593583, 009593583
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-959-3583 | 00014 ( BEARING, BALL, ANNULAR ) |

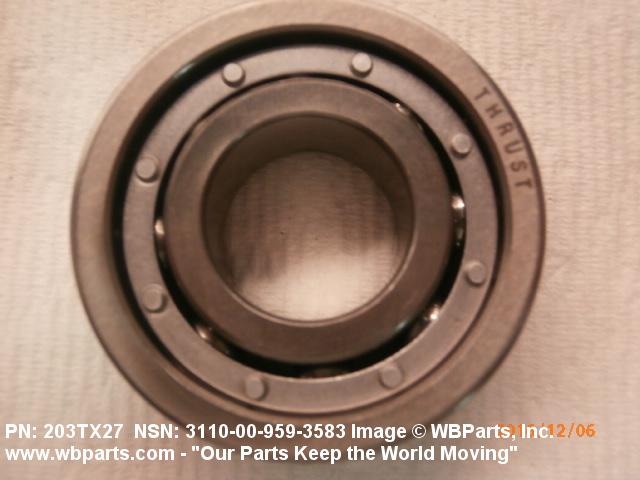

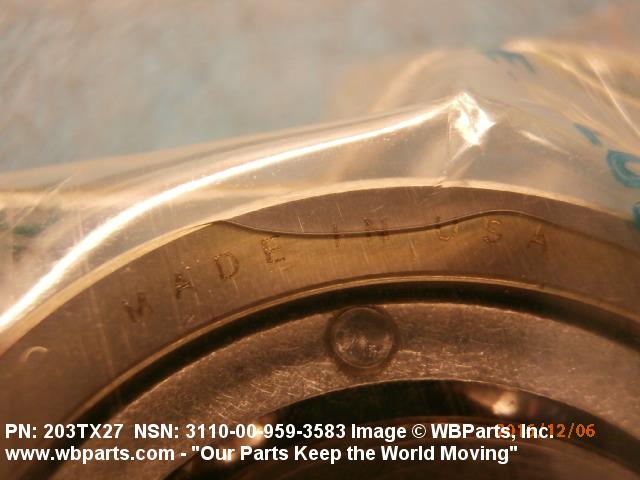

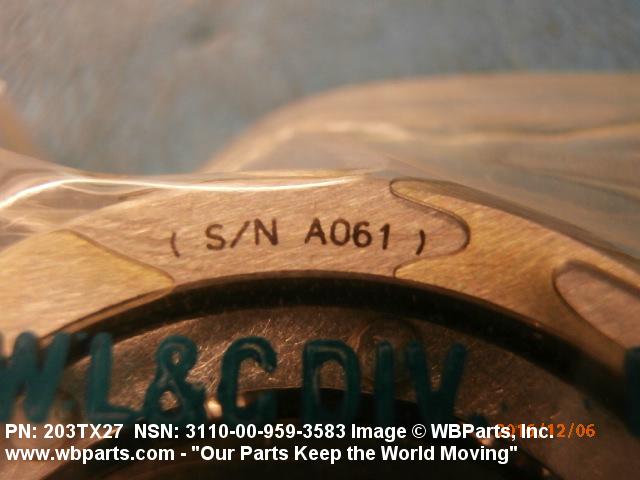

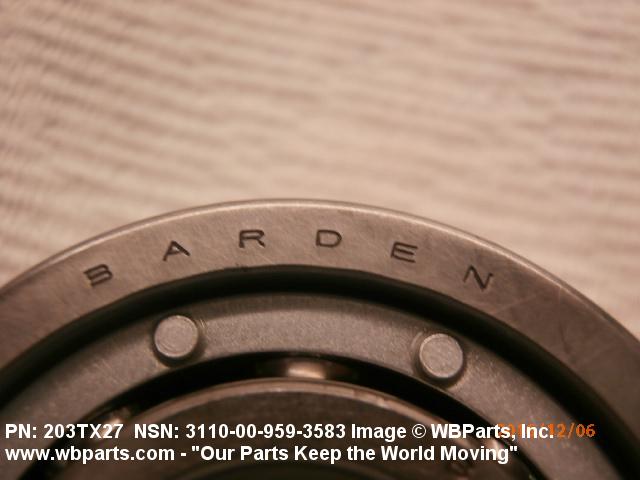

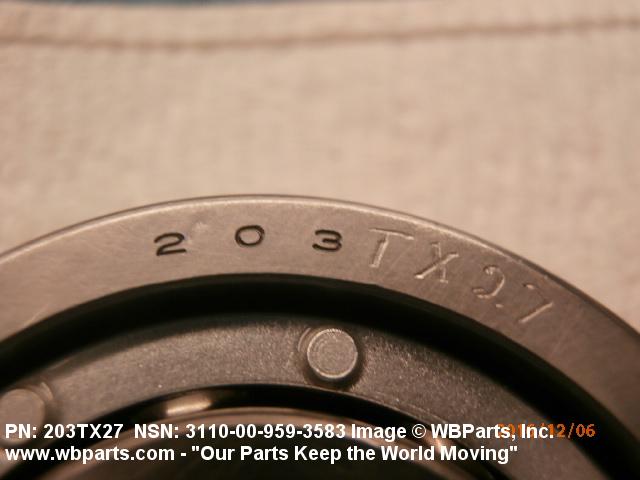

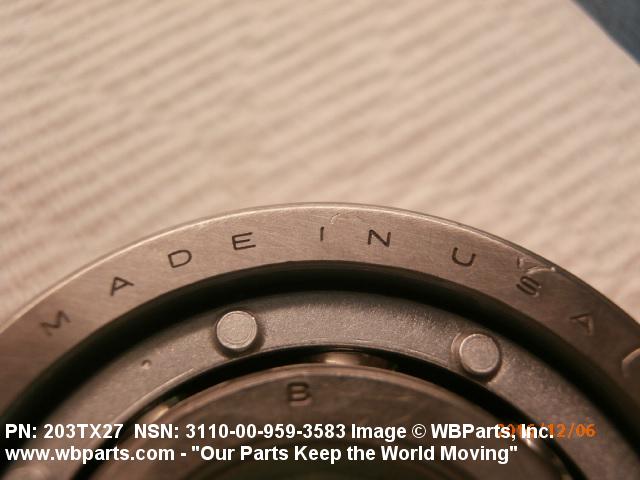

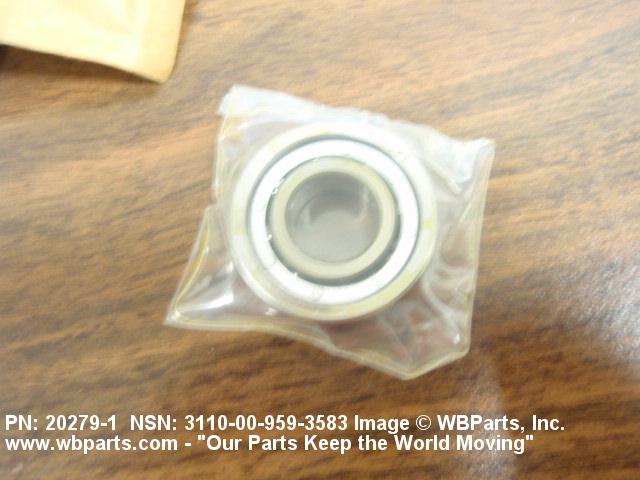

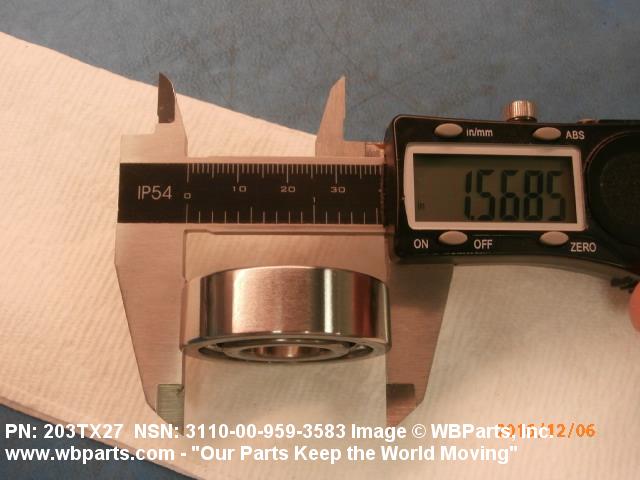

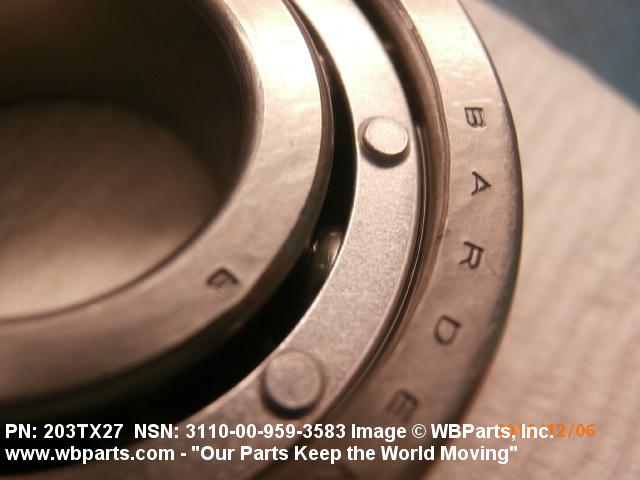

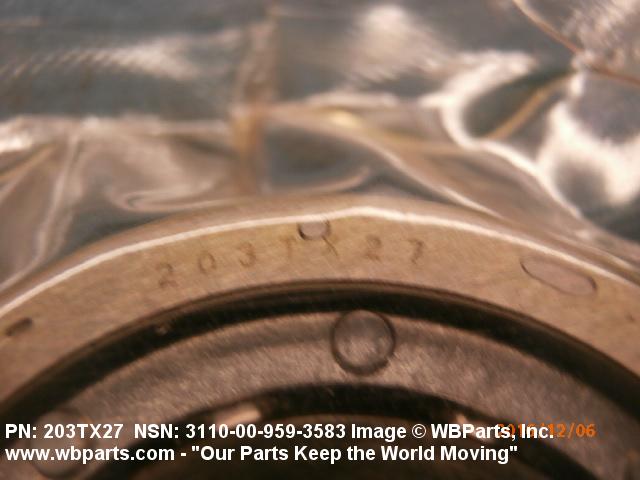

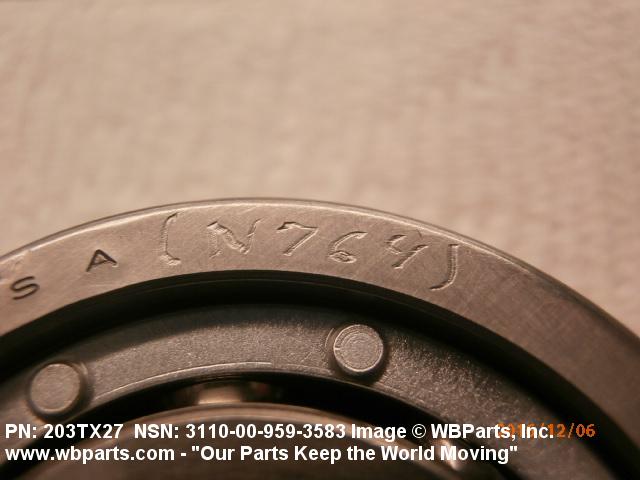

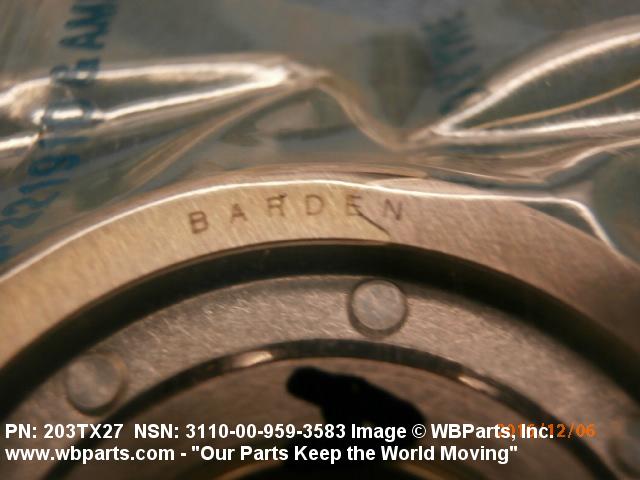

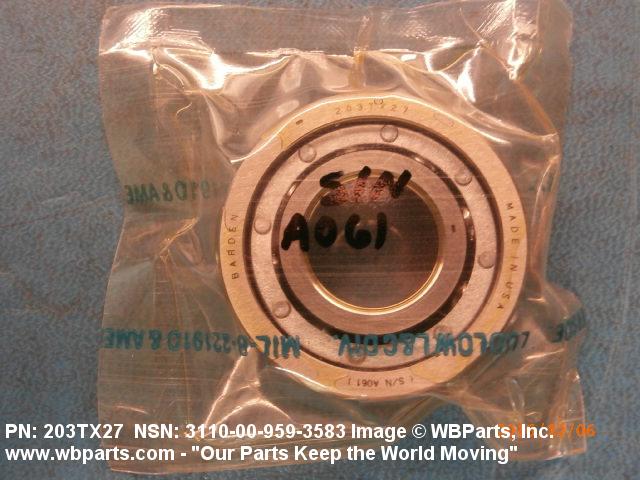

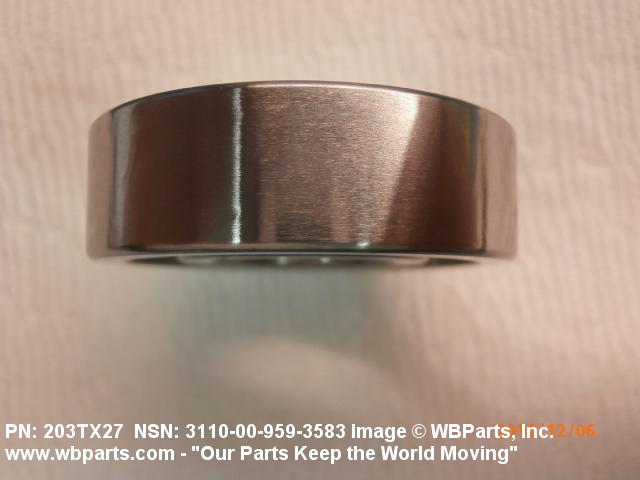

Drawings & Photos | NSN 3110-00-959-3583
Demand History | NSN 3110-00-959-3583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-959-3583 | 2025-12-343 | 1 | US |
| 3110-00-959-3583 | 2025-10-280 | 1 | IT |
| 3110-00-959-3583 | 2025-07-192 | 2 | AU |
| 3110-00-959-3583 | 2025-06-159 | 2 | Australia |
| 3110-00-959-3583 | 2024-07-191 | 2 | United States |
| 3110-00-959-3583 | 2021-04-120 | 2 | Australia |
| 3110-00-959-3583 | 2021-03-81 | 1 | us |
| D202791 | 2021-03-81 | 1 | us |
| 3110-00-959-3583 | 2019-04-117 | 2 | Australia |
| 202791 | 2017-09-249 | 4 | Italy |
| 202791 | 2016-11-316 | 2 | Italy |
| 202791 | 2016-11-314 | 1 | Italy |
| 3110-00-959-3583 | 2016-11-314 | 3 | Italy |
| 3110-00-959-3583 | 2016-11-312 | 3 | Italy |
| 3110-00-959-3583 | 2016-07-193 | 1 | US |
| 3110-00-959-3583 | 2014-09-246 | 1 | AU |
| 3110-00-959-3583 | 2012-03-89 | 10 | US |
| 3110-00-959-3583 | 2011-02-41 | 2 | US |
| 3110-00-959-3583 | 2010-07-193 | 1 | Australia |
| 3110-00-959-3583 | 2009-08-228 | 1 | Australia |
| 3110-00-959-3583 | 2009-06-173 | 10 | Colombia |
| 3110-00-959-3583 | 2008-09-248 | 1 | BG |
| 3110-00-959-3583 | 2008-06-176 | 2 | Indonesia |
| 203TX7K6 | 2008-06-176 | 2 | Indonesia |
| 3110-00-959-3583 | 2008-03-88 | 3 | Indonesia |
| 3110-00-959-3583 | 2007-02-37 | 5 | US |
Cross Reference | NSN 3110-00-959-3583
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20279-1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 20279-1 | 66195 | SOLAR TURBINES INCORPORATED |
| 20279-1 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| 203TX27 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| 203TX7K6 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| D20279-1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| SA2684 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-959-3583
Related Products | NSN 3110-00-959-3583
Technical Data | NSN 3110-00-959-3583
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC PHENOLIC RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE BALL FED-STD-66 FED STD SINGLE MATERIAL RESPONSE INNER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OUTER RING 20279-1,55820 MFR REF SINGLE MATERIAL RESPONSE RETAINER |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.4664 INCHES MINIMUM AND 0.4674 INCHES MAXIMUM |
| BORE DIAMETER | 0.6691 INCHES MINIMUM AND 0.6693 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.5746 INCHES MINIMUM AND 1.5748 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0060 INCHES MINIMUM AXIAL AND 0.0105 INCHES MAXIMUM AXIAL AND 0.0008 INCHES MINIMUM RADIAL AND 0.0014 INCHES MAXIMUM RADIAL |

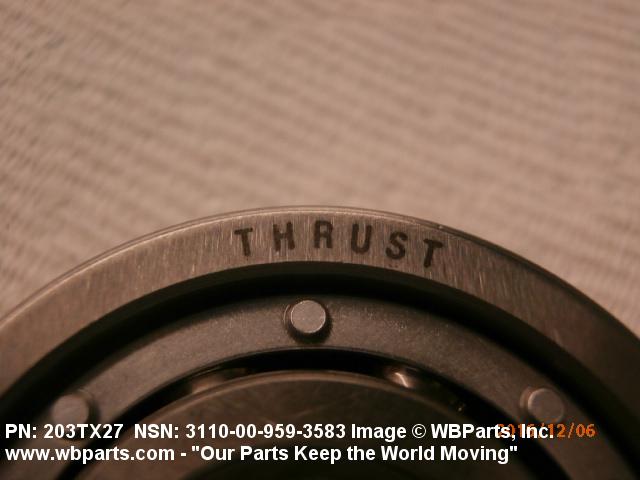

| SPECIAL FEATURES | STABILIZED FOR OPERATION AT 250 DEG F,INNER AND OUTER RING FACES FLUSH WITHIN 0.0002 IN. UNDER 5 1/2 LBS GAGE LOAD,THRUST HERE PERMANENTLY MARKED ON FACE OF OUTER RING |
| MANUFACTURERS CODE | 55820 |
| MFR SOURCE CONTROLLING REFERENCE | 20279-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-959-3583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-959-3583
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
