NSN 3110-00-979-7835 M81793/04-JE1C2N1E1, M8179304JE1C2N1E1, M81793BIOKAA01CC71AS1

Product Details | ANNULAR BALL BEARING

3110-00-979-7835 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: M81793/04-JE1C2N1E1, M8179304JE1C2N1E1, M81793BIOKAA01CC71AS1, M81793-BIOKAA01CC71AS1, AMVS1KDD7, AMVS1KDD7FS160, AMVS1KDD7FS-160, AVS1KDD7AXXXX, S62413, S624-13, SR4PPK25168, SR4PPK25-168, SR4RHH5P25LY196, SR4RHHLG31, SR4SS4G2, SSRS77R4DE, MILB81793, MIL-B-81793, R4554G2, 343B17015, 4103078, 410307-8, 4121741, 412174-1, 501229, 5012-29, B19, B1-9, E19, E1-9, 05012-0029, 10539409-1, 18040, 25419461, 2541946-1, 29314B3, 293-14B3, 3110-00-979-7835, 00-979-7835, 3110009797835, 050120029, 105394091, 009797835

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1962	00-979-7835	00014 ( BEARING, BALL, ANNULAR )

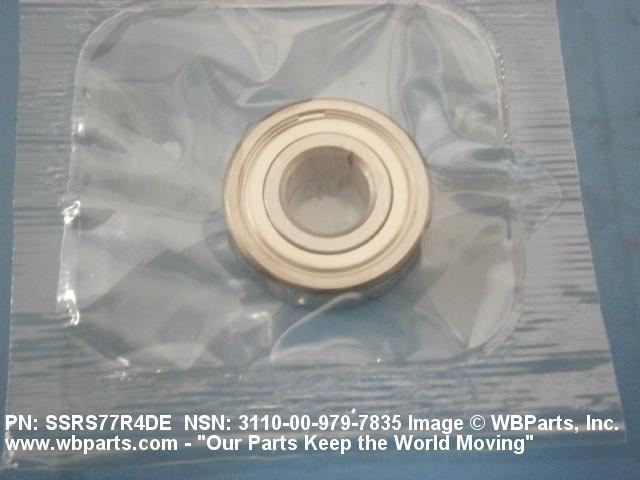

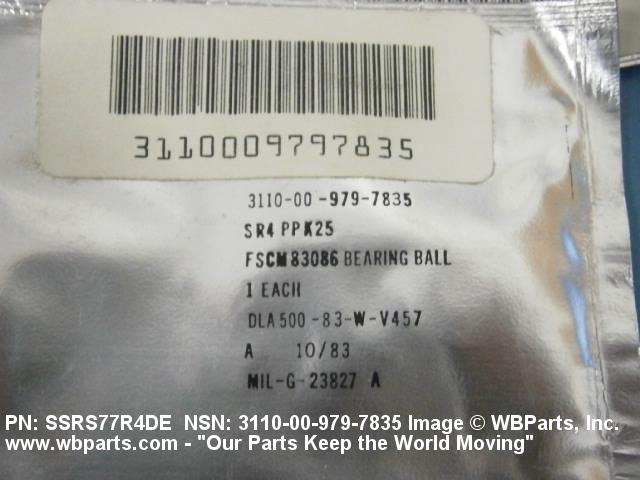

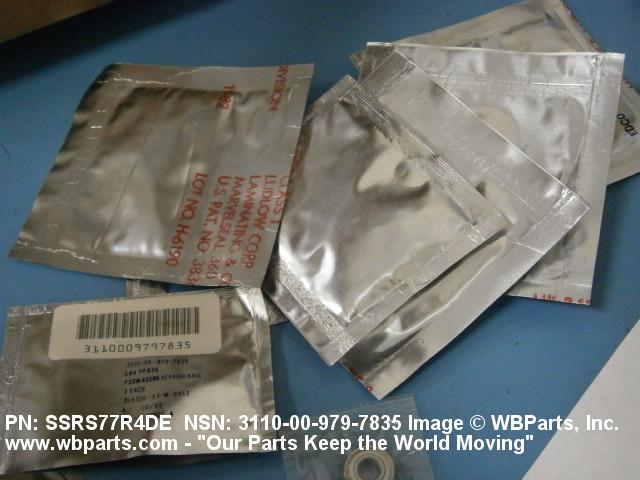

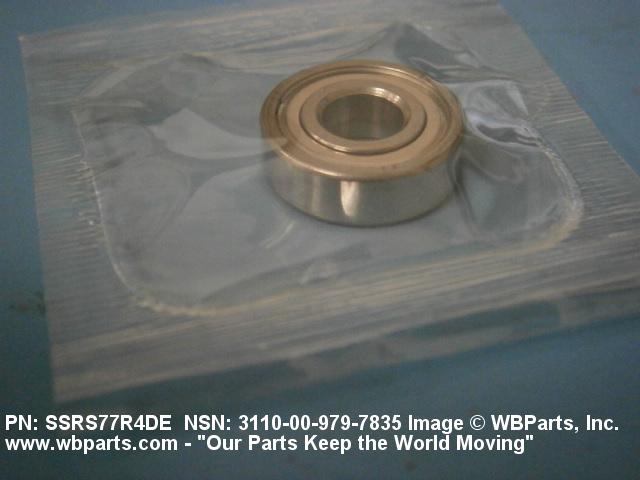

Drawings & Photos | NSN 3110-00-979-7835

Part Number	Request Date	QTY	Origin
3110-00-979-7835	2025-11-317	62	DIBBS
3110-00-979-7835	2025-08-231	24	DIBBS
3110-00-979-7835	2025-02-42	135	DIBBS
3110-00-979-7835	2024-07-186	25	DIBBS
3110-00-979-7835	2023-09-270	25	DIBBS
3110-00-979-7835	2022-04-95	166	DIBBS
3110-00-979-7835	2021-10-278	80	DIBBS
3110-00-979-7835	2021-09-270	80	DIBBS
3110-00-979-7835	2016-05-129	155	DIBBS
3110-00-979-7835	2015-12-362	221	DIBBS
3110-00-979-7835	2012-04-96	157	DIBBS
3110-00-979-7835	2012-03-79	125	DIBBS
3110-00-979-7835	2011-12-356	7	France
3110-00-979-7835	2011-12-355	7	France
3110-00-979-7835	2011-11-306	115	DIBBS
3110-00-979-7835	2011-09-255	161	DIBBS
MILB81793	2011-04-103	150	US
3110-00-979-7835	2007-10-304	807	DIBBS

Cross Reference | NSN 3110-00-979-7835

Part Number	Cage Code	Manufacturer
05012-0029	26344	NEW HAVEN MFG CORP
10539409-1	19200	US ARMY ARDEC RDECOM
18040	02033	GYRUS ACMI L.P. DBA CIRCON-ACMI DIV
2541946-1	53711	NAVAL SEA SYSTEMS COMMAND
293-14B3	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
343B17015	1VPW8	GENERAL DYNAMICS C4 SYSTEMS, INC.
343B17015	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
410307-8	96214	RAYTHEON COMPANY DBA RAYTHEON
412174-1	96214	RAYTHEON COMPANY DBA RAYTHEON
5012-29	26344	NEW HAVEN MFG CORP
AMVS1KDD7	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
AMVS1KDD7FS-160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
AVS1KDD7AXXXX	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B1-9	29440	W. M. BERG INC
E1-9	00141	ROLLER BEARING COMPANY OF AMERICA, INC.
M81793-BIOKAA01CC71AS1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81793/04-JE1C2N1E1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81793	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
R4554G2	70854	BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS
S624-13	12511	SIMMONDS PRECISION PRODUCTS, INC. DBA SENSORS AND INTEGRATED SYSTEMS
SR4PPK25-168	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
SR4RHH5P25LY196	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION
SR4RHHLG31	38508	DESCO CORP MARSH BELLOFRAM DIV
SR4SS4G2	70854	BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS
SR4SS4G2	C3322	BARDEN CORPORATION GMBH
SSRS77R4DE	24617	GENERAL MOTORS CORP
SSRS77R4DE	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-979-7835

Compare

Related Products | NSN 3110-00-979-7835

3110-00-979-8710, 3110-00-979-8960, 3110-00-980-0506, 3110-00-980-0528, 3110-00-980-1213

Technical Data | NSN 3110-00-979-7835

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	0.1960 INCHES NOMINAL
BORE DIAMETER	0.2500 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	0.6250 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.7
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
INTERNAL CLEARANCE	0.0002 INCHES MINIMUM RADIAL AND 0.0005 INCHES MAXIMUM RADIAL
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB171TYPE115
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M81793/04-JA1C2N1E1

Restrictions/Controls & Freight Information | NSN 3110-00-979-7835

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-979-7835

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
