NSN 3110-00-987-3725 M17931G036, M17931-G036, A-213-217 ITEM 32
Product Details | ANNULAR BALL BEARING
3110-00-987-3725 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M17931G036, M17931-G036, A-213-217 ITEM 32, A213217ITEM32, A-215-301 ITEM NO 31 , A215301ITEMNO31, A-256-256 ITEM NO.22 , A256256ITEMNO22, A-326-15 ITEM 24, A-326-15 ITEM 24NT3, A32615ITEM24, A32615ITEM24NT3, S385P415G01, MILB17931, ESB 050-06, ESB05006, 33087077, 3308-7077, 374P536G01, 385P415G01, 41682127FJ, 416821-27-FJ, 6308E100, 6308W1B, 801626-518 PC NO. 2A, 801626518PCNO2A, 801627-630 PC 2, 801627630PC2, 801628505PC1A, 801628-505-PC-1A, 999999K148, 308, 308NT, 308NT3, 308S, 308SNT3, 30BSNT3, 3110-00-987-3725, 00-987-3725, 3110009873725, 009873725
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-987-3725 | 00014 ( BEARING, BALL, ANNULAR ) |

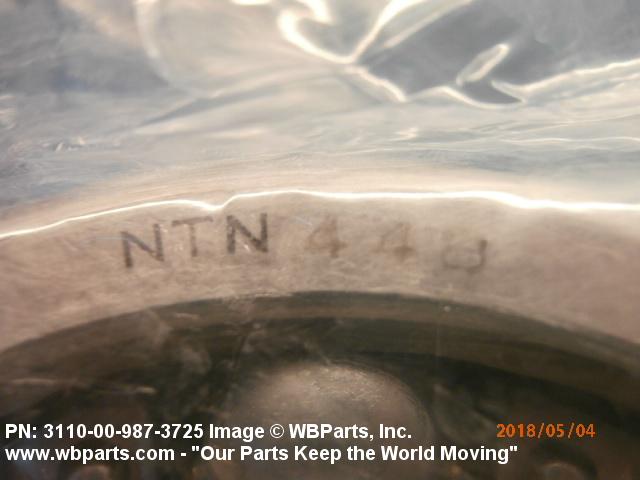

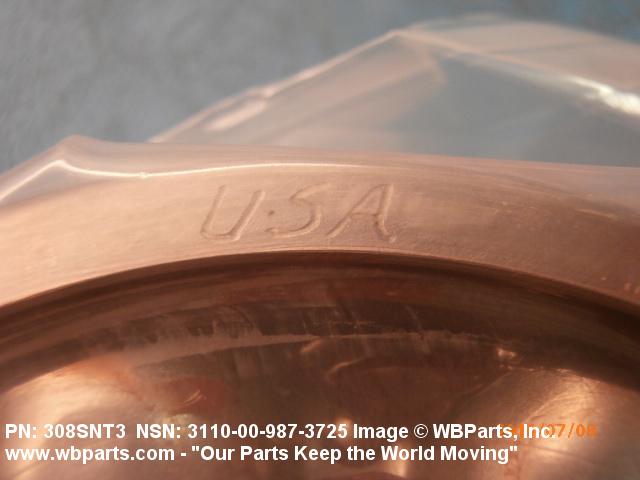

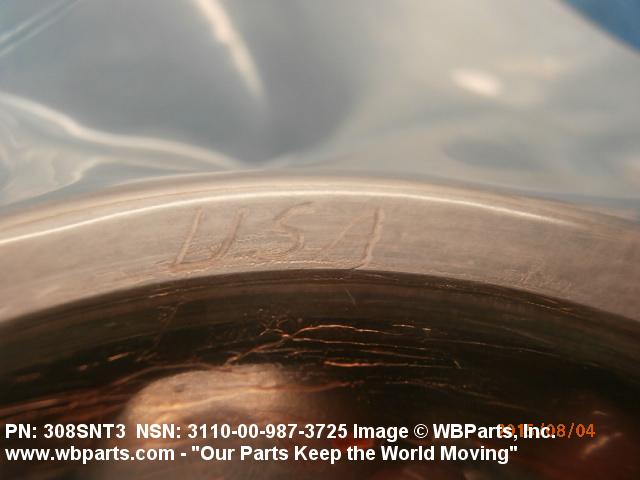

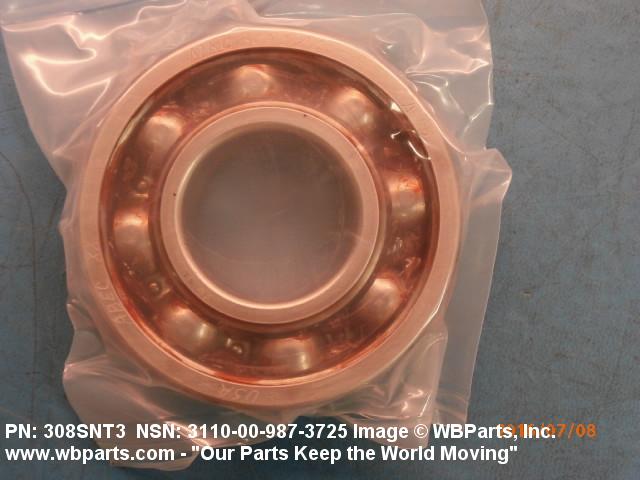

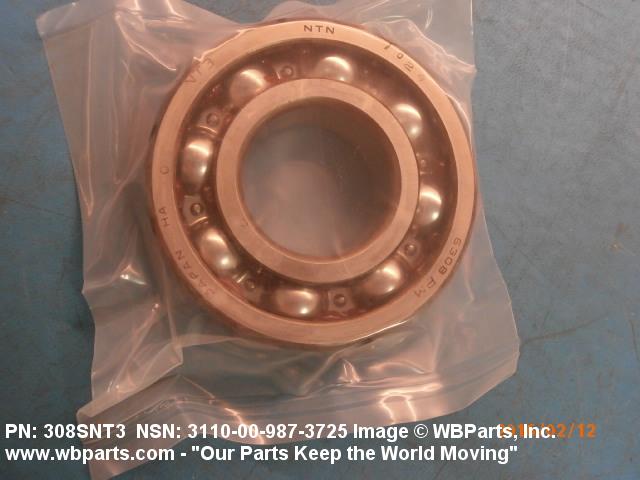

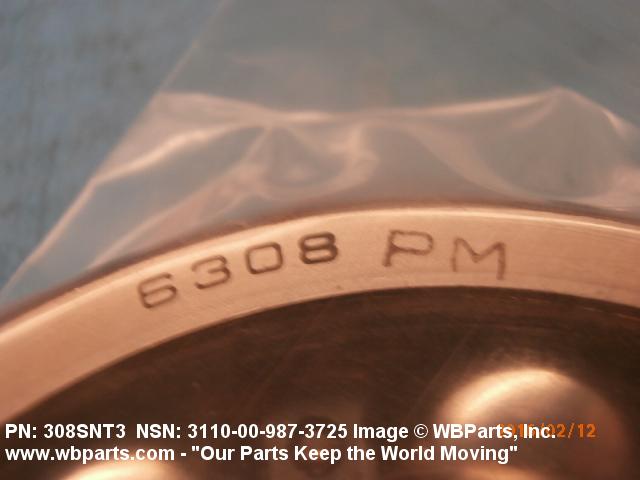

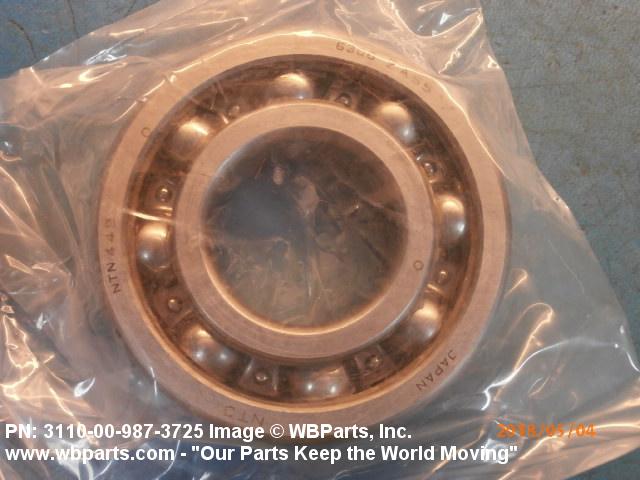

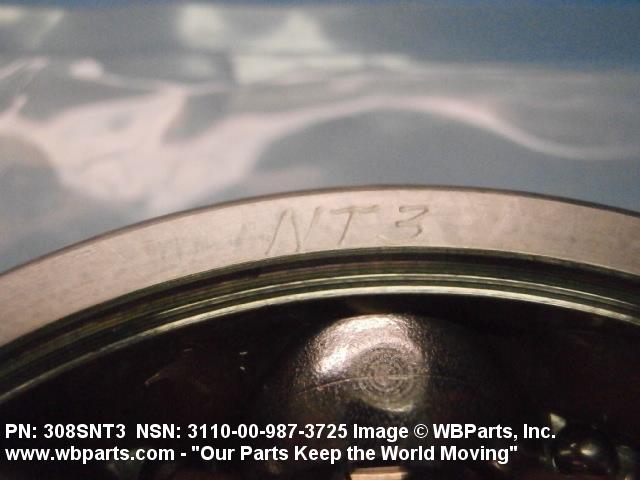

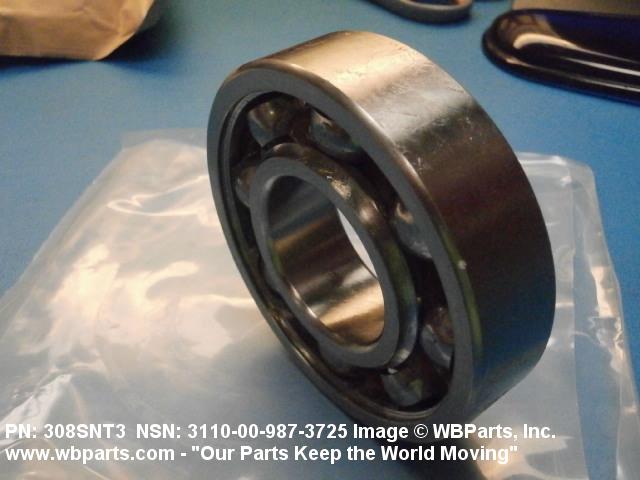

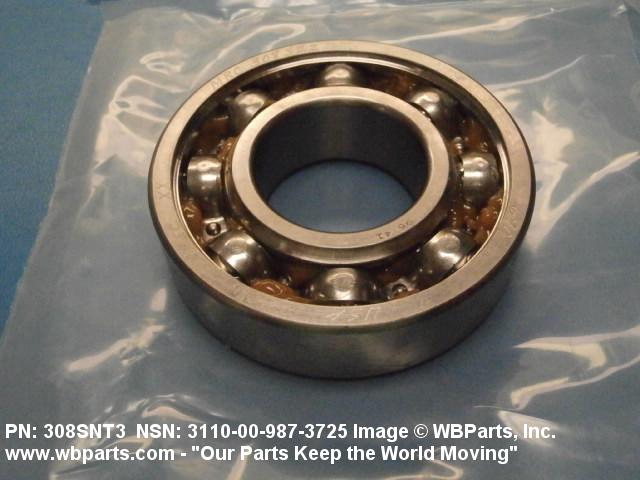

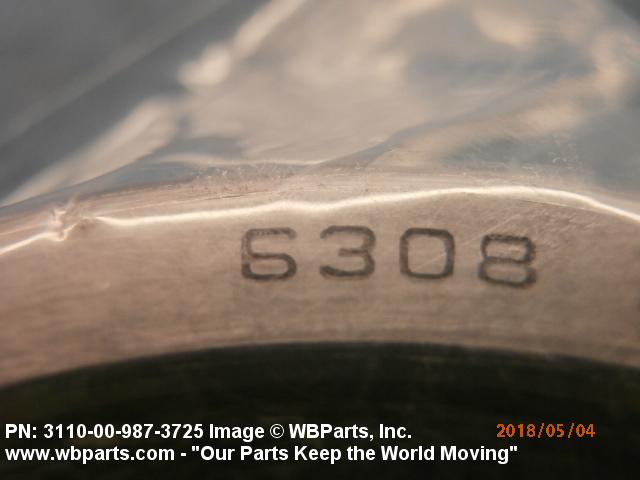

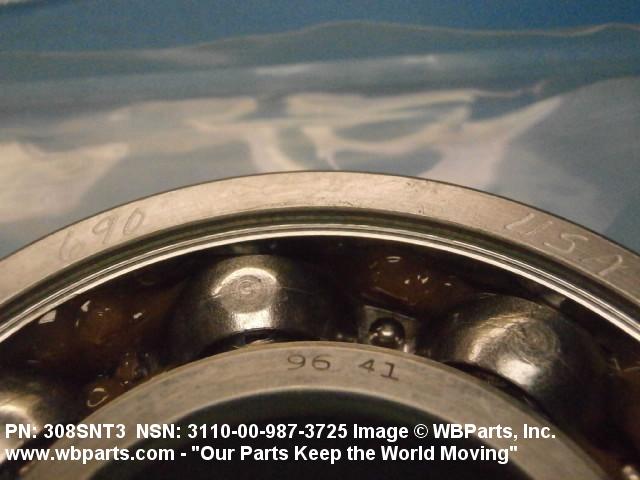

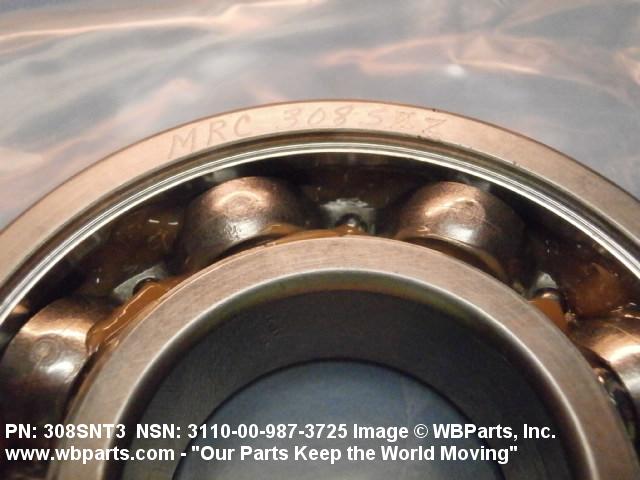

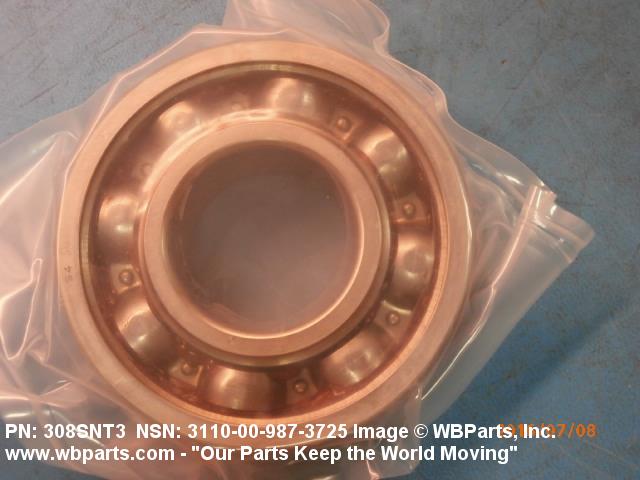

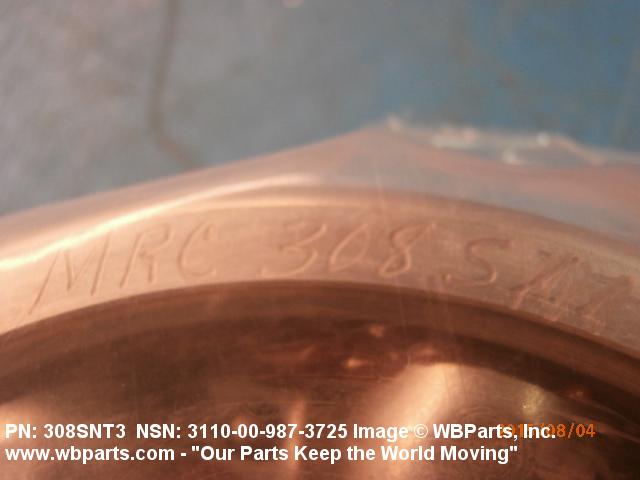

Drawings & Photos | NSN 3110-00-987-3725
Demand History | NSN 3110-00-987-3725
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-987-3725 | 2021-12-347 | 4 | PK |
| 3110-00-987-3725 | 2021-08-222 | 1 | United States |
| 3110-00-987-3725 | 2020-04-112 | 0 | NECO |
| 3110-00-987-3725 | 2020-03-83 | 18 | US |
| 3110-00-987-3725 | 2020-03-80 | 18 | US |
| 3110-00-987-3725 | 2020-03-78 | 0 | NECO |
| 3110-00-987-3725 | 2019-03-80 | 2 | United States |
| 3110-00-987-3725 | 2018-10-277 | 133 | NECO |
| 3110-00-987-3725 | 2018-08-228 | 73 | NECO |
| 3110-00-987-3725 | 2018-04-113 | 1 | United States |
| 3110-00-987-3725 | 2017-07-193 | 16 | NECO |
| 3110-00-987-3725 | 2016-06-179 | 1 | United States |
| 3110-00-987-3725 | 2016-06-175 | 46 | NECO |
| 3110-00-987-3725 | 2016-02-40 | 1 | United States |
| 3110-00-987-3725 | 2016-02-36 | 2 | United States |
| 3110-00-987-3725 | 2016-02-36 | 2 | United States |
| 3110-00-987-3725 | 2015-07-203 | 2 | United States |
| 3110-00-987-3725 | 2015-06-174 | 21 | NECO |
| 3110-00-987-3725 | 2015-05-126 | 1 | United States |
| 3110-00-987-3725 | 2015-01-07 | 38 | NECO |
| 3110-00-987-3725 | 2014-11-316 | 1 | United States |
| 3110-00-987-3725 | 2014-11-310 | 1 | United States |
| 3110-00-987-3725 | 2013-10-302 | 2 | United States |
| 308NT3 | 2012-12-355 | 4 | US |
| 3110-00-987-3725 | 2012-12-340 | 39 | NECO |
| 308 | 2011-11-332 | 10 | |
| 3110-00-987-3725 | 2011-04-109 | 107 | NECO |
| 3110-00-987-3725 | 2011-02-55 | 107 | NECO |
Cross Reference | NSN 3110-00-987-3725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308 | 51802 | HANSOME ENERGY SYSTEMS INC |
| 308NT | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 308NT3 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 308S | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 308SNT3 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 30BSNT3 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 3308-7077 | 24617 | GENERAL MOTORS CORP |
| 3308-7077 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 374P536G01 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 385P415G01 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 416821-27-FJ | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| 6308E100 | 53035 | NSK CORP BEARING DIV |
| 6308W1B | 52676 | SKF USA INC. |
| 801626-518 PC NO. 2A | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| 801627-630 PC 2 | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| 801628-505-PC-1A | 50380 | RELIANCE ELECTRIC |
| 999999K148 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-213-217 ITEM 32 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-215-301 ITEM NO 31 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-256-256 ITEM NO.22 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-326-15 ITEM 24 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| A-326-15 ITEM 24NT3 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| ESB 050-06 | 51802 | HANSOME ENERGY SYSTEMS INC |
| M17931-G036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILB17931 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S385P415G01 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-987-3725
Related Products | NSN 3110-00-987-3725
Technical Data | NSN 3110-00-987-3725
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

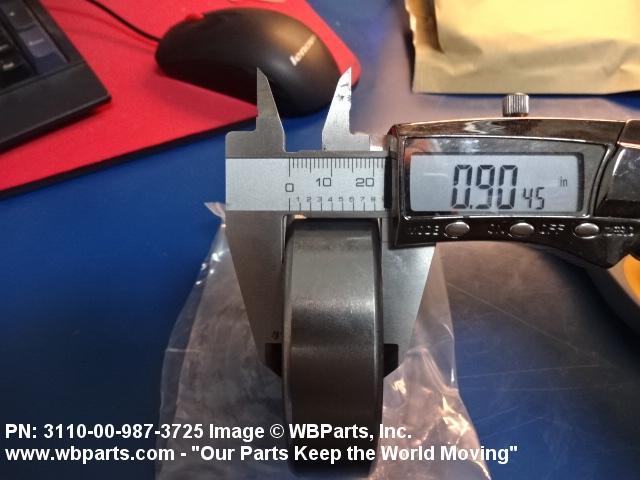

| OVERALL WIDTH | 0.9035 INCHES MINIMUM AND 0.9055 INCHES MAXIMUM |

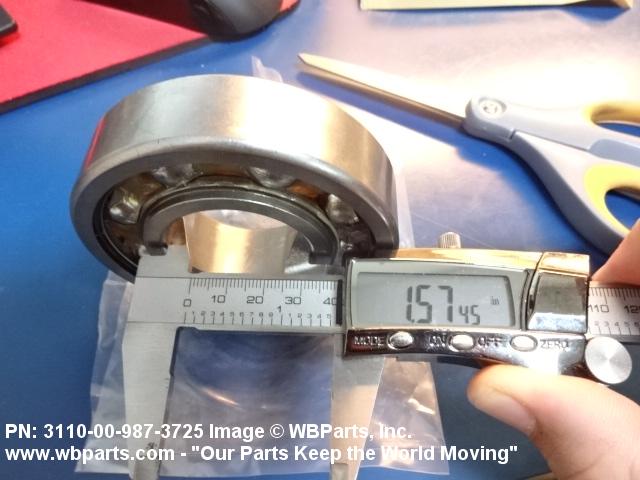

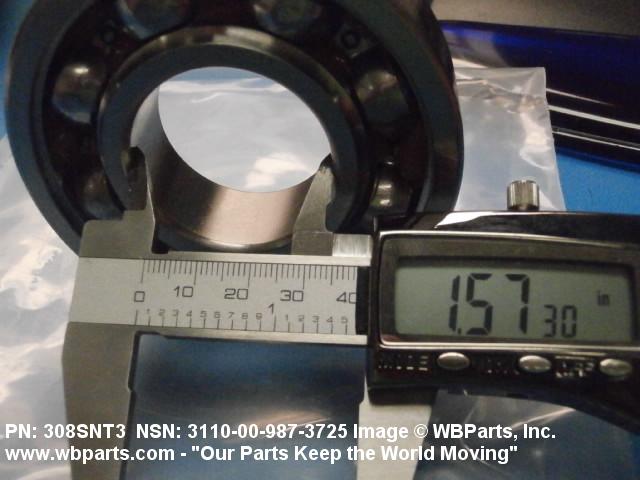

| BORE DIAMETER | 1.5746 INCHES MINIMUM AND 1.5748 INCHES MAXIMUM |

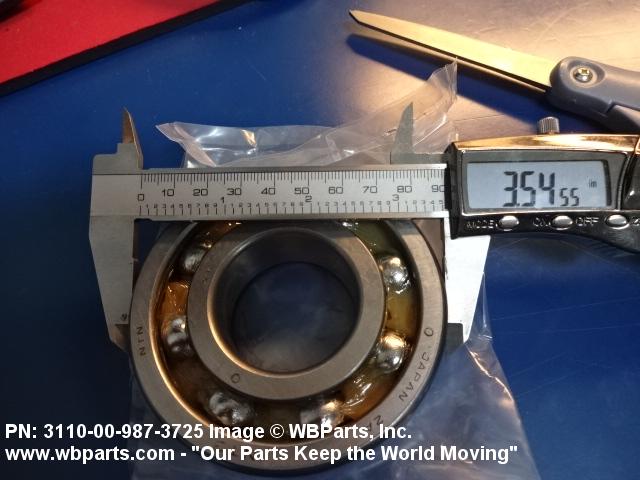

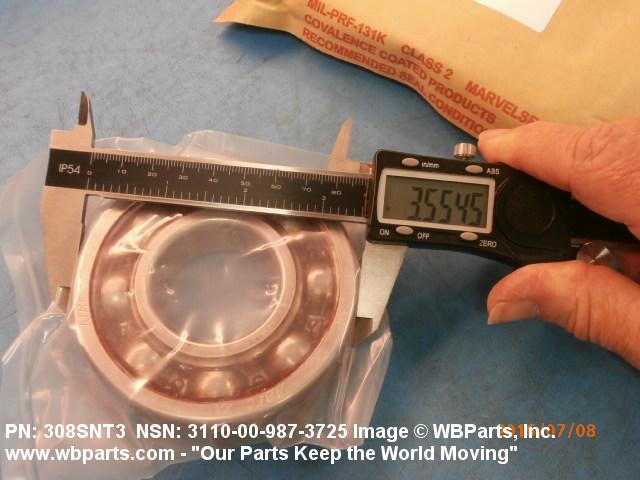

| OVERALL OUTSIDE DIAMETER | 3.5431 INCHES MINIMUM AND 3.5433 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-18709 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | TIGHT |
| INTERNAL CLEARANCE | 0.0004 INCHES MINIMUM RADIAL AND 0.0008 INCHES MAXIMUM RADIAL |
| NONDEFINITIVE SPEC/STD DATA | 111 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB17931 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M17931-G036 |
Restrictions/Controls & Freight Information | NSN 3110-00-987-3725
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | X | more than 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-987-3725
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | NT | Annular Ball Bearing for quiet operation application to submarine usage, (Noise Test Bearings) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | X | more than 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
