NSN 3110-00-987-3734 MM312KA4045 , A-365-313 REV 2 ITEM NO. 33 , A365313REV2ITEMNO33
Product Details | ANNULAR BALL BEARING
3110-00-987-3734 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: MM312KA4045 , A-365-313 REV 2 ITEM NO. 33 , A365313REV2ITEMNO33, A40519029, A-405-190-29, A-445-154 ITEM 35, A-445-154 ITEM 35NT, A445154ITEM35, A445154ITEM35NT, D-449-116 PC 48, D449116PC48, D-500-131 ITEM 54, D500131ITEM54, D505155ITEM46, D-505-155ITEM46, ESB05010, ESB-050-10, MILB17931, MIL-B-17931, MILB17931NT, MIL-B-17931NT, 312K, 312SNT3, 33127077, 3312-7077, 350519ITEM96, 3505-19ITEM96, 350521ITEM38, 3505-21ITEM38, 374P357G01, 385P416G01, 41682169FN, 416821-69-FN, 41682169FNNT, 416821-69-FNNT, 6309PMC3, 6312E100, 6312W1B, 6312ZW1B, 79999079, 79999079NT, 904J949PC19, 999999K157, 3110-00-987-3734, 00-987-3734, 3110009873734, 009873734
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-987-3734 | 00014 ( BEARING, BALL, ANNULAR ) |

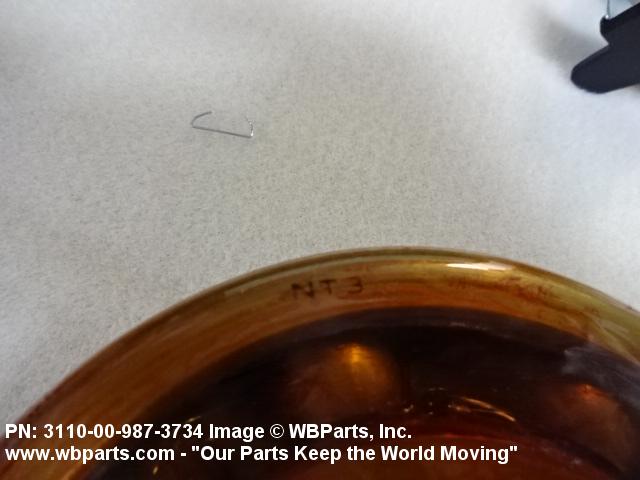

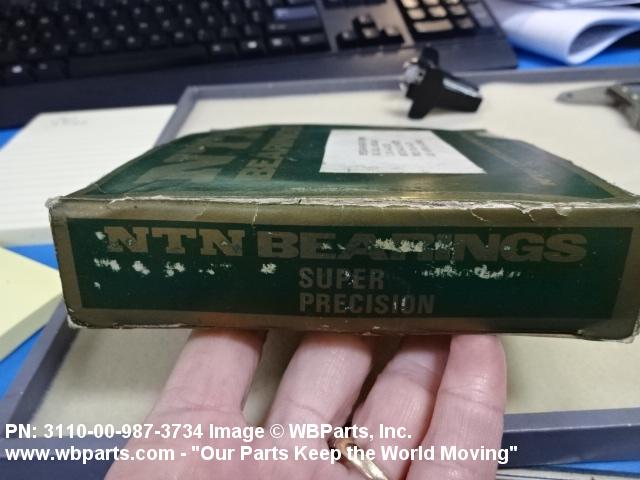

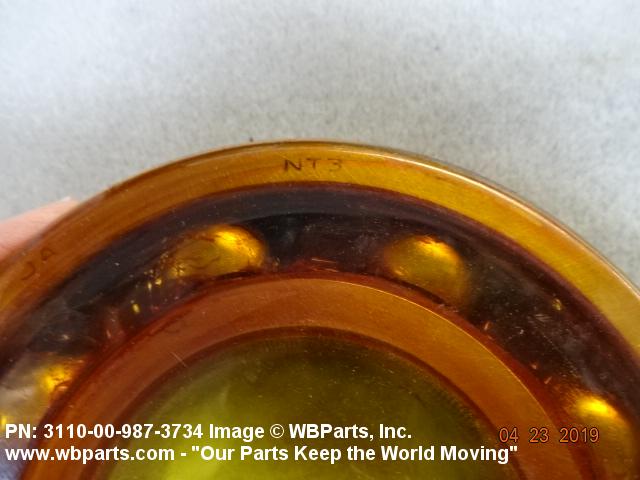

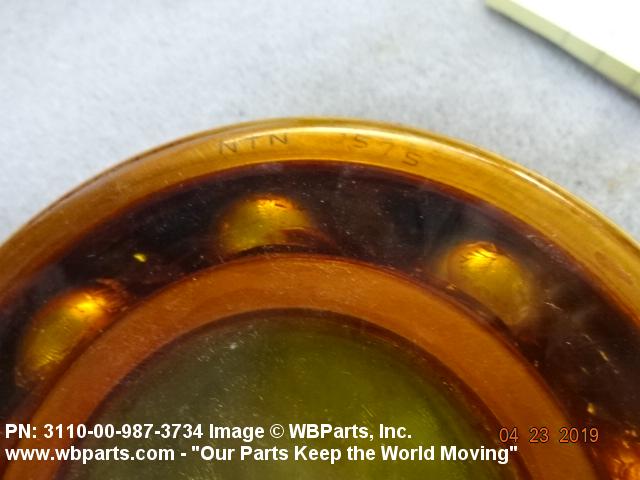

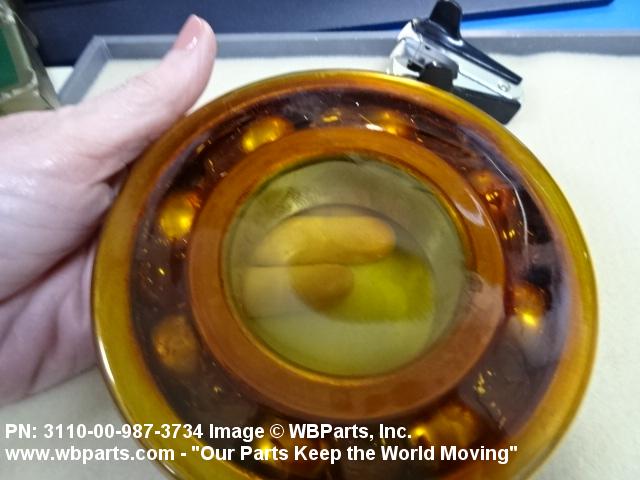

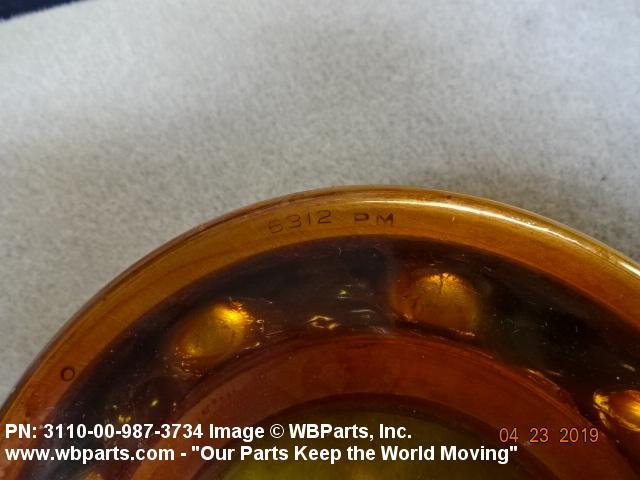

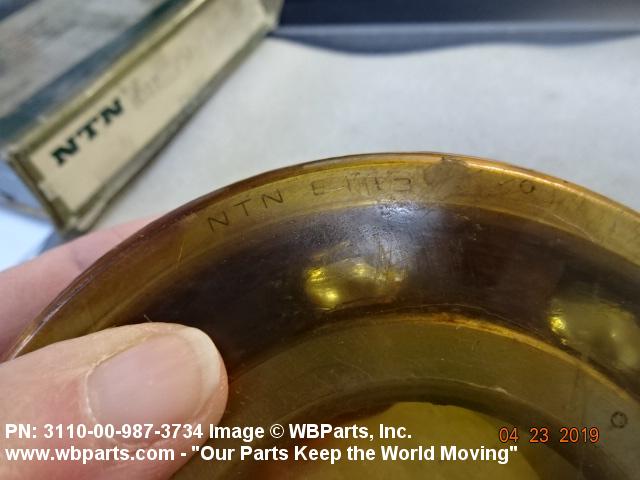

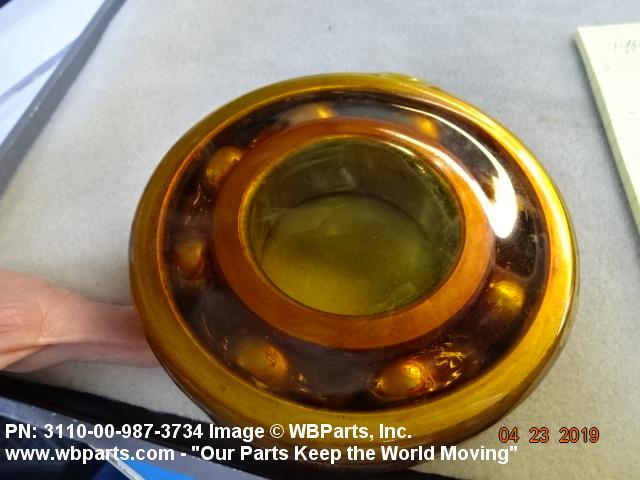

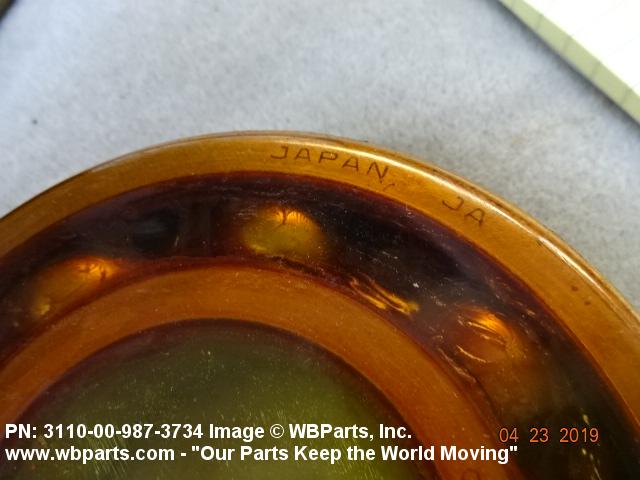

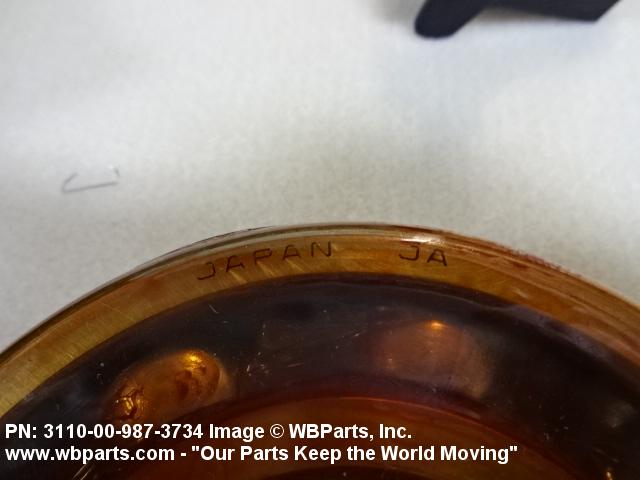

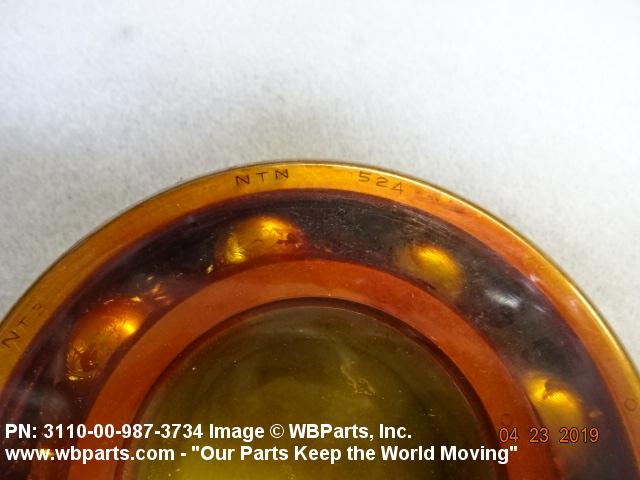

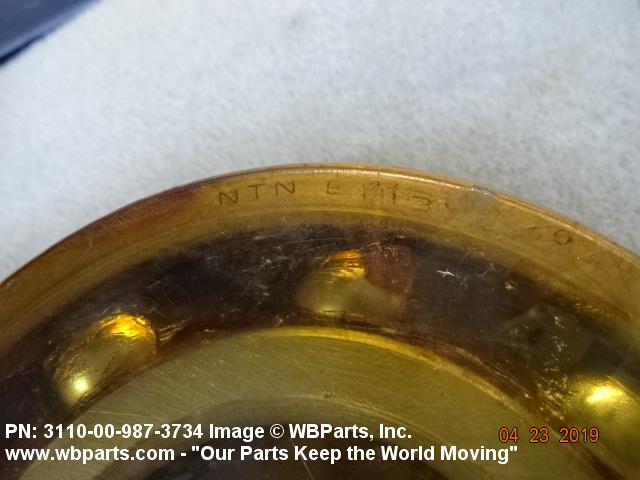

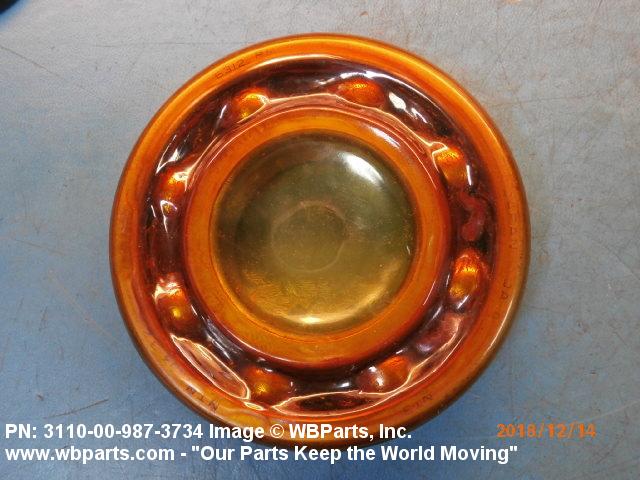

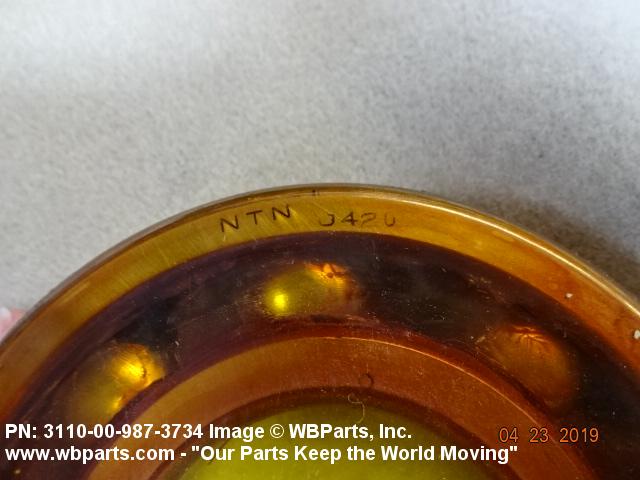

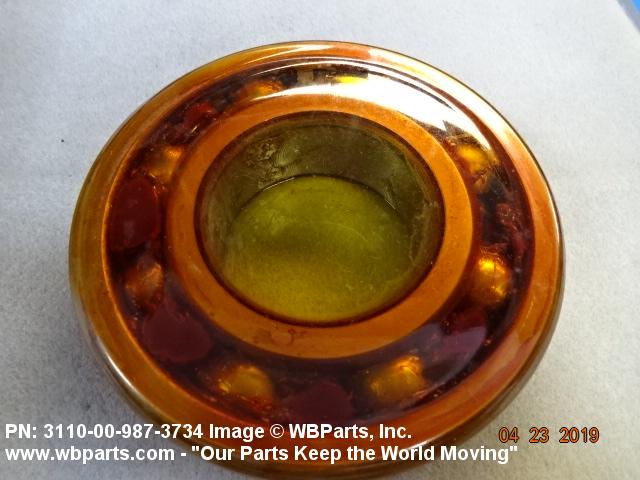

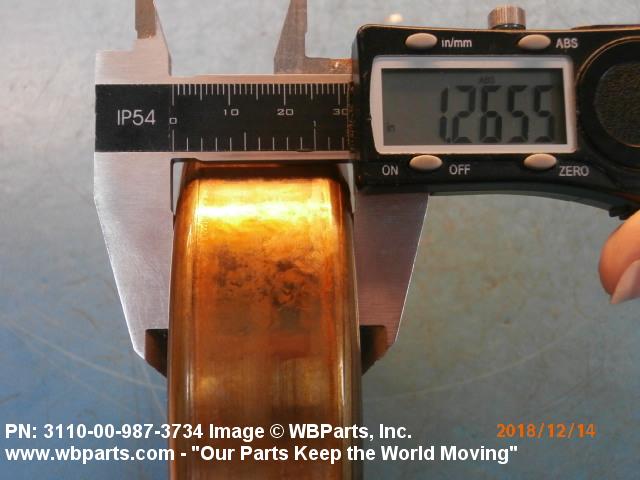

Drawings & Photos | NSN 3110-00-987-3734
Demand History | NSN 3110-00-987-3734
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 312SNT3 | 2025-05-132 | 2 | United States |
| 3110-00-987-3734 | 2025-02-56 | 2 | United States |
| 3110-00-987-3734 | 2024-05-138 | 1 | US |
| 3110-00-987-3734 | 2024-01-02 | 2 | United States |
| 3110-00-987-3734 | 2023-09-268 | 1 | US |
| 3110-00-987-3734 | 2023-09-254 | 2 | United States |
| 3110-00-987-3734 | 2022-08-237 | 0 | NECO |
| 3110-00-987-3734 | 2022-04-112 | 2 | United States |
| 3110-00-987-3734 | 2021-09-263 | 1 | United States |
| 3110-00-987-3734 | 2021-03-81 | 1 | United States |
| 3110-00-987-3734 | 2021-02-48 | 1 | United States |
| 3110-00-987-3734 | 2020-06-177 | 1 | United States |
| 3110-00-987-3734 | 2020-06-169 | 1 | US |
| 3110-00-987-3734 | 2020-03-91 | 0 | NECO |
| 3110-00-987-3734 | 2020-02-37 | 4 | United States |
| 3110-00-987-3734 | 2019-12-351 | 106 | NECO |
| 3110-00-987-3734 | 2019-10-298 | 12 | GU |
| 3110-00-987-3734 | 2019-05-130 | 1 | United States |
| 3110-00-987-3734 | 2019-04-116 | 3 | United States |
| 3110-00-987-3734 | 2019-04-95 | 251 | NECO |
| 3110-00-987-3734 | 2019-04-92 | 1 | United States |
| 3110-00-987-3734 | 2019-01-04 | 1 | United States |
| 3110-00-987-3734 | 2018-12-340 | 1 | United States |
| 3110-00-987-3734 | 2018-04-101 | 1 | United States |
| 3110-00-987-3734 | 2018-01-03 | 113 | NECO |
| 3110-00-987-3734 | 2017-07-188 | 62 | NECO |
| 3110-00-987-3734 | 2017-02-34 | 75 | NECO |
| 3110-00-987-3734 | 2015-09-273 | 113 | NECO |
| 3110-00-987-3734 | 2015-04-97 | 1 | Taiwan |
| 3110-00-987-3734 | 2014-11-326 | 39 | NECO |
| 3110-00-987-3734 | 2011-11-319 | 76 | NECO |
| 3110-00-987-3734 | 2011-11-307 | 76 | NECO |
| 3110-00-987-3734 | 2011-04-109 | 50 | NECO |
| 3110-00-987-3734 | 2011-03-76 | 50 | NECO |
| 3110-00-987-3734 | 2009-07-203 | 41 | United States |
Cross Reference | NSN 3110-00-987-3734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 312K | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 312SNT3 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 3312-7077 | 24617 | GENERAL MOTORS CORP |
| 3312-7077 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 3505-19ITEM96 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 3505-21ITEM38 | 95402 | ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC |
| 374P357G01 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 385P416G01 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 416821-69-FN | 50380 | RELIANCE ELECTRIC |
| 416821-69-FNNT | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 6309PMC3 | U0480 | MAWDSLEYS LTD |
| 6312E100 | 53035 | NSK CORP BEARING DIV |
| 6312W1B | 52676 | SKF USA INC. |
| 6312ZW1B | 52676 | SKF USA INC. |
| 79999079 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 79999079 | 95402 | ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC |
| 79999079NT | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 904J949PC19 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 904J949PC19 | 88725 | WESTINGHOUSE ELECTRIC CORP GENERAL CONTROL DIV |
| 999999K157 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-365-313 REV 2 ITEM NO. 33 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-405-190-29 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-445-154 ITEM 35 | 51802 | HANSOME ENERGY SYSTEMS INC |
| A-445-154 ITEM 35NT | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| D-449-116 PC 48 | 51802 | HANSOME ENERGY SYSTEMS INC |
| D-500-131 ITEM 54 | 51802 | HANSOME ENERGY SYSTEMS INC |
| D-505-155ITEM46 | 51802 | HANSOME ENERGY SYSTEMS INC |
| ESB-050-10 | 51802 | HANSOME ENERGY SYSTEMS INC |
| MIL-B-17931 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-17931NT | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-987-3734
Related Products | NSN 3110-00-987-3734
Technical Data | NSN 3110-00-987-3734
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

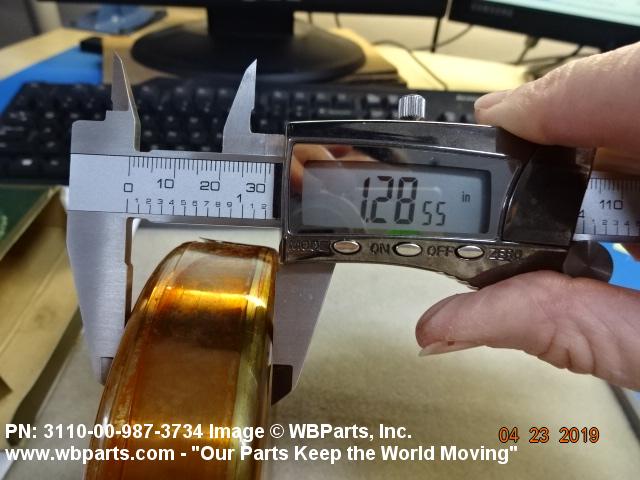

| OVERALL WIDTH | 1.2185 INCHES MINIMUM AND 1.2205 INCHES MAXIMUM |

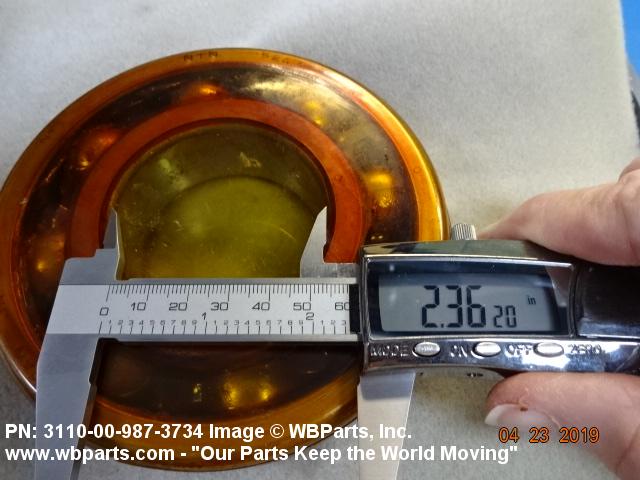

| BORE DIAMETER | 2.3620 INCHES MINIMUM AND 2.3622 INCHES MAXIMUM |

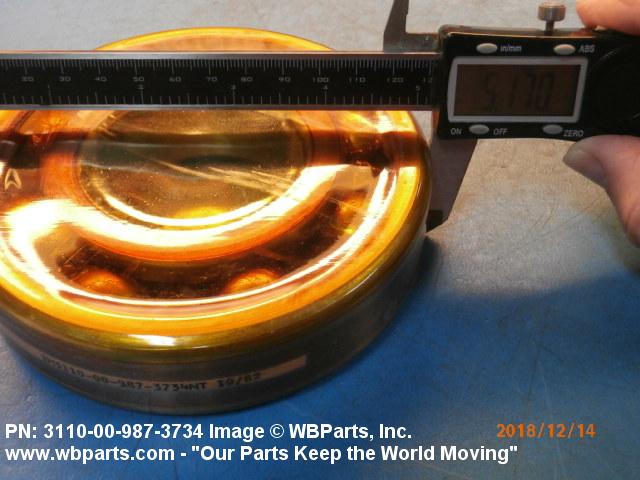

| OVERALL OUTSIDE DIAMETER | 5.1179 INCHES MINIMUM AND 5.1181 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-18709 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | TIGHT |
| INTERNAL CLEARANCE | 0.0007 INCHES MINIMUM RADIAL AND 0.0011 INCHES MAXIMUM RADIAL |
| NONDEFINITIVE SPEC/STD DATA | 111 TYPE AND 1 CLASS |
| DEPARTURE FROM CITED DOCUMENT | QUIET OPERATION TESTED FOR SUBMARINE USE |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-17931 |
Restrictions/Controls & Freight Information | NSN 3110-00-987-3734
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | X | more than 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-987-3734
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | NT | Annular Ball Bearing for quiet operation application to submarine usage, (Noise Test Bearings) |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | X | more than 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
