NSN 3110-01-019-4292 J33C32, P9103NPPFS50160, P9103PPF50160
Product Details | ANNULAR BALL BEARING
3110-01-019-4292 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: J33C32, P9103NPPFS50160, P9103PPF50160, 3110-01-019-4292, 01-019-4292, 3110010194292, 010194292
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 APR 1976 | 01-019-4292 | 00014 ( BEARING, BALL, ANNULAR ) |

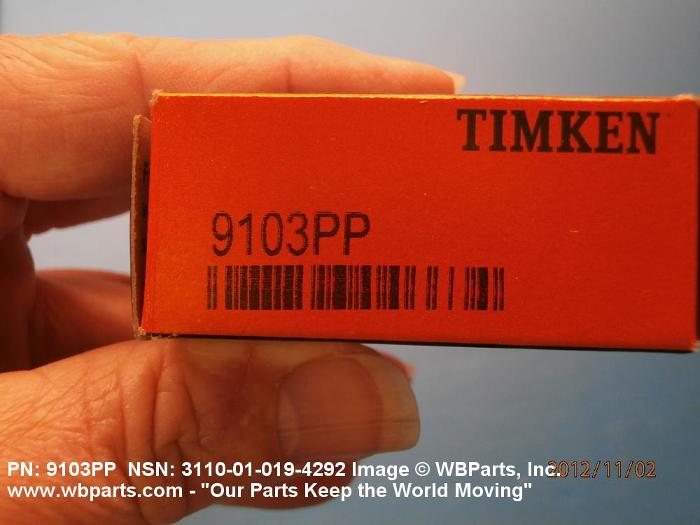

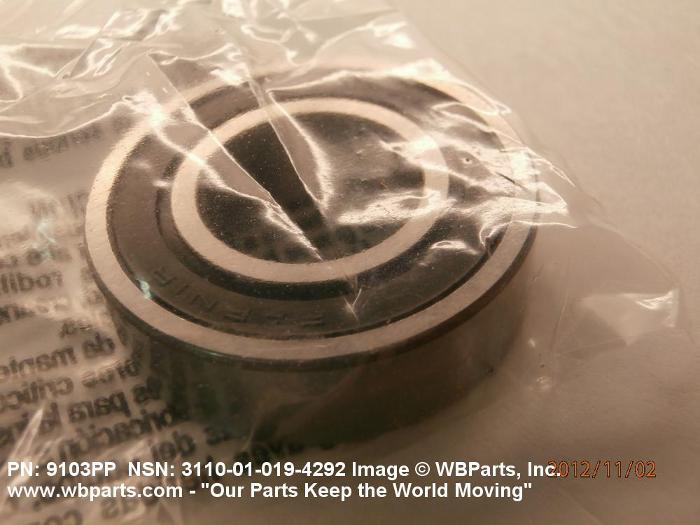

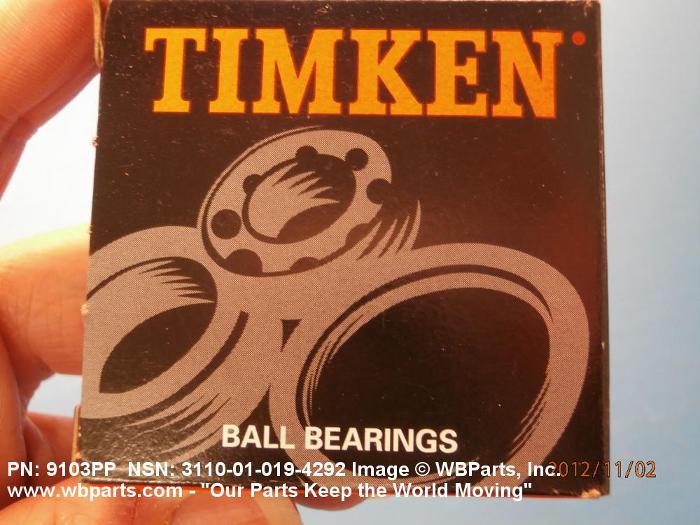

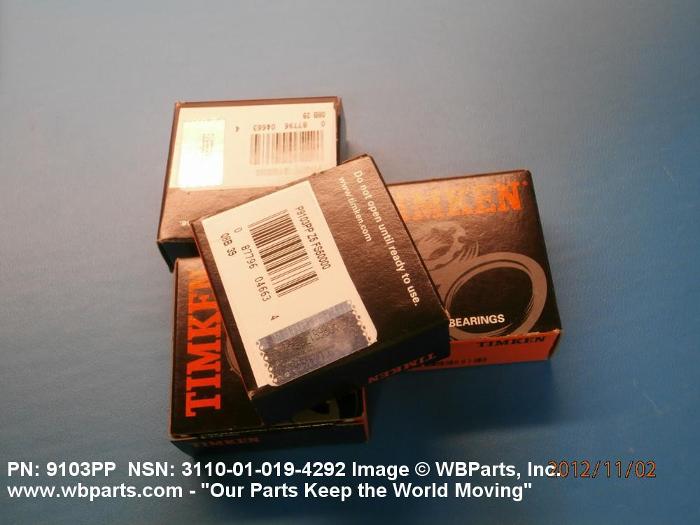

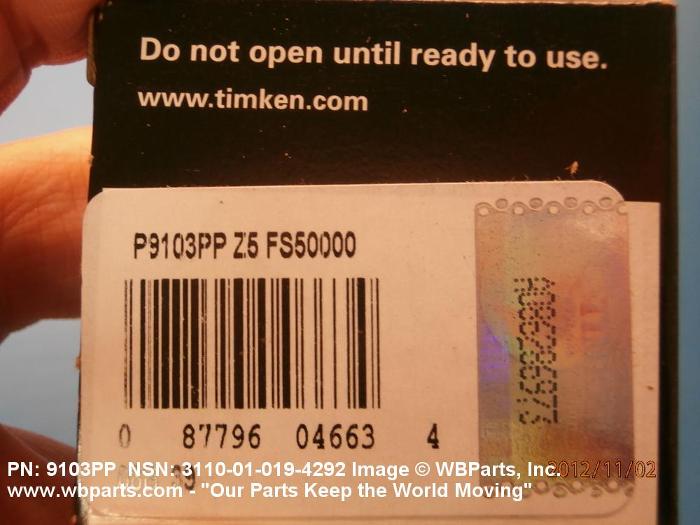

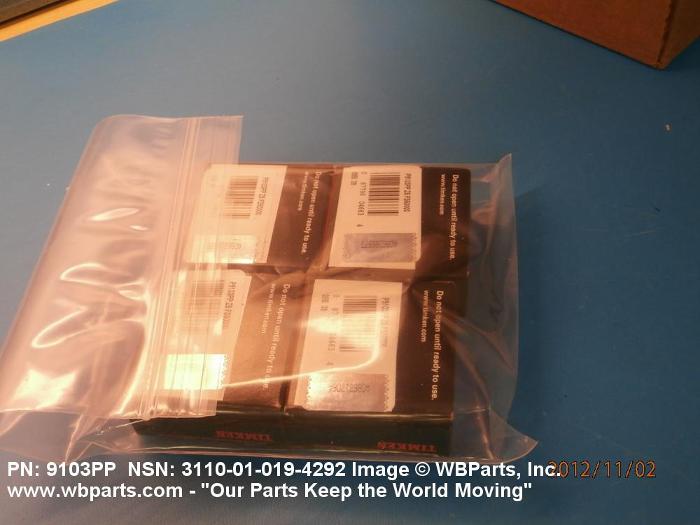

Drawings & Photos | NSN 3110-01-019-4292
Demand History | NSN 3110-01-019-4292
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J33C32 | 2025-07-182 | 16 | United States |
| 3110-01-019-4292 | 2025-04-107 | 16 | United States |
| J33C32 | 2025-04-107 | 1 | United States |
| J33C32 | 2025-04-97 | 23 | DIBBS |
| P9103NPPFS50160 | 2025-04-97 | 23 | DIBBS |
| J33C32 | 2023-10-291 | 55 | DIBBS |
| P9103NPPFS50160 | 2023-10-291 | 55 | DIBBS |
| 3110-01-019-4292 | 2023-08-237 | 3 | Philippines |
| J33C32 | 2023-06-157 | 19 | DIBBS |
| P9103NPPFS50160 | 2023-06-157 | 19 | DIBBS |
| J33C32 | 2023-02-45 | 17 | DIBBS |
| P9103NPPFS50160 | 2023-02-45 | 17 | DIBBS |
| P9103PPF50160 | 2023-02-45 | 17 | DIBBS |
| J33C32 | 2022-11-306 | 66 | DIBBS |
| P9103NPPFS50160 | 2022-11-306 | 66 | DIBBS |
| P9103PPF50160 | 2022-11-306 | 66 | DIBBS |
| J33C32 | 2022-01-04 | 66 | DIBBS |
| P9103NPPFS50160 | 2022-01-04 | 66 | DIBBS |
| P9103PPF50160 | 2022-01-04 | 66 | DIBBS |
| 3110-01-019-4292 | 2021-08-228 | 37 | US |
| J33C32 | 2021-08-221 | 18 | DIBBS |
| P9103NPPFS50160 | 2021-08-221 | 18 | DIBBS |
| P9103PPF50160 | 2021-08-221 | 18 | DIBBS |
| J33C32 | 2021-08-220 | 38 | DIBBS |
| P9103NPPFS50160 | 2021-08-220 | 38 | DIBBS |
| P9103PPF50160 | 2021-08-220 | 38 | DIBBS |
| 3110-01-019-4292 | 2021-05-140 | 1 | United States |
| J33C32 | 2021-05-123 | 1 | US |
| J33C32 | 2021-02-42 | 2 | Philippines |
| J33C32 | 2020-12-355 | 2 | Philippines |
| J33C32 | 2020-12-336 | 4 | DE |
| J33C32 | 2020-10-289 | 63 | DIBBS |
| P9103NPPFS50160 | 2020-10-289 | 63 | DIBBS |
| P9103PPF50160 | 2020-10-289 | 63 | DIBBS |
| J33C32 | 2020-10-281 | 63 | DIBBS |
| P9103NPPFS50160 | 2020-10-281 | 63 | DIBBS |
| P9103PPF50160 | 2020-10-281 | 63 | DIBBS |
| J33C32 | 2020-02-43 | 25 | DIBBS |
| P9103NPPFS50160 | 2020-02-43 | 25 | DIBBS |
| P9103PPF50160 | 2020-02-43 | 25 | DIBBS |
| J33C32 | 2020-02-35 | 25 | DIBBS |
| P9103NPPFS50160 | 2020-02-35 | 25 | DIBBS |
| P9103PPF50160 | 2020-02-35 | 25 | DIBBS |
| 3110-01-019-4292 | 2020-01-29 | 2 | Philippines |
| J33C32 | 2019-07-196 | 22 | DIBBS |
| P9103NPPFS50160 | 2019-07-196 | 22 | DIBBS |
| P9103PPF50160 | 2019-07-196 | 22 | DIBBS |
| 3110-01-019-4292 | 2019-04-94 | 20 | United States |
| J33C32 | 2019-03-78 | 3 | DIBBS |
| P9103NPPFS50160 | 2019-03-78 | 3 | DIBBS |
| P9103PPF50160 | 2019-03-78 | 3 | DIBBS |
| 3110-01-019-4292 | 2018-06-158 | 2 | Georgia |
| 3110-01-019-4292 | 2013-07-206 | 6 | US |
| J33C32 | 2013-07-196 | 1 | US |
| J33C32 | 2013-02-57 | 1 | US |
| 3110-01-019-4292 | 2012-09-262 | 10 | US |
| 3110-01-019-4292 | 2012-09-261 | 4 | United States |
| 3110-01-019-4292 | 2011-04-91 | 252 | US |
| J33C32 | 2011-04-91 | 252 | US |
| 3110-01-019-4292 | 2011-02-41 | 2 | US |
| J33C32 | 2010-09-262 | 252 | South Korea |
| J33C32 | 2010-09-260 | 252 | US |
| J33C32 | 2008-10-293 | 10 | Colombia |
| 3110-01-019-4292 | 2008-10-276 | 2 | Chile |
| J33C32 | 2008-08-235 | 2 | us |
| J33C32 | 2008-06-154 | 32 | United States |
| J33C32 | 2008-02-47 | 2 | US |
| J33C32 | 2007-06-165 | 30 | Philippines |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-019-4292
Related Products | NSN 3110-01-019-4292
Technical Data | NSN 3110-01-019-4292
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E51100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 1008 RETAINER RUBBER SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | J33C32,89513 MFR REF SINGLE MATERIAL RESPONSE BALL J33C32,89513 MFR REF SINGLE MATERIAL RESPONSE INNER RING J33C32,89513 MFR REF SINGLE MATERIAL RESPONSE OUTER RING J33C32,89513 MFR REF SINGLE MATERIAL RESPONSE RETAINER J33C32,89513 MFR REF SINGLE MATERIAL RESPONSE SEAL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 10.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 17.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 35.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | LOOSE |
| MANUFACTURERS CODE | 72914 |
| MFR SOURCE CONTROLLING REFERENCE | J33C32 |
Restrictions/Controls & Freight Information | NSN 3110-01-019-4292
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 3110-01-019-4292
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BA | UH-1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | HL | TG:TH-1H SUPT HELICOPTER |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
