NSN 3110-01-029-0792 M81793/16-JB7CXN1E1, M81793/16-JB9CXN1E1, M8179316JB7CXN1E1

Product Details | ANNULAR BALL BEARING

3110-01-029-0792 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: M81793/16-JB7CXN1E1, M81793/16-JB9CXN1E1, M8179316JB7CXN1E1, M8179316JB9CXN1E1, S5632FMCKHHE7P25LY167, MIL-B-81793/16, MILB8179316, 605-059-005, 3110-01-029-0792, 01-029-0792, 3110010290792, 605059005, 010290792

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	16 OCT 1976	01-029-0792	00014 ( BEARING, BALL, ANNULAR )

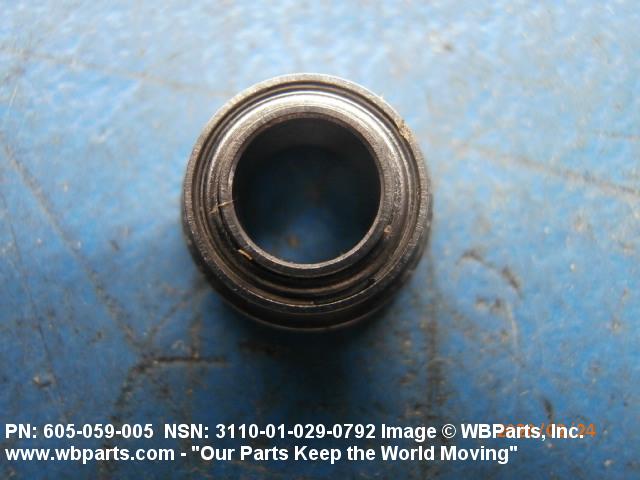

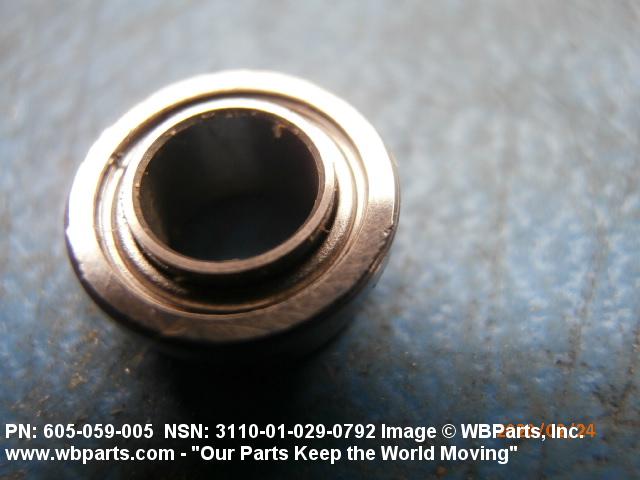

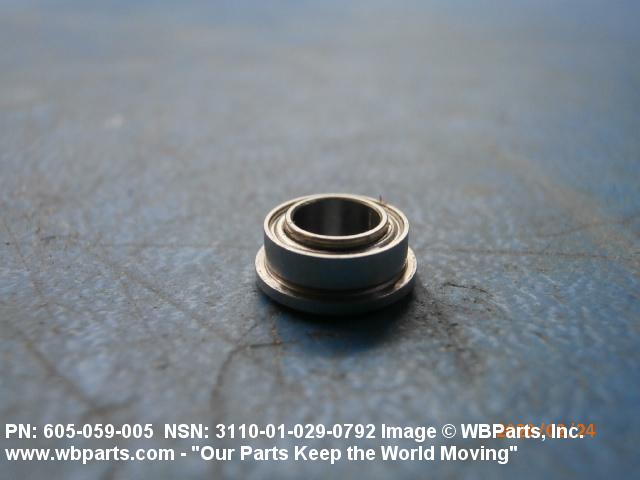

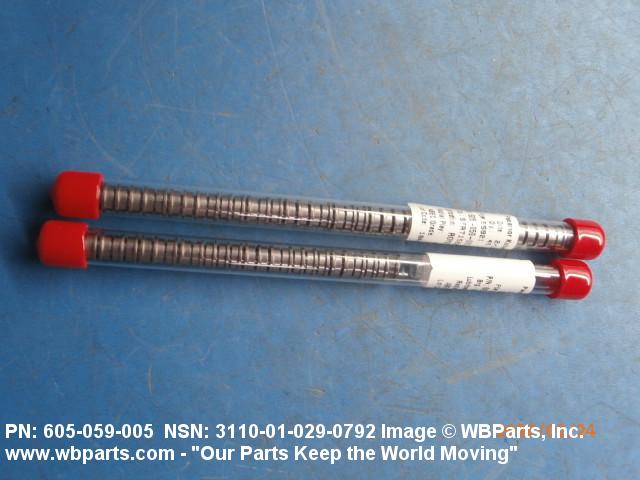

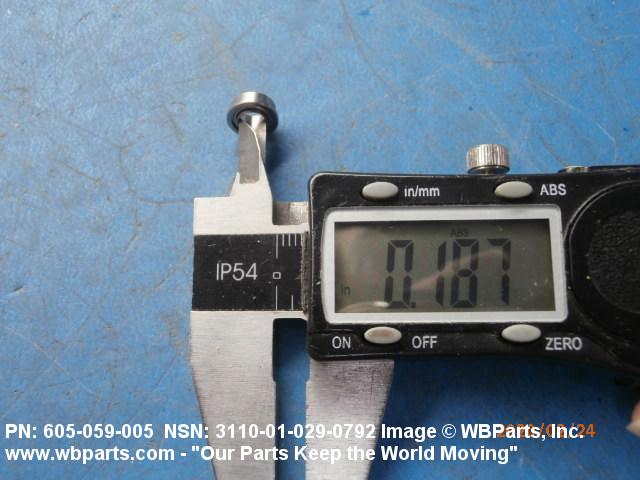

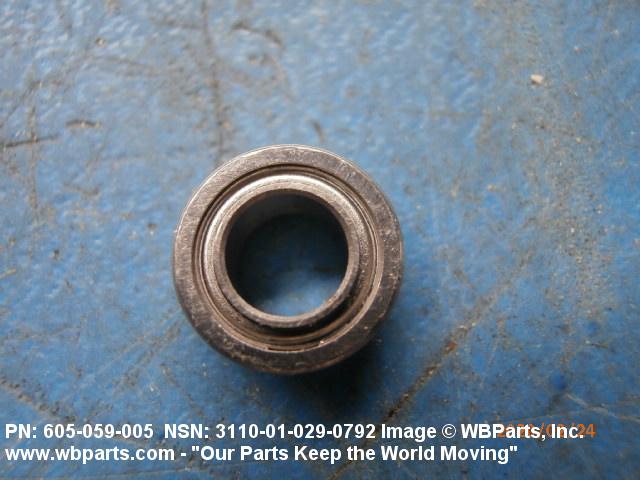

Drawings & Photos | NSN 3110-01-029-0792

Part Number	Request Date	QTY	Origin
605059005	2025-03-65	65	US
3110-01-029-0792	2024-05-135	178	DIBBS
3110-01-029-0792	2022-05-145	343	DIBBS
3110-01-029-0792	2022-05-131	78	DIBBS
3110-01-029-0792	2022-03-79	100	DIBBS
3110-01-029-0792	2021-10-280	78	DIBBS
3110-01-029-0792	2021-04-95	265	DIBBS
3110-01-029-0792	2021-03-87	265	DIBBS
3110-01-029-0792	2020-02-35	73	United States
3110-01-029-0792	2017-09-249	524	DIBBS

Cross Reference | NSN 3110-01-029-0792

Part Number	Cage Code	Manufacturer
605-059-005	26055	PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION
605-059-005	59211	PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY
M81793/16-JB7CXN1E1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81793/16-JB9CXN1E1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81793/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S5632FMCKHHE7P25LY167	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-029-0792

Compare

Related Products | NSN 3110-01-029-0792

3110-01-029-0793, 3110-01-029-0796, 3110-01-029-0927, 3110-01-029-0928, 3110-01-029-1161

Technical Data | NSN 3110-01-029-0792

Characteristic	Specifications
MATERIAL	STEEL COMP 440A BALL STEEL COMP 440A INNER RING STEEL COMP 440A OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE RETAINER STEEL COMP 440A SHIELD
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD SINGLE MATERIAL RESPONSE BALL AISI ASSN STD SINGLE MATERIAL RESPONSE INNER RING AISI ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AISI ASSN STD SINGLE MATERIAL RESPONSE SHIELD
STYLE DESIGNATOR	16A NON-LOADING GROOVE, NON-SEPARABLE
BORE DIAMETER	0.1875 INCHES NOMINAL

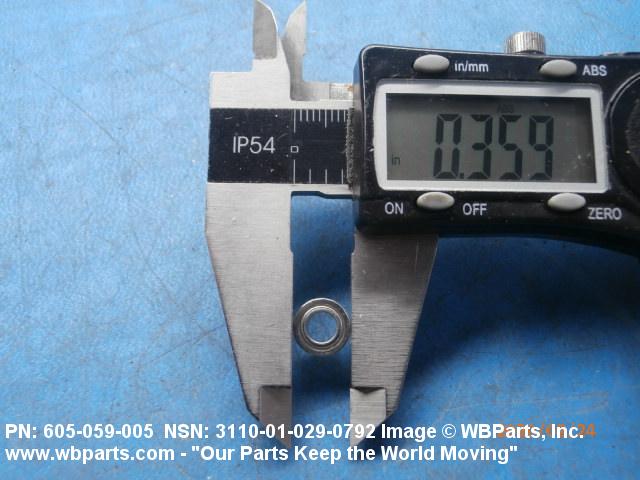

FLANGE OUTSIDE DIAMETER	0.3590 INCHES NOMINAL

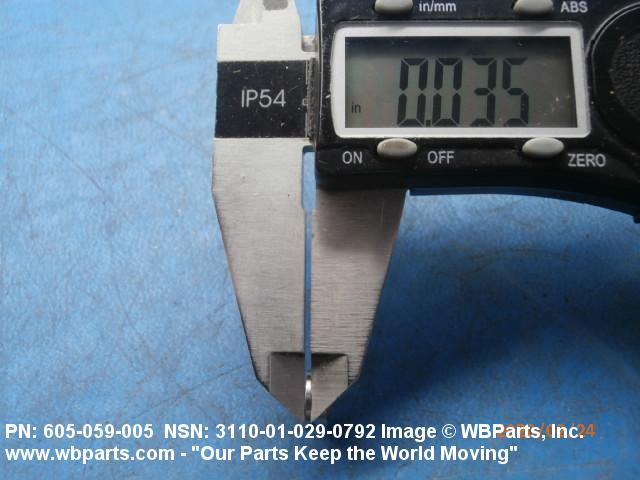

FLANGE WIDTH	0.0360 INCHES NOMINAL

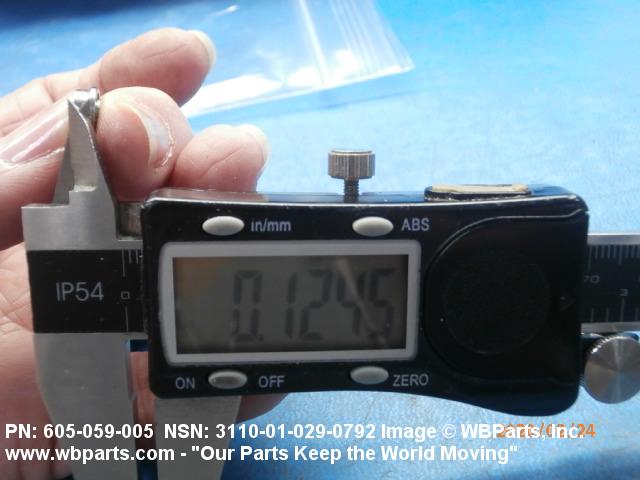

OUTER RING WIDTH	0.1250 INCHES NOMINAL
INNER RING WIDTH	0.1562 INCHES NOMINAL

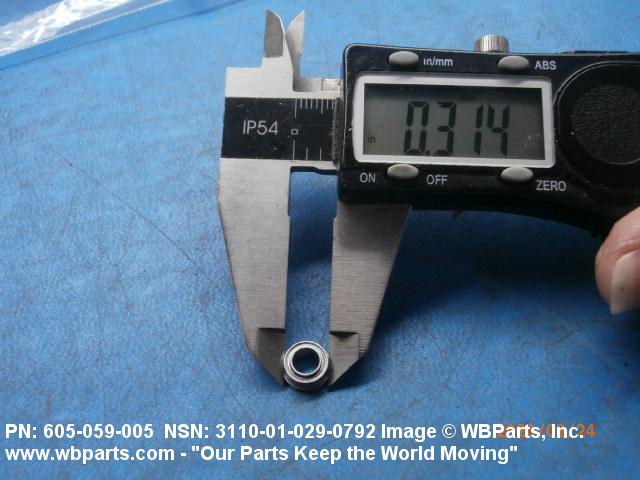

OUTER RING OUTSIDE DIAMETER	0.3125 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO. 7P
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	MOLDED
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-B-81793/16
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M81793/16-JB9CXN1E1

Restrictions/Controls & Freight Information | NSN 3110-01-029-0792

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-029-0792

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
