NSN 3110-01-030-4306 PAM9107NPPA2702, PAM9107NPP-A2702, PAM9107NPPC1A2702S8
Product Details | ANNULAR BALL BEARING
3110-01-030-4306 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: PAM9107NPPA2702, PAM9107NPP-A2702, PAM9107NPPC1A2702S8, 204040623005, 204-040-623-005, 204040623111, 204-040-623-111, 2040406235, 204-040-623-5, 3HKTZZ107205, 3HKTZZ107-205, 3110-01-030-4306, 01-030-4306, 3110010304306, 010304306
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 NOV 1976 | 01-030-4306 | 00014 ( BEARING, BALL, ANNULAR ) |

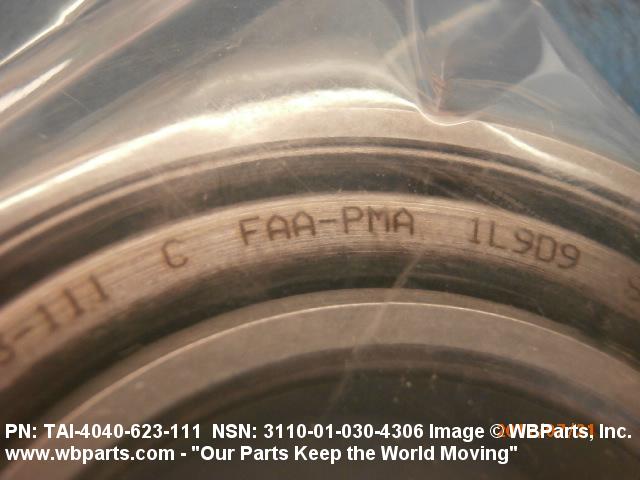

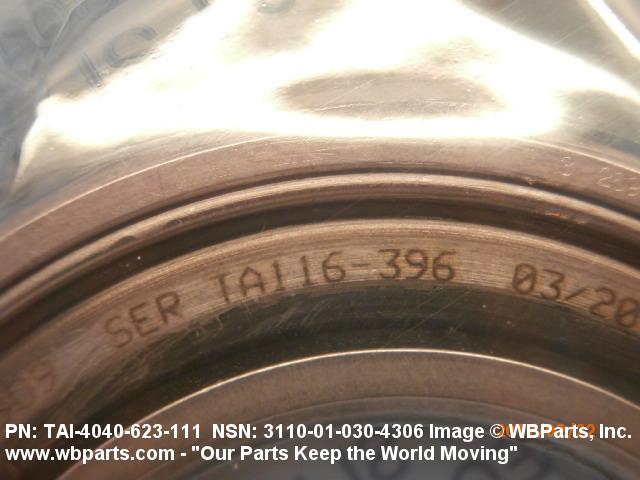

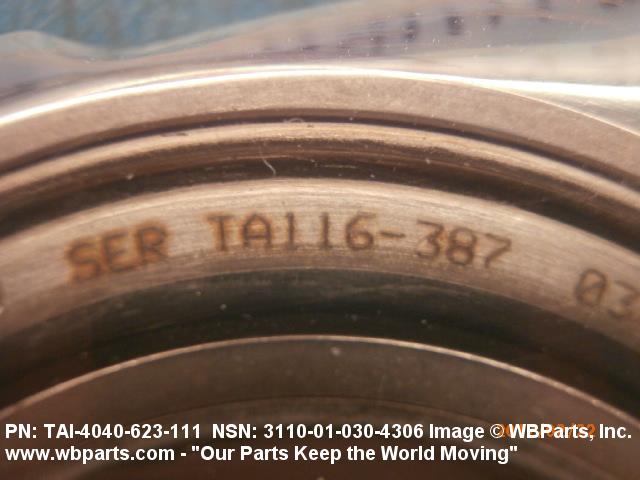

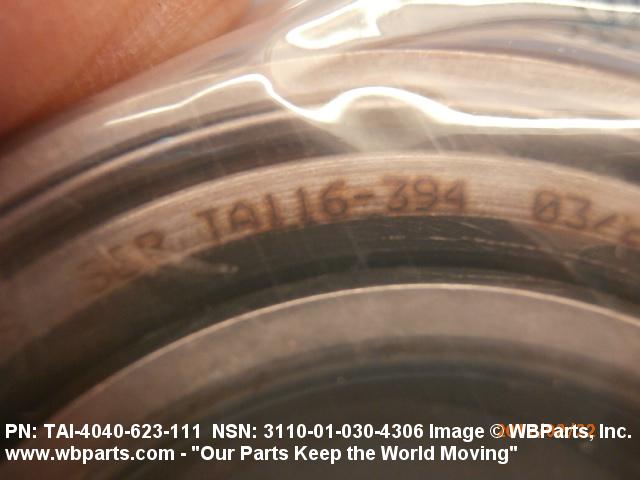

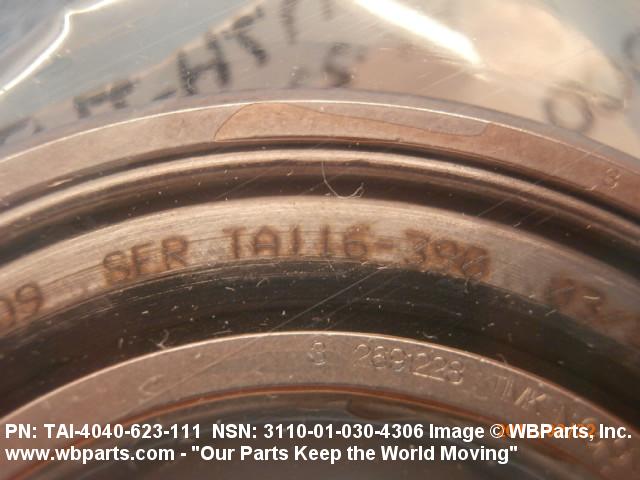

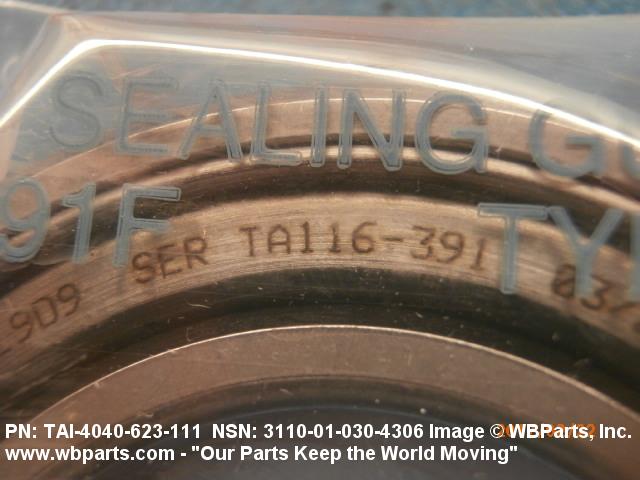

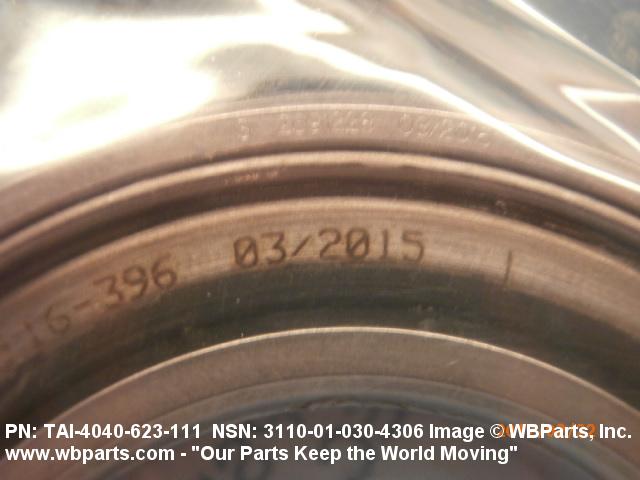

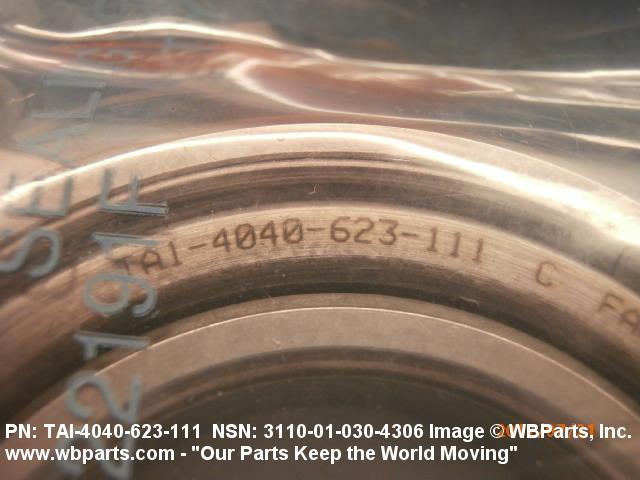

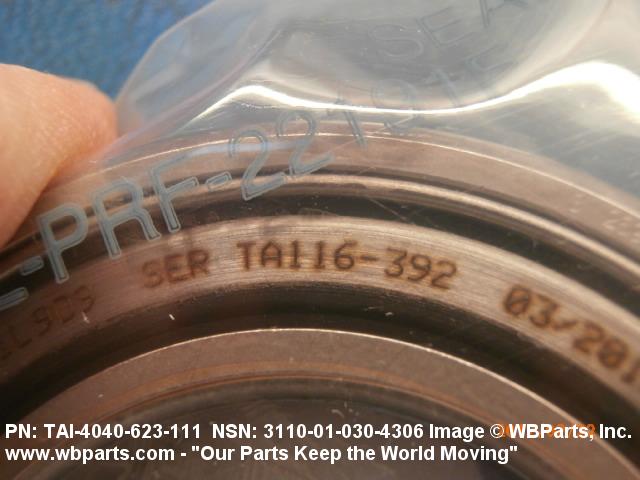

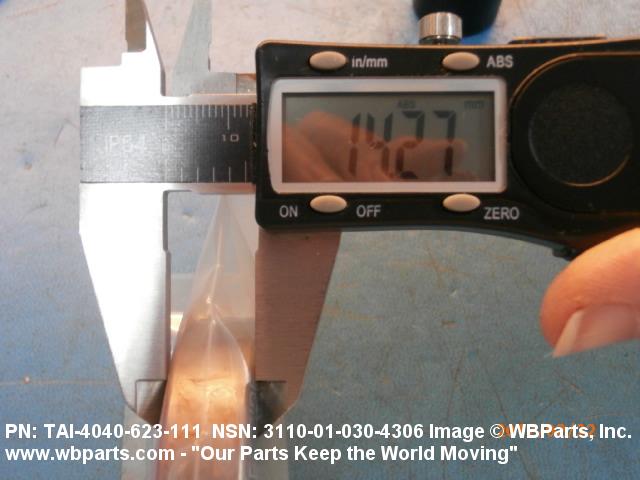

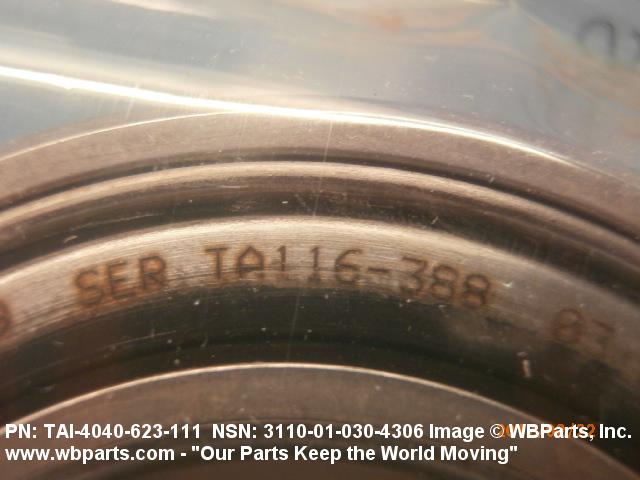

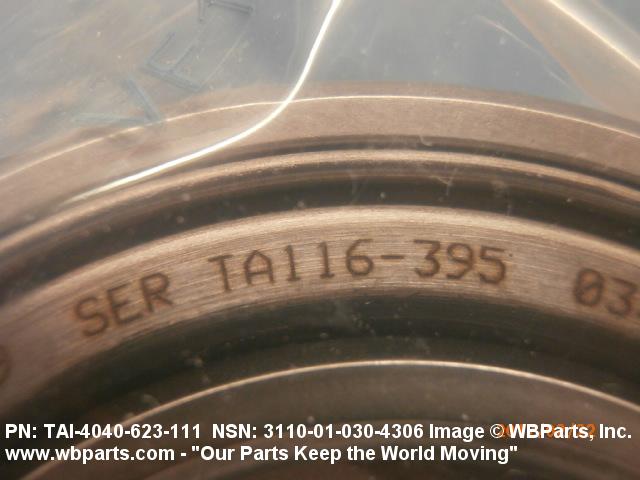

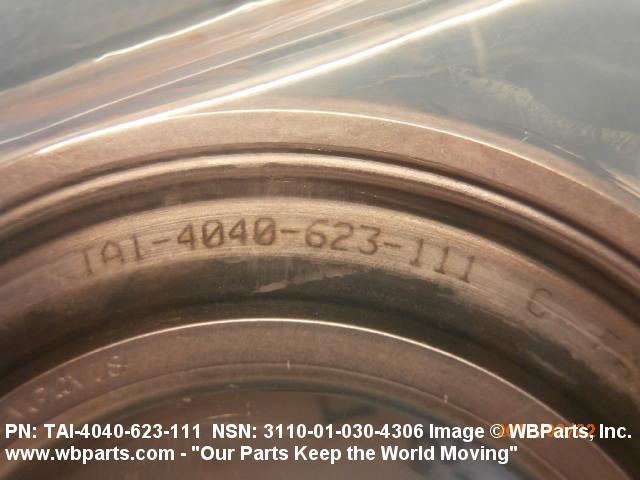

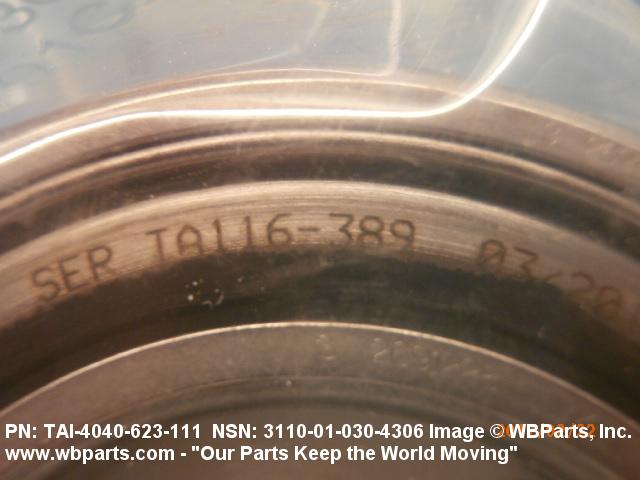

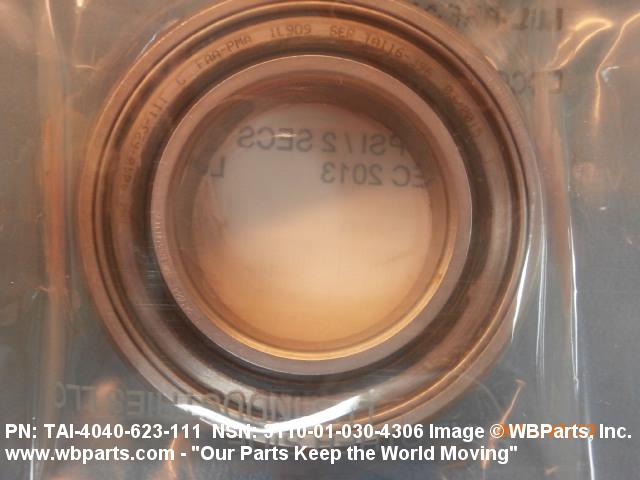

Drawings & Photos | NSN 3110-01-030-4306
Demand History | NSN 3110-01-030-4306
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-030-4306 | 2025-08-235 | 30 | PK |
| 204040623111 | 2025-04-91 | 2 | US |
| 3110-01-030-4306 | 2025-03-85 | 3 | Chile |
| 3110-01-030-4306 | 2024-03-73 | 42 | El Salvador |
| 204040623111 | 2024-02-58 | 30 | US |
| 3110-01-030-4306 | 2024-01-05 | 50 | Turkey |
| 3110-01-030-4306 | 2023-12-339 | 5 | United Arab Emirates |
| 3110-01-030-4306 | 2023-12-338 | 4 | US |
| 3110-01-030-4306 | 2023-10-283 | 5 | US |
| 2040406235 | 2023-08-219 | 74 | AE |
| 2040406235 | 2023-07-209 | 1 | US |
| 3110-01-030-4306 | 2023-07-206 | 1 | us |
| 3110-01-030-4306 | 2023-05-144 | 30 | ID |
| 3110-01-030-4306 | 2023-03-60 | 74 | us |
| 3110-01-030-4306 | 2023-01-24 | 74 | US |
| 3110-01-030-4306 | 2021-05-130 | 50 | United States |
| 3110-01-030-4306 | 2020-12-365 | 53 | QA |
| 3110-01-030-4306 | 2020-12-344 | 40 | UK |
| 2040406235 | 2020-10-286 | 60 | US |
| 2040406235 | 2020-06-171 | 2 | KE |
| 3110-01-030-4306 | 2020-05-143 | 2 | Philippines |
| 3110-01-030-4306 | 2020-05-143 | 2 | Philippines |
| 3110-01-030-4306 | 2020-04-99 | 4 | Philippines |
| 3110-01-030-4306 | 2020-01-29 | 6 | Philippines |
| 3110-01-030-4306 | 2019-08-225 | 11 | Greece |
| 3110-01-030-4306 | 2019-08-219 | 65 | US |
| 3110-01-030-4306 | 2019-07-203 | 31 | United States |
| 3110-01-030-4306 | 2019-06-171 | 4 | CR |
| 3110-01-030-4306 | 2019-04-93 | 4 | CR |
| 204040623005 | 2018-12-340 | 3 | United States |
| 3110-01-030-4306 | 2018-11-318 | 40 | Lebanon |
| 3110-01-030-4306 | 2018-10-275 | 20 | Lebanon |
| 3110-01-030-4306 | 2018-08-232 | 5 | US |
| 2040406235 | 2018-08-218 | 73 | PK |
| 3110-01-030-4306 | 2017-11-313 | 300 | AE |
| 3110-01-030-4306 | 2017-10-275 | 24 | BA |
| 3110-01-030-4306 | 2017-09-272 | 5 | Ukraine |
| 3110-01-030-4306 | 2017-08-216 | 7 | Georgia |
| 3110-01-030-4306 | 2017-08-215 | 7 | Georgia |
| 3110-01-030-4306 | 2017-06-169 | 4 | Iran |
| 204040623111 | 2017-06-167 | 25 | LB |
| 3110-01-030-4306 | 2017-06-165 | 25 | Lebanon |
| 204040623005 | 2017-06-165 | 20 | DE |
| 3110-01-030-4306 | 2017-04-118 | 7 | US |
| 3110-01-030-4306 | 2017-04-118 | 7 | US |
| 3110-01-030-4306 | 2017-04-117 | 7 | GE |
| 3110-01-030-4306 | 2017-04-102 | 5 | CR |
| 3110-01-030-4306 | 2017-04-101 | 2 | US |
| 3110-01-030-4306 | 2017-02-39 | 10 | Lebanon |
| 204040623111 | 2016-09-253 | 4 | United States |
| 3110-01-030-4306 | 2015-11-328 | 27 | Taiwan |
| 3110-01-030-4306 | 2015-08-218 | 4 | United States |
| 3110-01-030-4306 | 2015-03-65 | 561 | KR |
| 204040623111 | 2014-11-316 | 20 | United States |
| 204040623111 | 2014-02-58 | 4 | US |
| 3110-01-030-4306 | 2013-09-258 | 25 | BR |
| 3110-01-030-4306 | 2013-09-256 | 3 | Taiwan |
| 3110-01-030-4306 | 2013-08-221 | 3 | TW |
| 3110-01-030-4306 | 2013-06-154 | 8 | US |
| 204040623005 | 2013-05-148 | 4 | United States |
| 204040623111 | 2013-05-148 | 4 | United States |
| 3110-01-030-4306 | 2013-05-129 | 3 | United Kingdom |
| 3110-01-030-4306 | 2013-04-94 | 4 | Philippines |
| 3110-01-030-4306 | 2013-02-58 | 3 | Seychelles |
| 204040623111 | 2012-06-180 | 1 | Philippines |
| 3110-01-030-4306 | 2012-05-128 | 25 | Lebanon |
| 3110-01-030-4306 | 2012-04-108 | 6 | US |
| 2040406235 | 2012-02-42 | 1 | PE |
| 3110-01-030-4306 | 2011-10-284 | 4 | Taiwan |
| 3110-01-030-4306 | 2011-05-151 | 50 | United States |
| 204040623111 | 2011-05-147 | 30 | AR |
| 3110-01-030-4306 | 2011-05-143 | 50 | US |
| 204040623005 | 2011-05-140 | 10 | Taiwan |
| 3110-01-030-4306 | 2011-05-137 | 50 | Turkey |
| 3110-01-030-4306 | 2011-02-40 | 10 | GR |
| 3110-01-030-4306 | 2011-01-25 | 41 | US |
| 3110-01-030-4306 | 2011-01-11 | 50 | TR |
| 3110-01-030-4306 | 2010-12-349 | 5 | US |
| 204040623111 | 2010-12-335 | 13 | US |
| 3110-01-030-4306 | 2010-10-298 | 801 | United States |
| 2040406235 | 2010-10-291 | 801 | US |
| 204040623111 | 2010-09-271 | 3 | OM |
| 3110-01-030-4306 | 2010-08-224 | 84 | Taiwan |
| 3110-01-030-4306 | 2010-08-221 | 100 | Taiwan |
| 2040406235 | 2010-07-202 | 85 | Seychelles |
| 2040406235 | 2010-07-201 | 85 | US |
| 3110-01-030-4306 | 2010-05-151 | 150 | Seychelles |
| 3110-01-030-4306 | 2010-04-106 | 165 | US |
| 204040623111 | 2009-10-274 | 10 | US |
| 204040623111 | 2009-07-187 | 4 | BA |
| 204040623111 | 2009-05-126 | 100 | IT |
| 204040623111 | 2009-03-82 | 36 | Argentina |
| 204040623111 | 2009-03-72 | 36 | Argentina |
| 3110-01-030-4306 | 2009-02-55 | 4 | Philippines |
| PAM9107NPPA2702 | 2009-02-40 | 60 | United States |
| 3110-01-030-4306 | 2009-01-22 | 150 | Canada |
| 3110-01-030-4306 | 2008-10-289 | 85 | United States |
| 3110-01-030-4306 | 2008-08-240 | 100 | DE |
| 204040623111 | 2008-08-225 | 36 | Argentina |
| 204040623111 | 2008-08-220 | 36 | Argentina |
| 204040623005 | 2008-06-179 | 76 | United States |
| 204040623111 | 2008-06-156 | 12 | Argentina |
| 204040623111 | 2008-06-156 | 36 | Argentina |
| 3110-01-030-4306 | 2008-05-122 | 4 | us |
| 3110-01-030-4306 | 2008-03-87 | 350 | DIBBS |
| 204040623111 | 2008-03-71 | 4 | Indonesia |
| PAM9107NPPA2702 | 2008-03-64 | 4 | US |
| 204040623111 | 2008-02-32 | 24 | Malaysia |
| 2040406235 | 2006-05-151 | 4 | us |
| 2040406235 | 2006-05-151 | 40 | Netherlands |
| 2040406235 | 2006-04-108 | 1 | US |
| 2040406235 | 2006-04-94 | 10 | Philippines |
Cross Reference | NSN 3110-01-030-4306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-040-623-005 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-040-623-111 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-040-623-5 | 78118 | MPB CORPORATION DBA TIMKEN AEROSPACE |
| 204-040-623-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 3HKTZZ107-205 | 78118 | MPB CORPORATION DBA TIMKEN AEROSPACE |
| PAM9107NPP-A2702 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| PAM9107NPPC1A2702S8 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-030-4306
Related Products | NSN 3110-01-030-4306
Technical Data | NSN 3110-01-030-4306
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING STEEL COMP 1008 RETAINER RUBBER AND STEEL COMP 1008 SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 440C ASSN STD SINGLE MATERIAL RESPONSE BALL AISI 440C ASSN STD SINGLE MATERIAL RESPONSE INNER RING AISI 440C ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AISI C1008 ASSN STD SINGLE MATERIAL RESPONSE RETAINER 204-040-623-5,97499 MFR REF SINGLE MATERIAL RESPONSE AND AISIC1008 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 14.0 MILLIMETERS NOMINAL |

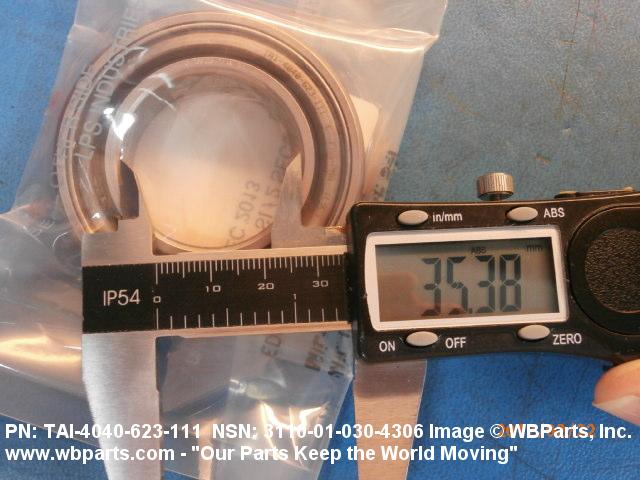

| BORE DIAMETER | 35.0 MILLIMETERS NOMINAL |

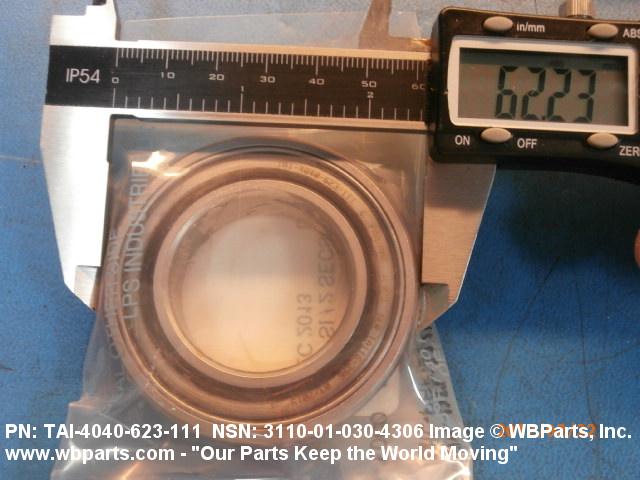

| OVERALL OUTSIDE DIAMETER | 62.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.3 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0008 INCHES MINIMUM RADIAL AND 0.0012 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | LUBRICATE W/2.00GM PORM 0.25GM OFSPECIFIED LUBRICANT |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 204-040-623-5 |
Restrictions/Controls & Freight Information | NSN 3110-01-030-4306
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-030-4306
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
